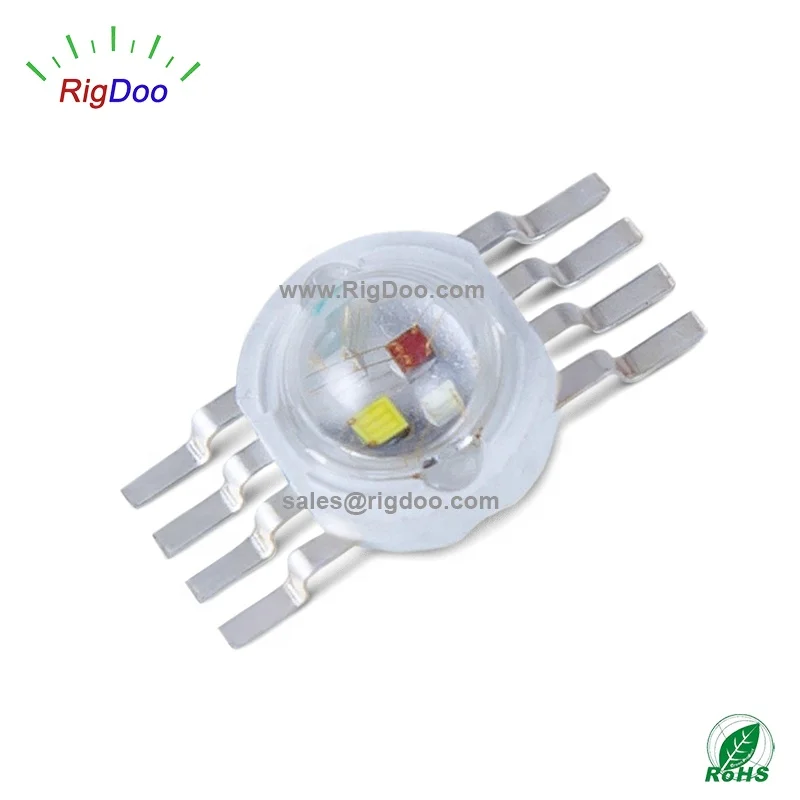

8 Pin SMD LED 4W RGBW LED Diode Chip 1W each Color HIgh Power Red Green Blue White 4 in 1 Light Emitting Diode
- Category: >>>
- Supplier: Shenzhen Rigdoo Optoelectronics Co. Ltd.
Share on (60729750911):
Product Overview
Description
Quick Details
| Size: | 14.5x8x5.1 mm |
| Certificates: | RoHS, CE |
| Reverse Voltage: | 5v |
| Working Time (hours): | 50000 |
| Optical Attenuation(%): | 0.01 |
| Emitting Color: | RGBW |
| Storage Temperature(℃): | -40 - 85 |
| Luminous Flux(lm): | R:60lm, G:90lm; B:20lm; W:106lm |
| Main Material 2: | Pure Copper Stand |
| Luminous Efficacy(lm/w): | 110 |
| DC Forward Current: | 350mAx4 |
| Chip Material: | AlGaInP |
| Operating Temperature(℃): | -40 - 100 |
| Lighting solutions service: | Lighting and circuitry design,DIALux evo layout,LitePro DLX layout,Agi32 layout,auto CAD layout,Onsite metering,Project Installation |
| Place of Origin: | Guangdong China |
| Color Temperature: | RGBW 4 in 1 |
| Color: | RGBW |
| Model Number: | RD-ILRGBW4W |
| Main Material 1: | Gold Wire |
| Certification: | ce,RoHS |
| Luminous Intensity: | R:60lm, G:90lm; B:20lm; W:106lm |
| Brand Name: | RigDoo |
| Viewing Angle(°): | 140 |
| Power Dissipation: | 0 |
| Type: | High Power LED |
| Color Rendering Index(Ra): | 80 |
| Certificates 2: | ISO9001, ISO14001 |
| Lifespan (hours): | 50000 |
| Peak Forward Current: | 450mAx4 |
| Power: | R:1w, G:1w; B:1w; W:1w |
| Packaging Detail: | 50 pieces in a small tube; 10 small tubes in an anti-static bag; |
| Selling Units: | Single item |
| Single package size: | 50X2X2 cm |
| Single gross weight: | 0.001 KG |
