TDG60 Portable Line Boring Machine For Sale Made By JOYSUNG No Climax BB5000
- Category: >>>
- Supplier: Shenzhen DTH Machines Co. Ltd.
Share on (60729767478):
Product Overview
Description
JOYSUNG Portable Line Boring Machines provides boring diameters from 35 to 2000mm(1.25 to 80 inches) ,and can give machine shop accuracy tolerances ,lightweight and modular design makes it easy to set-up so you can get your job done fast. Many configurations are possible by choosing, different bar length, mounting brackets and facing head, and drive power unit(including electric, servo,hydraulic or pneumatic motor) .These machines also can share the same mounting system with Auto Bore Welding Systems for single setup machining and welding on site.Extremely compact for ease of use in cramped, tight work spaces.Drive & Feed can be mounted between bearings for use in even more confined spaces.
Detailed Images

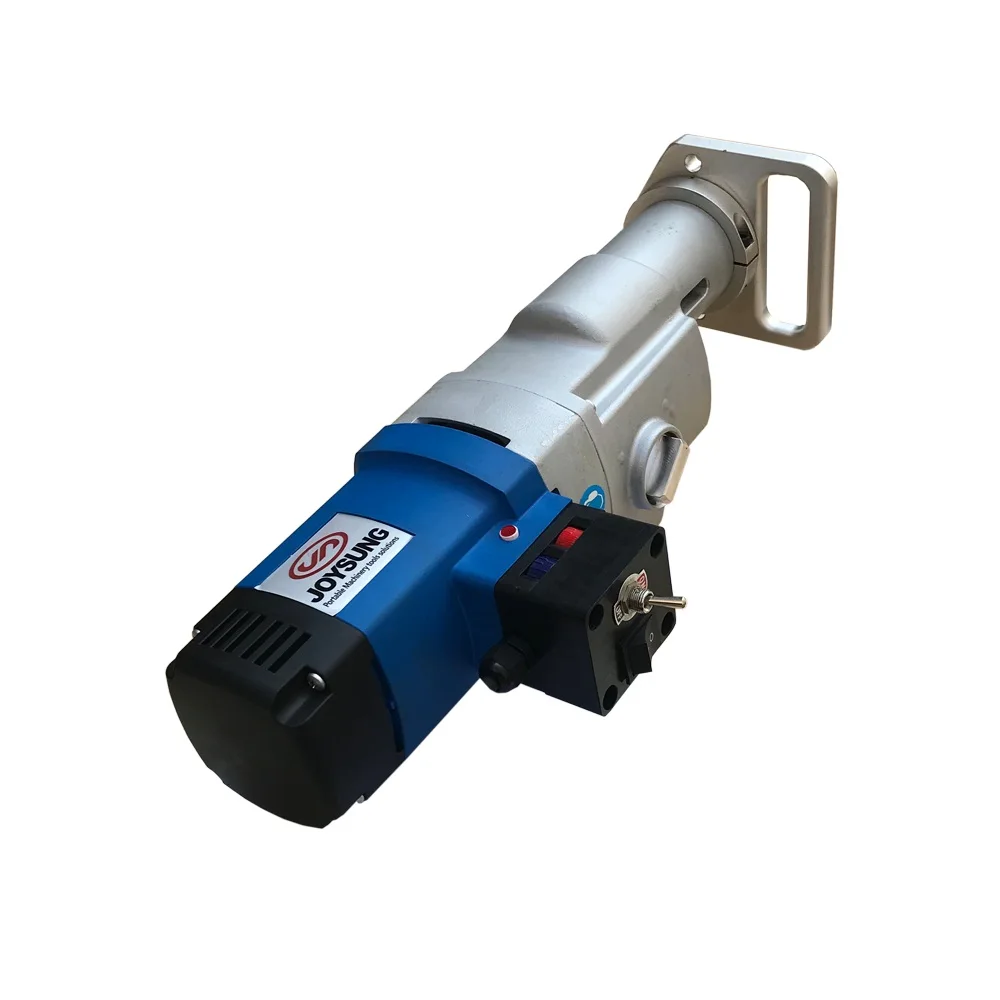

Electric Motor ( Made by Germany)
Electric motor : 2300 W , 110V / 230V, 50 / 60HZ (Made in Germany,Eibenstock). We are Germany's brand Eibenstock agent in China, single agent. If you want more information please confirm JOYSUNG.

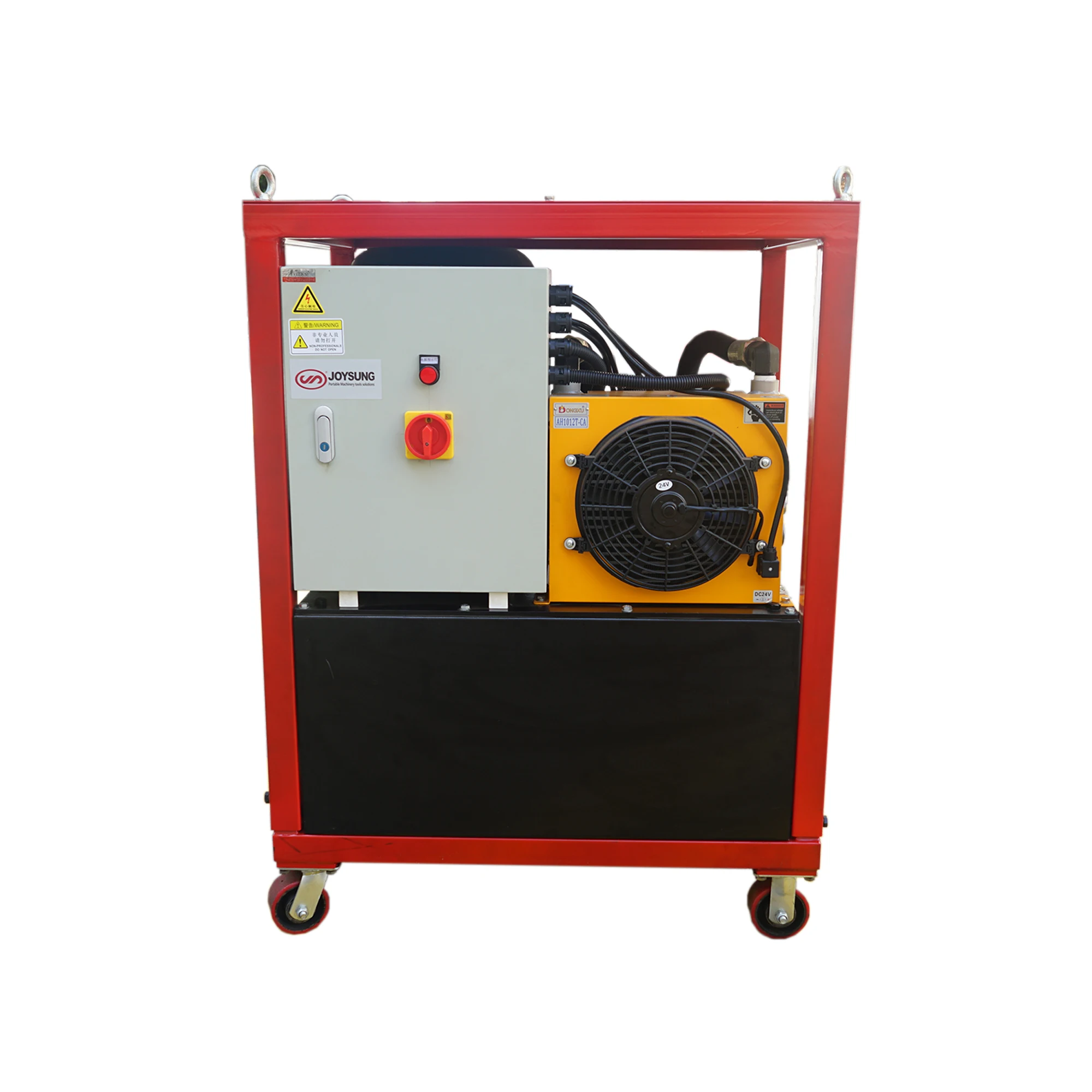

Hydraulic Power Unit
Single output, 15HP(11KW), 380V, 38L/min,BG100 Hydraulic motor , 10m *2 hydraulic tube.
Single output, 25HP(18KW), 380V, 38L/min,BG100 Hydraulic motor , 10m *2 hydraulic tube.

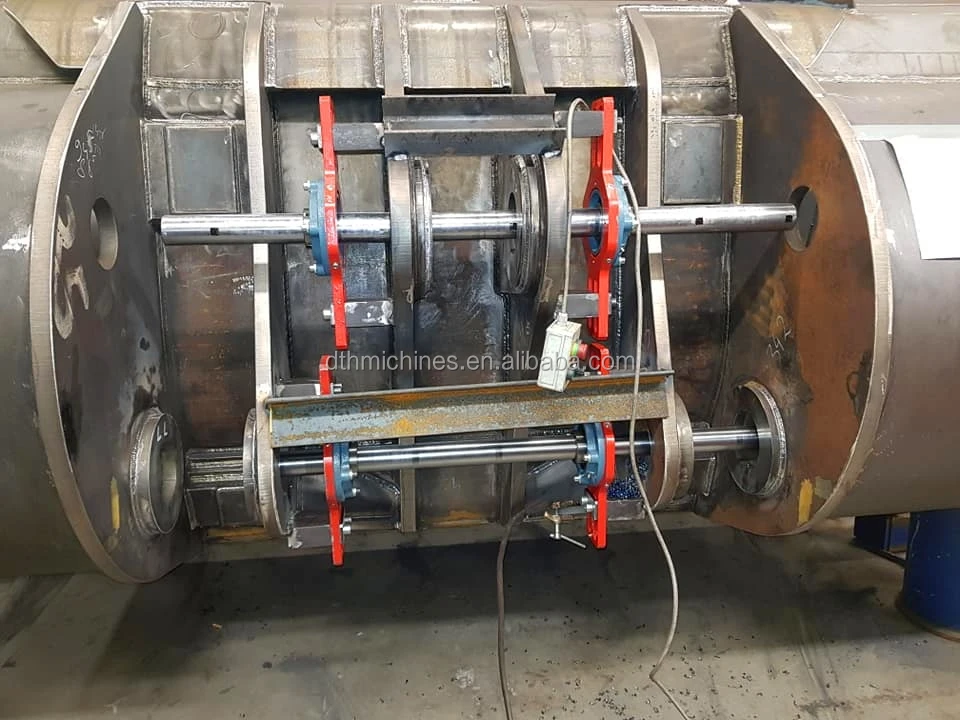

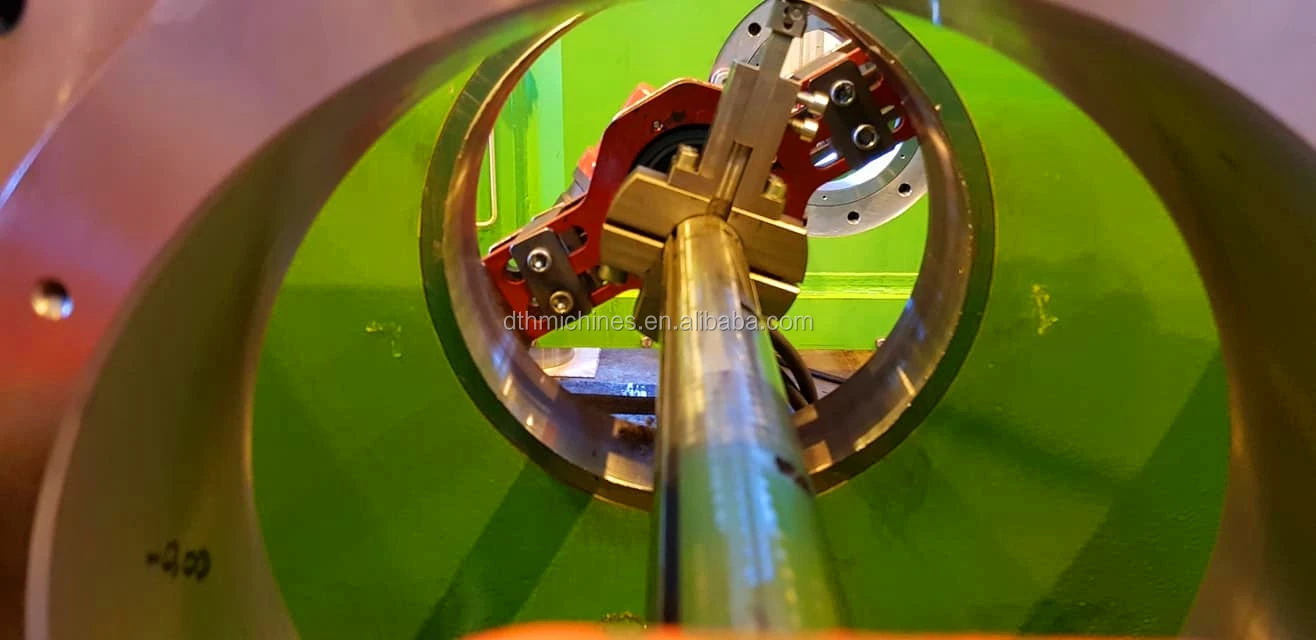

Boring hole

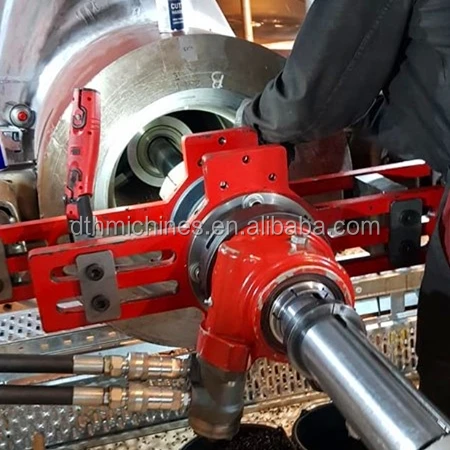

Specially designed mounting brackets, spherical bearings, self-centering setup cones, and movable rotational drive and feed units simplify setup and allow the tools to work in spaces too tight for most line boring machines.

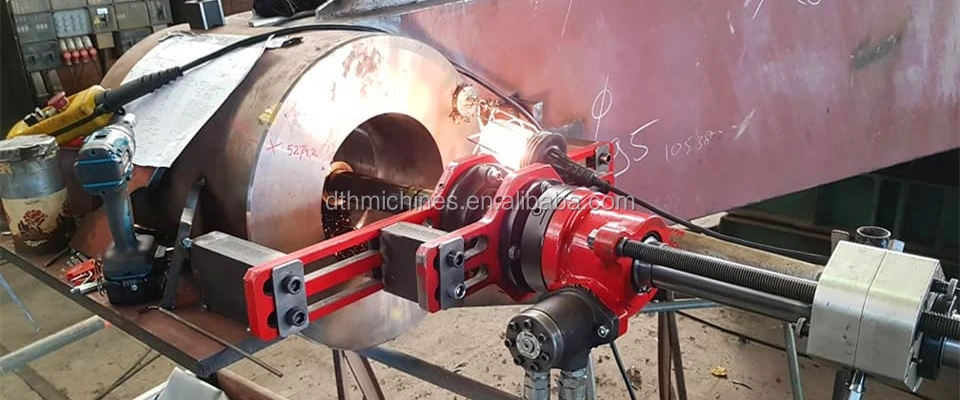

Connect with auto bore welder
Every type of portable line boring machines also can share the same mounting system with auto bore welding systems for single setup machining and welding on site.

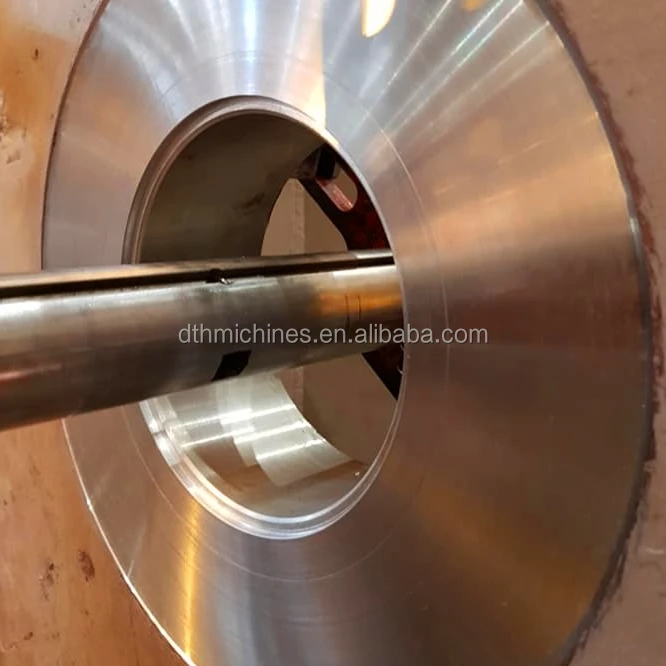

Machining of end flanges
Extend the versatility of your portable boring machine by adding our combination Facing Head.This popular accessory is designed for easy set-up and operation, and a high level of accuracy and precision.
JOYSUNG the best portable line boring machine, is widely used in these industries: Construction, Mining, Power Generation, Ship building, Transportation, Petrochemical, Pulp and paper, Steel and aluminum. Multiple functions can suit for every situation: Heavy equipment repair, Stern tube boring, Wicket gate repair on dams, Bridge building/re-building, Turbine coupling boring, Engine block repair, Bearing seat repair, Press repair, Valve body boring, Pump body boring, Large fab bore alignment.
Manufacturer | JOYSUNG&DTHMACHINES |
Boring Diameter | 65-600mm (Standard) / 35-600mm(Optional) |
Facing Diameter | 80-380mm/150-650mm |
Welding Stroke | 280mm/400mm |
Model | TDG60 |
Power Unit | Electric Power: 2300W Hydraulic Power: 18.5KW,BG100,380V, 60L/MIN 11KW, BW100, 380V, 38L/MIN |
Feed Rate | 0-0.5mm/rev |
