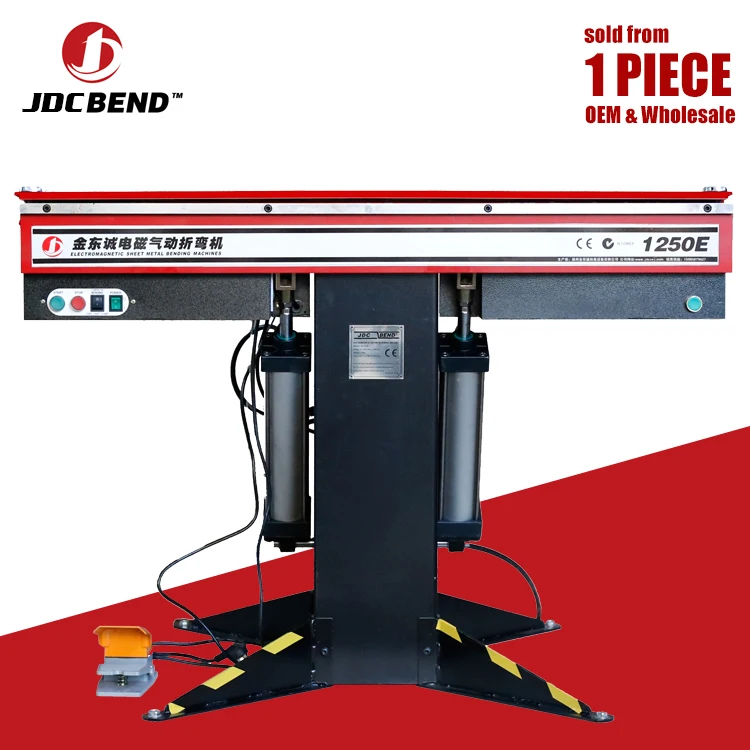

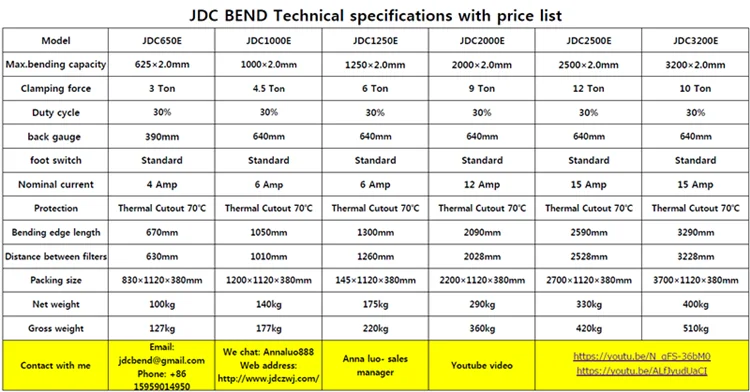

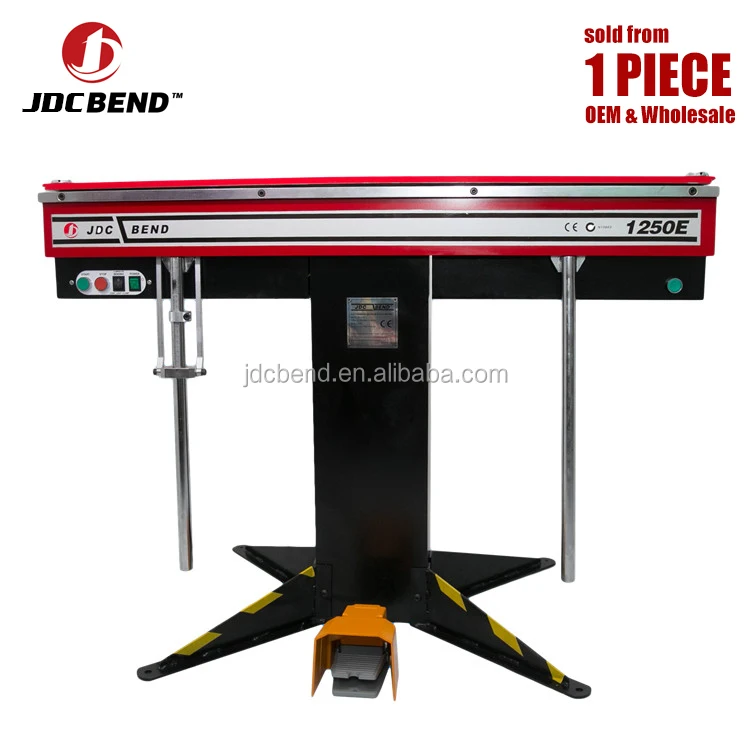

JDC 1250E High-performance electromagnetic sheet metal folder Specifications
Nominal capacity 1250 mm x 1.6 mm (4ft x 16g)15 to 635 mm
48” (4-foot) length with a maximum capacity of 16 gauge mild steel.
Clamping force (with standard full-length clamp bar) 6 Tons is consistent across the entire beam, allowing for crisp bends even in the middle of the brake.
Recommended for "HVAC shops, Tech schools, industrial art shops, and general sheet metal fabrication shops.

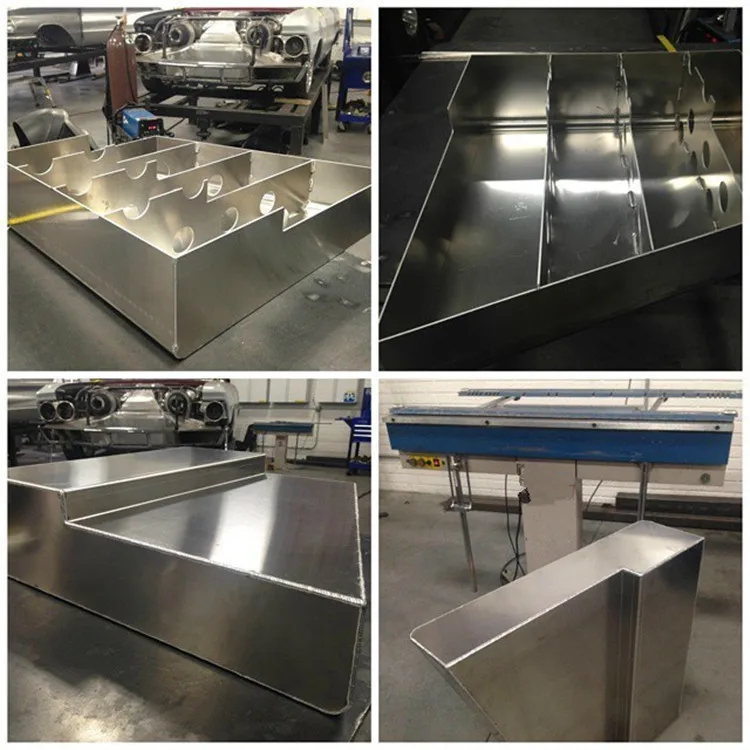

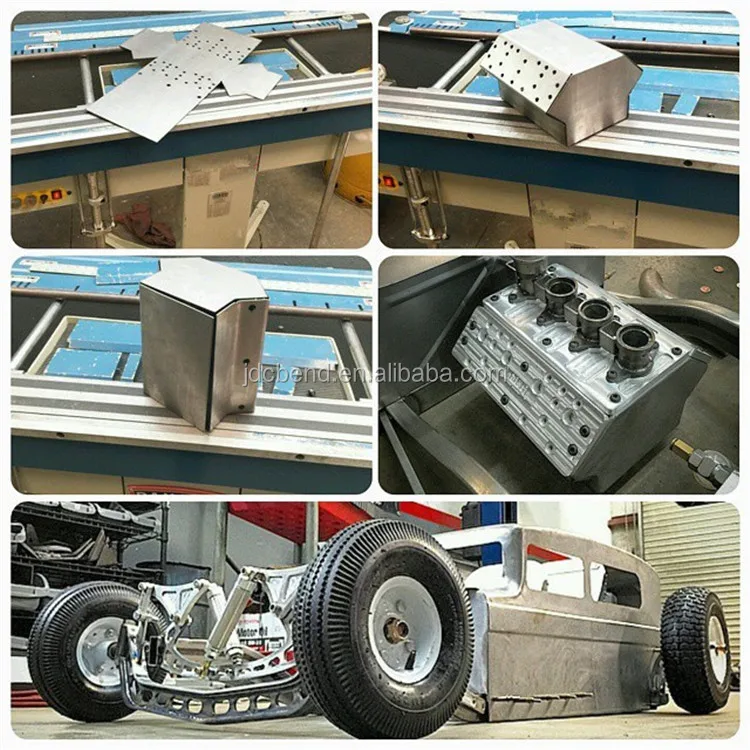

Making enclosed boxes, triangles, alternate bends on varying planes, and round items such as scrolling applications.
Bending a variety of materials, including sheets of mild steel, stainless steel, aluminum, coated materials, heated plastics, and more."
Electrical Supply: 1 phase, 220/240 Vac and will work at virtually any site.
Shipping dimensions 1.41m x 0.38m x 0.32m = 0.17m3
GW/NW 180/150kg
Blade gap adjustment Blade gap adjustment on the clamping bars lets you work with sheet metal of different thicknesses.
adjustable back gauges Come with product supports and adjustable back gauges for production runs.
Scaled stroke angle control lets you deliver repeatable bends time after time.
Notes Capacities can change depending on set up leaf extension. Rule of thumb for mild steel, 16ga., extension OFF. 18ga. extension On or Off, 20ga. and thinner, extension On.
Easy operation "1. Put a piece of material between the clamping bar to the depth required.
2. Engage the powerful magnet in the bending bed with push-button control.
3. Hit the foot pedal that softly clamps the material. This foot control keeps your fingers safely out of the machine and you to reposition the material.
4. Lift the bottom bending leaf to complete the bend and repositioned ready for another bend."
open-ended design
1. allows you to create fully enclosed ducts and shapes impossible to make with a traditional box and pan brake. 2. JDC BEND electromagnetic sheet metal brake can bend boxes or pans to almost any depth since it isn't reliant on conventional finger depths.
Standard accessories include a storage tray, adjustable backstops, A full-length clamp-bar, and a complete set of short-length clamp-bars.
Optional accessories available for these models include a narrow clamp bar, a slotted clamp bar for forming shallow boxes more quickly
Special tooling Special tooling can be quickly improvised from pieces of steel to help fold-up difficult shapes, and for production work, the standard clamp bars can be replaced by specialized tooling
Operator Safety Operator Safety is enhanced by a two-handed electrical interlock that ensures a safe pre-clamping force is applied before full clamping occurs.
With standard bending-beam extension fitted
For most non-ferrous metals (copper, brass, zinc, etc) refer to aluminum above.
1-year parts warranty as well as lifetime technical support by phone wechat/what's app: 15959014950
specifications subject to change without notice.

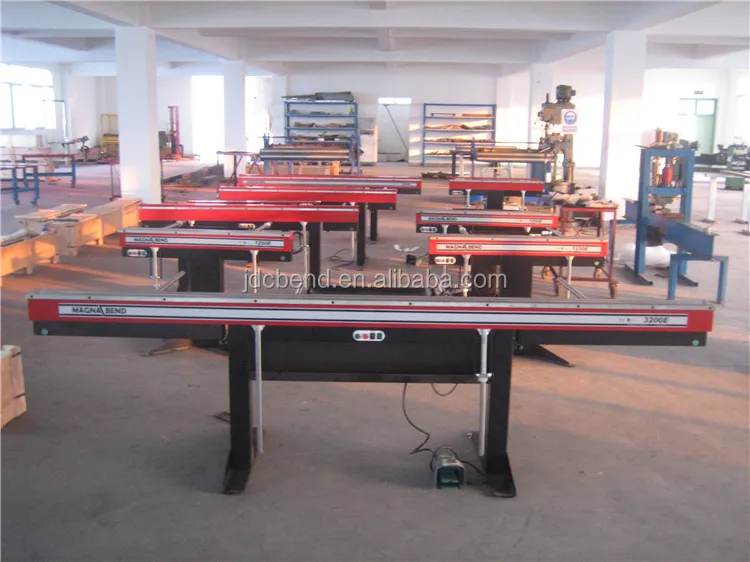

Every JDC BEND model have in stock, We can arrange to ship to you ASAP
We are a professional Magnetic sheet metal brake manufacturer provide you the best bending machine, assistance with competitive prices.
provide us the detail of the material such as metal thickness and width, cutting area and will advice best Magnetic sheet metal bending machine for you.
2. what’s the shipping cost from China to your country?
We can send the Magnetic sheet metal bending machine to your port or door address by sea or airplane.
Please kindly tell us your nearest port or address with postcode.
We have reliable shipping agent to insure the safe, convenient and timely delivery.
3. How to check imported charges or tax ?
Call your Customer tell them machine HS code.
Press brake and rolling machines are 84622990.
4. Payment terms, MOQ, warranty, FOB...
payment terms 30% down payment with order by T/T ,the balance of 70% to be paid before delivery .minimum order quantity:1 set Magnetic sheet metal bending machine, FOB Fuzhou China
5. delivery time :7 days after receipt of formal order and 30% deposit
6. warranty:12 months following delivery.

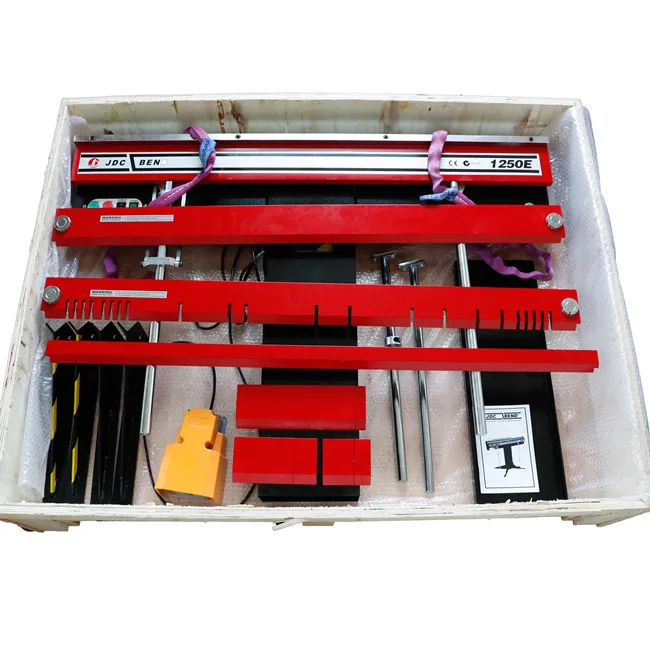

7. what’s the package?
free plywood case
8. How to operate this machine ?
we send you the movie directly
9. what about commissioning service ?
we can offer commissioning service, the buyer need to afford plane tickets
10. Do you offer teaching & training ?
Training at supplier’s plant
11. what’s policy for guarantee and broken parts?
Warranty period of Magnetic sheet metal bending machine equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.
