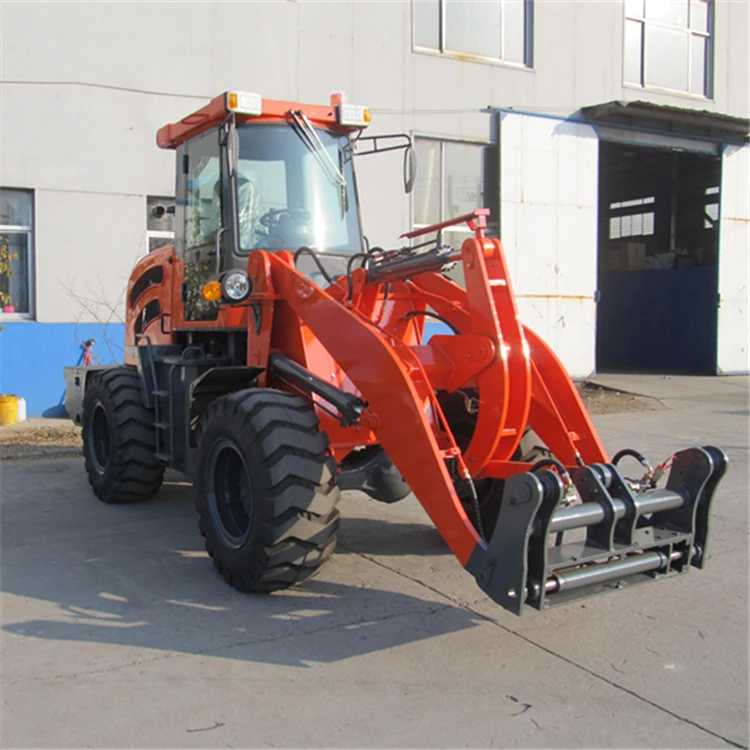

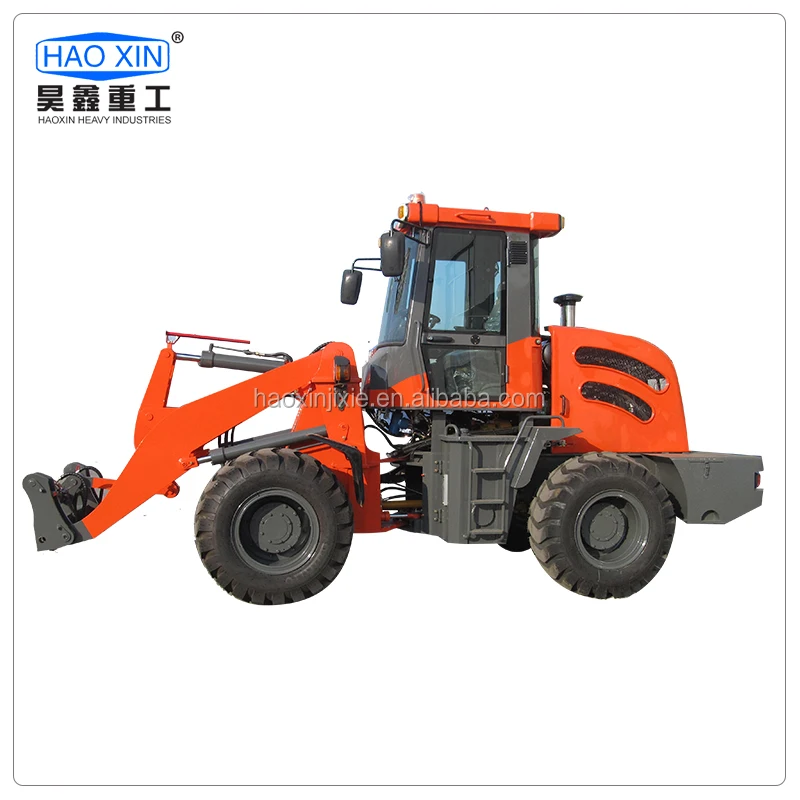

HAOXIN 2 ton model wheel loader European design EPA 4 engine
- Category: >>>
- Supplier: Qingzhou Century Haoxin Machinery Co. Ltd.
Share on (60729783370):
Product Overview
Description

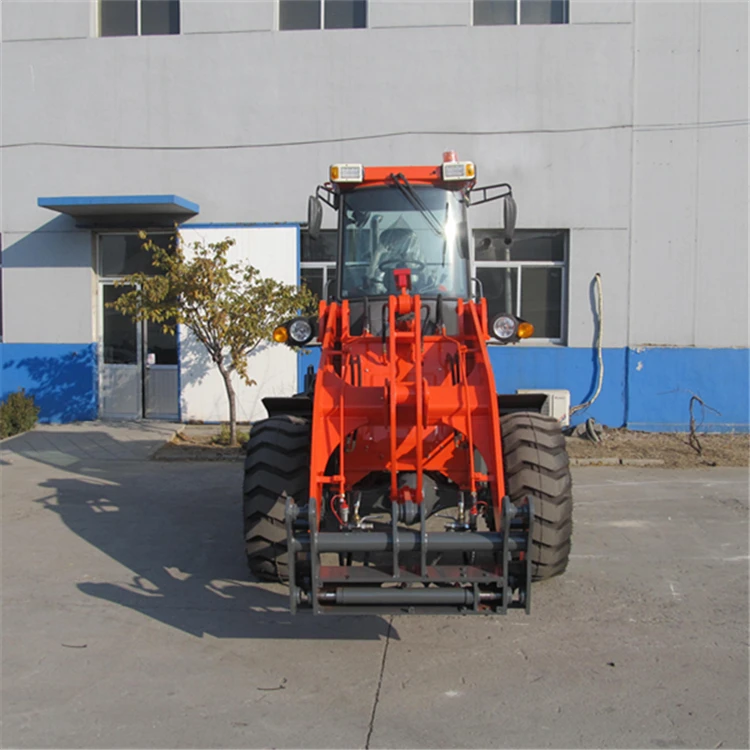

HAOXIN 2 ton model wheel loader European design EPA 4 engine
Product Description
* Cummins EPA 4 standard engine, european design cabin and engine hood
* Big Luxury cabin, enough space, thickening arm & frame
* 3200mm dump height, big bucket capacity,suit different work

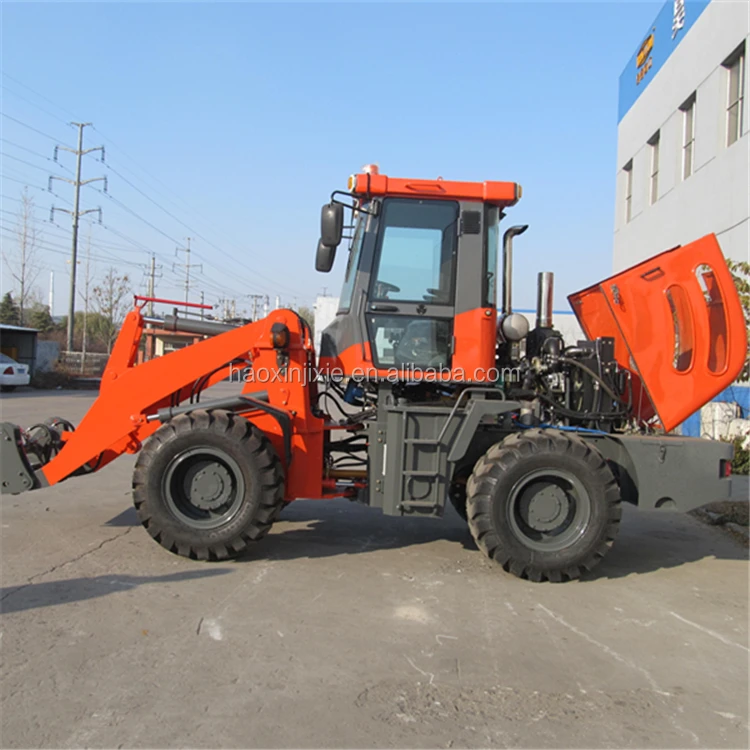

* The engine hood can open , easy to check and maintenance

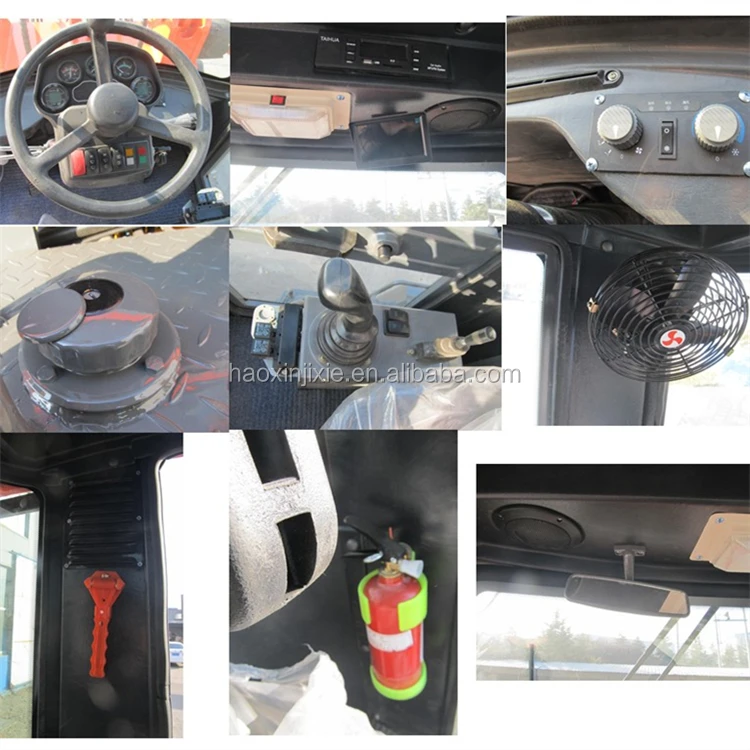

* Pilot control, A/C, rear camera, heater, adjustable steering wheel and seat with the belt

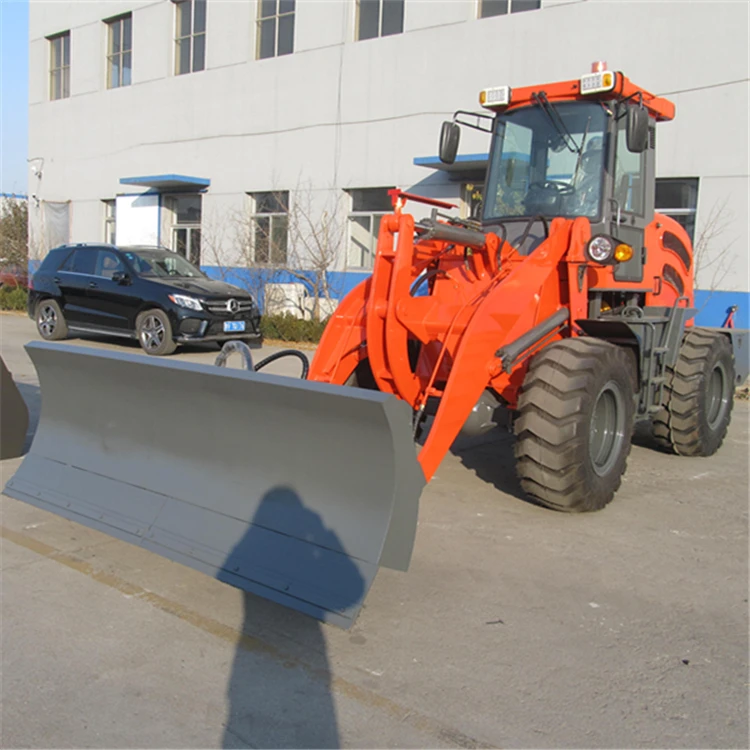

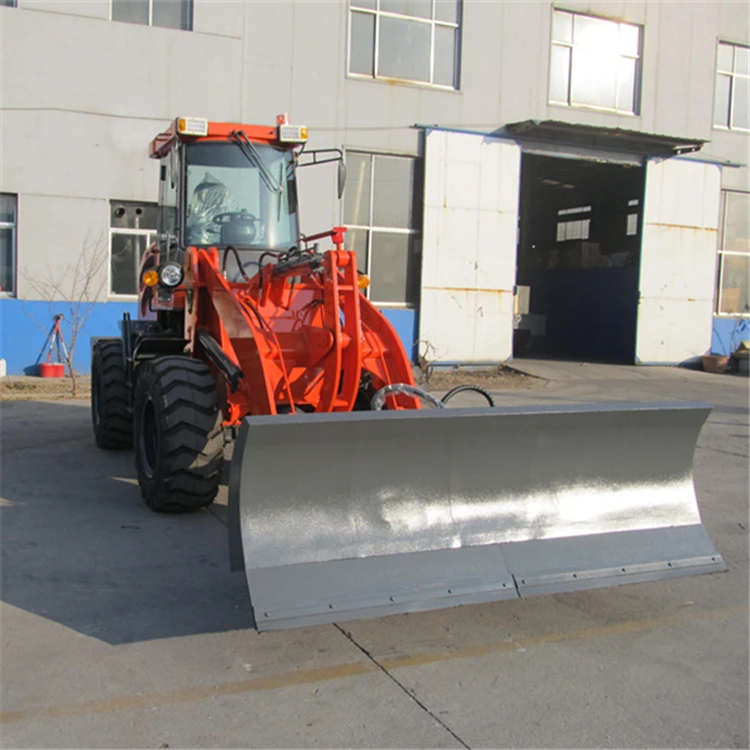

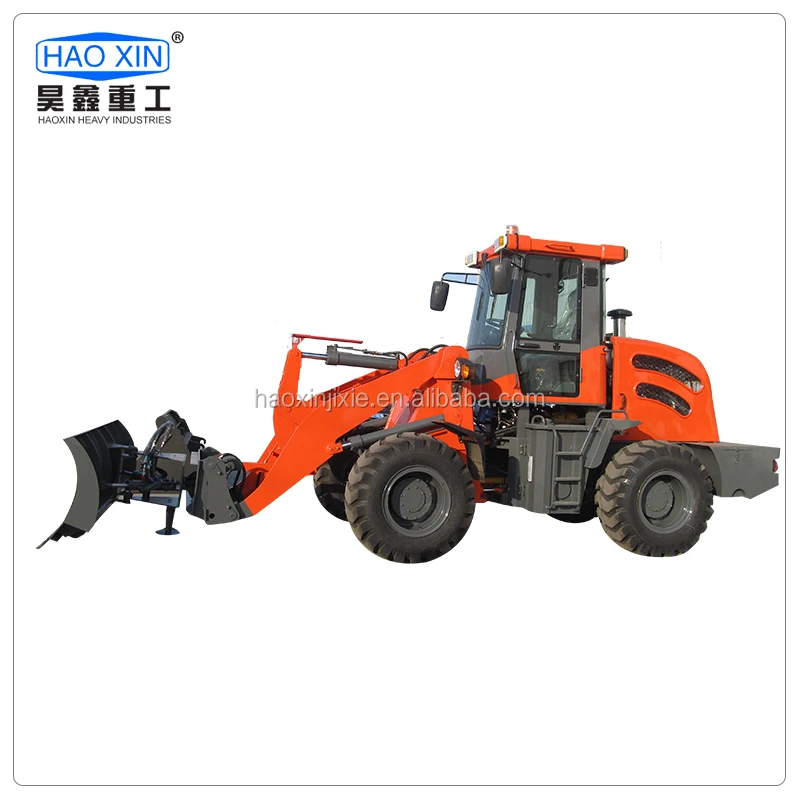

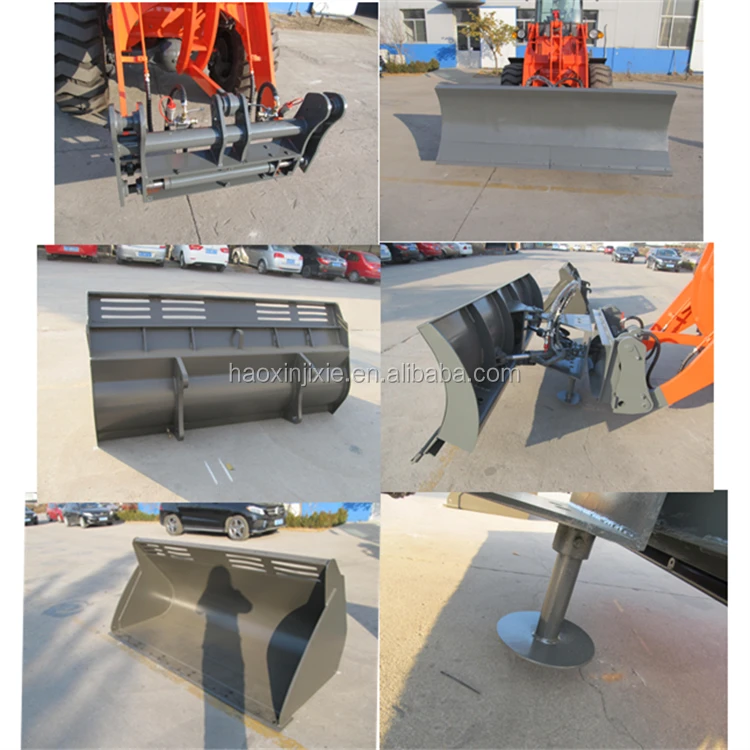

* Quick hitch device, can with many different attachments
* Use big 16/70-24 tire, front and rear headlight, LED light
Specification:
overall weight(kg) | 5000 | |
L×W×H(mm) | 5800×2000×2800 | |
rated bucket capacity(m3) | 1.1 | |
Rated load(kg) | 2000 | |
Maximum dump height (mm) | 3200 | |
Bucket indicator | Yes | |
Max. breakout force(KN) | 56 | |
Engine | Model | CUMMINS QSF2.8t4TC74 |
Type | In-line arrangement, Water cooling, four-stroke | |
Rated power(kw) | 55kw | |
Rated speed(r/min) | 2500 | |
Transmission system | Model of torque converter | YJ280B |
Type | single-phase single-stage radial-inward turbine triplex | |
Gearbox type | Fixed-spindle power shift | |
Gear shift | 2 gears ahead,2 gear astern | |
Hydraulic system | Distribution of work valve | ZL20B |
Working pump | CBG2050,CBGy1018 | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | 35±1° | |
Min turning radius(mm) | 4500 | |
Brake system | Brake type | Air assisted oil disc type 4 wheel brake |
Tyres | Standard tire | 16/70-20 |

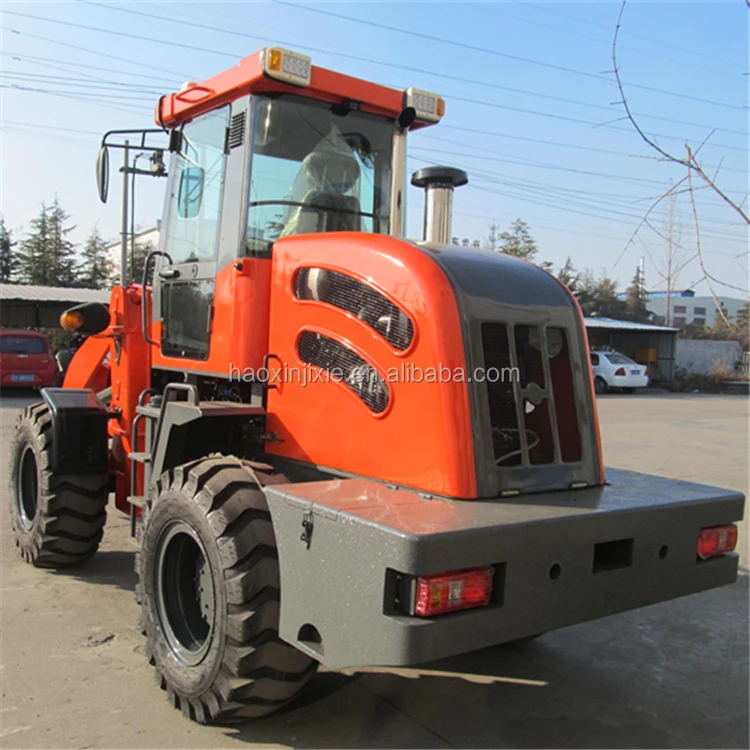

Pictures
Company Information
Certifications
FAQ
Packaging & Shipping
Our Services
1. Both our products are processed using best quality spare parts made, with the best quality;
2. Different model for different working condition needs and requirements;
3. With strong and safe package;
4. Delivery goods are fast;
5. Supplying all the technical support for every customer;
6. If the products have any problem, please do not worry about it. Telling us or showing us the problem pictures, we will solve the problem at first time;
7. Our warranty is 1 year, during the warranty period, if the wheel loader machines have any trouble, please do not worry about it, showing us the trouble pictures, if it is the quality problem, we will post the spare parts to you soon for free.
