Portable UV visible optical double beam spectrometer spectrophotometer
- Category: >>>
- Supplier: Gongyi City Yuxiang Instrument Co. Ltd.
Share on (60729820674):
Product Overview
Description

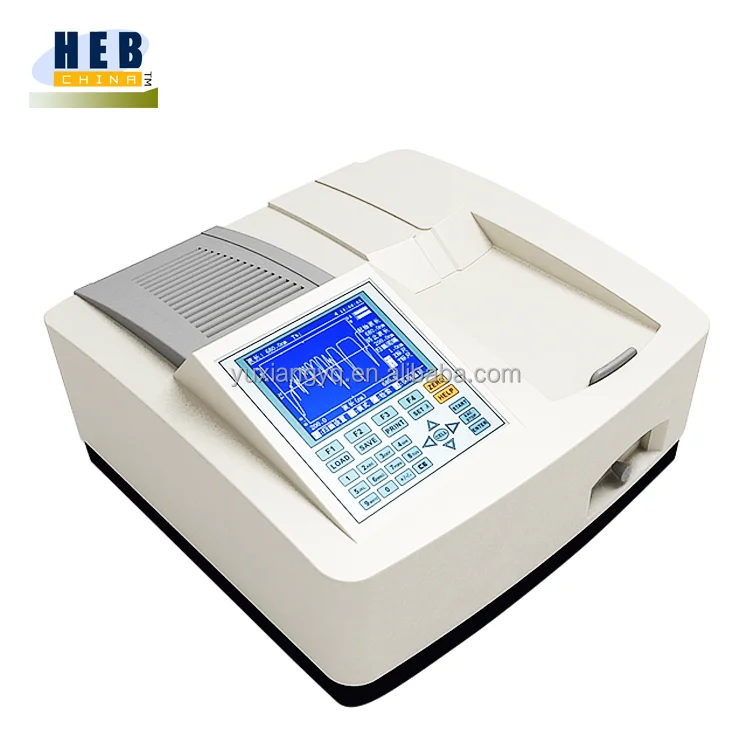

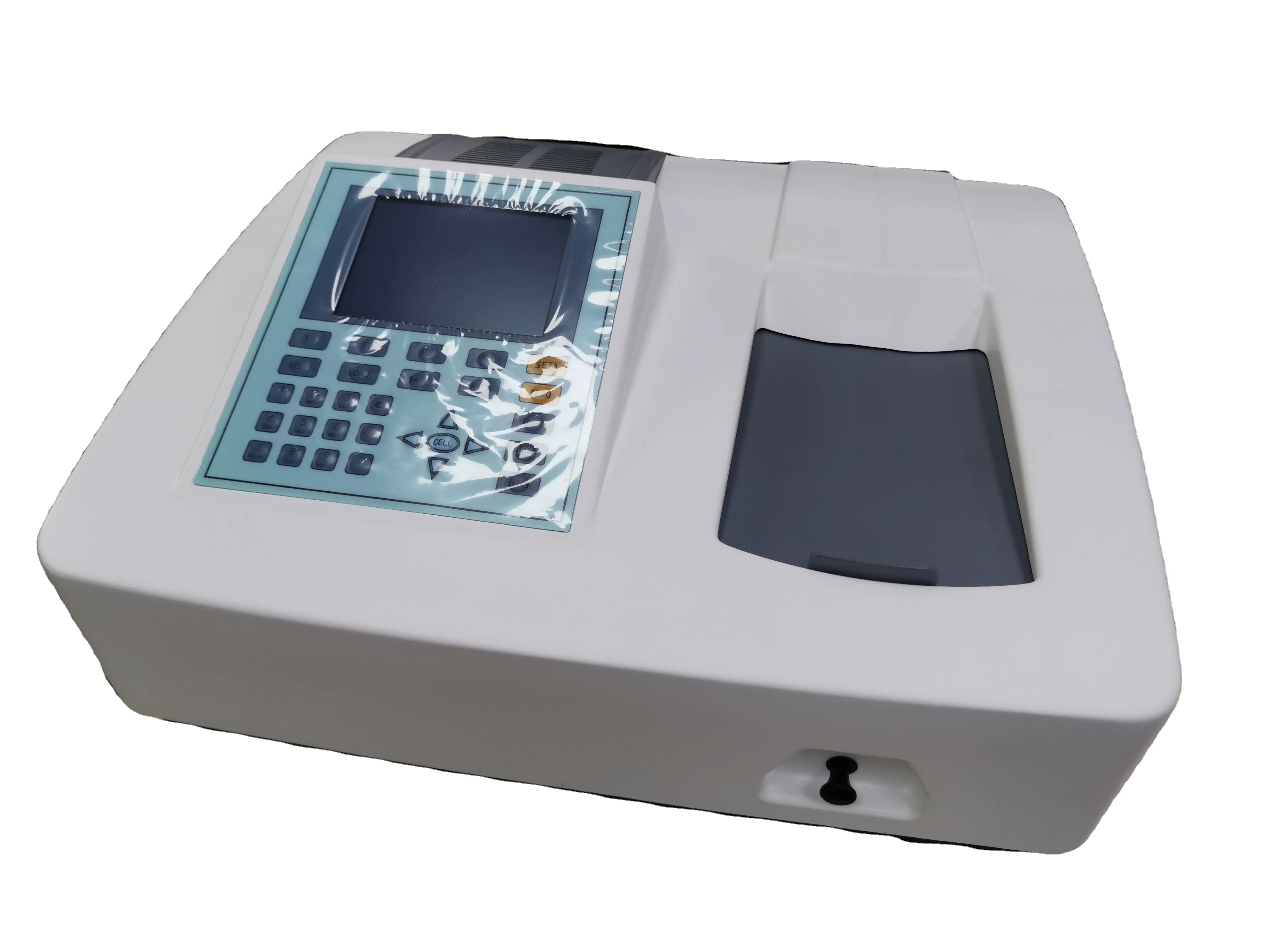

Portable UV visible optical double-beam spectrometer
Product Description
Features
Double beam ensure low drift, low noise and Low stray light
High speed MCU, high precision AD, large storage capacity
Large LCD display (320*240 Dots)
1.0nm or variable Bandwidth meet Pharmacopoeia
Data and Curve can be stored in real-time
Online software upgrade capability
Lamps can be turned on/off individually
Easy to change Pri-aligned lamps
Reinforced baseboard and bracket assures durability
Function:
Photometric
Quantitative(Standard Curve)
WL Scan(Spectrum Scan)
Time Scan(Kinetics)
DNA/Protein Test
Multi-WL Test
System Utility
Technical Parameters:
Model | EU-2800D |
190-1100nm | |
Spectral Bandwidth | 1.8nm |
Optical System | Double Beam , Blazed Holographic Grating (1200 lines/mm) |
Wavelength Accuracy | ±0.3nm |
Wavelength Repeatability | ≤0.2nm |
Wavelength Setting | Auto, Resolution 0.1nm |
Photometric Range | 0~200%T, -0.3~3A, 0~9999C |
Photometric Accuracy | ±0.002A (0~0.5A), ±0.003A (0.5~1A), ±0.3%T (0~100%T) |
Photometric Repeatability | ≤0.001A (0~0.5A), ≤0.002A (0.5~1A), ≤0.2%T (0~100%T) |
Stray Light | ≤0.05%T(220/360nm) |
Scan Speed | High, Medium, Low. Max.2000nm/minute |
Baseline Flatness | ±0.001A |
Stability | ±0.001A/h (500nm,0A) |
Noise | ≤0.2%T/3min (250/500nm,0%T); ≤0.3%T/3min (250/500nm,100%T) |
Sample Compartment | Accommodate 5-100mm Pathlength Cuvette |
Detector | Silicon Photodiode |
Lamps | Tungsten Lamp & Deuterium Lamp (Pre-aligned) |
Display | Graphic LCD (128x64 Dots) |
Keypad | 30-key Alphanumeric Membrance Keypad |
Output Port | USB Port & RS232 Port |
PC Software | Yes |
Power Requirements | AC 90-250V,50/60Hz |
Dimension | 545x468x245mm |
Net Weight | 20kg |

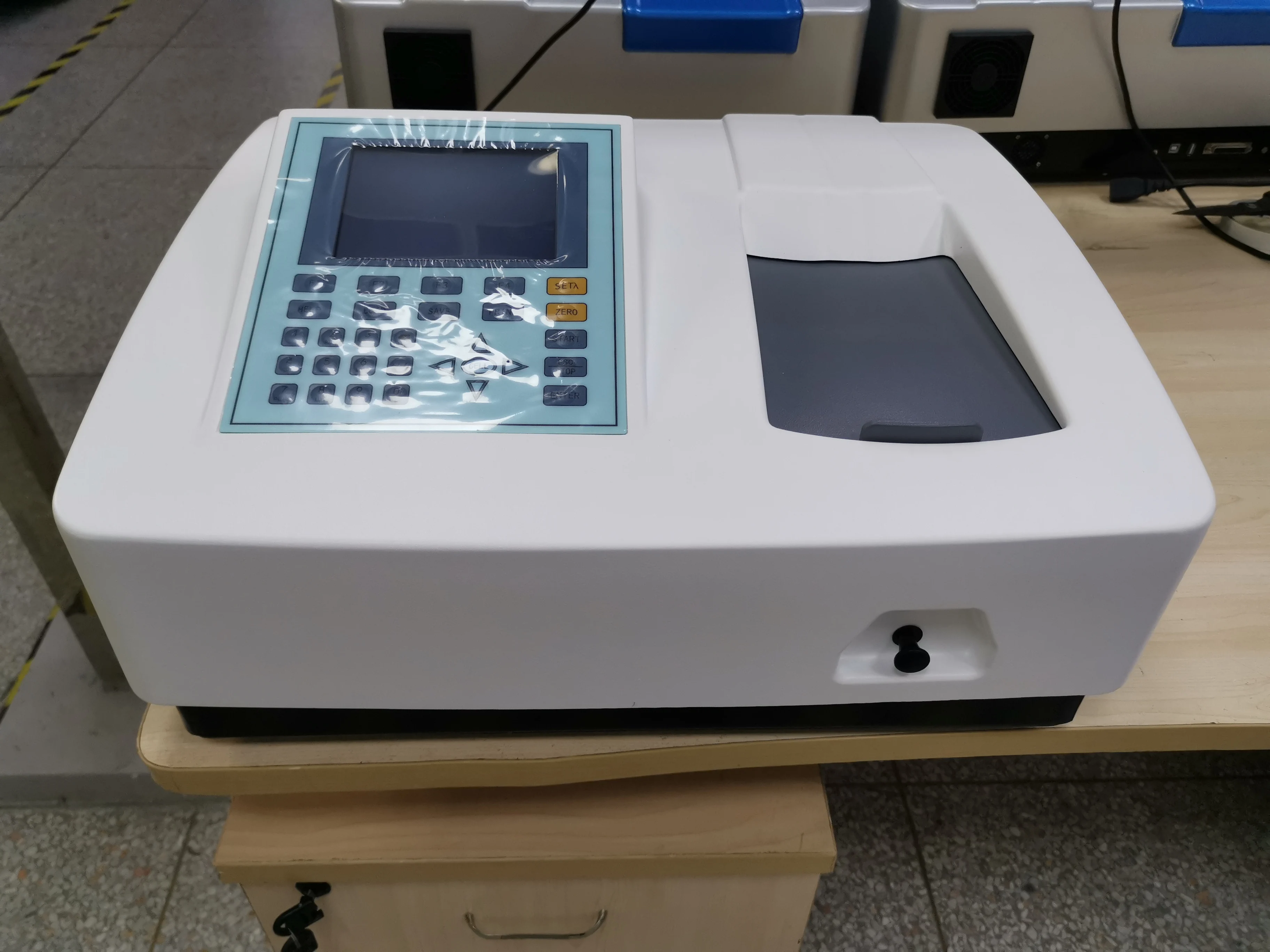

Detail image
Packaging & Shipping
Packing:
*Stardand hard carton packing with perfect inner protection
*We also can do the packing as your demands
Delivery:
Delivery Time: Within 7 days after payment received
We can delivery the goods by Express,by Sea and by Air.The cost will be provided you after you tell us the consignee address and the transportation model you would like to choose.
Company Information
Gongyi City Yuxiang Instrument Co.,Ltd was established in year 2002, has passed more than 20 years, it has 7,400 square meter factory, it’s a technological innovation-based enterprise provided with integration of research, develop, manufacture and marketing. In year 2019, we expanded a larger sister company, Zhengzhou Huachen Instrument Co., Ltd, which has 11,000 square meter factory. Nowadays, our products has gotten extensive application in Asia, European and America, even spread all over domestic laboratories and Universities.
Main instruments in our company: jacketed glass reactor, rotary evaporator, low-temperature cooling liquid circulating pump (DLSB refrigerated circulator or chiller), multi-purpose circulating water vacuum pump, high and low temperature circulating system, high temperature oil bath(heating circulation bath), diaphragm vacuum pump, rotary vane vacuum pump, water bath/oil bath series, incubator series, drying oven series, centrifuge series, ultrasonic cleaner series etc.
