Steel metal pipe straightener/machine to straighten metal tube/scaffold



Product Description

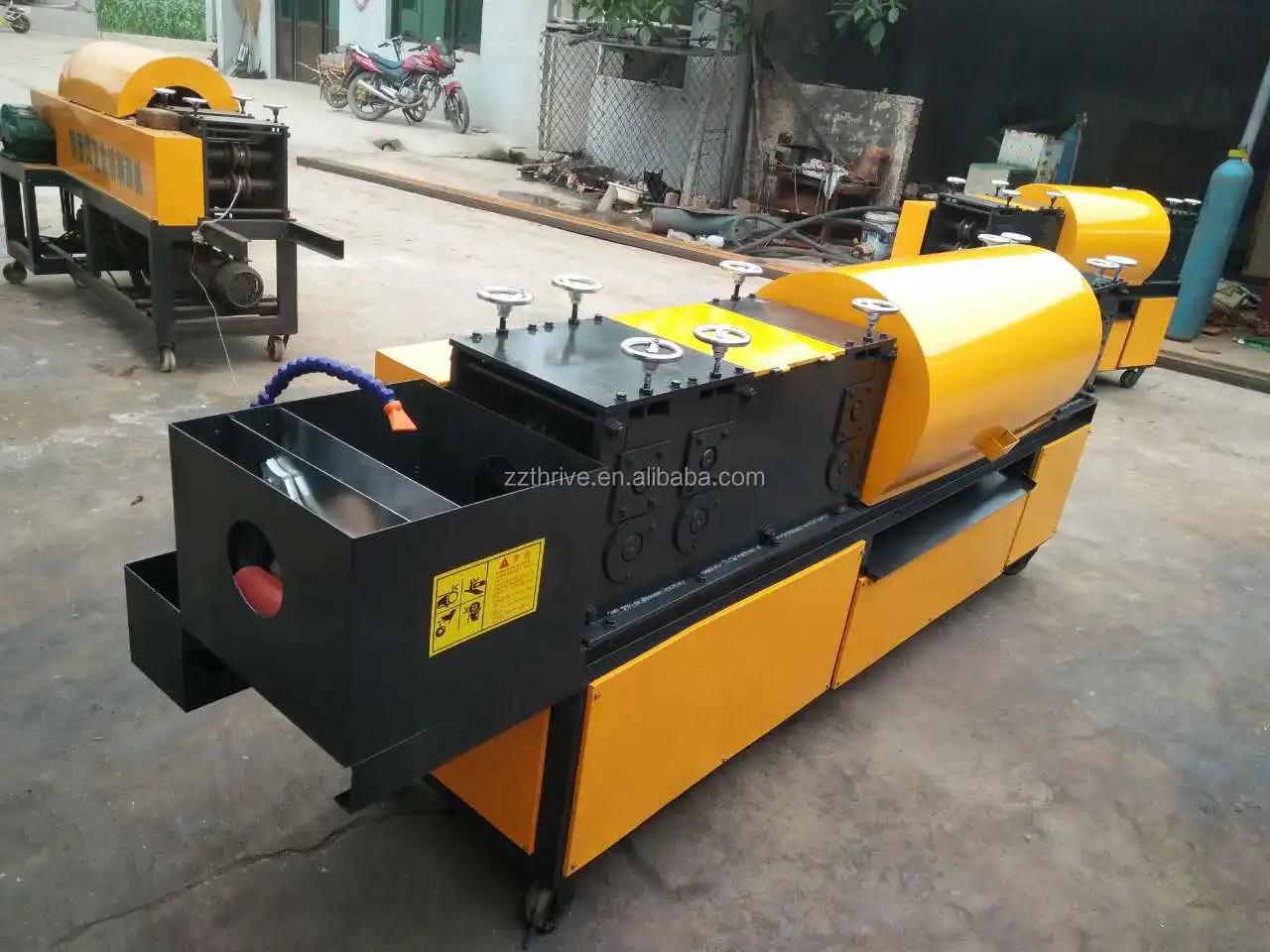

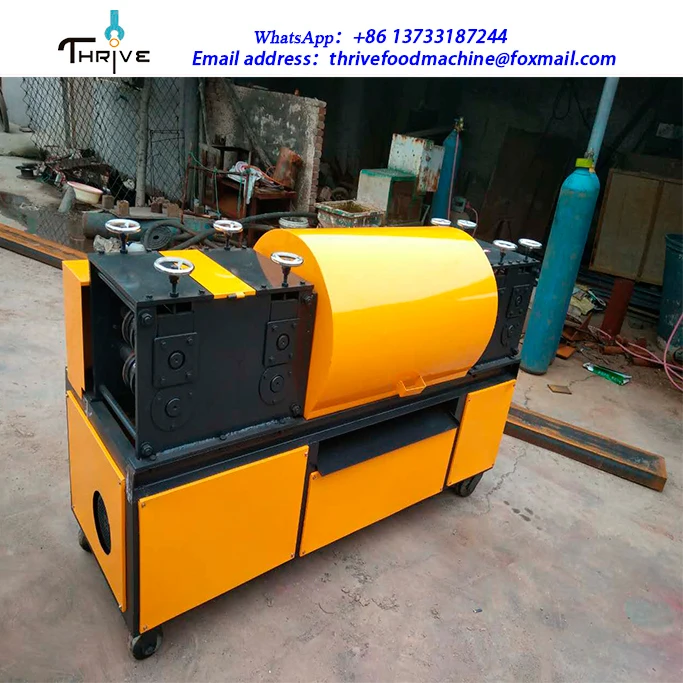

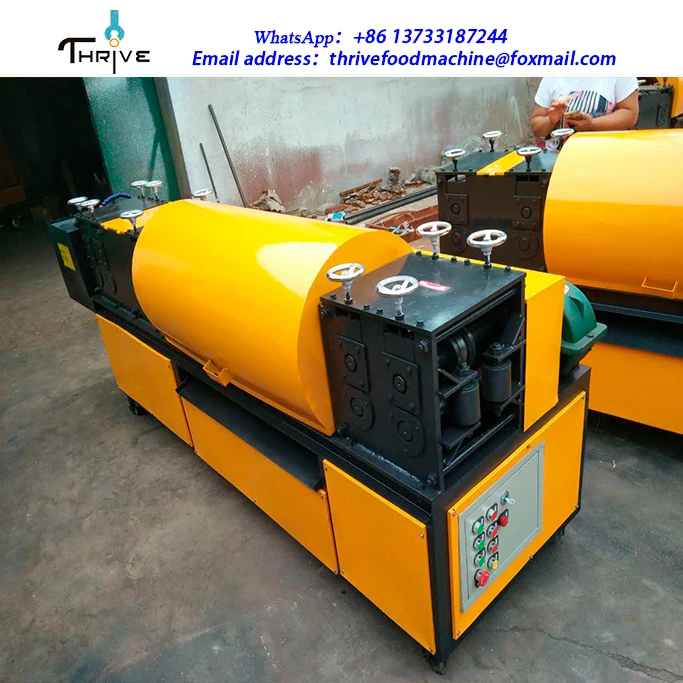

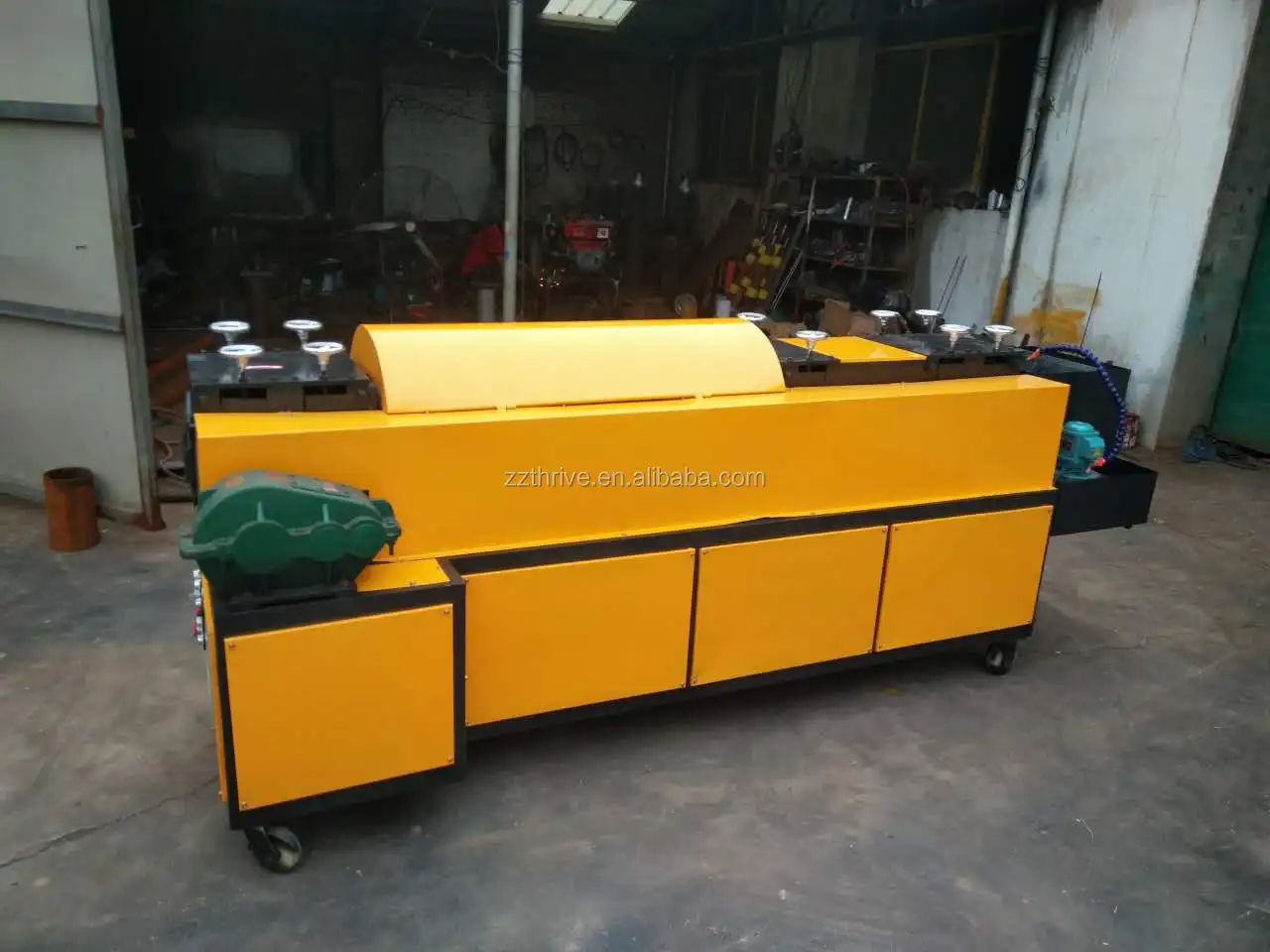

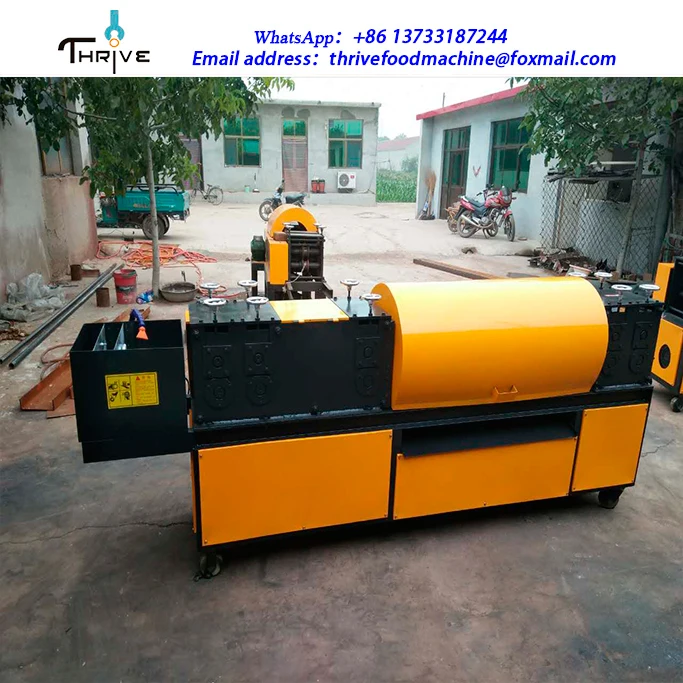

 Steel metal pipe straightener/machine to straighten metal tube/scaffold

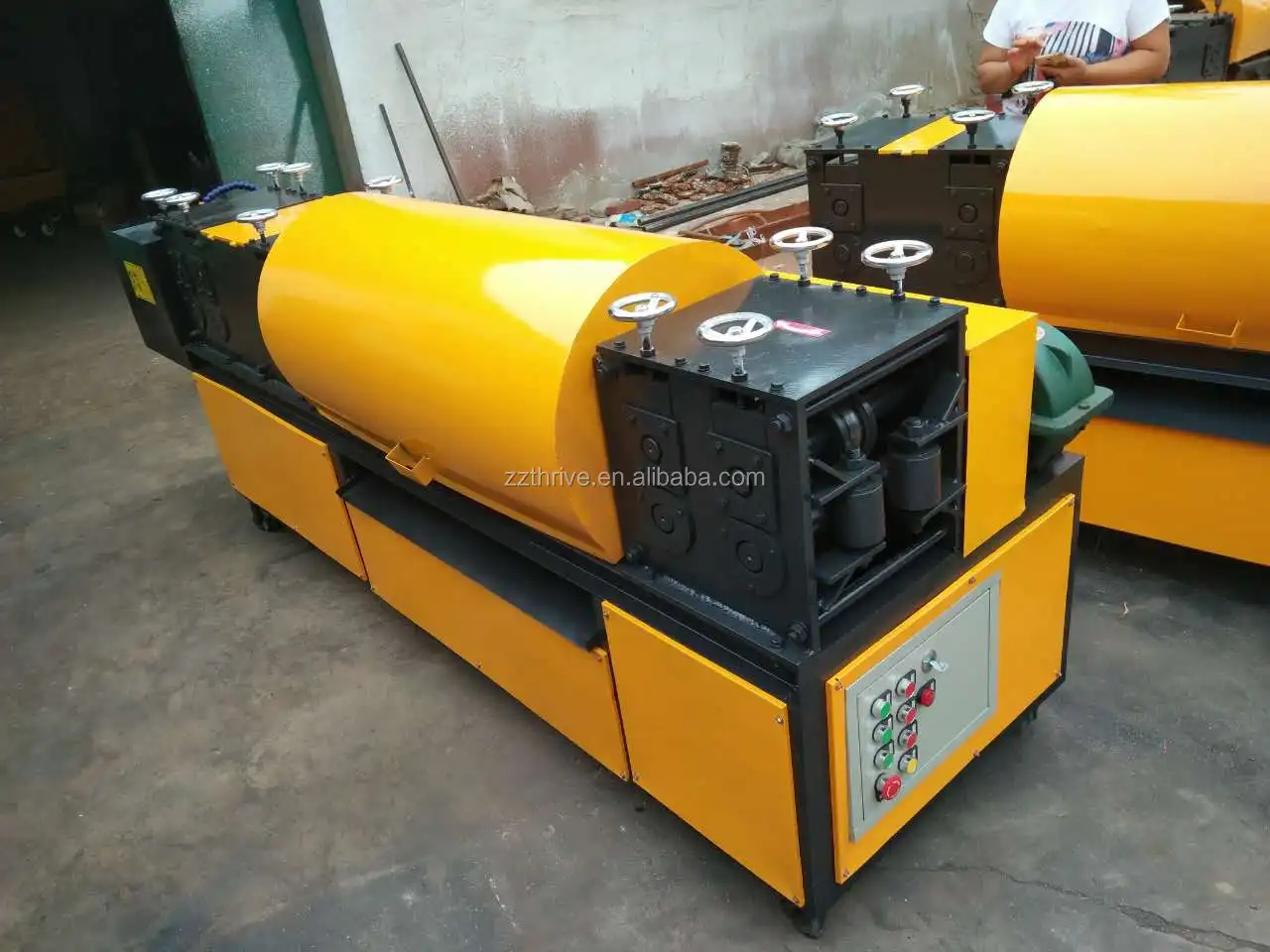

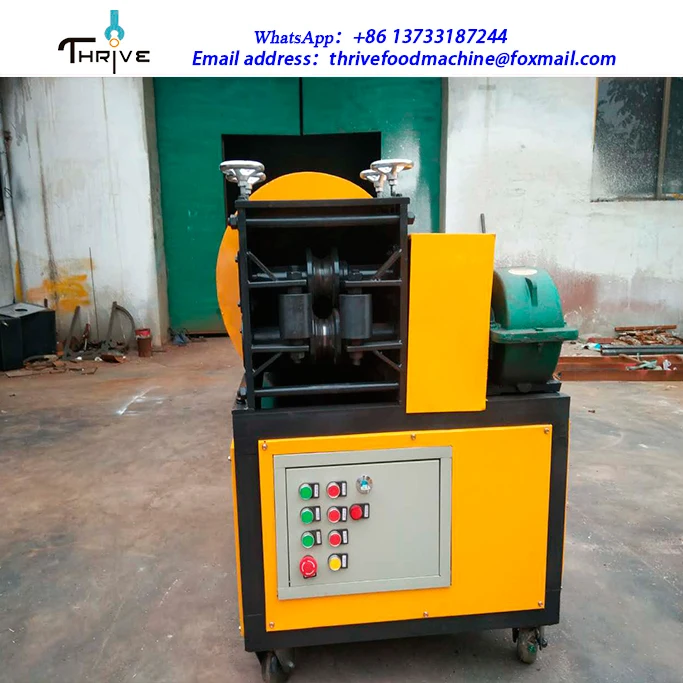

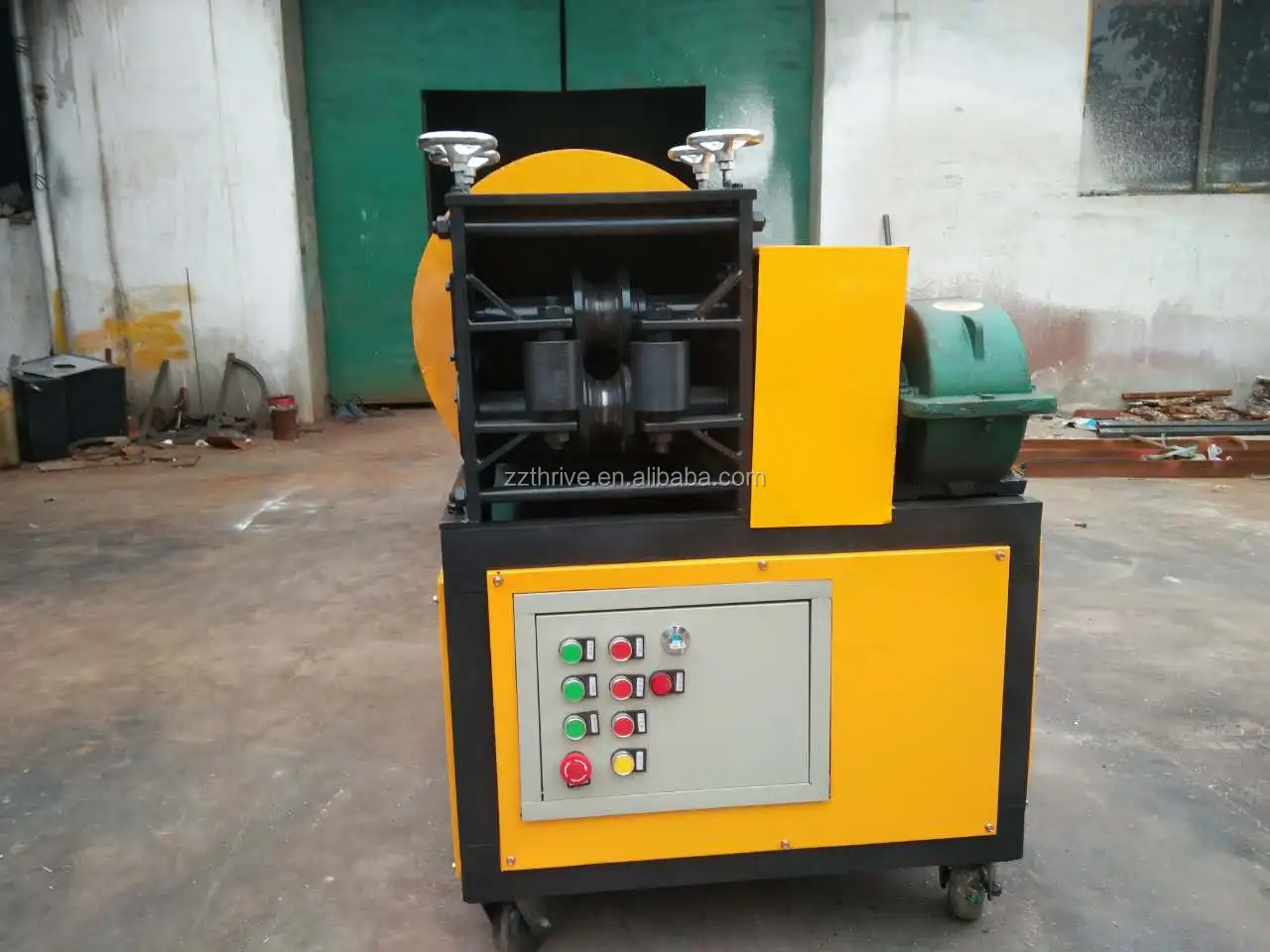

The steel tube straightening machine is used for restoring the bending and distorted tubes, after restoring, the tube will be no indentation and diameter reducing. The machien is the ideal equipment for building construction companies and steel tube rental enterprise , scafflod construction unit.

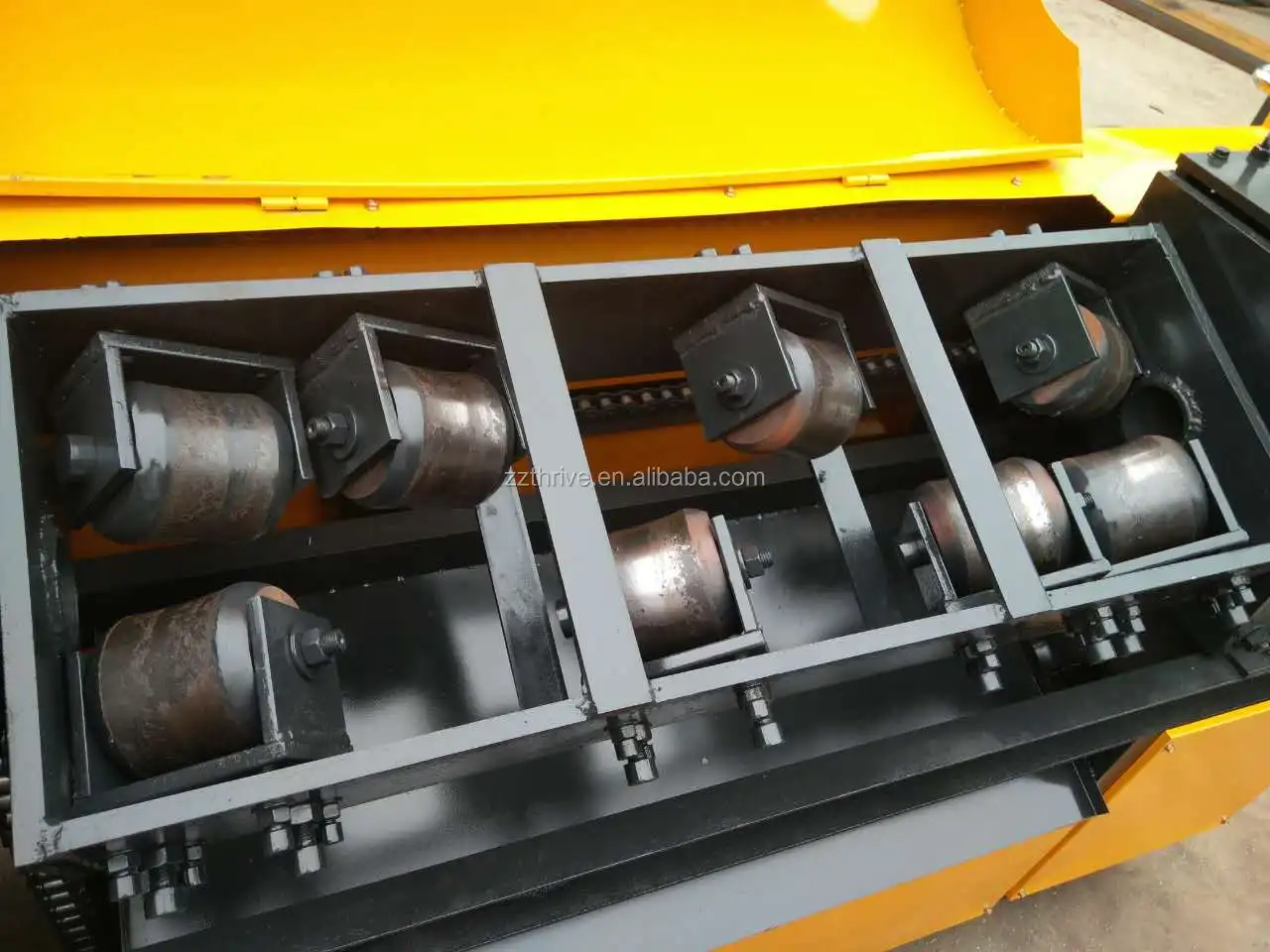

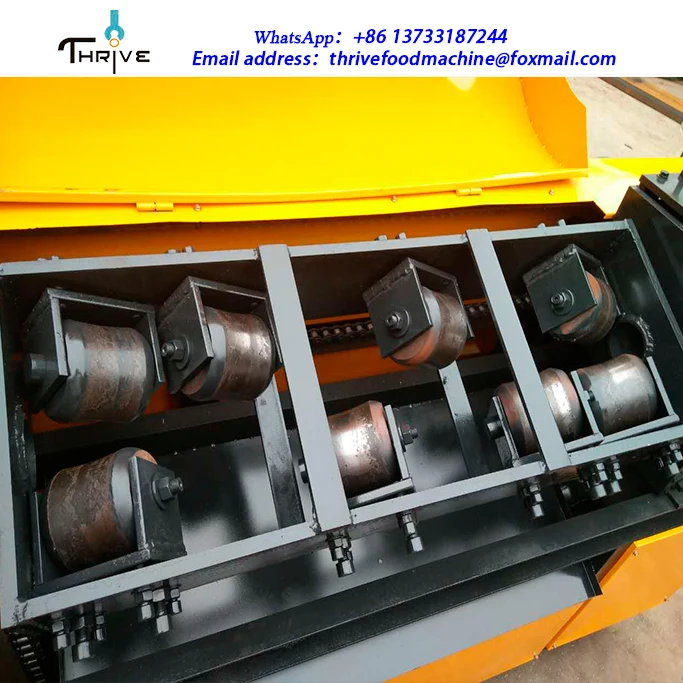

The steel pipe straghtening machine is consist of straightening system , removing rust machine, and painting box. It can be used for only straightening, also for straightening and rust removing and painting at the same time. Mechnical rollers straightening , stable and durable .

 It mainly use for straightening repair the bending scaffolding in building construction . It also can clean up grime and rust on steel surface and painting it.



Features of the steel pipe straightening machine



1. Adopts mechnical driving, reasobale structure, easy operation.

2. Multip function, with functions of straightening, rust removing, and painting.

Can meet various needs, time saving, labour saving and high efficicency.

3. the mechnical speed can be control, the steel tube diamter range is 48-50mm.

stable running, low noise and easy move.

4. the machine can straighten 6 meters per minute. Straightening, derusting and brushing paint will be done at the same time.








Technical data of the steel tube straightening machine



Model

TH-48A

( eight rollers)

TH-48B

( six rollers)

TH-48C

Straightening diameter range

45-51mm

45-51mm

45-51mm

Motor Power (KW)

3kw+3kw+3kw

3kw+3kw+3kw

4kw+4kw+4kw

voltage

380v

380v

380v

Working speed

12m/min

12m/min

18m/min

Weight

950kg

900kg

1050kg

Size L*W*H

2600x800x1200mm

2750x800x1200mm

2900x800x1100mm

Straightening angle

60 degrees

60 degrees

60 degrees

Function

Remove rust, dirty, straighten, paint.

Remove rust, dirty, straighten, paint.

Remove rust, dirty, straighten, paint.








Packaging & Shipping

 Steel metal pipe straightener/machine to straighten metal tube/scaffold

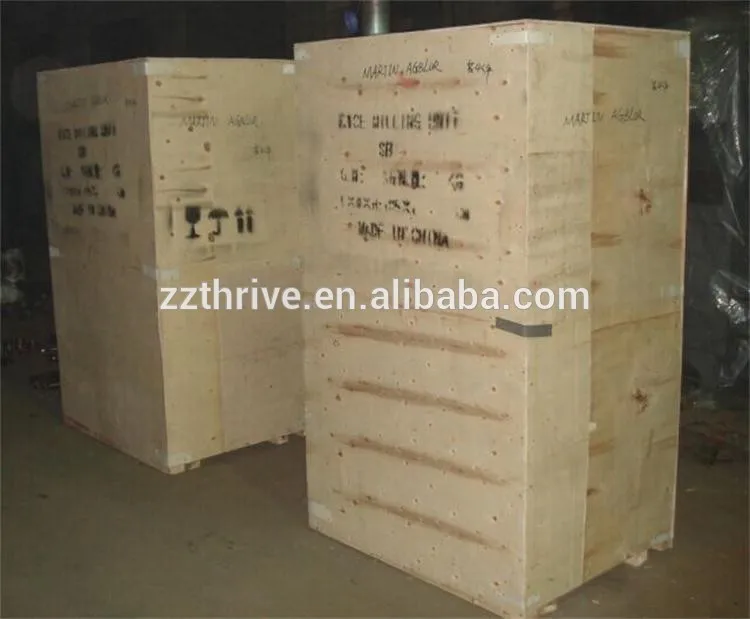

Outside package: Standard export wooden case ,wooden package and LCL loading and full container loading , Inner package: plastic foam packing,Protect the goods from damage.

All machine are packaged  according to international standard wooden case. We have three ways to shipping the machine.You can choose which is suitable for you.




Our Services

 Steel metal pipe straightener/machine to straighten metal tube/scaffold



All produts purchased in our company are guaranteed to keep in good repair for 1 year. If quality problems happen in guarantee period, our company will maintain for free.
A. Before sending the machine, we will test and adjust, so you can use directly when you get it.
B. Operation video & instruction will be sent to clients, to help them use the machines better.

Company Information

Steel metal pipe straightener/machine to straighten metal tube/scaffold



1.We are Manufacturer for steel metal pipe straightener
2.Alibaba Assessed Gold Supplier.
3.100% QC inspection Before Shipment.
4.Best Quality & Best Service with Competitive price.

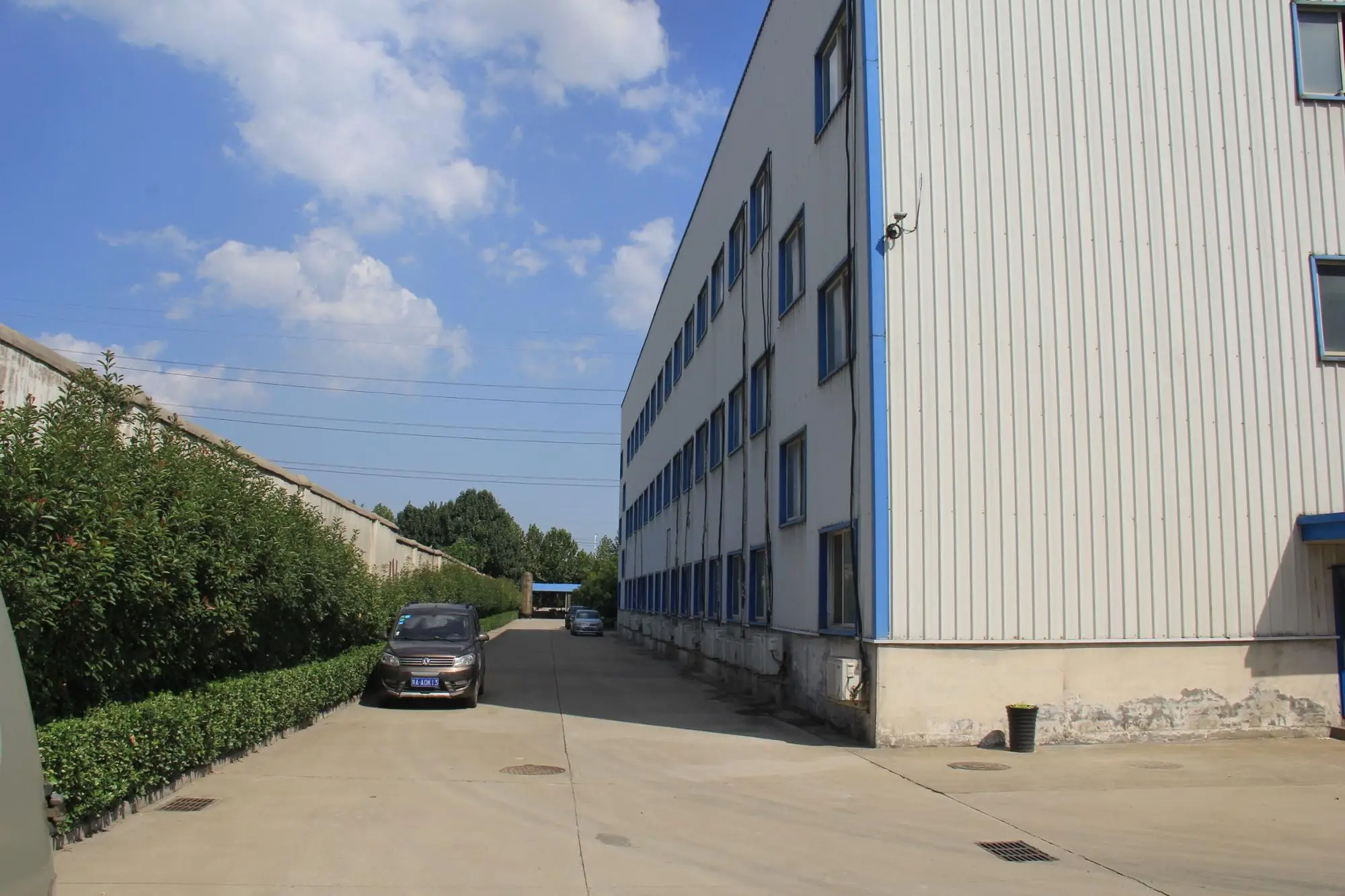

0.jpgfactory 1.jpg







If you are interested in this machine, contact me freely.
