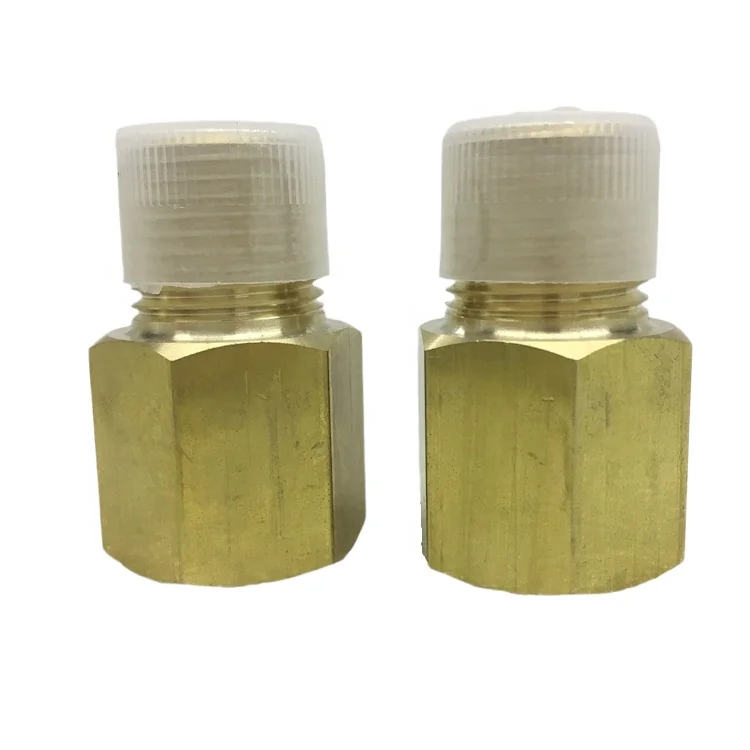

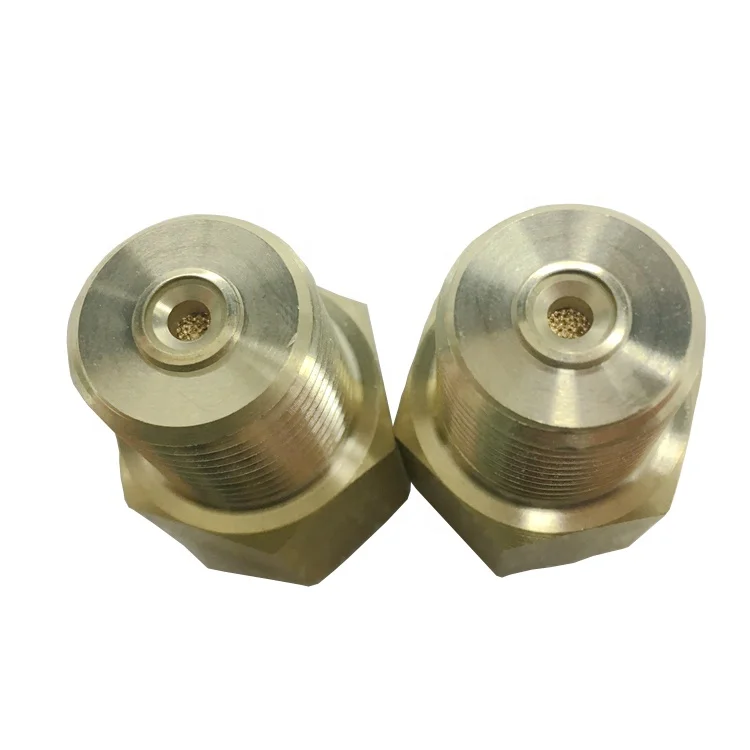

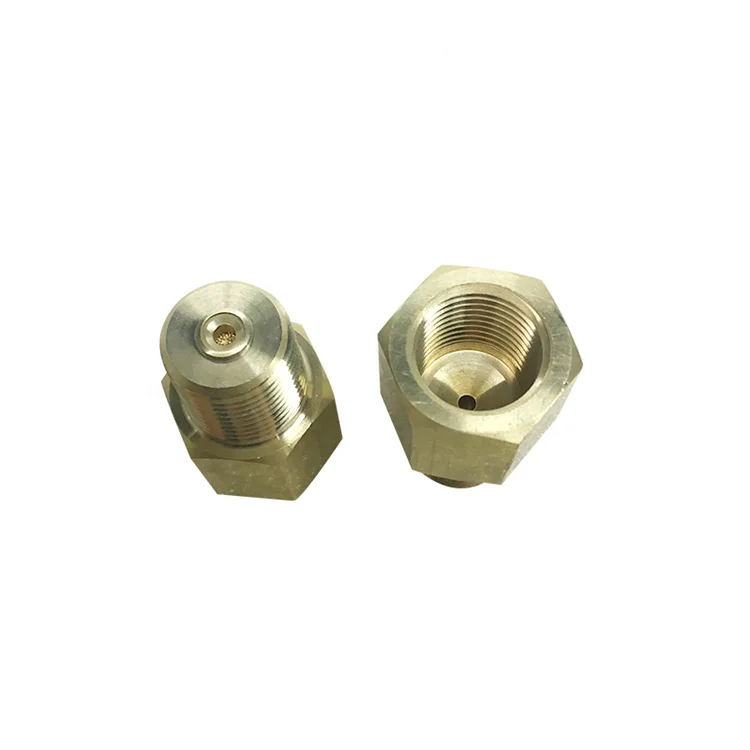

1/2 NPT Brass Pulsation Dampeners with Porous Type, Porous Pressure Gauge Snubber
- Category: >>>
- Supplier: Hubei Hi-Tek Valve And Fitting Co. Ltd.
Share on (60729835805):
Product Overview
Description
Product Description
Brass Pulsation Dampeners with Porous Type (Pressure gauge Porous snubbers) protects pressure gauges and instruments from system pressure surges and shock. Pressure damping (snubbing) is accomplished through the use of a porous SS/Brass element. When snubber is installed up stream from a pressure sensor instruments, the response rate of the instrument is reduced and generally varies with the initial pressure drop across the porous metal element, and allows the instrument to smoothly come to line pressure.
Pressure gauge Porous snubbers will considerably increase the service life of pressure gauges in harsh applications such as on
reciprocating pumps and compressors, hydraulic presses or fluid power systems and will additionally improve the reading accuracy
of the gauge.
Pressure gauge Porous snubbers will considerably increase the service life of pressure gauges in harsh applications such as on
reciprocating pumps and compressors, hydraulic presses or fluid power systems and will additionally improve the reading accuracy
of the gauge.
Process industry:
Machine building, general plant construction, power plants, mining, on- and offshore and environmental technology, Refineries, liquid patroleum gas processing plant, petrochemical plants, systems difficult to shur off due to solid contents dust, rust, dirt
etc.
etc.
Specification:
Body material:Brass/Stainless Steel
Temperature rating: 14 to 248 degrees F (-10 to 120 degrees C)
Thread Size: 1/4"NPT/G, 3/8" NPT/G, 1/2" NPT/G, M14*1.5, M20*1.5
Connection: male x female
Operating pressure: 5000 psi to 20000 psi
*Caution:when adjusting the valve, don’t adjust more than two turns from the closed position as leakage will occur.
Temperature rating: 14 to 248 degrees F (-10 to 120 degrees C)
Thread Size: 1/4"NPT/G, 3/8" NPT/G, 1/2" NPT/G, M14*1.5, M20*1.5
Connection: male x female
Operating pressure: 5000 psi to 20000 psi
*Caution:when adjusting the valve, don’t adjust more than two turns from the closed position as leakage will occur.
Feature:
Porous snubbers incorporate a fixed mesh disk.
Adjustable snubbers are provided with an adjustable needle valve that enables the operator to restrict the flow as operating conditions may demand even when the snubber is in service.
Piston snubbers are supplied with a piston for use with a variety of media.
Application:
For use with any gauge subjected to rapidly fluctuating pressures and sudden shock pressures.
Adjustable Snubbers are recommended in applications above 5 PSI pressure ratings. For lower pressure application piston type, sintered or screwed with controlled orifice type snubbers are recommended.
Porous snubbers incorporate a fixed mesh disk.
Adjustable snubbers are provided with an adjustable needle valve that enables the operator to restrict the flow as operating conditions may demand even when the snubber is in service.
Piston snubbers are supplied with a piston for use with a variety of media.
Application:
For use with any gauge subjected to rapidly fluctuating pressures and sudden shock pressures.
Adjustable Snubbers are recommended in applications above 5 PSI pressure ratings. For lower pressure application piston type, sintered or screwed with controlled orifice type snubbers are recommended.

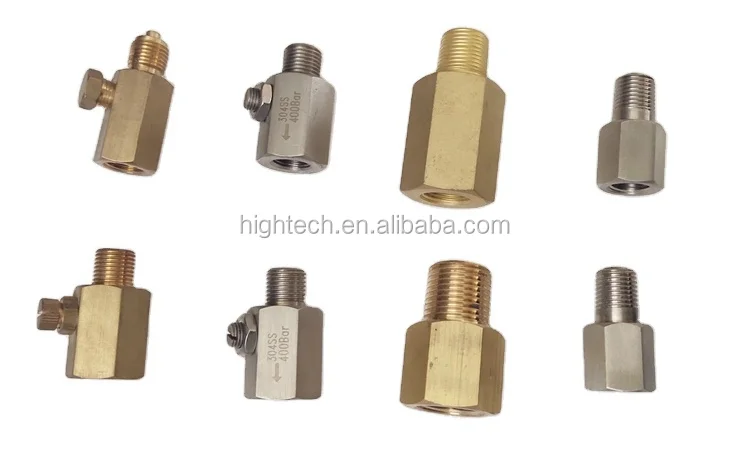

HI-TEK Pulsation Dampener (Snubber) SPECIFICATION TABLE
Type | Part # | Male x Female Connection | Body Material | Maximum Pressure(psi) |
005.02.10 Porous Snubber | HK0050210-B2 | 1/4” | Brass | 5000 |
HK0050210-S2 | 1/4” | SS | 15000 | |
HK0050210-B3 | 3/8” | Brass | 5000 | |
HK0050210-S3 | 3/8” | SS | 15000 | |
HK0050210-B4 | 1/2” | Brass | 5000 | |
HK0050210-S4 | 1/2” | SS | 20000 | |
005.02.20 Adjustable Snubber | HK0050220-B2 | 1/4” | Brass | 3400 |
HK0050220-S2 | 1/4” | SS | 5800 | |
HK0050220-B3 | 3/8” | Brass | 3400 | |
HK0050220-S3 | 3/8” | SS | 5800 | |
HK0050220-B4 | 1/2” | Brass | 3400 | |
HK0050220-S4 | 1/2” | SS | 10000 |
Packing picture
