Factory Price bogie hearth hot air circulating drying tempering furnace, trolley type tempering heat treatment furnace
- Category: >>>
- Supplier: Jiangsu Weier Furnace Industry Co. Ltd.
Share on (60729891737):
Product Overview
Description
Heat treatment
Heat treatment equipment provides annealing, tempering, quenching, carburizing, nitriding, heating to the workpieces.
Heat treatment furnace is common name of various kinds of industrial furnace which provide metal heating treatment to all kinds of metal workpieces. It has lower temperature compared with heating furnace. Heat treatment furnace can be adopted with all models of heating furnaces but asks more stringent temperature control and furnace atmosphere.
Heat treatment furnace is divided into annealing furnace, quenching furnace, tempering furnace, normalizing furnace, quenching and tempering furnace, carburizing furnace, nitriding furnace, melting furnace. Mainly used for high chromium, high manganese steel castings, ductile iron, roll, steel, stainless steel quenching, annealing, aging and a variety of mechanical parts heat treatment. Welding parts to eliminate stress annealing, aging and other heat treatment process. Heating methods are electric heating, fuel, gas, coal, hot air circulation and etc.
Tempering furnace
Tempering furnace: Supply tempering in air to general metal parts; quenching, annealing, aging heat treatment to aluminum alloy die castings, piston, aluminum plate and other light alloy parts.
Product Description

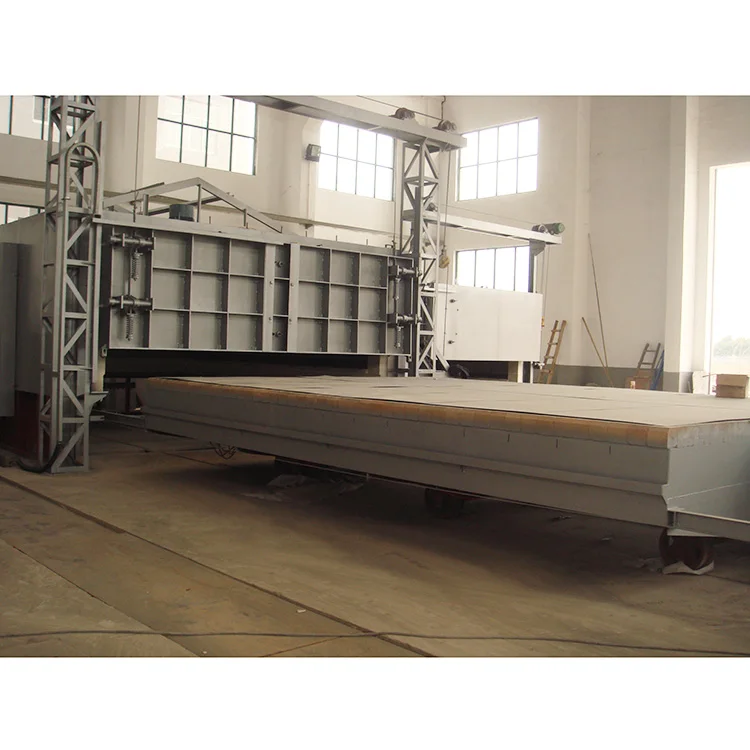

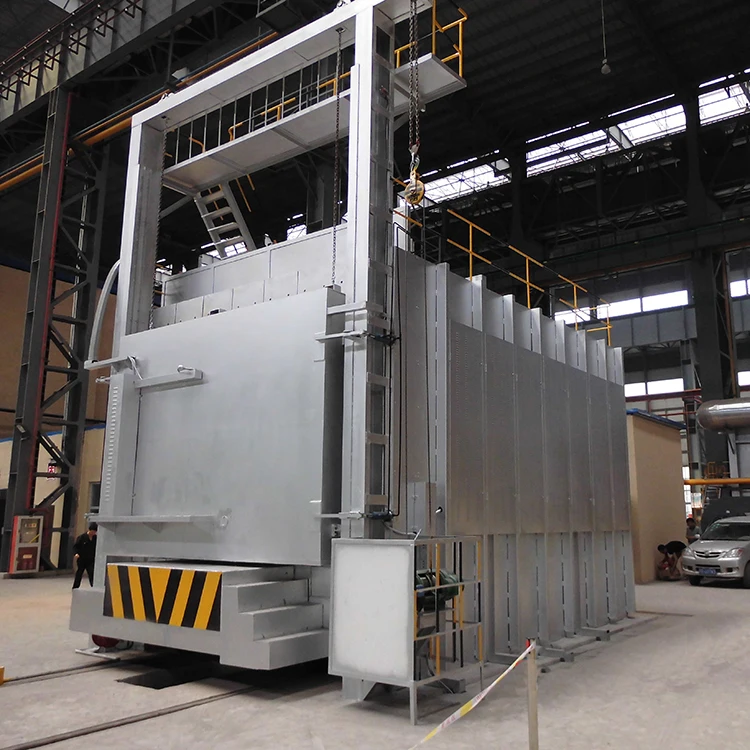

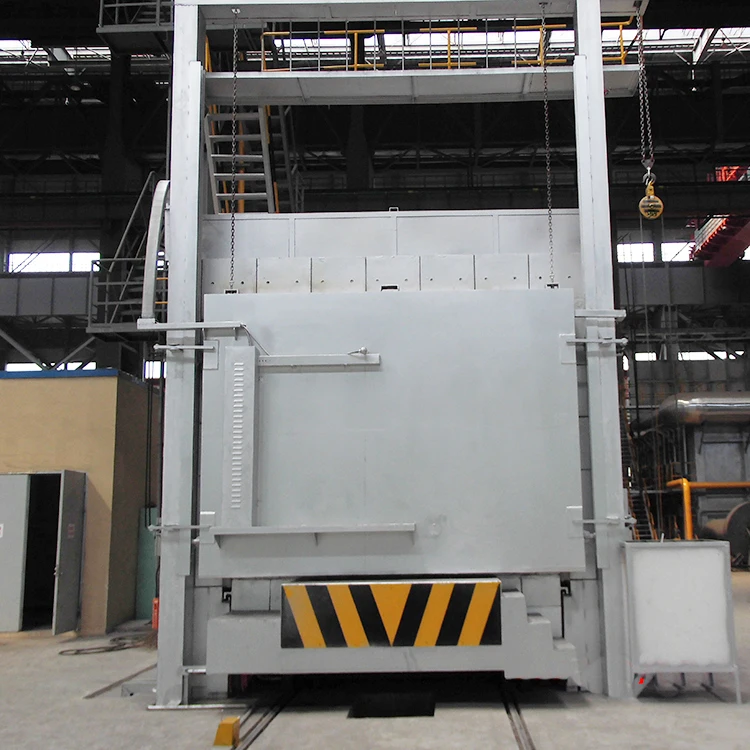

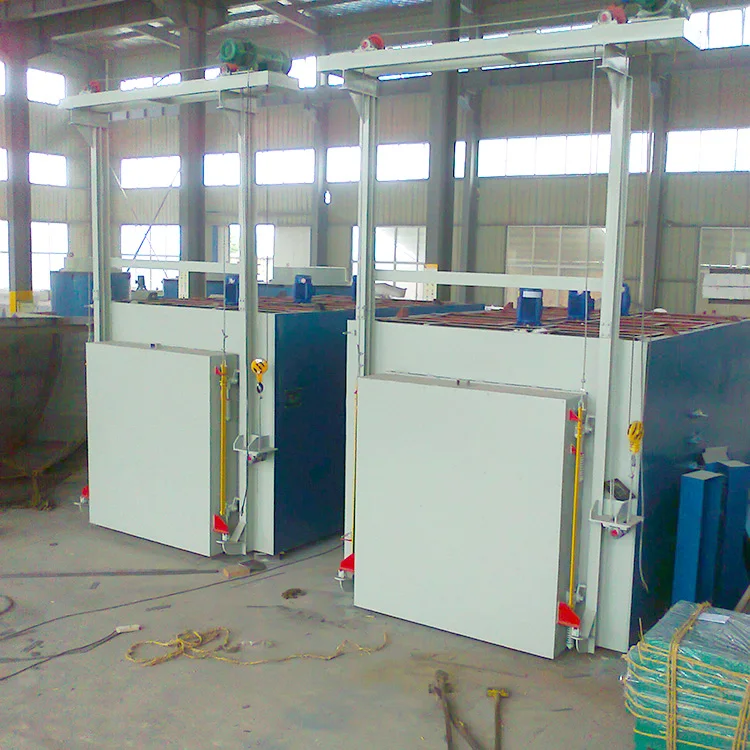

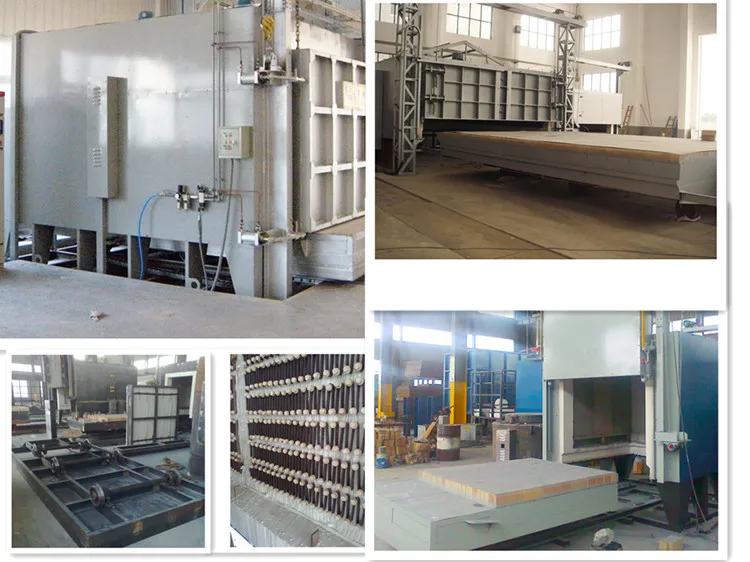

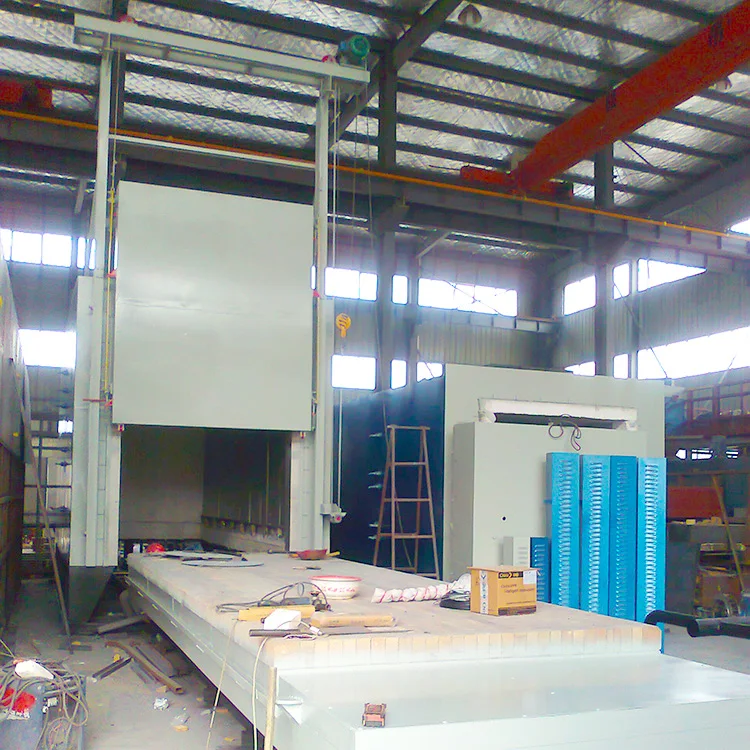

Hot air cycle operation car tempering furnace is composed by furnace body, car, heating device, and control system. Frame of the shell is welded by shaped steel. Both of the inner and outer walls are welded by cold rolled steel plate with the advantage of small deformation coefficient. The lining of the body and the door is aluminum silicate refractory fiber acupuncture cotton as the insulation layer that reduces the temperature of the furnace wall. The door also is the welded frame of steel. And the outer wall of the door is cold rolled steel too. The car is made of shaped steel with wheels on the bottom. The car can go into the furnace body and run flexible . Around the inlet of the furnace is embedded with rubber asbestos packing. When the door closed, the door and the rubber asbestos packing fit tightly to ensure that no heat distribution. Belt heating elements equipped on the both sides of the chamber are made of alloy of 0Cr25AL5 with ling service life.
PS:Our company can provide customized design according to user requirements.
How to use it
It is mainly used for quenched and tempered process of high chromium steel, die steel and other special steel. It also can be used for tempering, aging and other various mechanical parts heat treatment, such as high manganese steel castings, steel balls, crusher hammer, roll, iron chrome wear-resistant materials.
Packing & Delivery
²The furnace is nude packed but duly fixed inside the container.
²The nearest sea port is Shanghai port which is the largest and most convenient port over China.
²The delivery time is 45-120 days after receipt of down payment.
²The furnace is usually loaded into normal containers (20GP or 40GP) or flat racks.
²Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement.
Our Services
l Reply your inquiry within 48 working hours
l Experienced engineer instruct and sales communicate with you in fluent English.
l Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
l More contact with users, communicate with each other, to ensure that the manufacturing products meet the needs of customers.
l Production: strict quality standard, to produce machine and induction coils.
l Installation on site and commissioning in the condition of cold and hot, to ensure the normal use.
l Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
l Provide install and technology instruction by sending drawings, email, or telephone,video.
l If you need, will arrange one engineer to your place,instruct install machine and training operators.
l Responsible for free training of technology, service and operation personnel's theory, maintenance and operation skills, to make users use production right and expertly. Training is in the section of device debugging and test run.
l After equipment final acceptance, quality guarantee period is for 12 months, the supplier replace and repair for free when the damage is caused by production and materials during the warranty period. To the damage out of warranty period, the supplier should give preferential service and the supply of parts (only accept costs), and provide lifelong offer after-sale service.
Company Information
Our factory has more than 30 years experience of research and development in heat treatment equipment. We have introduced of ISO international quality management system, and cooperate with the Chinese Academy of Sciences and Tsinghua University. We have established industrial furnace design center. Winning the 7.5 million Indonesian steel continuous annealing tempering production line heat treatment equipment projects.We have the patents of bell type ball annealing furnace, low temperature pit furnace, large pit furnace, ring pit type heat treatment furnace, car type resistance annealing furnace, energy saving carbon fiber baking furnace, aluminum alloy cable heat treatment furnace, recycling efficient quenching and tempering equipment, the atmosphere protective cover movable station furnace, variable capacitance of car type resistance furnace. At the same time, having undertaken the design and manufacture of heat treatment equipment nearly ten thousand sets, our products exported to Germany, Thailand, North Korea, Pakistan, Vietnam, Malaysia, Indonesia, Singapore, Nigeria, more than 10 countries, and have customers all over the world. We provide customers with a wide range of advisory services. According to product material, size, quality standards, and yield, the corresponding heat treatment process and furnace is made.
F A Q
1. What’s your MOQ?
At present we haven’t strict policy for this, so welcome orders with any quantity.
2.What information should the our provide to get an accurate quotation from you?
The customer should provide the working temperature, temperature rising speed, energy medium (gas or electricity), effective size of the furnace, drawings, pictures, industrial voltage, etc.
3.You are a green hand on Alibaba, how can I trust your company and machine?
Our factory have been in Heat treatment equipment for around 20 years , just entering alibaba for ads .And our machine have exported to East Asia, South Asia, the middle East Asia, Africa etc. areas and have a good feedback with no complaints.
4.If there are broken of your machine and spare parts , what should I do ?
In case of any failure occurred in the warranty, damaged parts to be replaced shall be offered free of charge .we providelifelong tracing service, supply equipment parts and relevant maintenance at favorable prices, and give user technical guidance free of charge.
