Price:RUB 371.64 - RUB 1,486.55

Quantity:


Product Overview

Description

Product Description

Good mechanical locking devices power lock for packaging wholesale

feature:

         It  can replace single keywey and spline ,in order to realize the connection between machinery parts (such as gear wheel,flywheel) and shafts,so the loading can be transmitted.Through the function of high strength of bolt when locking device is working,enormous strengh of tight holding power between hub ,inner loop and shaft are produced.When bearing the weight and loading depend on connection power between locking device and machinery and additional frictional torce to transmission torsion or power on shaft .

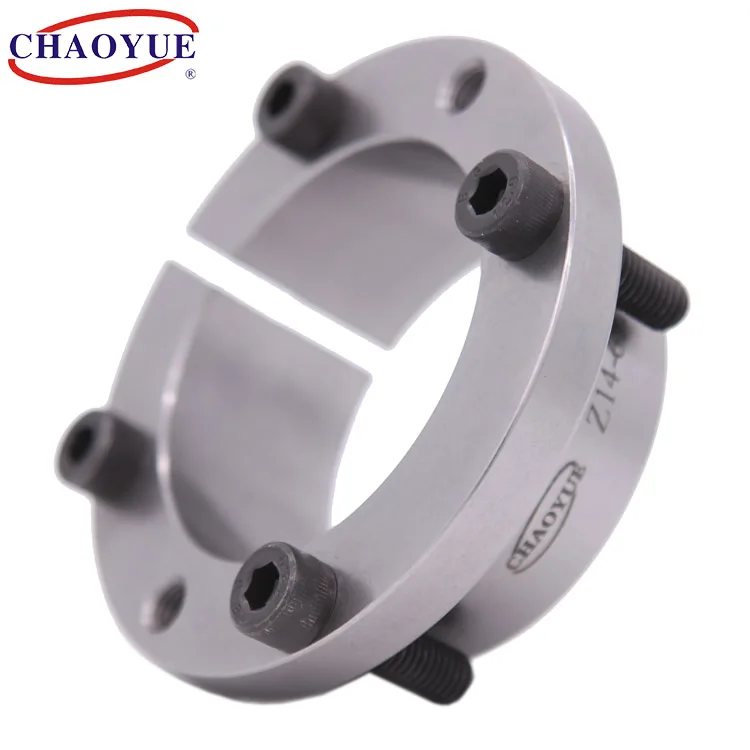

Z14-7

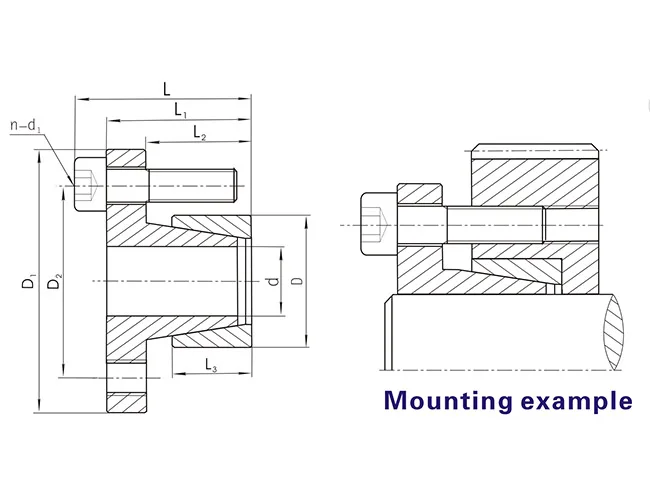

DIMENSION



Bolt



Rated Load

Pressure

on shaft

Pf

N/mm2

Pressure

on hub

Pf'

N/mm2

Torque of

tighten

locking-bolt

MA

N·m

Weight

[Kg]

d

 D

D1D2LL1L2

L3

d1

n

Torque

Mt  [kN·m]

Axial

Force

Ft  [kN]

14
16
18
19
20		25
25
25
25
30		42
42
42
42
50		33
33
33
33
39		30
30
30
30
31		26
26
26
26
26		20
20
20
20
20		16
16
16
16
16		M4
M4
M4
M4
M5		4
4
4
4
4

64

74
82
87
150

9.2
9.2
9.2
9.2
15		109
95
85
80
124		61
61
61
61
82		2.9
2.9
2.9
2.9
6.0		0.091
0.082
0.072
0.068
0.113
22
24
25
28
30		30
30
36
36
36		50
50
55
55
55		39
39
45
45
45		31
31
31
31
31		26
26
26
26
26		20
20
20
20
20		16
16
16
16
16		M5
M5
M5
M5
M5		4
4
4
4
4		165
180
187
210
225		15
15
15
15
15		113
104
100
89
83		82
82
69
69
69		6
6
6
6
6		0.110
0.088
0.144
0.121
0.105
32
35
36
38
40		42
42
42
44
48		62
62
62
66
70		51
51
51
54
58		33
33
33
34
34		28
28
28
28
28		20
20
20
20
20		16
16
16
16
16		M5
M5
M5
M6
M6		4
4
4
4
4		240
260
270
400
425		15
15
15
21.2
21.2		77
71
69
93
88		59
59
59
80
73		6
6
6
10
10		0.200
0.173
0.162
0.182
0.223
42
45
48
50
55		48
55
55
62
62		70
82
82
89
89		58
67
67
74
74		34
43
43
43
43		28
35
35
35
35		20
25
25
25
25		16
20
20
20
20		M6
M8
M8
M8
M8		4
4
4
4
4		446
875
935
974
1070		21.2
38.9
38.9
38.9
38.9		83
115
107
103
94		73
94
94
83
83		10
25
25
25
25		0.191
0.40
0.35
0.50
0.41
60
65		72
72		99
99		84
84		43
43		35
35		25
25		20
20		M8
M8		4
4		1165
1265		38.9
38.9		86
79		71
71		25
25		0.58
0.46
