GDHH pre folding and bottom lock box three point automatic folder gluer machine

High speed automatic folder gluer GDHH machine belongs to the equipment with four-folded/edged-bottom The machine is able to 2-folding, 4-folding with bottom gluing. In the pre-folding part, the first fold and the third fold can be exchanged by 180 degree or 150 degree. The second fold and the fourth fold can be molded in 180 degree; the special design is also available. Use of imported electrical appliances, and accessories for export,Before and after the single inverter separate operation. Speed, reasonable structure, convenient and flexible operating characteristics,,It is suitable for the paste process,such as the edged-medicine box,wine box,CD box,cosmetic box and French fries box etc..As well as pasting the paper box without edged-bottom

GDHH-1200

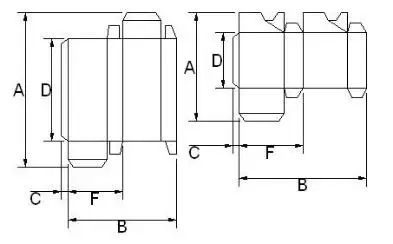

Type of boxex	Amax	Amin	Bmax	Bmin	Cmin	Dmin	Fmin
No-edged bottom box	700mm	110mm	840mm	110mm	8mm	70mm	51mm
Edges bottom box	700mm	160mm	750mm	180mm	9mm	90mm	85mm



GDHH-1300

Type of boxex	Amax	Amin	Bmax	Bmin	Cmin	Dmin	Fmin
No-edged bottom box	700mm	110mm	920mm	110mm	8mm	70mm	51mm
Edges bottom box	700mm	160mm	880mm	180mm	9mm	90mm	85mm



Characteristics



Max linear velocity	0-250m/min
Suitable paper quality	220~800gm² paperboard ,E flute corrugated board
Paste box basic form	One-side edge pastes, two-side edge pastes, base pastes Both sides are folded, both sides are pre-folded.in Order to convenient to paste
Way of folding in reverse	One and three fold 90º ,two and four fold 180º
Feeding way	Automatically and continuously feeding
Adhesive	Solute type
Needed power	7.5KW 380V
Overall Size	9500×1000×1350mm

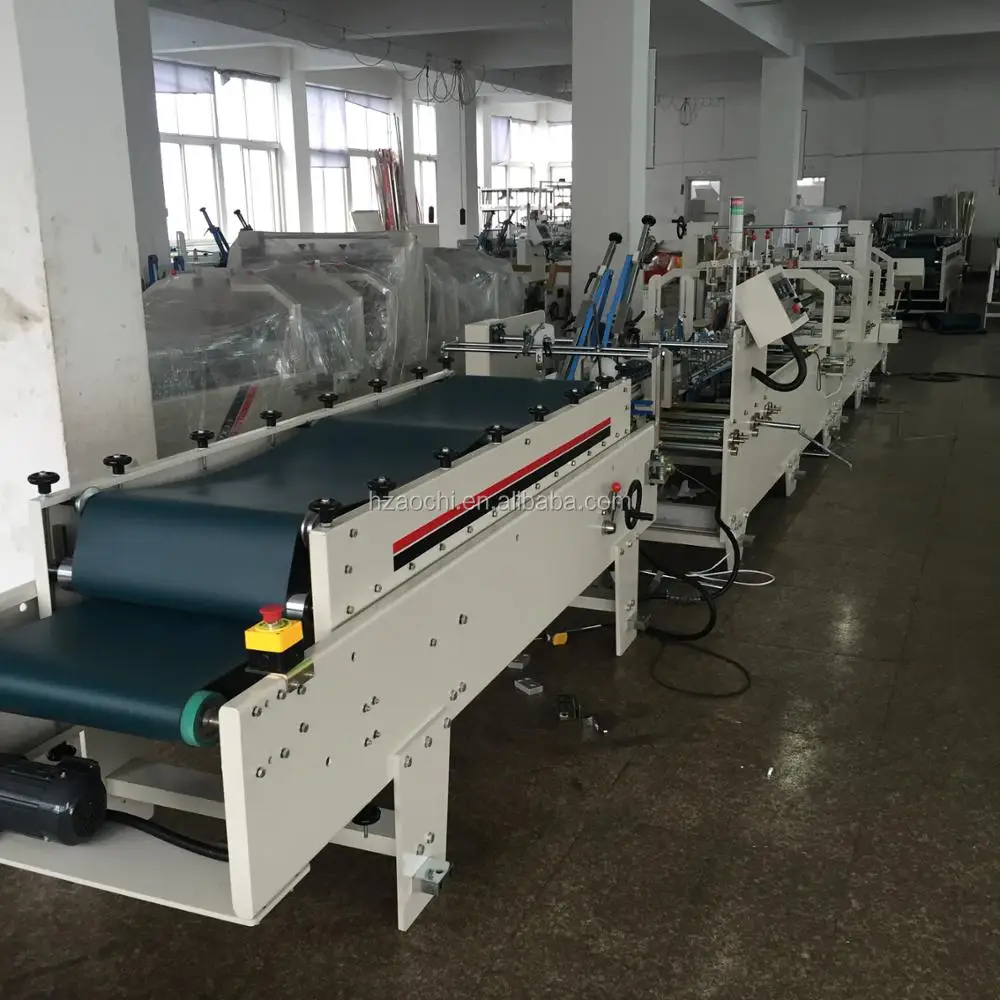

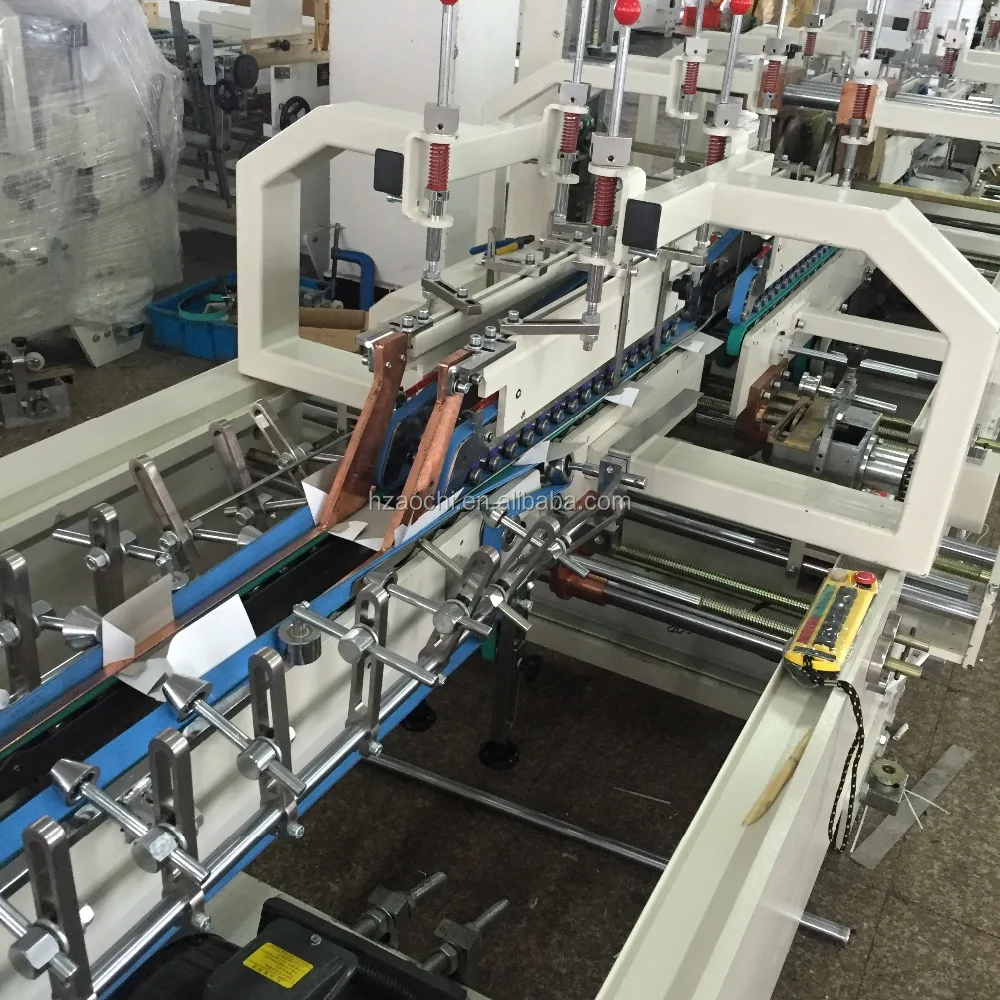

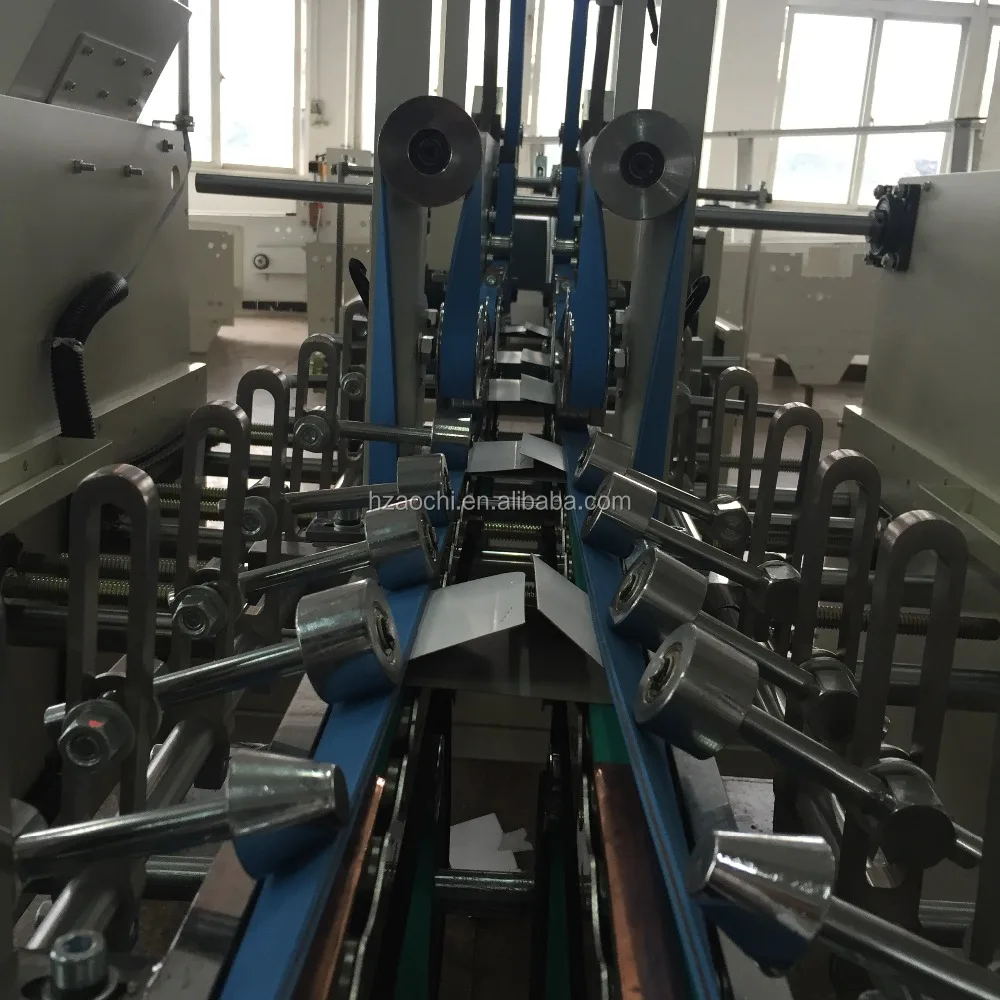

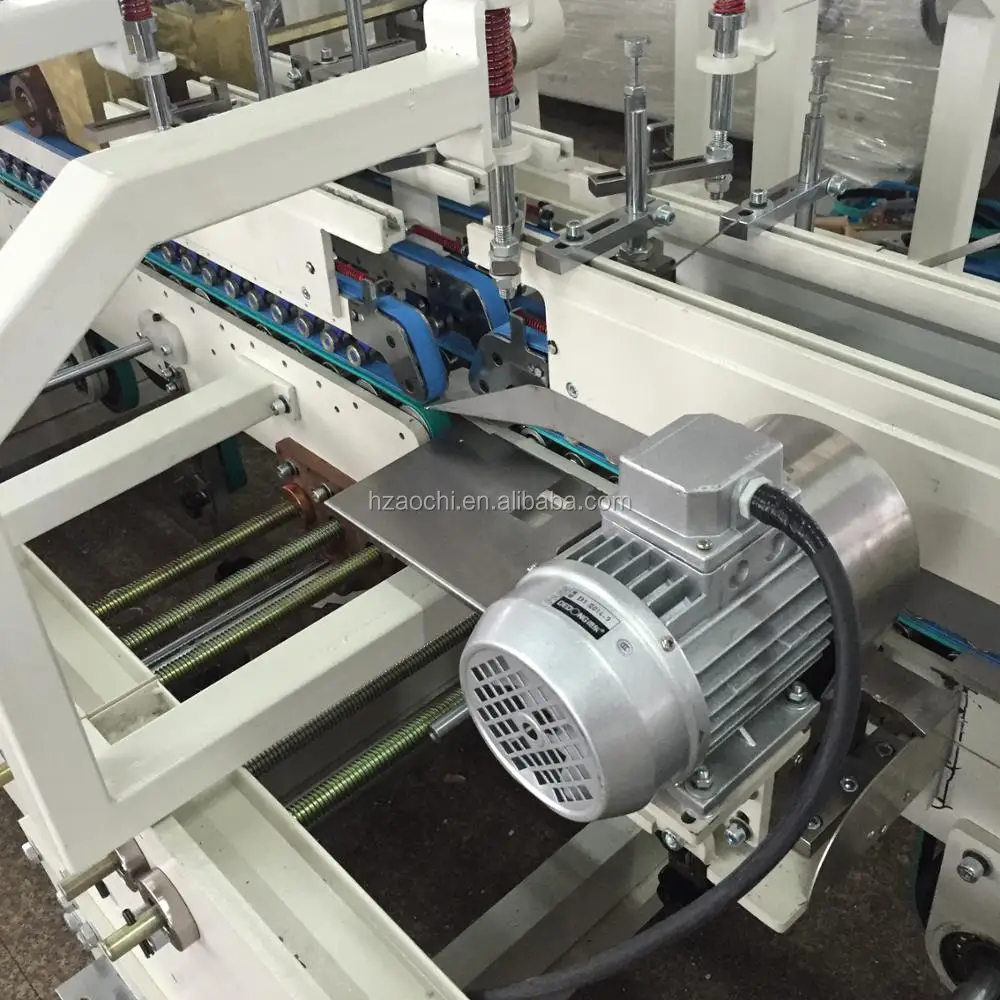

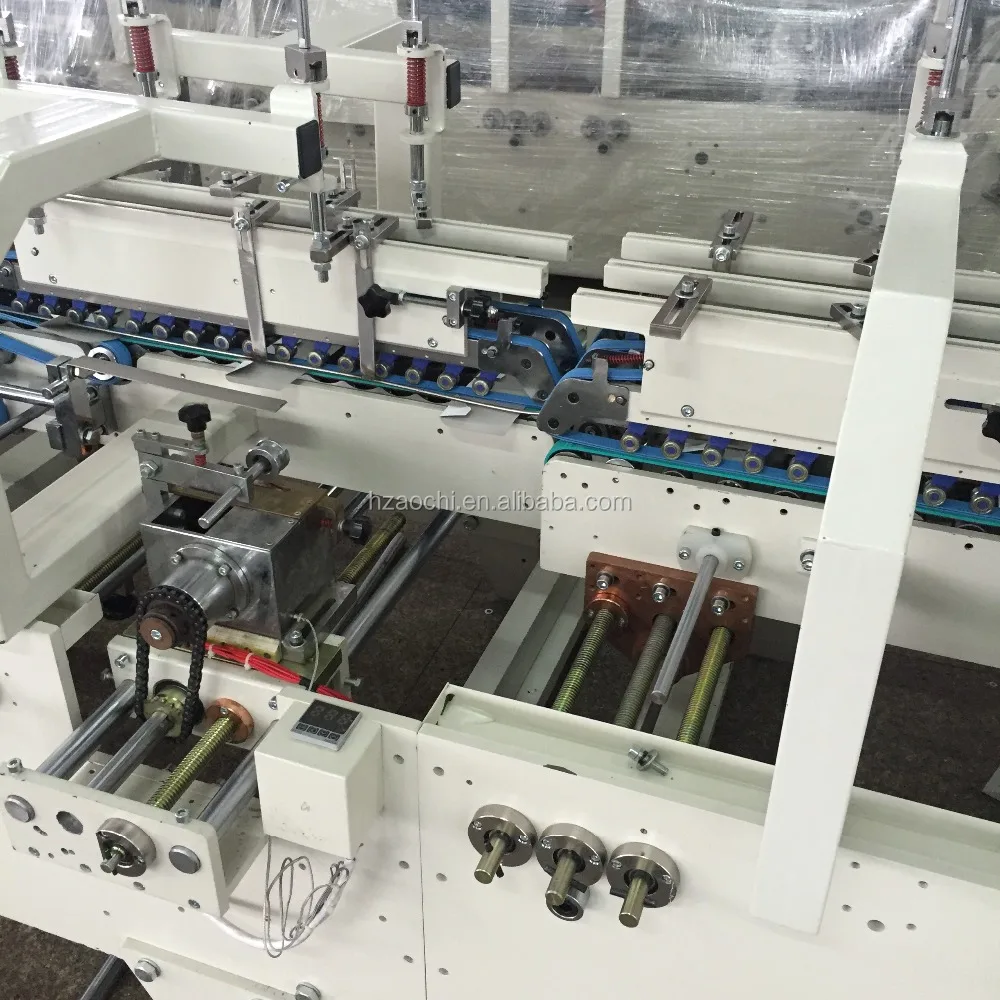

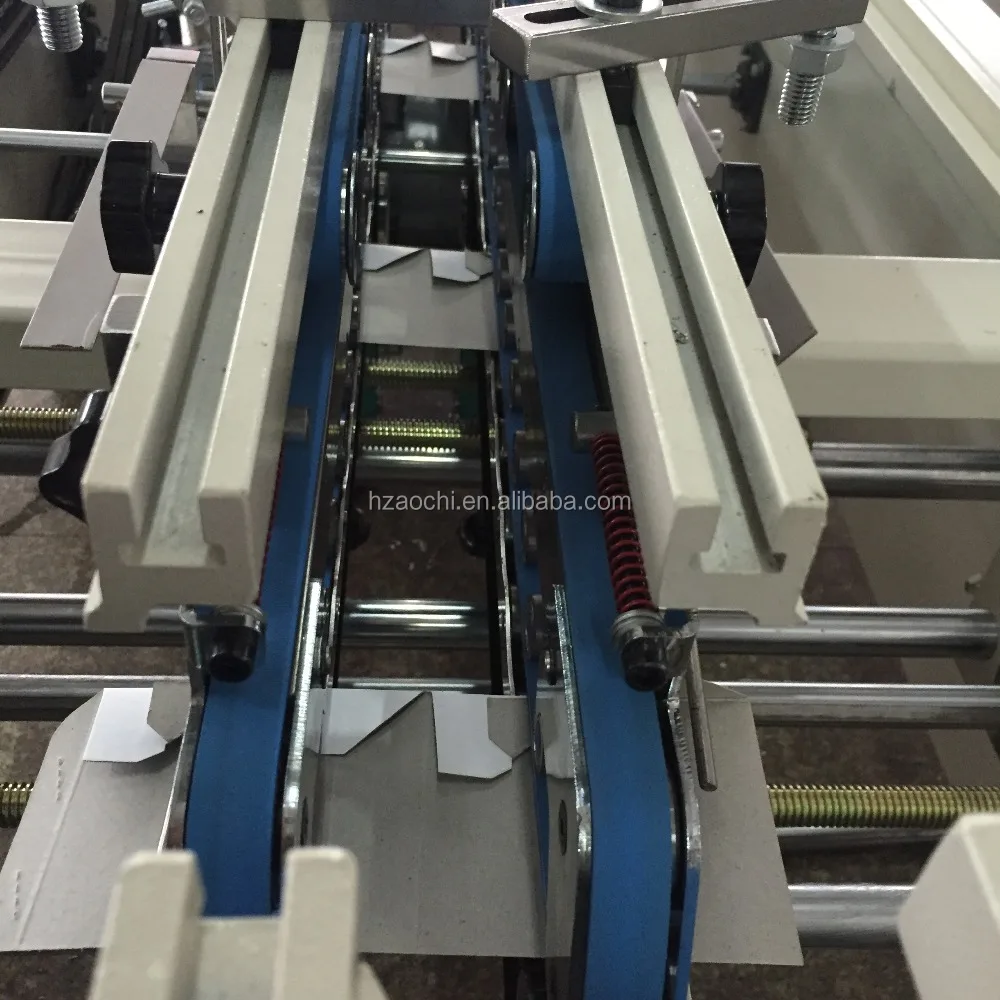

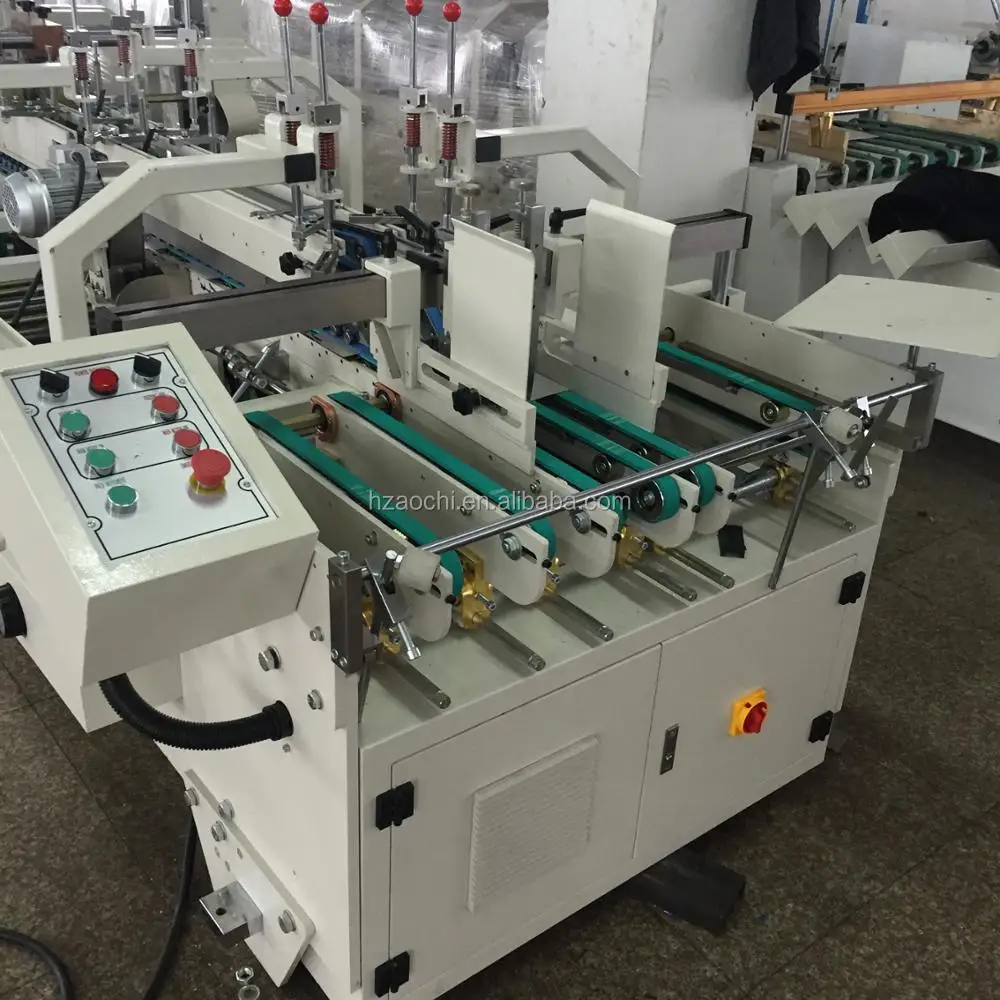

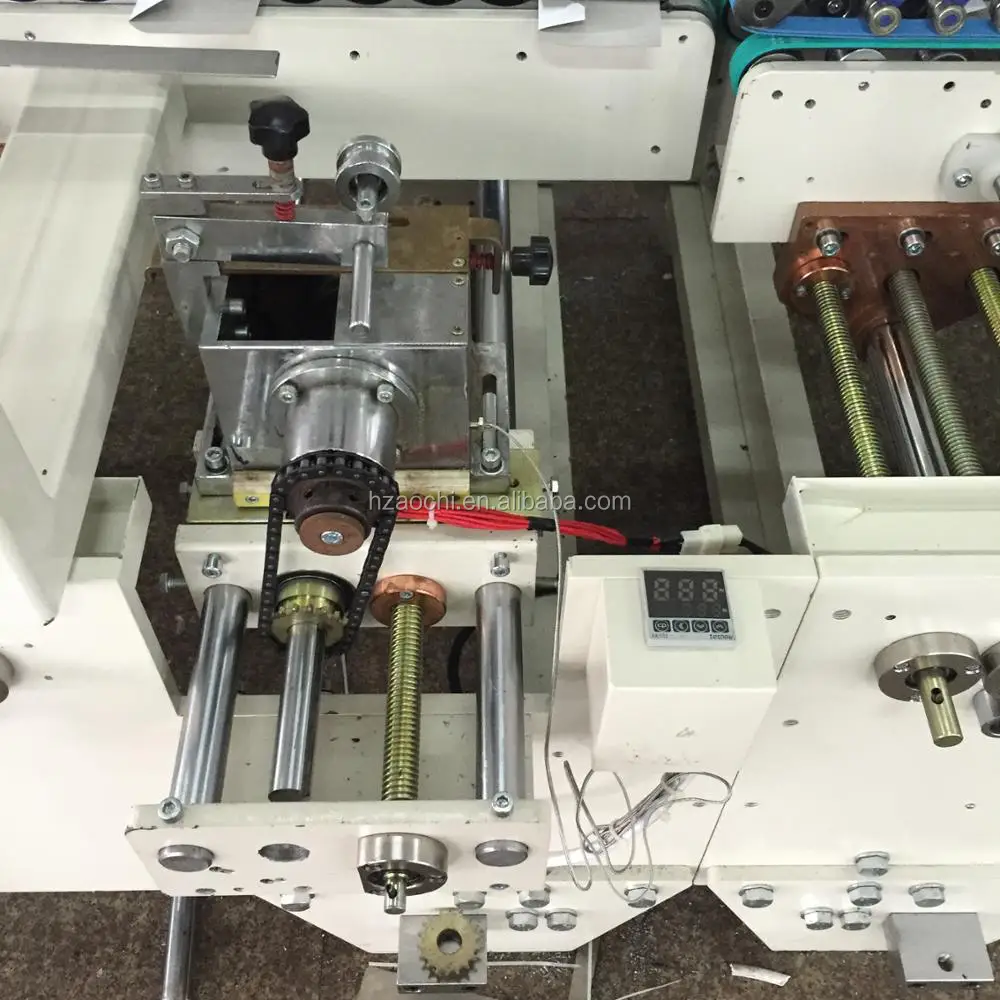

Detailed Images
