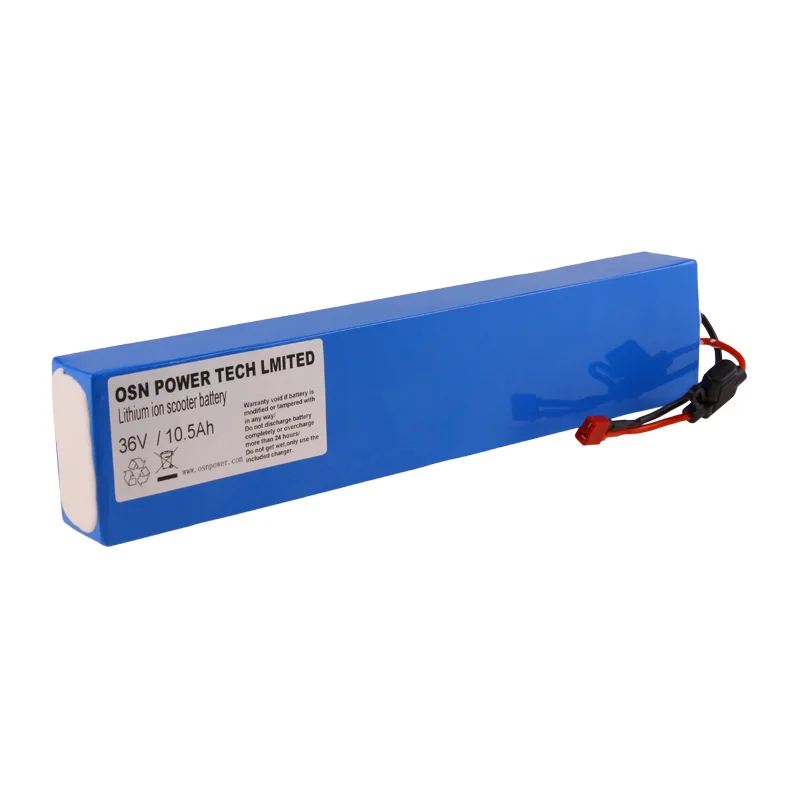

OSN POWER Customized Electric scooter High Capacity 36V 10.5Ah Lithium ion Battery

Product Overview

Description

Product item:OSN POWER Customized Electric scooter High Capacity  36V 10.5Ah  Lithium ion Battery



Product introduction: High power battery 36V 10.5AH is designed for many various of application like:E-scooter/Motobike/Tricycle/Golf cart.







Specification:

No.	Items	Specifications
1	Nominal Voltage	36V
2	Nominal Capacity	10.5Ah
3	Standard Charge Current	2A     (0.2C)
4	Max. Charge Current	10A     (1C)
5	Battery management System (BMS)	15amp continuous 30amp burst BMS(we will use BMS according to your requirements)
6	Continuous Discharge Current	15A
7	Peak Discharge Current	30A
8	Full Charged Voltage	42V(4.2V per cell)
9	Charge Cut-off Voltage	42.5V (4.25V any single cell)
10	Discharge Cut-off Voltage	25V  (2.5V per cell)
11	Net Weight	1.3kg
12	Dimensions	326*68*35

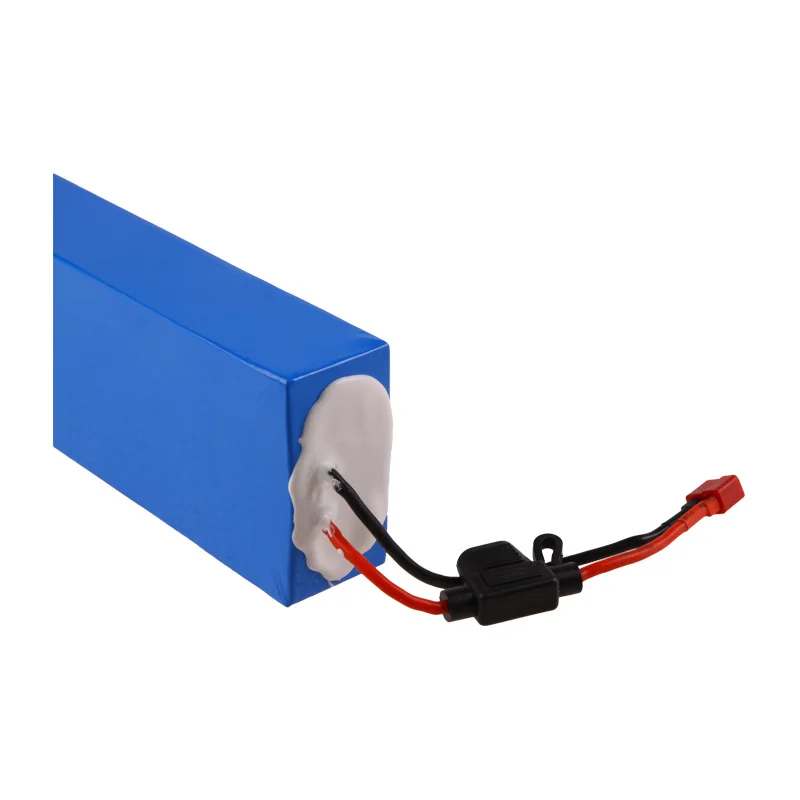

13	Connector	T plug
14	Operating Temperature	Charging:  0°C ~ 45°C Discharging: -20°C ~ 55°C
15	Storage Temperature	(Recommended to store 20 ± 5°C for long term storage)
16	Cycle Life	1000 times (80% of initial capacity at 0.2C rate, IEC Standard)

Features:

36V10.5Ah pack

36V 10.5Ah consists of many 18650 cells mounted together in a honeycomb structure and spot welded together and shrink wrapped with 2 layers of wrap.



Original 35E 3500mah cell,made in Korea,It offers both energy density and high amperage performance.



BMS:15Amps

This pack comes with a very advanced BMS (battery management system) with Texas Instruments IC inside which protects the pack from damage during charge and discharge. This BMS also has temperature protection to keep the pack from getting too hot.



It is a high power BMS which will allow the pack to put out 15amps continuous (540 watts) and 30 amp bursts (1080 watts) although running this much power will drastically reduce packs life expectancy. so we recommend to not run your battery too hard if you expect it to last over a couple hundred charges.



Product Application:

36V lithium battery can be widely applied to for many applications ,such as AGV/E-scooter/Motobike/Tricycle/Golf cart.







More info:

OSN Power is known for our scooter Battery packs made for 18650 cells at affordable pricing,

Most of our packs are made up of authentic Grade A 18650 battery cells made in Korea or Japan. Meanwhile we use top quality Chinese cells made with the best BMS and the best ingredients too.We use state of the art BMS with temp control to keep your battery as safe as possible.

More info.please see all products and contact Jenny: jenny(at)osnpower.cn
