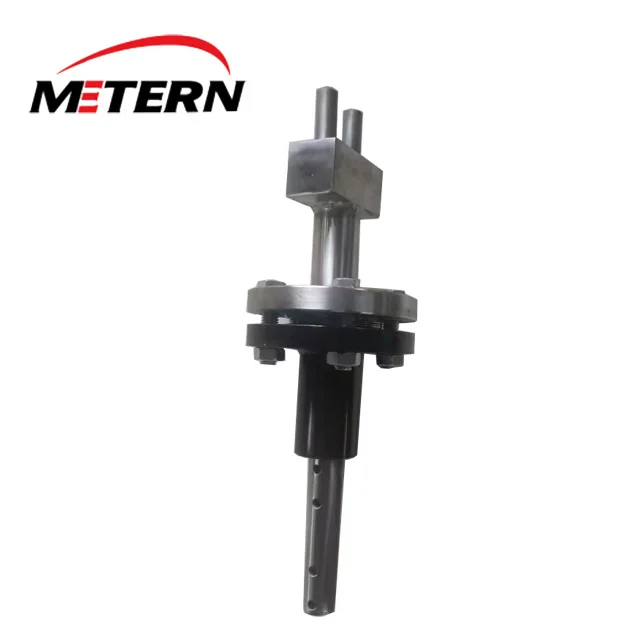

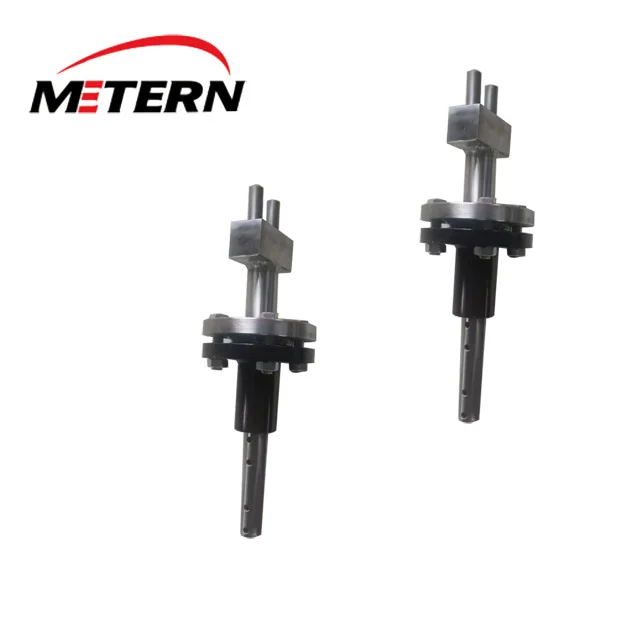

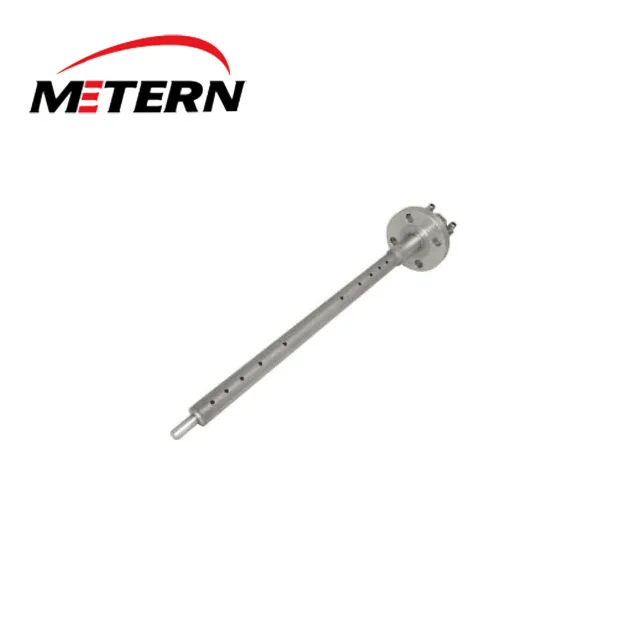

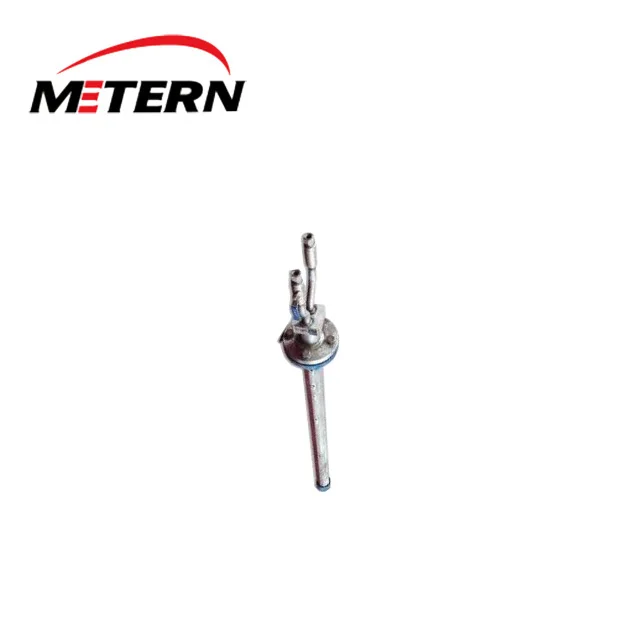

MT LGL series liquids, gases smoke and steam measuring Annubar flow meter for power plant

Product Overview

MT-LGL Annubar Flow Meter, it is based on the principle of the early pitot tube velocity, which is a new type of differential pressure measuring element developed in the late 1960s. It is widely used in power plant, petrochemical, metallurgy, water treatment, fine chemical industry and environmental protection.

Principle

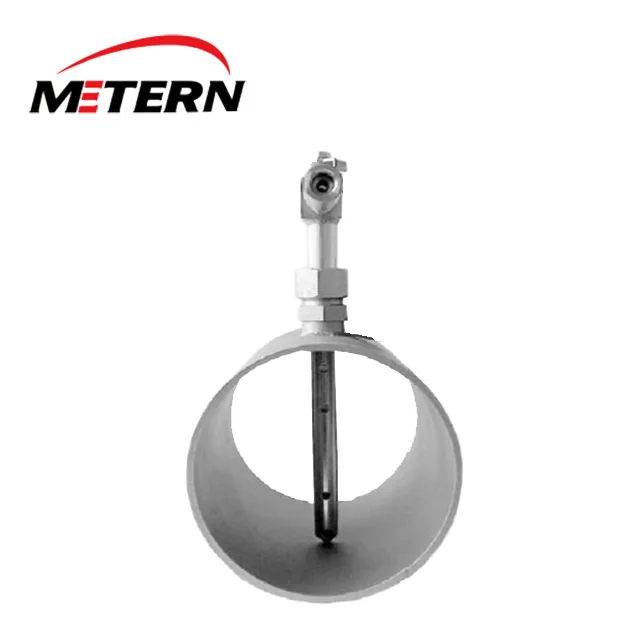

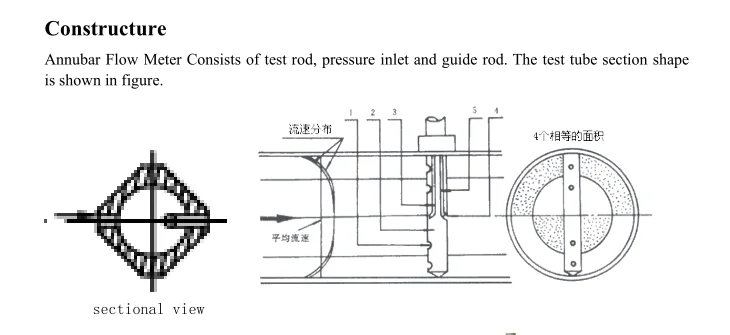

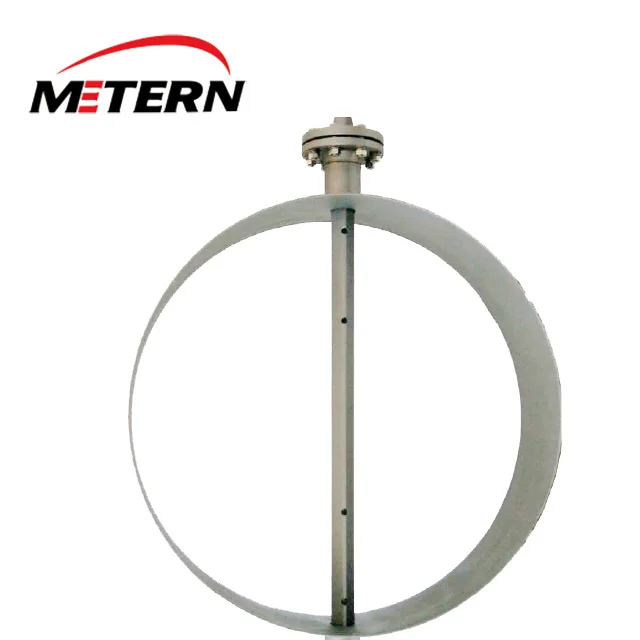

MT-LGLAnnubar Flow Meter,It is a hollow metal rod inserted along the diameter of the pipe, and
the pressure hole is formed in the direction of the flow direction of the flow. The multi-point
pressure hole in the flow surface is measured by the total pressure, which is connected to the full
pressure pipe, and the average total pressure p1 is raised, and a pressure hole is opened in the center
of the back flow surface, which is connected with the static pressure tube, which leads to the static
pressure p2..
It is used to measure the flow rate of the total pressure and static pressure of the measured fluid.

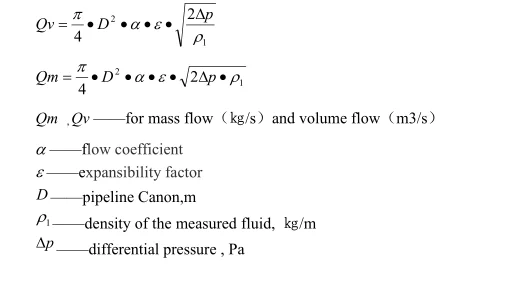

Flow formula

Range ratio 20 : 1
General diameter:8mm~8000mm
Accuracy:±1.0%
Repeatability: ±0.1%
Operating pressure : 0~40Mpa
Operating temperature: -100℃~800℃;
Applicable medium: air, gas, flue gas, natural gas, tap water, boiler feed water,
containing solution ,saturated steam, superheated steam, etc

Features
Can be used to measure the flow of liquids, gases and steam.
Small pressure loss, convenient installation, disassembly, small maintenance.
Suitable for large pipe and irregular pipe flow measurement.
The pressure loss is small (compared with the orifice plate, only under 5% of the hole plate), which
greatly reduces the power consumption and the energy saving effect is significant.
