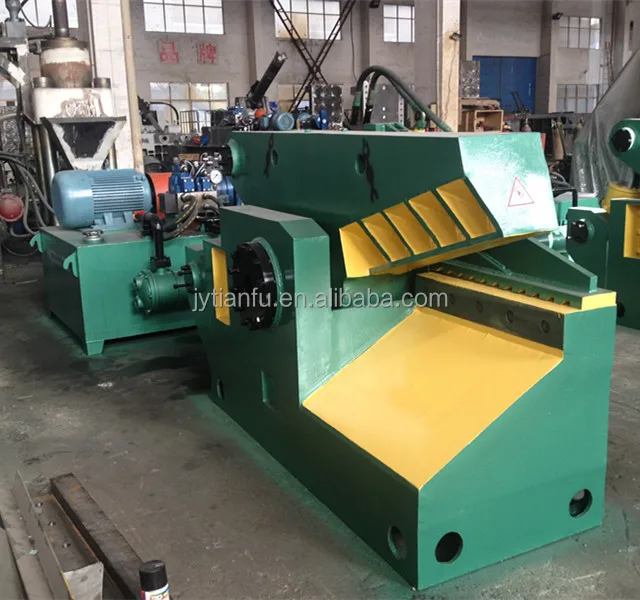

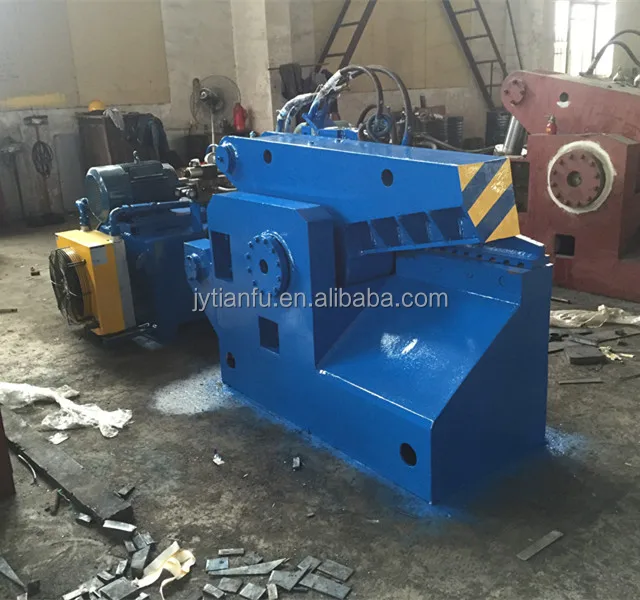

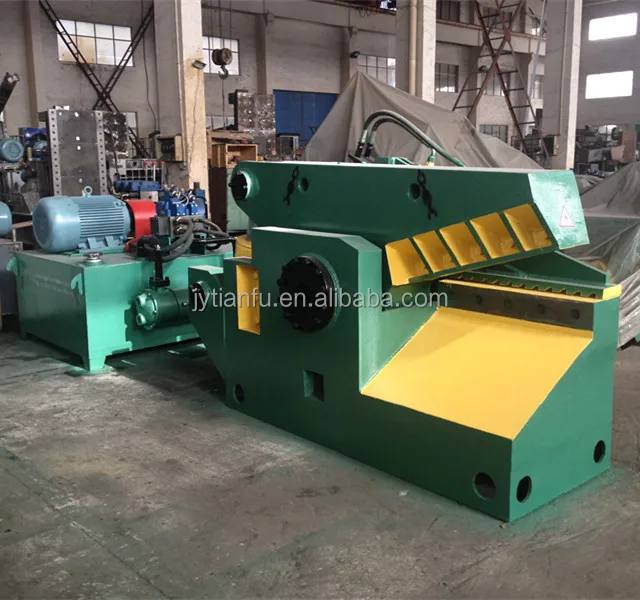

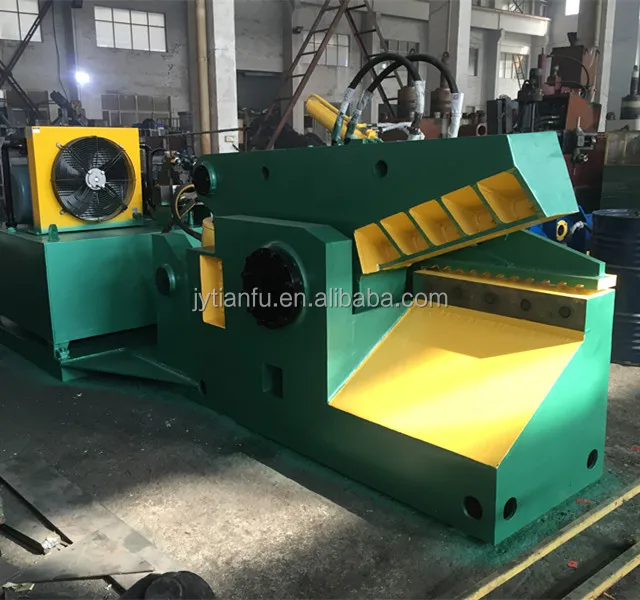

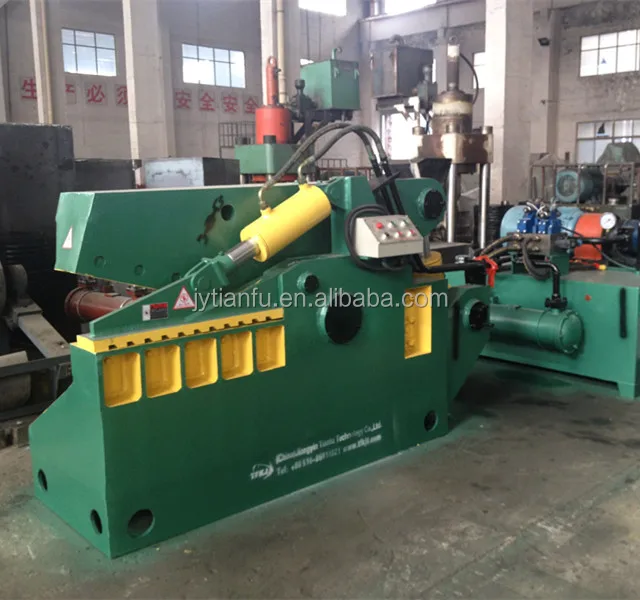

Best Supplier Manufacturer 400Ton Iron Cutting Machine

Product Overview

Description

Best Supplier Manufacturer 400Ton Iron Cutting Machine







1.Applications:

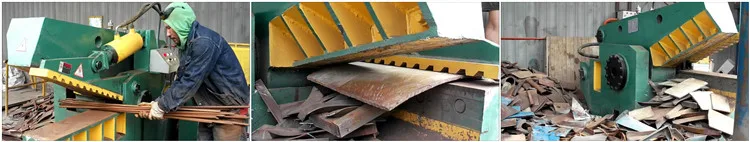

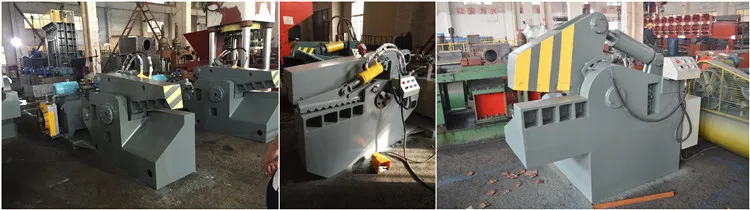

Q43 Series of hydraulic alligator metal shear is applied in recycling companies, automobile dismantling plants,smelting & casting industry to cold cut section steel and metallic  structural parts into acceptable furnace charging.



2.Features:

1)Adopting hydraulic drive,Q43 series feature simple operation & easy maintenance,it's

safe & reliable.

2)Shear force 9 grades from 63 to 500 tons;

blade length 400mm,600mm,700mm,800mm,1000mm,1200mm,1600mm,1800mm.



3)No footing bolts needed in installation;diesel engine can be equipped for power.



4)We are factory with strict quality control team.





3.Technical parameters:



Type	Q43-630	Q43-1000	Q43-1200	Q43-1600	Q43-2000	Q43-2500	Q43-3150	Q43-4000
Max Shear Force (ton)	630	1000	1200	1600	2000	2500	3150	4000
Max Holding Force(ton)	120	160	200	250	250	260	420	420
Max Blade Opening(mm)	200 280	280	280	320	380	480	520	520
Blade Length(mm)	400 600	600	600	700	800	1000	1200	1200
Shearing Frequency(times/min)	8-16	8-16	8-16	8-16	8-16	8-16	8-16	8-16
Material Size(mm)	30*30 35*35	40*40 45*45	45*45 50*50	55*55 63*63	65*65 75*75	70*70 80*80	80*80 90*90	90*90 100*100
Power(KW)	7.5	11	15	18.5	22	30	37	44
Operation	Manual feeding ,manual or automatic operation









1)  Are you a factory or trade company?

We are manufacturer with own factory for 15 years, export proportion 70~80%.



2)  How can i trust your company?

a. With professional design and sales team, we can serve you the perfect solution with lowest cost.

b. Assessed by third party, national patents for all equipment, also CE, ISO.

c. Agents in RU, UKR,MYS,PH; Users around the world.

d. Welcome to inspect anytime. We are near to Shanghai airport.

e. About the machine, we do much better on:

Wear plates, seals, structure design, pressure head.



3)  How about the test running & installation?

Before delivery, we finish the test over 3times.

If you take integral design, no need to installation at all. If parted design, we can send our technicians to your place if necessary.



4)  Any warranty?

Under the proper usage, one year for whole machine except the wear parts.



5)  Is your price competitive?

Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
