Заводская поставка, плоский диск zj am, динамический датчик крутящего момента руля, цена
- Category: >>>
- Supplier: Jiangsu Lanmec Electromechanical Technology Co. Ltd.
Share on (60730060331):
Product Overview
Description
Product Description

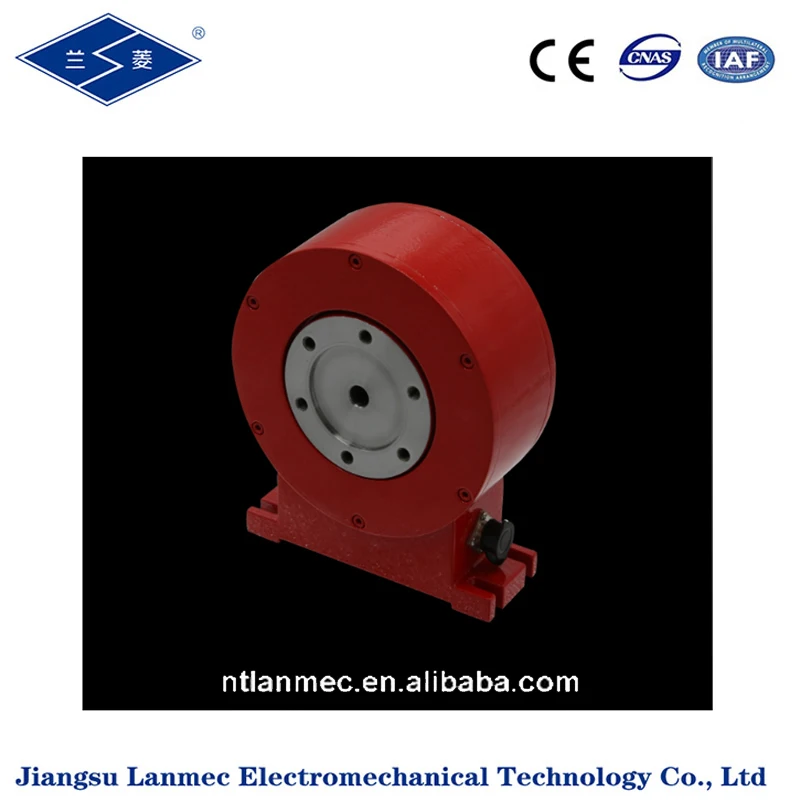

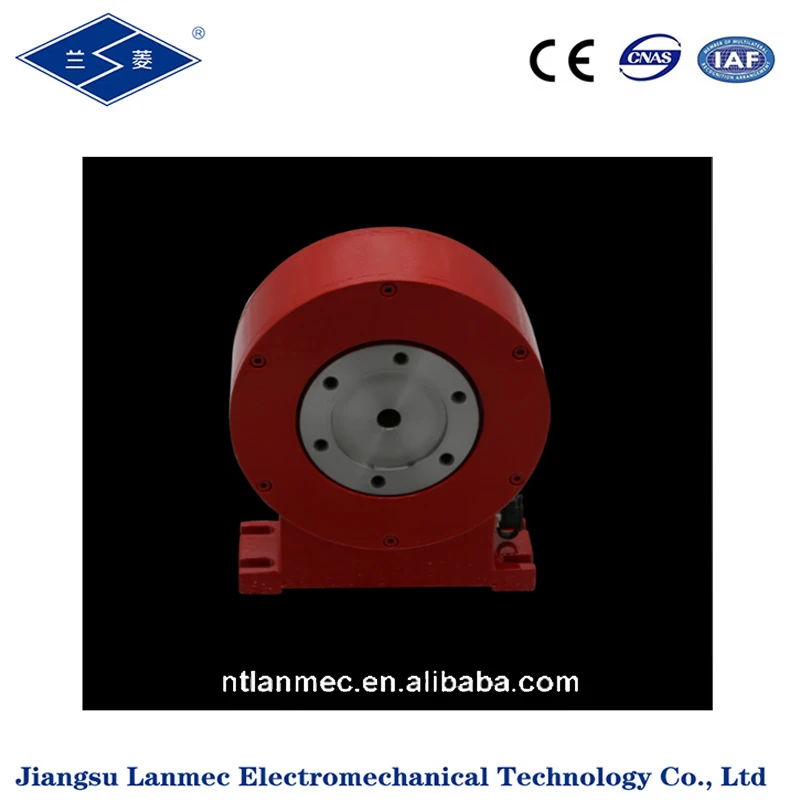

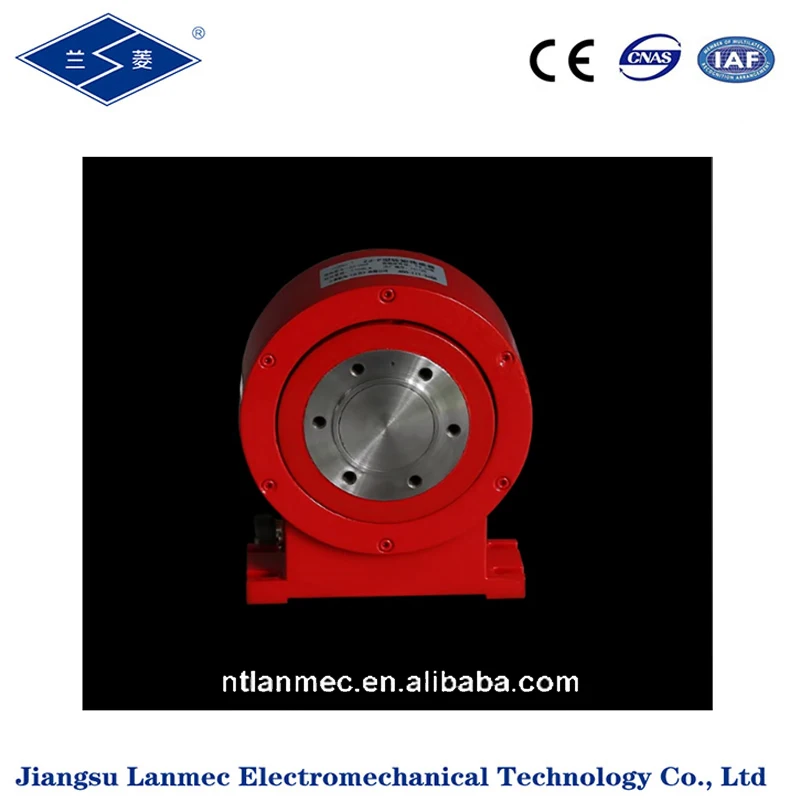

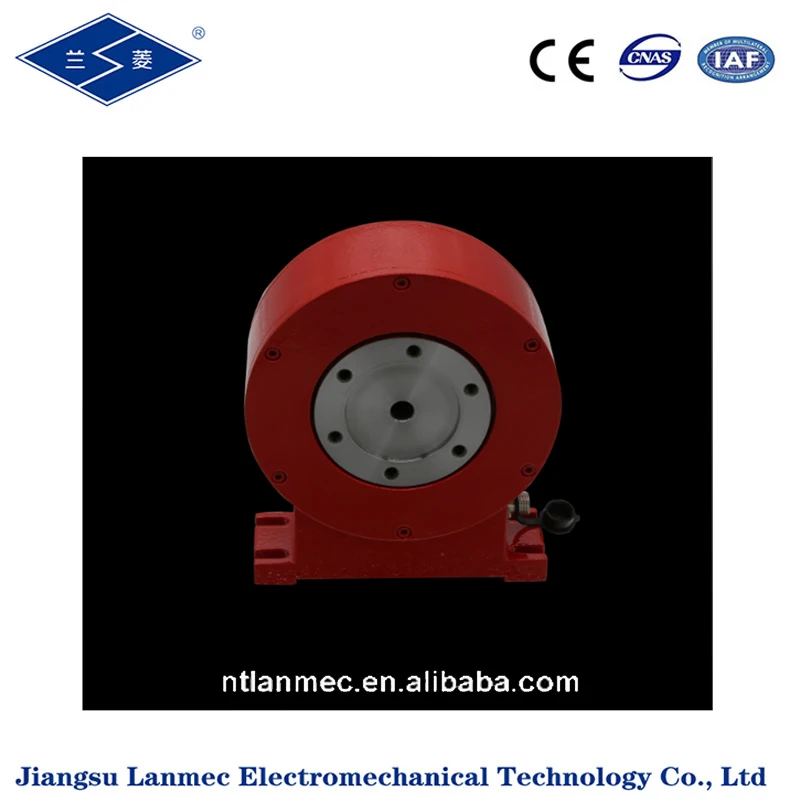

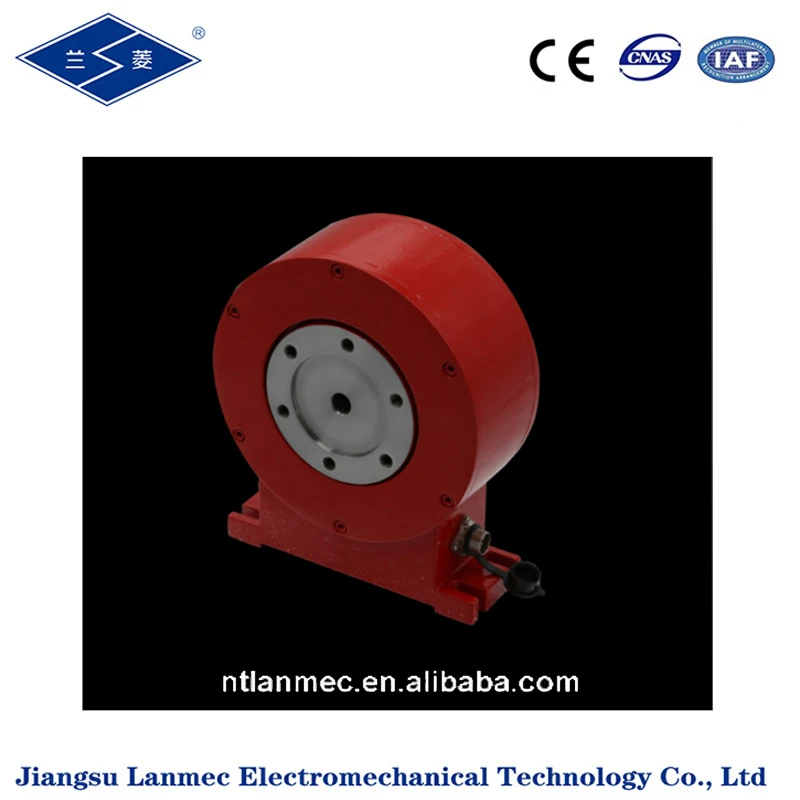

Factory Supply zj-am micro range torque speed sensor zj-a wide
ZJ Torque Speed Sensor(DYNAMIC)Introduction
ZJ torque speed sensor (dynamic) adopts strain gauge measurement technique.The electrical signal of elastic shaft under torsion can be measured by providing power for the strain gauge bridge. After amplified,and voltage/frequency conversion, the strain signal is converted into the frequency signal directly proportional to torsional strain.
ZJ-AP disc torque sensor input and output end use flange connection(one side must be rigid connection). Because this model sensors without the use of the bearing, can effectively avoid measurement errors caused by bearing heating. Suitable for high speed rotating or requiring shorter axial size occasion.
Product details

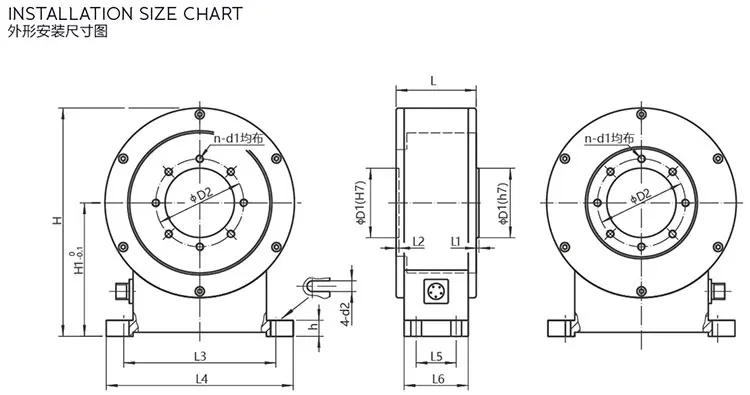

| Model | ZJ-5/10/20/50AP /ZJ-100/200AP /ZJ-500AP /ZJ-1000AP /ZJ-2000AP |
| N.m | 5/10/20/50 100/200 /500/ 1000/ 2000 |
| L | 60/ 70 |
| H | 171 /171/ 200/ 220 /220 |
| H1 | 100/ 100 /120 /130/ 130 |
| D1 | 52/ 52/ 62/ 72/ 72 |
| D2 | 66/ 66/ 76/ 96 /96 |
| L1 | 2 /2/ 3/ 3 /3 |
| L2 | 2/ 2/ 3 /3/ 3 |
| L3 | 115/ 115 /135 /155 /155 |
| Product Keywords | zj-am micro range torque speed sensor,zj-a wide range torque speed sensor |
Main application
This sensor is a kind of precision measuring instrument for measuring large torque, rotate speed, and mechanical power. This device is mainly used for detecting the torque and power of locomotive, automobile, tractor, airplane, ship, and mining machinery, as well as sewage disposal system, and applied in process industry.
