5Km china manufacturer laser rangefinder with long distance
- Category: >>>
- Supplier: Chongqing Diaoran Photoelectric S&T Co. Ltd.
Share on (60730061747):
Product Overview
Description

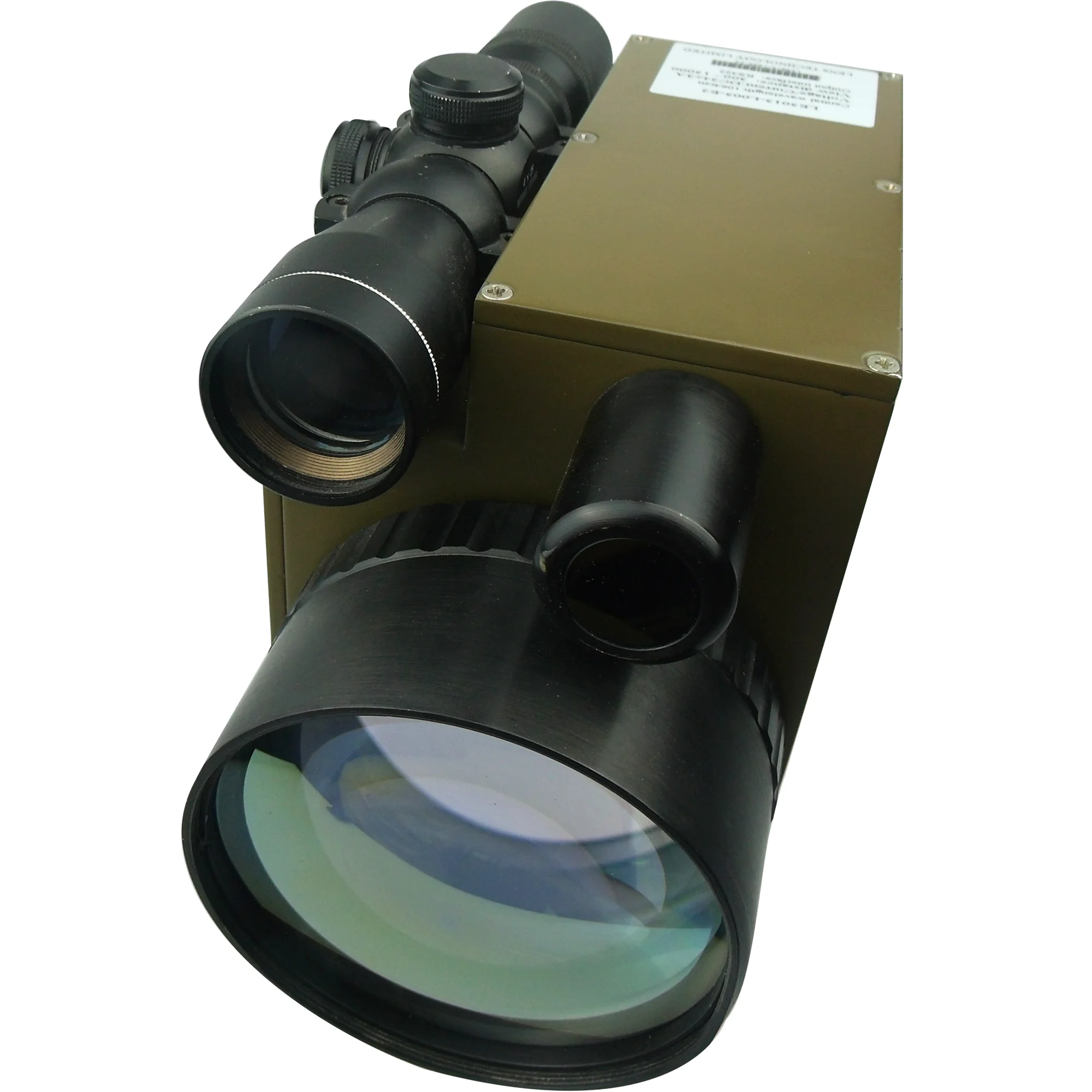

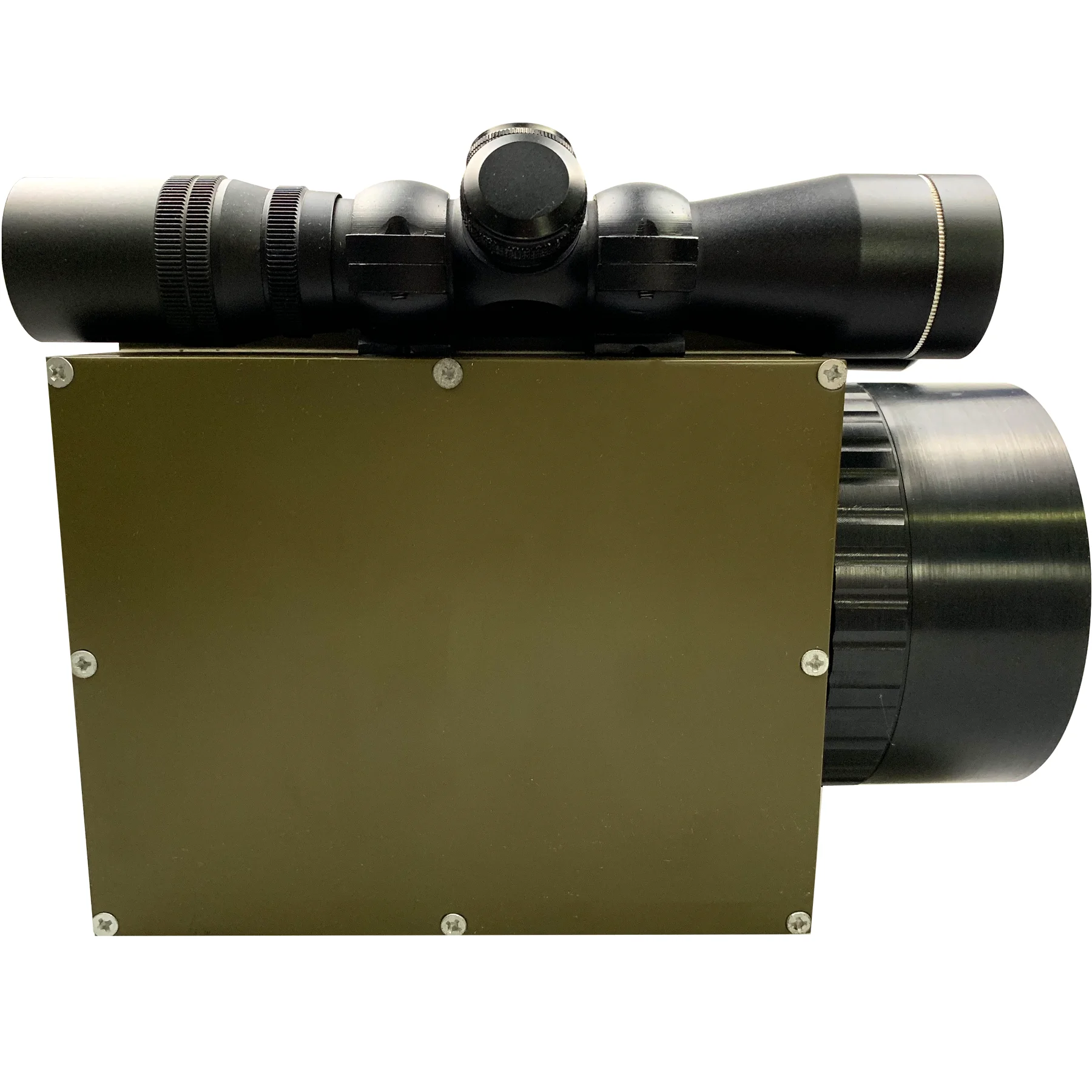

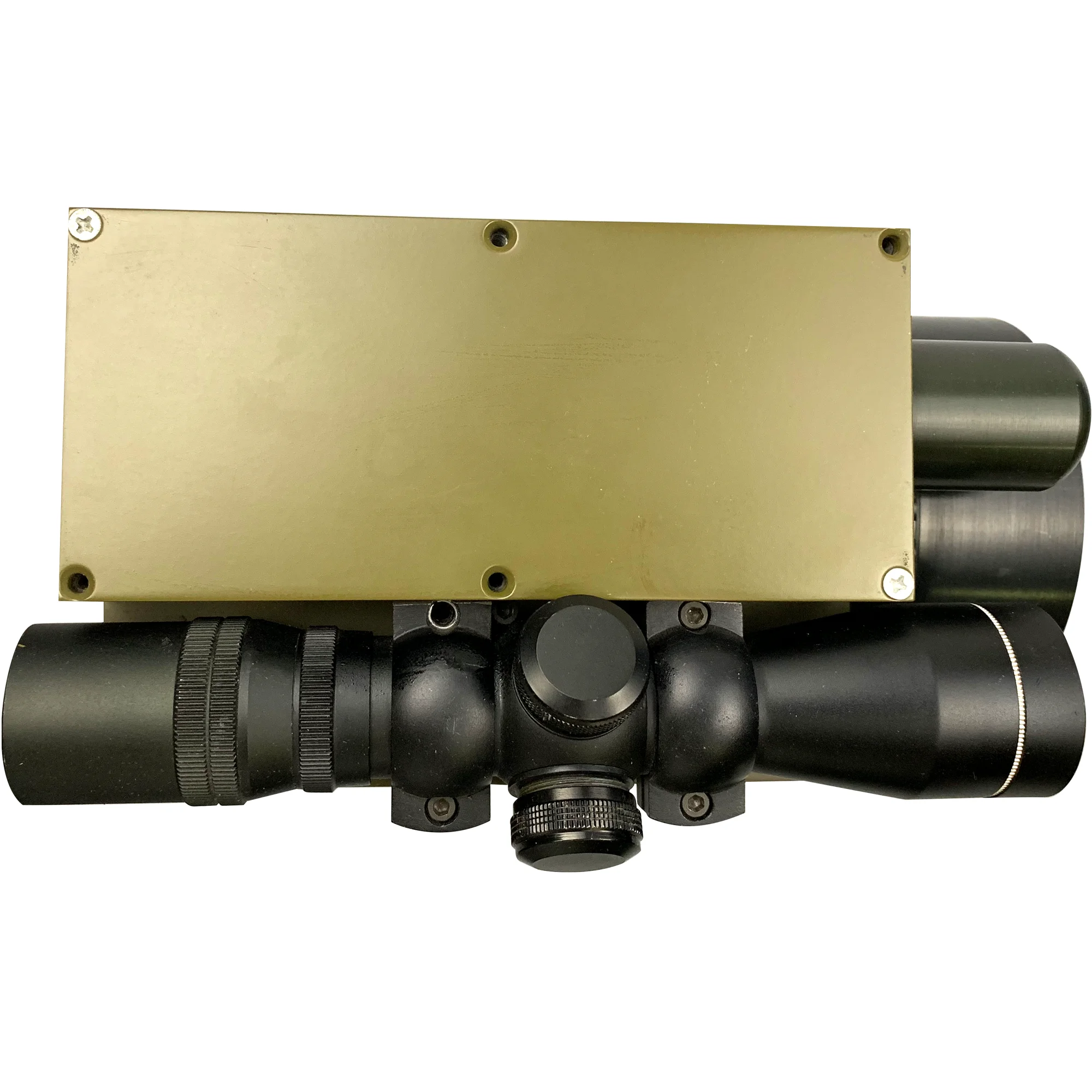

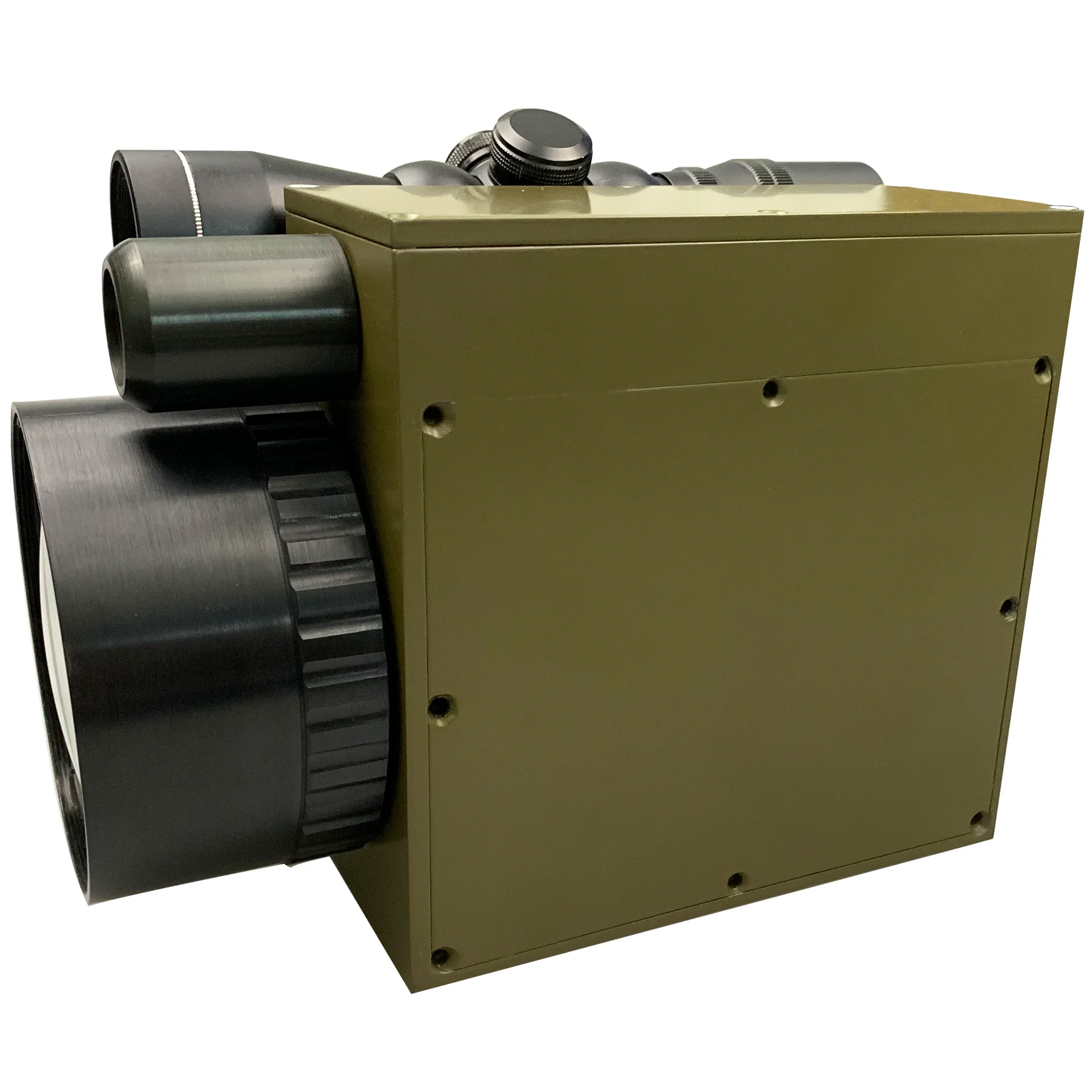

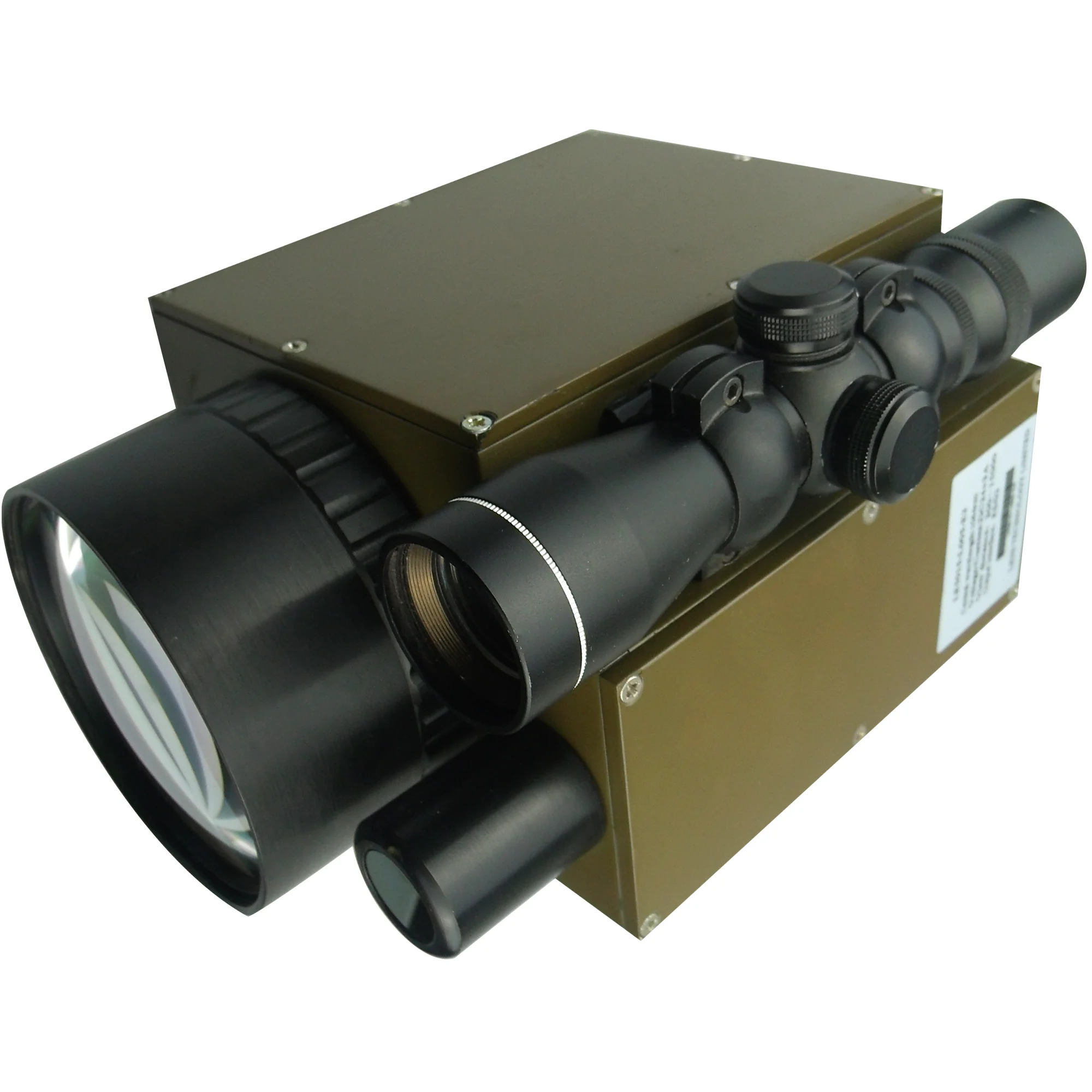

Products Appearance
Products Appearance
| Front | Side |
 |  |
Product Specification
Products Specification
The main technical indexes | |
Wavelength | 1064 nm |
Launch caliber | 20 mm |
Receiving caliber | 93 mm |
Ranging distance | 100-5000 m |
Ranging accuracy | ± 3 m (0.3 m) |
Repeat frequency | 12.5 Hz |
Meet mouth | RS232, 422, 485 |
Power supply | DC24 |

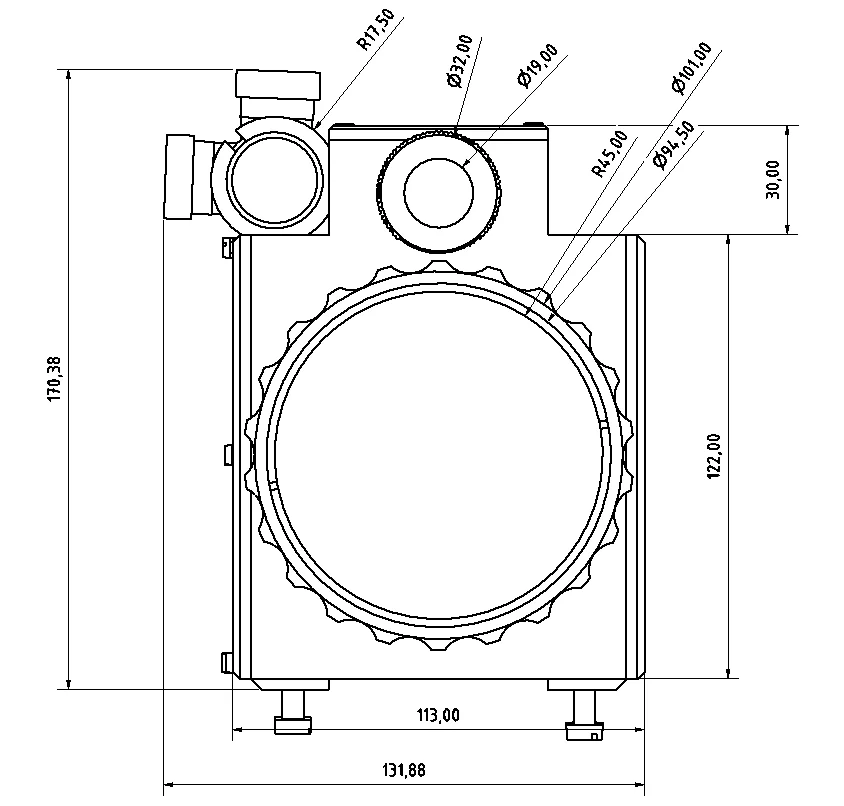

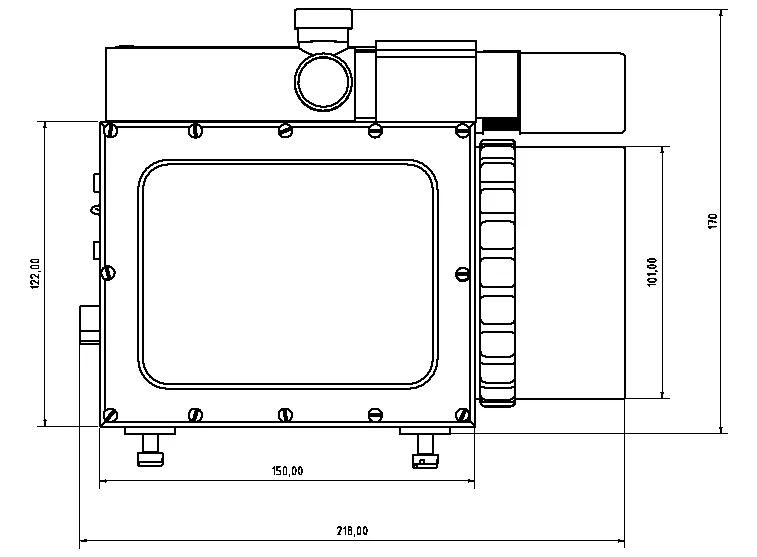

Dimensions | 112 x145x210mm |
Weight | 3.5 Kg |
According to customers' demand, we can increase CCD, infrared Functions, etc. | |
Characteristics: 1) High frequency.
2) Efficient laser technology.
3) Small and long distance.
Products Description
Products Description
Design:
System:
Products Application
Products Application
