2018 plastic cup making machine
- Category: Plastic Product Making Machinery >>>
- Supplier: Shantou Jin Hong Sheng Machinery Co. Ltd.
Share on (60730083600):
Product Overview
Description

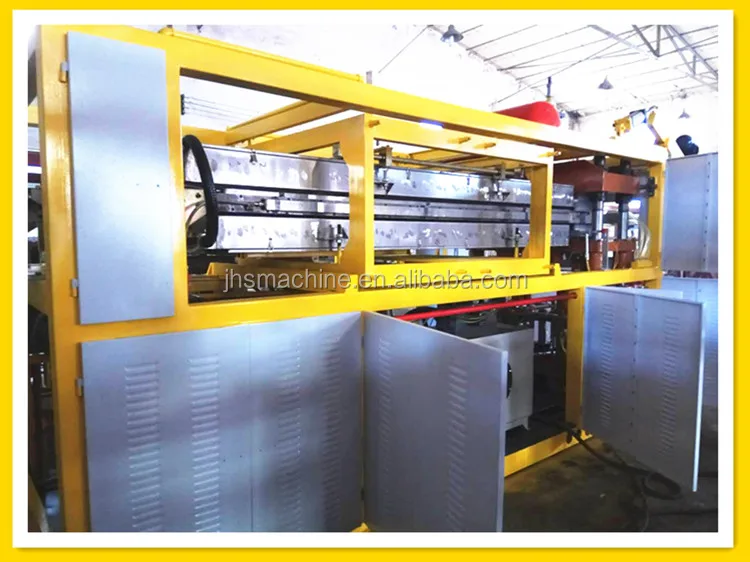

2018 high quantity produce machine intelligent operation plastic cup thermoforming machine
High production quantity output
Easy to operate
Intelligent temperature automatic adjustable
PLC touch screen monitor
Save labor cost

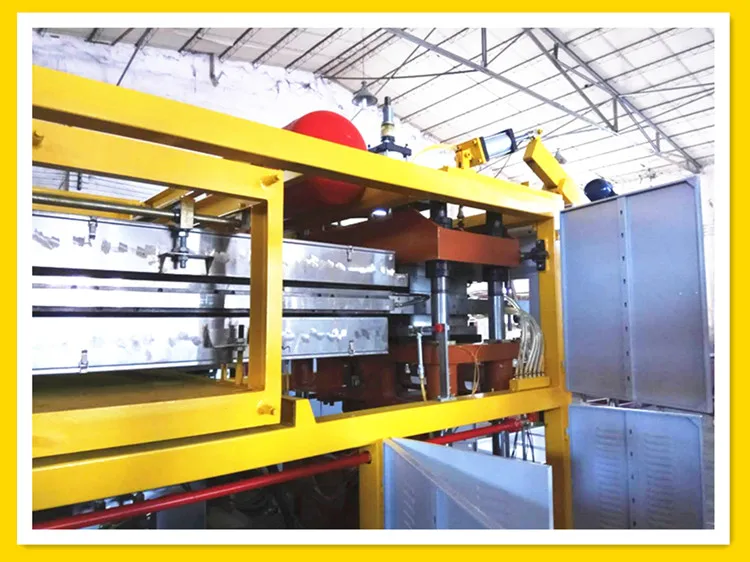

1. The stretching plug inside of the upper mould is controlled by air cylinder.
2. The sheet feeding is controlled by normal motor with encode.
3. Adopts Four pillars to fix the mould.

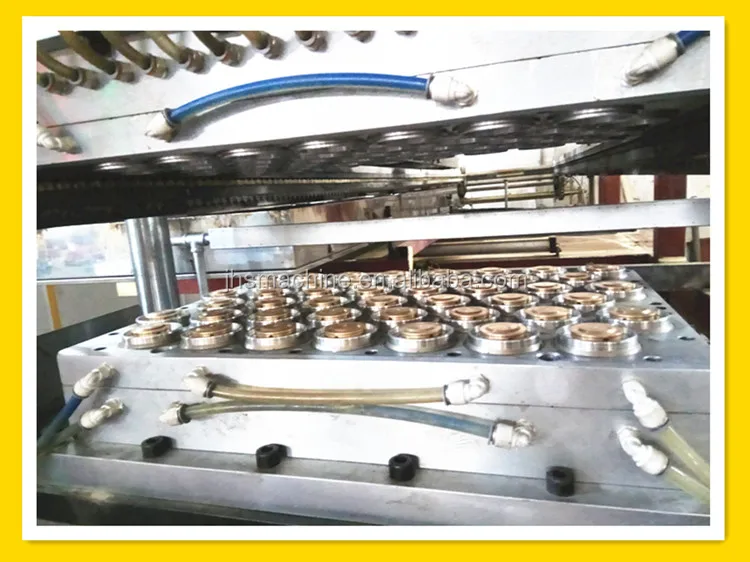

4. The upper mould is fixed and the under movement is driven by Cam system.
5. Each area temperature is controlled by one Temperature controller
6. All production process such as heating , stretching , forming and in-mould cutting in one stroke .
7. Machine frame adopts square steel, more stronger and steady.
8. The operation is controlled by PLC and touch screen.

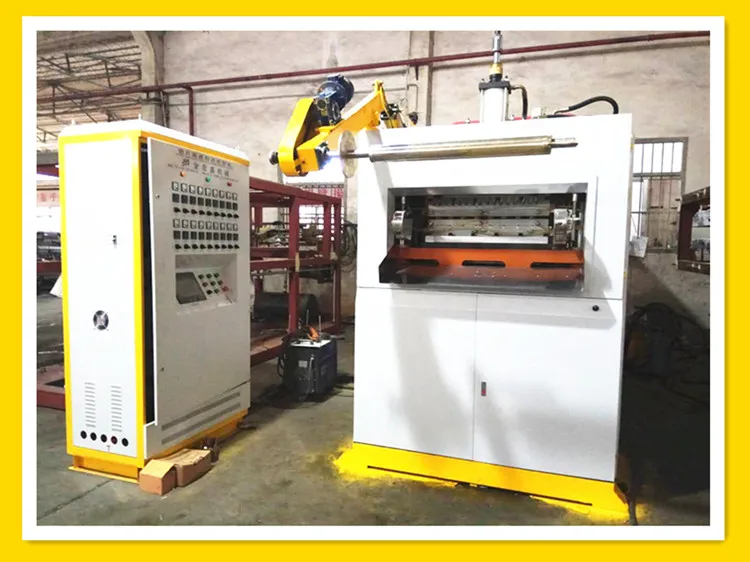

OUR NEW WORKSHOP
HYC-780 Main technical parameter:
| Sheet material | PP.PS.PE.PET |
| Sheet width | 720-730mm |
| Sheet thickness | 0.3-2mm |
| Max.Forming Area | 730*500 |
| Max.Forming depth | 140-200mm |
| Forming Pressure | 0.5-0.8MPA |
| Productivivty | 10-35 time/min |
| Heating Power | 90KW |
| Motor Power | 25KW |
| Total Weight | 6.5T |
| Water Temperature | >30 degree |
| Machine dimension | 6.5*1.8*2.2M |
Machine List
| 1.Main machine | 1 set |
| 2.Electric control cabinet | 1 set |
| 3.Auto reel unwinder | 1 set |
| 4.Waste sheet winder | 1 set(install on top of machine or separate sitting on the floor) |
| 5. Free spare parts | Several |
1. The stretching plug inside of the upper mould is controlled by air cylinder.
2. The sheet feeding is controlled by normal motor with encode.
3. Adopts Four pillars to fix the mould.
4. The upper mould is fixed and the under movement is driven by Cam system.
5. Each area temperature is controlled by one Temperature controller
6. All production process such as heating , stretching , forming and in-mould cutting in one stroke .
7. Machine frame adopts square steel, more stronger and steady.
8. The operation is controlled by PLC and touch screen.
1. The stretching plug inside of the upper mould is controlled by air cylinder.
2. The sheet feeding is controlled by normal motor with encode.
3. Adopts Four pillars to fix the mould.
4. The upper mould is fixed and the under movement is driven by Cam system.
5. Each area temperature is controlled by one Temperature controller
6. All production process such as heating , stretching , forming and in-mould cutting in one stroke .
7. Machine frame adopts square steel, more stronger and steady.
8. The operation is controlled by PLC and touch screen.
Machine parts brand

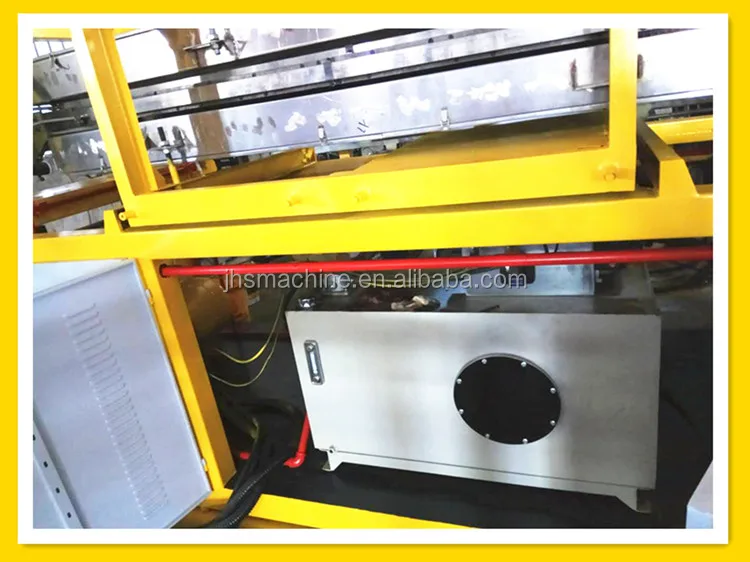

| Main oil station motor | Simens of Germany,WN of China,XL of China |
| Temperature control meter | Fuji of Japan,Winpark of China |
| Temperature control module | YM of Taiwan |
| Solenoid valve | SMC of Japan |
| Hydraulic system | Yuken of Taiwan |
| Proximity switch | Fanics |
| Frequency converter | Camoran of China,SANCH of Taiwan,ABB |
| Power switch | OMRON |
| Motor | WN of China,Yaskawa servo of Japan |
| Ceramics heater | JS of China,Elstein of Germany |
FAQ
1.How many years have your company established?
Our company have been established for 10 years more.
2. Who's your machine quality main controller?
Technical engineer is our boss,he control the important core technology.
3. Are you manufactue or trading company?
We are manufactue,we have over 50 staffs in our workshop.
4.Can we go to your factory for visiting?
Sure,welcome to come to our factory and give some good advice to us.
5.We don't have time to go to your factory,but how can we know if your are
trading company or manufacture ?
It is easy to know,if you are on internet,we could open cam to video chat with
you,we could take you to visit our factory on line.
6. How&When can I get the price?
Email us your inquiry or communicate online, state your specifications (product,
material, size, quantity etc).
We usually quote within 24 hours. Please call us or inform in your email when
it is urgent, we will regard your inquiry priority.
