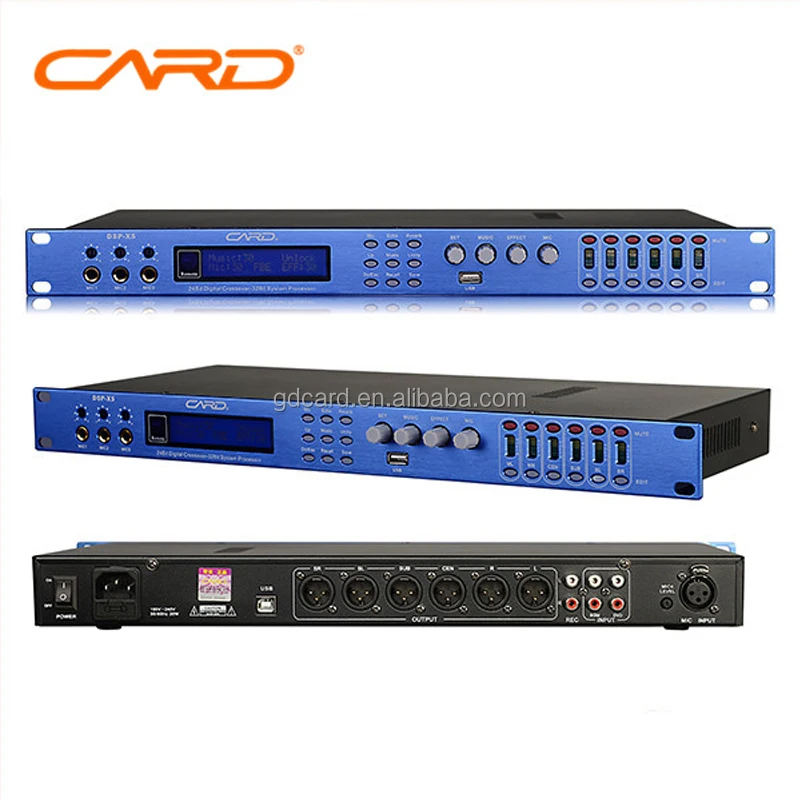

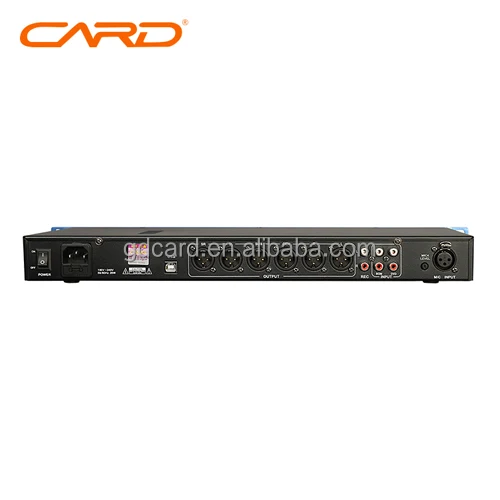

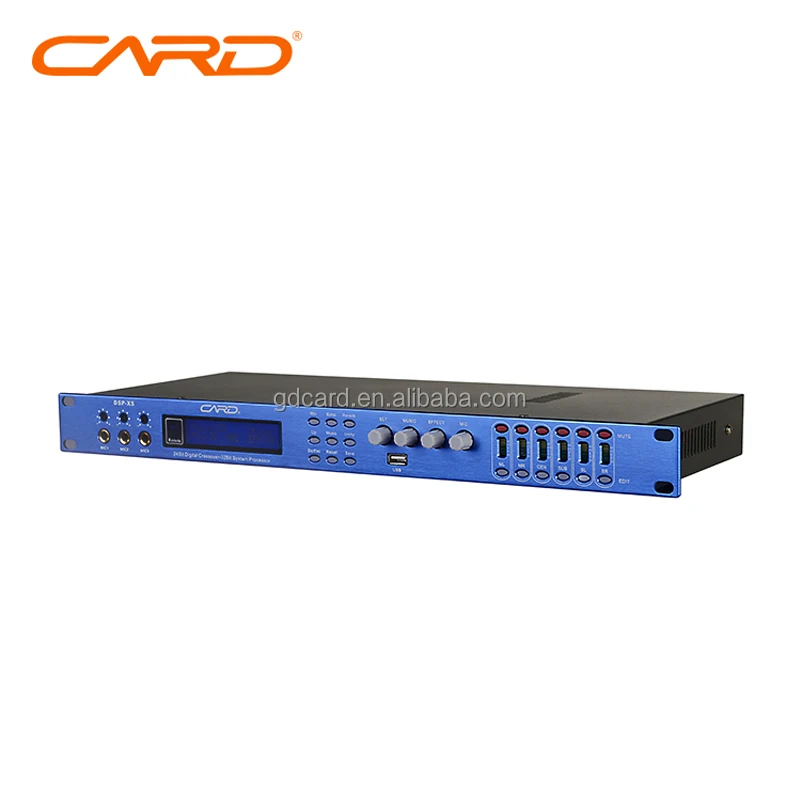

DSP X5 model pre amplifier 5.1channel audio processors

Product Overview

Description



1.Function indications:



Individual control of each channel, with audio processor function
24 Bit data 32 Bit DSP
15 band input EQ for music
15 band EQ for MIC
8 band EQ for Left Right Central and Sub output
3 band EQ for echo and reverb
0-100ms delay for each channel
Three level Feedback Inhibition. OFF/ON
Totally can save 16 mode
Voltage limit and delay for microphone and all the channels output
Management mode and User mode. Save data under User Mode
Two way for setting up: computer control and control on the display



2.Technical Parameters:

Maximum input level	4V RMS
Maximum output level	4V RMS
Music channel Gain	Max 12db
S/N	>80dB
Input Supply	-220V 50Hz
Size	483*182*44.5mm
Weight	3.5KG



3.Packing
