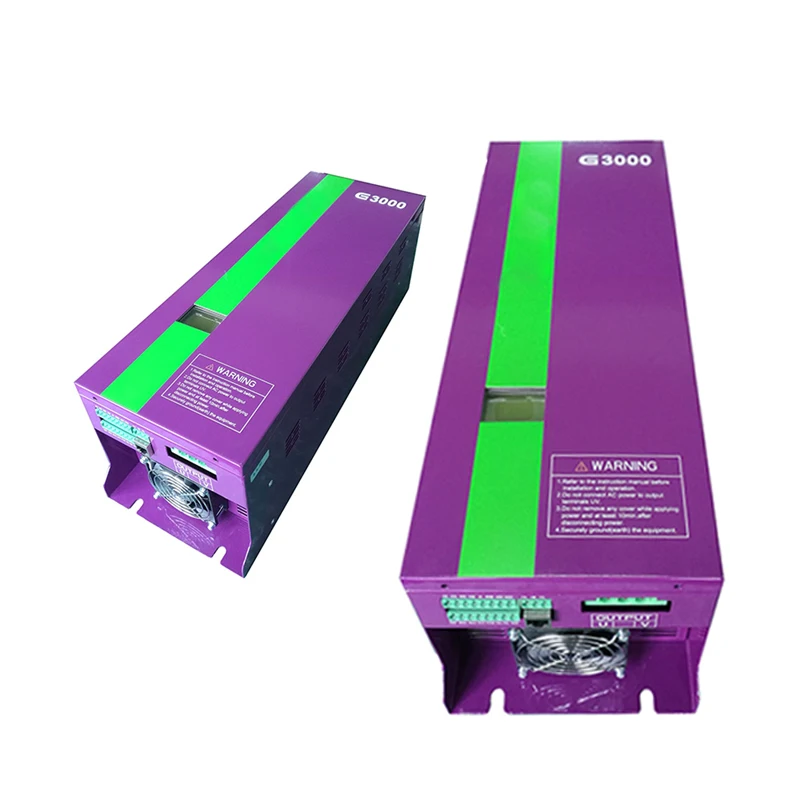

Power adapter G3000 Electronic Power Supplies for UV Lamp
- Category: Power Supplies >>>
- Supplier: Beijing Huiyixin Electric Light Sources Technology Development Co. Ltd.
Share on (60730153489):
Product Overview
Description

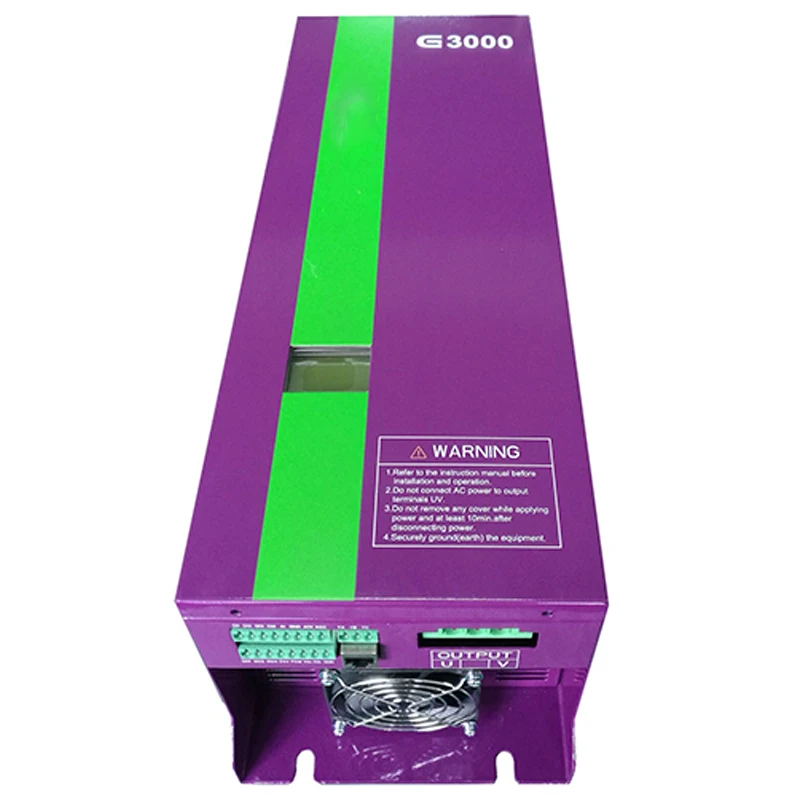

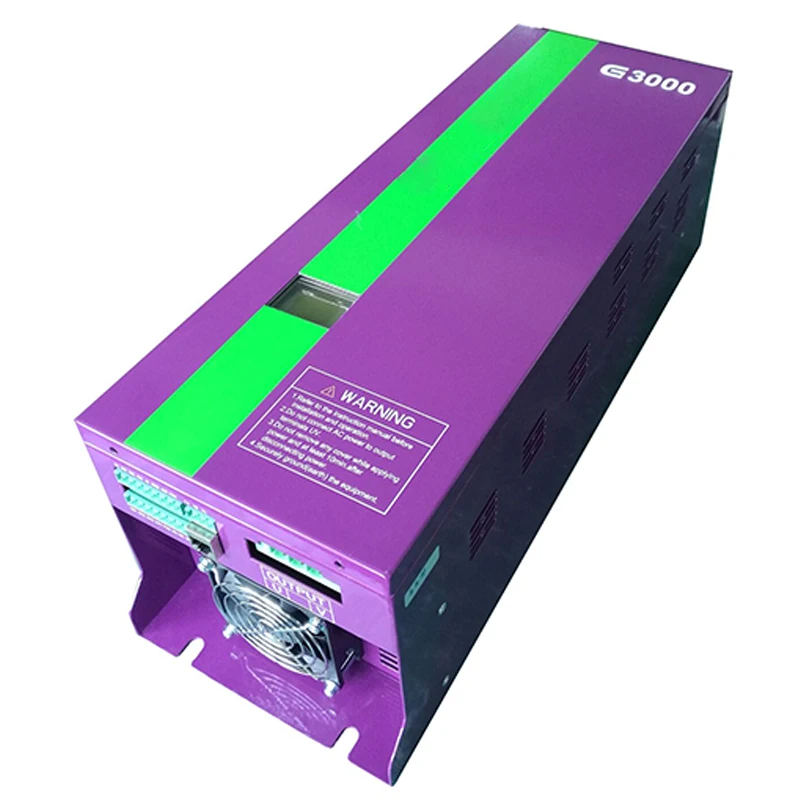

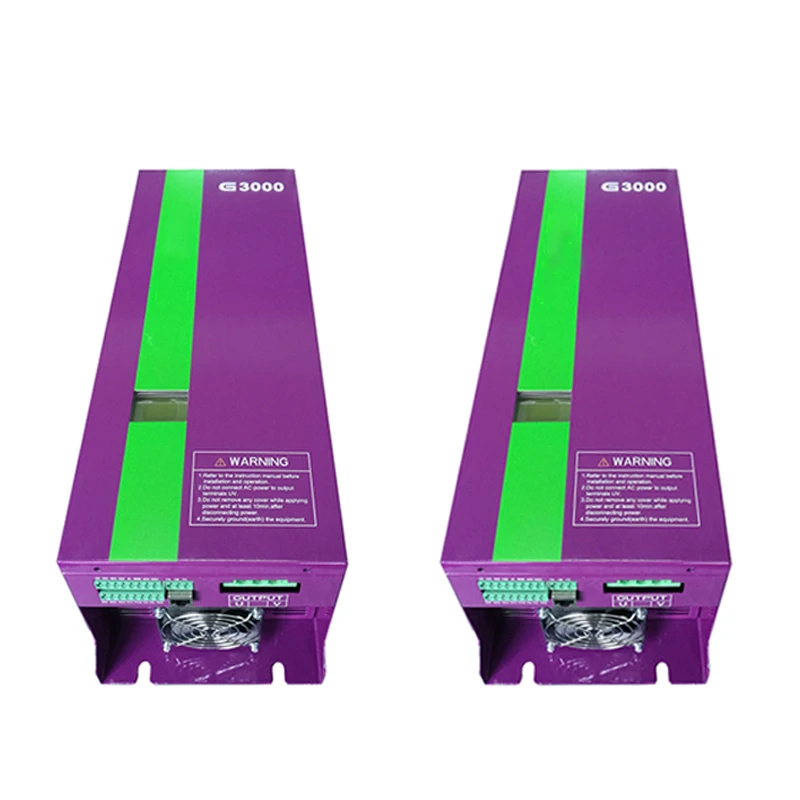

Power adapter G3000 Electronic Power Supplies for UV Lamp
Product Parameters
Main Technical Parameters:
Model (G5000) | Power Rating (Kw) | Input Voltage (V) | Input Current (A) | Output Voltage Range (V) | Max Output Current (A) | Recommended Lamp Voltage (V) |
4T1003 | 3.0 | 380V AC | 4.6 | 200-500 | 20 | 300 |
4T1004 | 4.0 | 380V AC | 6.1 | 200-500 | 20 | 300 |
4T1005 | 5.0 | 380V AC | 7.6 | 200-500 | 20 | 400 |
4T1006 | 6.0 | 380V AC | 9.3 | 200-500 | 20 | 400 |
4T1008 | 8.0 | 380V AC | 12.3 | 200-500 | 20 | 450 |
4T1010 | 10.0 | 380V AC | 15.1 | 200-500 | 35 | 450 |
4T1012 | 12.0 | 380V AC | 18.2 | 200-500 | 35 | 450 |
4T1015 | 15.0 | 380V AC | 22.8 | 200-500 | 35 | 450 |

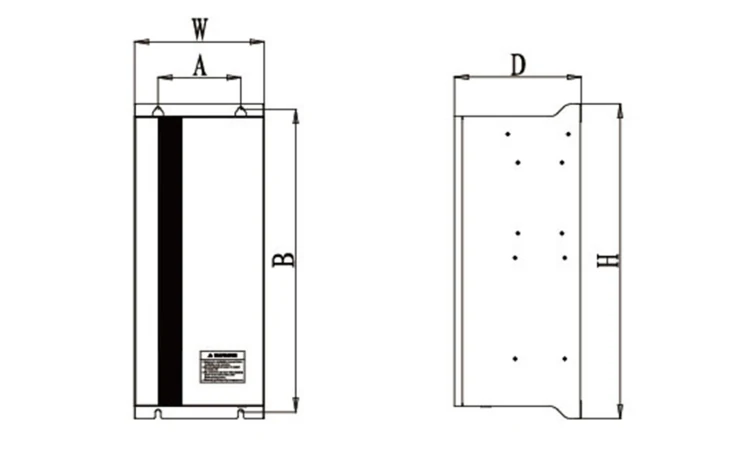

External Dimensions:
Model (G5000) | External Dimensions (mm) | Mounting Aperture | Mounting Screw | Mounting Install | Weight KG | ||||
A | B | H | W | D | |||||
4T1003 | 110 | 497 | 520 | 160 | 150 | Ø10 | M8 | Wall Mounting | 11.0 |
4T1004 | |||||||||
4T1005 | |||||||||
4T1006 | |||||||||
4T1008 | |||||||||
4T1010 | 110 | 497 | 520 | 180 | 178 | Ø10 | M8 | Wall Mounting | 14.5 |
4T1012 | |||||||||
4T101 | |||||||||
Product Detail
G3000 series of intelligent UV variable frequency power supplies have been developed for Low-Voltage UV curing equipment, and features powerful functions, flexible control and excellent performance, meeting a wide range of requirements of machinery and equipment, system integration, and applications, and have been widely used in printing, PCB production, medical and other industries.
Options
UV lamp, UV lampshades, UV control system.

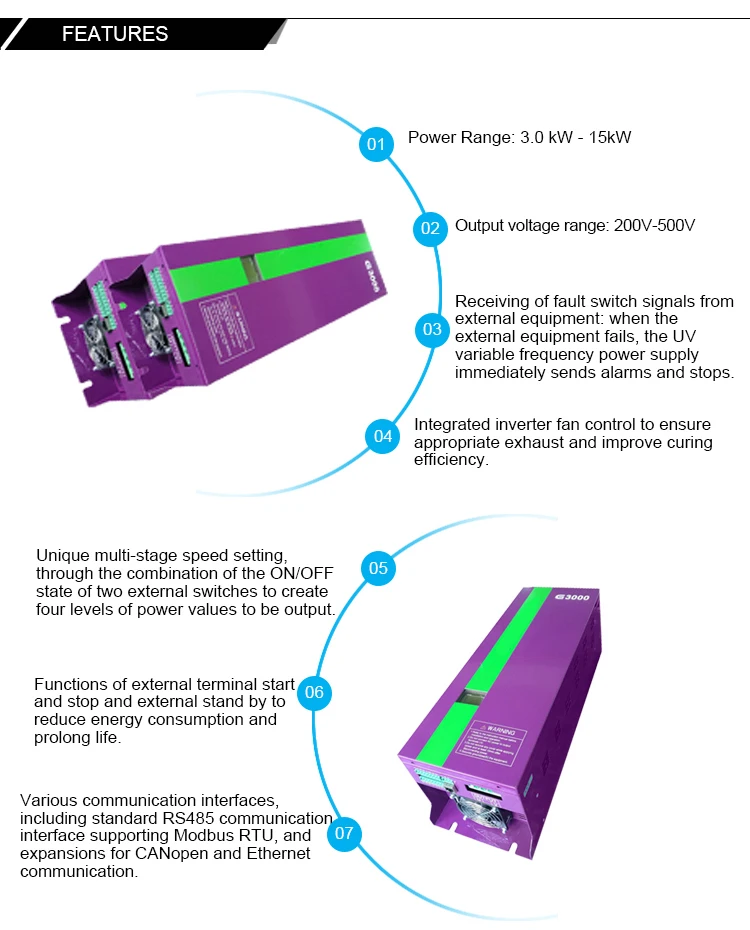

Features

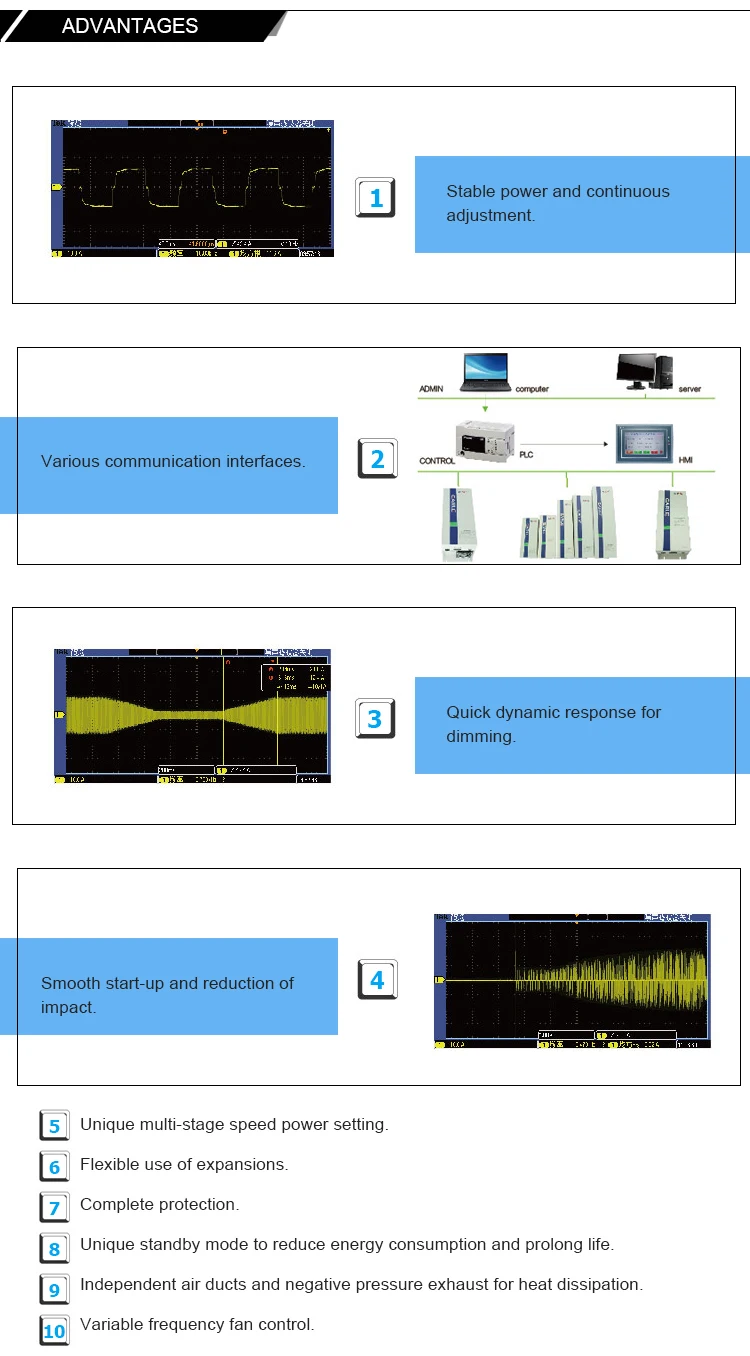

Advantages

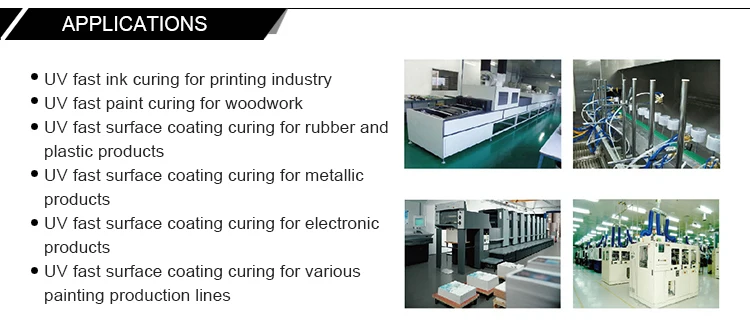

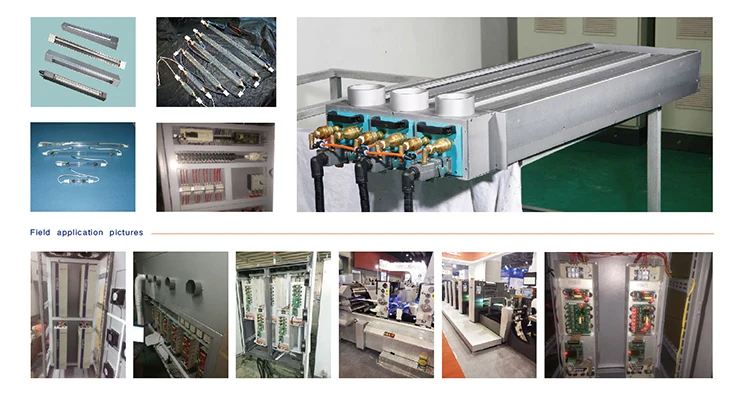

Application
Our Services

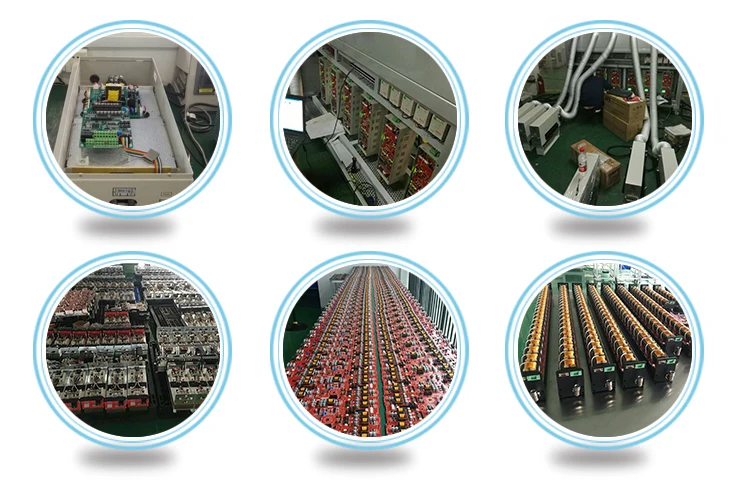

Company Information
FAQ:
1.Q:Are you a factory or trading company?
A:We are the professional factory in China.
2. Q:How can us get some samples?
A: We are honored to offer you samples. if you need!
3.Q:How does your factory do regarding quality control?
A:"Quality is priority. All people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9000;SGS;CQC;UL;CPI authentication,We are the National High-Tech Enterprise.We have the professional technical personnel team,advanced equipments;Skilled production technology by ten years.
4.Q:What is the delivery time?
A:Normally,the time is 5~25days as we can;we must do our best to do it much quickly.
