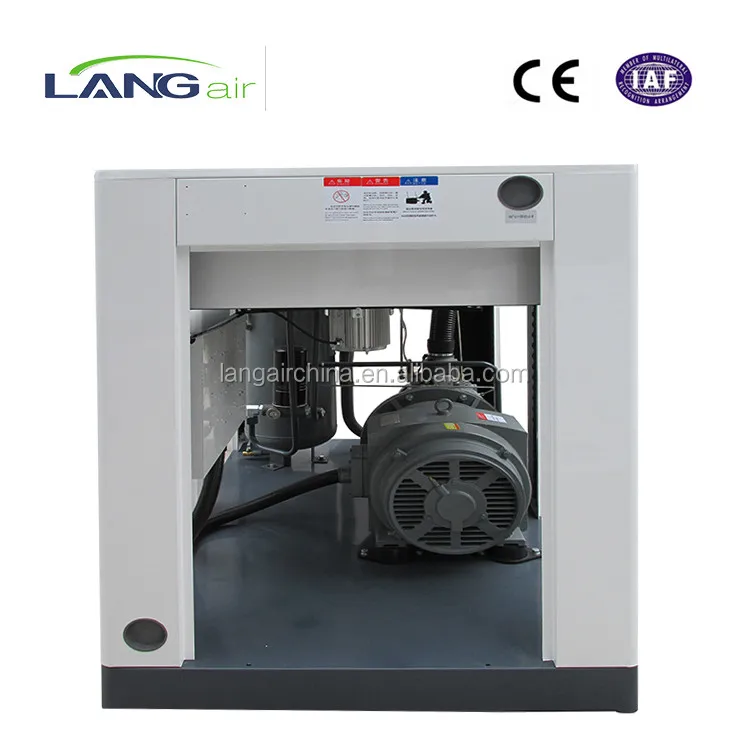

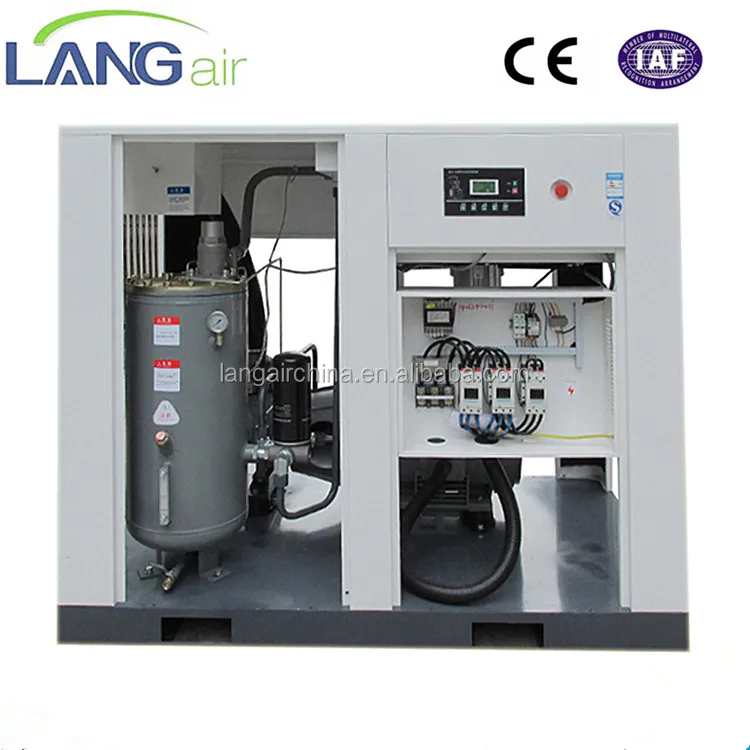

380Volt 20M3/Min 132KW 180HP Coupling Driven Worm Air Compressor For PCP Airgun
- Category: >>>
- Supplier: Langair Compressor Machinery (shanghai) Co. Ltd.
Share on (60730175965):
Product Overview
Description
380Volt 20M3/Min 132KW 180HP Coupling Driven Worm Air Compressor For PCP Airgun
Product Description
High-quality shaft coupling elastic body
1.a precisely-made central bracket is used to keep the motor aligned permanently with the bare compressor.
2.a highly resilient coupling is adopted to make the compressor operate smoothly, and the elastomer is long in useful life.
High wear-resistant,Low noise
3.the discharge pipe is double-wall corrugated pipe, and the oilway uses special high pressure house which is resistant to temperature up to 125 ℃
4.for the extremely high temperature conditions in some districts, the large-area plate heat exchange and high-efficiency water chiller are used.
Long service life

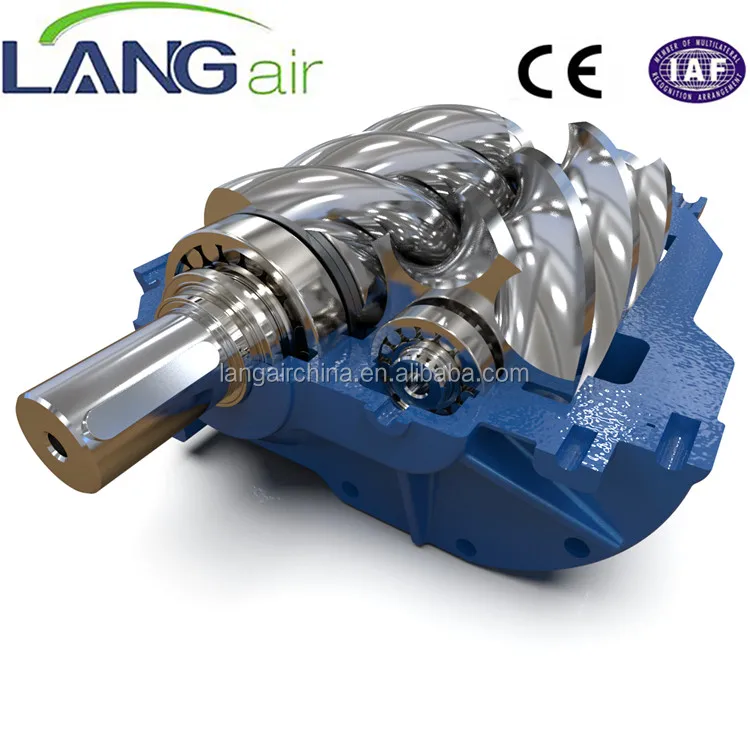

5.Since no wearing parts are used for the double-screw bare compressor, it can operate for up to 40,000-80,000 hours between failure if well maintained.
Technical Parameters:
| Model | LA- 22 GA/W | LA- 30 GA/W | LA- 37 GA/W | LA- 45 GA/W | LA- 55 GA/W | LA- 75 GA/W | LA- 90 GA/W | LA-110 GA/W | LA- 132 GA/W | LA-160 GA/W | LA-185 GA/W | LA-200 GA/W | LA- 220 GA/W | LA- 250 GA/W |
Type of cooling | Air cooling/Water cooling | |||||||||||||
Volume flow/ pressure (m³/bar) | 3.8/ 7 | 5.3/ 7 | 6.6/ 7 | 8.0/ 7 | 10.5/ 7 | 13.6/ 7 | 16.2/ 7 | 20.8/ 7 | 24.0/ 7 | 27.8/ 7 | 32.5/ 7 | 34.5/ 7 | 38.0/ 7 | 43.0/ 7 |
3.6/ 8 | 5.0/ 8 | 6.2/ 8 | 7.7/ 8 | 9.8/ 8 | 13.0/ 8 | 15.4/ 8 | 19.5/ 8 | 23.0/ 8 | 26.0/ 8 | 31.0/ 8 | 33.0/ 8 | 36.5/ 8 | 40.5/ 8 | |
3.2/ 10 | 4.3/ 10 | 5.7/ 10 | 6.9/ 10 | 8.7/ 10 | 11.3/ 10 | 13.2/ 10 | 16.5/ 10 | 20.0/ 10 | 23.5/ 10 | 26.0/ 10 | 28.0/ 10 | 32.0/ 10 | 36.5/ 10 | |
2.5/ 12.5 | 3.6/ 12.5 | 4.6/ 12.5 | 6.0/ 12.5 | 7.3/ 12.5 | 10.1/ 12.5 | 11.2/ 12.5 | 13.7/ 12.5 | 15.5/ 12.5 | 19.5/ 12.5 | 21.6/ 12.5 | 23.5/ 12.5 | 27.0/ 12.5 | 32.0/ 12.5 | |
| Power(KW) | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 160 | 185 | 200 | 220 | 250 |
| Caliber | 1 1/4 | 1 1/4 | 1 1/2 | 1 1/2 | 2 | 2 | 2 | DN65 | DN65 | DN65 | DN80 | DN80 | DN100 | DN100 |
| Noise(A) | 72±5 test according the national standard GB/T4980-2003 | |||||||||||||
Voltage/ Frequency (V)/(Hz) | AC 380/50 | |||||||||||||
Cooling air volume (m³/Min) | 110 | 145 | 145 | 185 | 220 | 250 | 270 | 420 | 460 | 510 | 510 | 620 | 710 | 800 |
Cooling water volume (L/Min) | 14.5 | 20 | 25 | 30 | 39.9 | 51 | 61 | 79 | 91 | 105 | 123.5 | 131 | 144 | 163 |
Shape dimension | L/W/H(mm) | |||||||||||||
| L | 1380 | 1450 | 1595 | 1595 | 2100 | 2100 | 2100 | 2545 | 2545 | 2790 | 2790 | 2850 | 3150 | 3150 |
| W | 850 | 900 | 1000 | 1000 | 1250 | 1250 | 1250 | 1450 | 1450 | 1550 | 1550 | 1700 | 2000 | 2000 |
| H | 1150 | 1220 | 1365 | 1450 | 1700 | 1700 | 1700 | 1900 | 1900 | 2000 | 2000 | 2000 | 2120 | 2120 |
| Weight(KG) | 640 | 900 | 1060 | 1150 | 1750 | 1840 | 2030 | 2920 | 3200 | 3600 | 3780 | 4400 | 4930 | 5450 |
Our products are widely used in various industries such as oil field, machinery, chemical, electric, power, hospital and environment protection.They have been sold to all around the world. Our products’ high quality and good sales service make us gain good comments from all customers,and they are also good in colleague's class oral traditions.
Packaging & Shipping
Packing Details:standard exporting packing
Delivery time:7 working days after receiving the prepayment.
Our Services
Company Information
certificate:
FAQ
Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
and then you pay balance. Other payment terms can also be negotiated.
Q. How about your delivery time?
A: For common working volatage and normal color, it will take 7-10 working days after receiving your payment.
Other working volatage and colors will take more time about 10-20 working days
Q. Can you produce according to the samples?
A: Yes, we can produce mold by your samples or technical drawings.
Q. Do you test all your machines before delivery?
A: Yes, we have 100% test before delivery.
Q. Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
