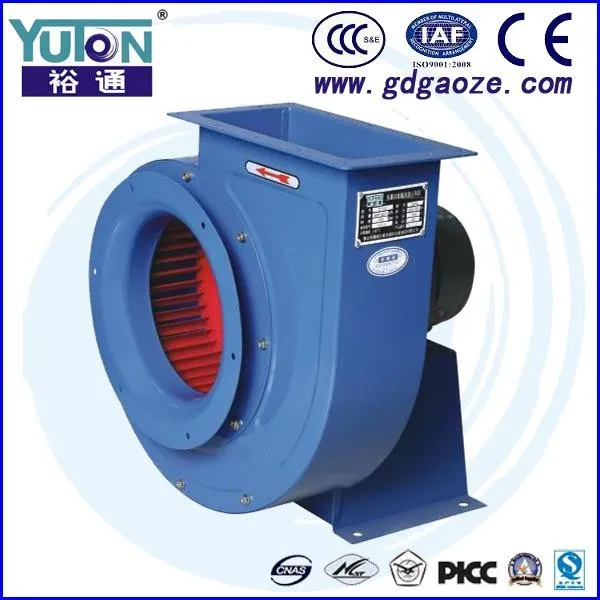

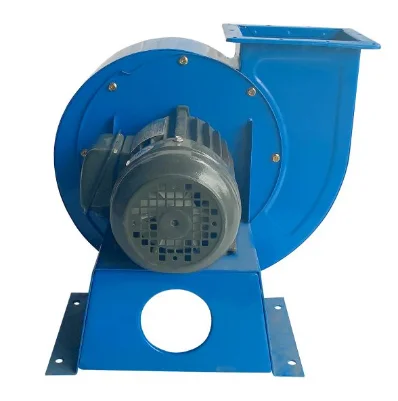

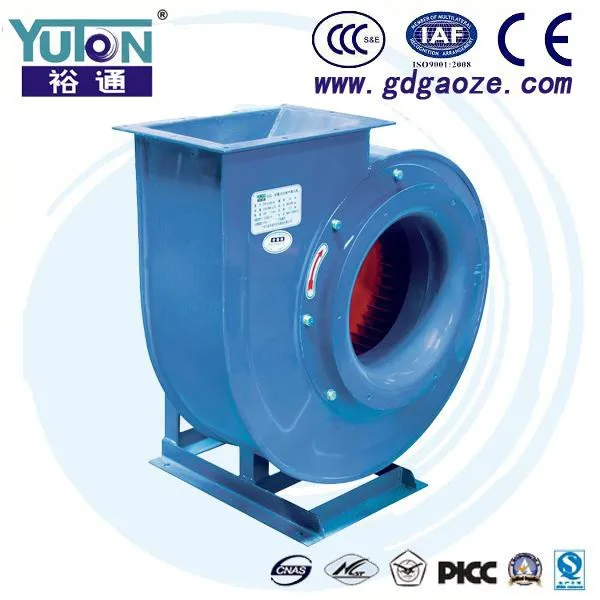

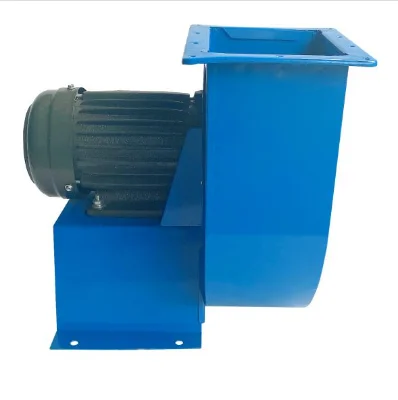

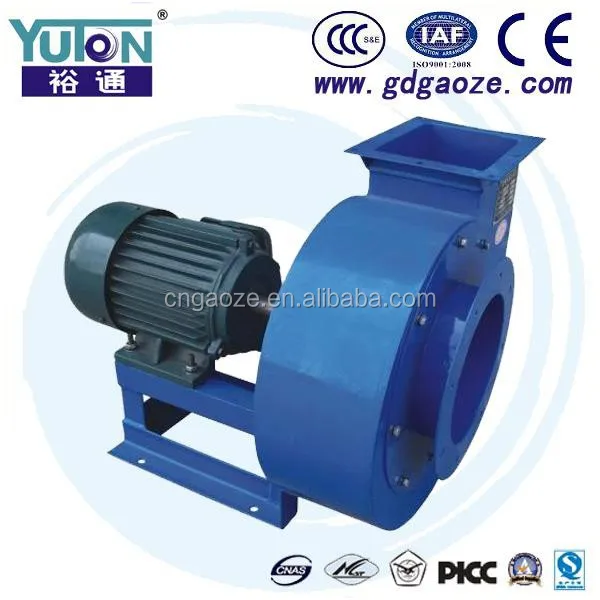

YUTON China Manufacturer Volume Blower 1.Typical Feature and Application
This kind of multi-blades centrifugal fan is specific designed for purification of industrial and environmental noise. The impellers are adjusted strictly by static balance and dynamic balance ,so it runs stably with low noise and big air volume, less vibration and long-life service. They are widely used for exhausting, air ventilation, fume extraction in the kitchen of canteen, hotel, restaurant. The transited medium is air and other non-spontaneous combustion air, and the air with no harm to people. The medium can not contain any adhesive material, temperature no higher than 80 centigrade ,dust or particulate no larger than 150 cube meter per mg.
2. Performance Range
Fan Type
Low Noise Centrifugal Fan
Certificate
CE,CCC
Electricity Current Type
AC(Alternating Current)
Voltage
220V/380V
Frequency
50HZ
Power
0.37KW-4KW
Speed
1450-2900 RPM
Air Volume
830m³/h up to 7000 m³/h
Static Pressure
294 Pa up to 1300 Pa
Motor
Standard Motor
3.Applications
Hotel
Apartment
Lampblack purifying
4.Composition
Fan Housing
Cast Iron Material with Powder coating
Impeller
Cast Iron Material
Inlet and Outlet Ducts
Connect with flanges
Motor
Standard Motor, cast Iron with pure copper
Motor Support
Cast Iron with powder coating
5.Fan Operation
Before set up the fan,check gap sizes of all parts of the fan to make sure the rotating parts will not hit the fixed parts.
When the fan is rotating,check the temperature of the bearing after the impellers reach normal speed. If there is no special request for the temperature of the bearing,it can not higher than ambient temperature 40 °c
If the fan has very severe shock,hitting ,and bearing temperature rise rapidly,please stop the fan right away.
6.Fan Certificate and Quality Control
By our efforts,our company Gaoze was selected as the member of China Gneral Machinery Industry Association Ventilation Fan Branch. Our products enjoy good reputation among our customers . Our Products were awarded as "Brand-name and High Quality Products" by "China Quality Evaluation Center" &"Guangdong Branch of Social Servey Institure China"; Furthermore,a number of products are applied patents,which are up to the advanced standard. We are "Guangdong Private Scientific and Technological Enterprise" and past the "National Industrial Products License Certificate". Energy saving axial duct fan and multi-blade centrifugal fan developed by our company obtained the standard certification,most of our products past the certificate of "CCC" and "CE". We are fully implementing ISO 9001:2008 Quality System.
7.Fan Maintain
Periodically clean the inner dust, dirt and other impurities
Periodlically check the fan to avoid rusting
Change the lubricating oil after opening the fan .The lubricating oil shall be changed according to the actual situation.
