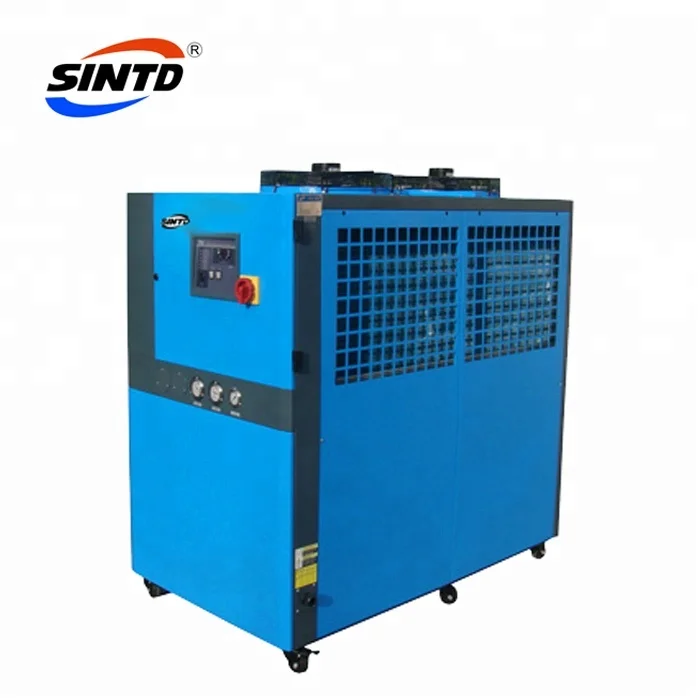

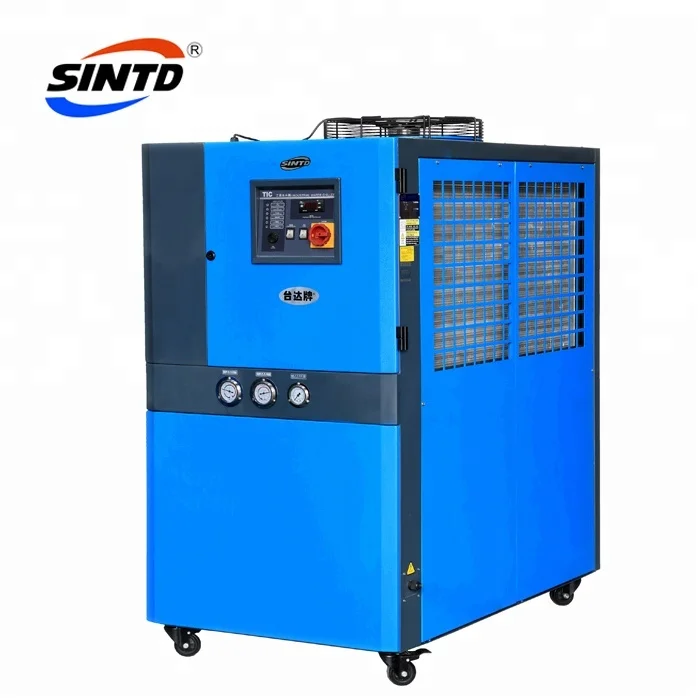

Air cooled chiller

Product Overview

Description

Air cooled chiller

The TIC-W series of water-cooled water chillers use a single closed -loop design for pressurised refrigerant,all models are equipped with compressor and motor overloadd protetion,phase shortage and reversal alarms,anti-freeze thermostat,pressure gauges,etc,they feature excellent performance and a long lifespan.



Features:

1:cooling capacity from 7-35 degree;

2:Stainless insulated water tank and anti-freeze thermostat;

3:R22 refrigerant used as standard for efficient cooling;

4:Refrigeration loop controlled by high and low pressure switches;

5:Compressor and pump overload relays;

6:Italian made temperature controller maintains an accuracy of ±1 degree;

7:Conpact design,easy to operate and maintain;

8:Low pressure pumps are standard configurations, while middleor high presure pumps are optionally availabe;

9:Level meter of water tank is available as an option;

10:All adopt copeland compressors;

11:TIC-A adopts tube-fin condenser design without any need of cooling water for excellent heat transfer and rapid cooling;

12:Upon request,it can be built to comply with worldwide electrical safety standards(For example:CE,UL,CSA,JIS etc).

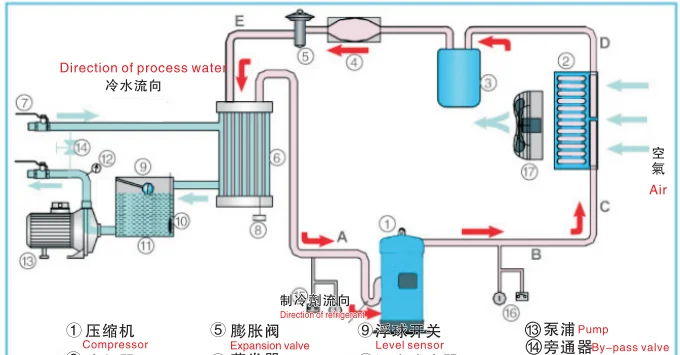

TIC-A air-cooled water chillers include four main components,such as compressor,condenser,thermostatic expansion valve and evaporator,the system adopts a single closed-loop design for refrigeration system, refrigerant is alternatively changed from gaseous to liquid state to absorb or release heat thus a cooling effect is achieved.

When the machine is started,compressor starts working,refrigerant is compressed into high pressure and high temperature gas in the process from A to B,in the process from B to C and D,this high pressure and high temperature gas is cooled when it is passing through the condeser and changed into liguid,Heat is taken away by the cooling air,in the process from D to E, the pressure of liquid refrigerant is reduced by expansion valve and a part of the refrigerant is changed from liquid to gaseous state,in the process water in the evaporator and returns back to the compressor,this heat exchange process repeats until process water is cooled down to required temperature.

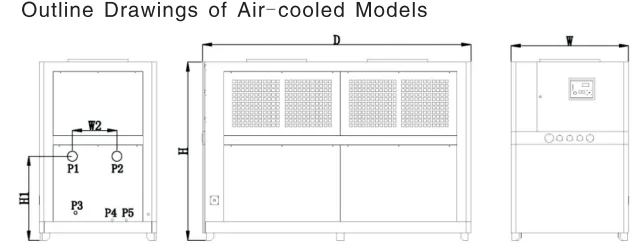

Model	H	H1	W	W1	W2	D	P1(inch)	P2(inch)	P3(inch)	P4(inch)	P5(inch)	N/W(kg)
TIC-3A	1400	640	735	360	174	1320	1"	1"	1/2"	1/2"	1/2"	305
TIC-5A	1400	640	735	360	174	1320	1"	1"	1/2"	1/2"	1/2"	315
TIC-8A	1350	640	735	300	204	1610	1¹/2"	1¹/2"	1/2"	1/2"	1/2"	400
TIC-10A	1350	640	735	300	204	1610	1¹/2"	1¹/2"	1/2"	1/2"	1/2"	420
TIC-12.5A	1520	648	905	457	189	1780	2"	2"	1/2"	1/2"	1/2"	520
TIC-15A	1520	648	905	457	189	1780	2"	2"	1/2"	1/2"	1/2"	560
TIC-20A	1950	700	1200	450	150	2920	2"	2"	1"	1/2"	1/2"	775
TIC-25A	1950	700	1200	450	150	2920	2"	2"	1"	1/2"	1/2"	800
TIC-30A	1950	760	1200	430	160	2920	2¹/2"	2¹/2"	1"	1/2"	1/2"	840
TIC-40A	1970	780	1300	450	200	3390	2¹/2"	2¹/2"	1"	1"	1"	1400
TIC-45A	1970	780	1300	450	200	3800	2¹/2"	2¹/2"	1"	1"	1"	1800
TIC-50A	1970	823	1420	700	360	4000	2¹/2"	2¹/2"	1"	1"	1"	2000



 Model selection reference:

Clamping force(T)	Capacity(kg/hr)	Model
≤250	≤25	TIC-3W	TIC-3A
≤350	≤35	TIC-5W	TIC-5A
≤450	≤45
≤550	≤55	TIC-8W	TIC-8A
≤650	≤65
≤850	≤85	TIC-10W	TIC-10A
≤1000	≤100	TIC-12.5W	TIC-12.5A
≤1300	≤130



Clamping force(T)	Capacity(kg/hr)	Model
≤1500	≤150	TIC-15W	TIC-15A
≤1800	≤180
≤2200	≤220	TIC-20W	TIC-20W
≤2500	≤250
≤3000	≤300	TIC-25W	TIC-25A
≤4000	≤400	TIC-30W	TIC-30A
≤5000	≤500	TIC-40W	TIC-40A
≤6000	≤600	TIC-45W	TIC-45A
≤7000	≤700	TIC-50W	TIC-50A





Specification:

Item/parameter		TIC-3A	TIC-5A	TIC-8A	TIC-10A	TIC-12.5A	TIC-15A	TIC-20A	TIC-25A	TIC-30A	TIC-40A	TIC-45A	TIC-50A
Refrigeration capacity	KW	7.69	13.5	19.08	25.56	31.41	38.79	51.12	62.82	77.58	102.24	113.94	125.64
	kca/hr	6612	11607	16405	21976	27006	33352	43943	54013	66703	87906	97956	108026
Compressor	type	Whirlpool
	power(kw)	2.77	4.56	7	9.35	12	14.2	18.7	24	28.4	37.75	42.6	48
	power(hp)	3	5	8	10	12.5	15	20	25	30	40	45	50
Refrigerant	weight(kg)	2.7	4.3	7	8	11	13	18	22	26	34	42	48
	control model	Heating expansion valve
	type	R22
Evaporator	type	Tube-in-shell
Condensor	type	Tube-fin
	power(kw)	0.25	0.25	0.25*2		0.47*2		0.82*2	1*2	1*2	0.75*3	0.75*3	0.75*4
Water tank(L)		50		85		150		180	200	270	400		650
Pump(50Hz)	Power(kw)	0.55		1.1		2.2				4		4
	flow(min)	80		200		300		450		833		1100
	working pressure	2.0/2.6/3.8		2.0/2.6/3.5		2.0/3/4.2		2.5/3/4.2				2.7/3.4/4.3
Total power(KW)		3	4.55	7.5	9	12.1	13.7	18.3	22	27.5	36.2	40.25	44.5
Pipe coupling(inch)	cooling water outlet	1/2“*4		1¹/²”*1		2“*1				2¹/²”*1		2¹/²”*1
	cooling port of water tank	1/2“*4		1¹/²”*1		2“*1						2¹/²”*1
	drainage port of water tank	1/2”						1”
	overflow port of water tank	1/2"									1"
Protector	compressor	Overload relay
	pump	Overload relay
	refrigerant circuit	High and low pressure switch/anti-freezing switch
	cooling water circuit	By-pass valve/water level switch(Option)
Power		3Φ,380V,50Hz
Unit change	1KW=860kcal/hr				1RT-3024kcal/hr					10000Btu/hr-2520Kca/hr
