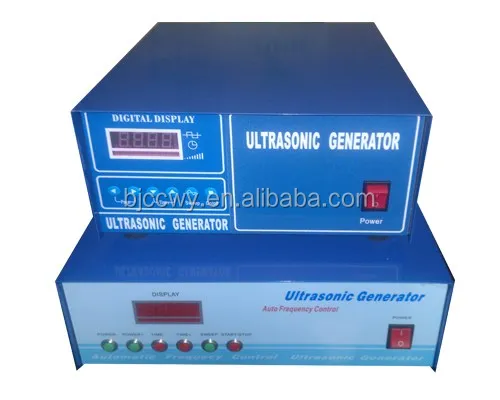

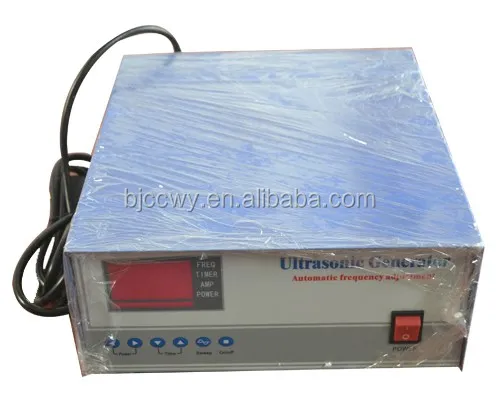

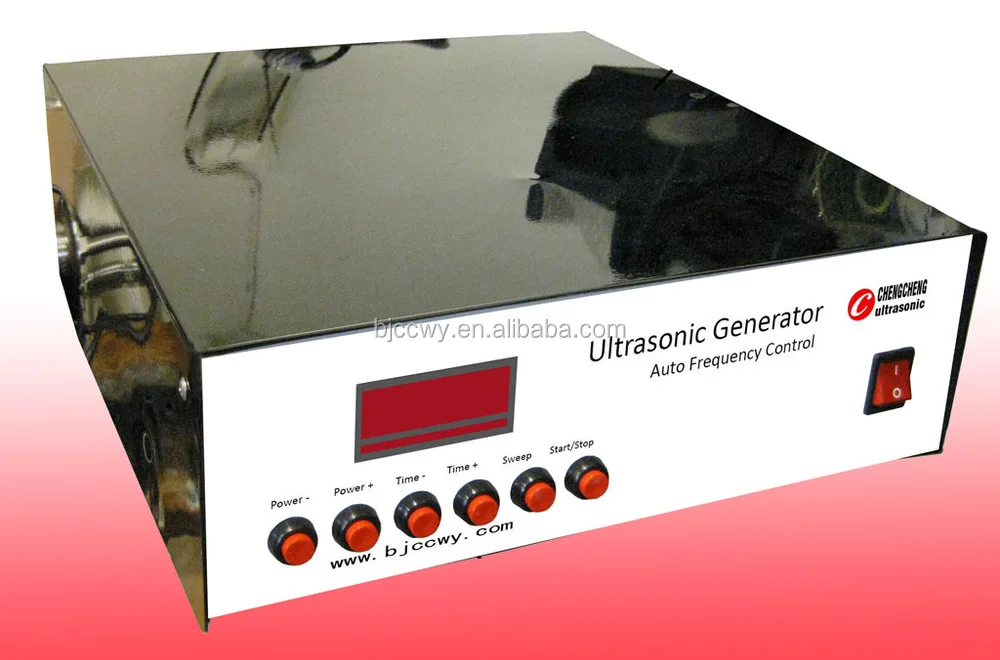

In harmony with the global ultrasonic industry and with over ten years of experience in researching and using ultrasonic products, we depend on a special power source for ultrasonic cleaners, which adopt advanced microcomputer control techniques and a bran-new ideas in circuit design and is widely applied in the ultrasonic cleaning industry.
The control box adopts advanced techniques, like separately-excited circuits, controlled by microcomputer, automatic frequency tracking and frequency sweeping, etc. Compared with the traditional control box, it has better performance, more stable and reliable operation and constantly adjustable ultrasonic frequency, which can develop the potential capacity of a transducer to the maximum. The automatic tracking of the operating frequencies optimizes output matching, strengthens power and raises efficiency. With the unique frequency-sweeping operating pattern, the cleaning solution can form a fine stream of refluence, which can time-wash off the dirty uncovered by ultrasonic waves from the surface of working pieces and thus attain faster and more thorough cleaning effect and raise the efficiency of ultrasonic cleaning. At the same time, it has perfect protective capacity: over-temperature protection and over-current protection for more reliable operation; a 4-bit timer for more accurate time control to the second. With digital power adjustment, it can meet different cleaning demands. It permits optional alteration in the working state, so the operation is freer. The complete appliance is based on a building block design. With a computer fault location and display system, its operation and maintenance are more convenient.
Warning:a generator should not be operated for long time at the current higher than the rated current.
Environment temperature:0-40C°
Relative humidity:40%--90%
Working frequency:28KHz(40 KHz,80 KHz,135 KHz so on) 5%
Time control:0~59'59''
Range of power control:0~100% Digital control and adjustment of 16 grades
Internal over temperature protection:65 C°
Outer size:H x W x L = 160 x 360 x 500 (mm) (above 1500W)
H x W x L = 160 x 360 x 300 (mm) (below 1200W)
Type
Power(W)
Frequency (KHz)
CCWY—3CCWY-400W
300
28--40
CCWY—6CCWY-600W
600
28--40
CCWY—9CCWY-900W
900
28--40
CCWY—1CCWY-1200W
1200
28--40
CCWY—1CCWY-1500W
1500
28--40
CCWY—1CCWY-1800W
1800
28--40
CCWY --CCWY-2400W
2400
28-40
High FrHigh Frequency
500W-1200W
65-80
High FrHigh Frequency
500W-1200W
120-135
Packaging & Shipping
Packaging Detail :1pieces /carton or customized.
Delivery detail:Within 20 days before paid the balance payment
Our Services
Your inquiry related to our product & price will be replied within 24hours.
Well-trained & experienced staff are to answer all your inquiries in English of course.
Working time: 8:30am - 6:00pm, Monday to Friday (UTC+8).
OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
Your business relationship with us will be confidential to any third party.
Good after-sale service offered, please get back if you got question.
Company Information
We are dedicated to research and development in the ultrasonic field
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer specializing in ultrasonic transducers, ultrasonic apparatus and piezoelectric ceramics.

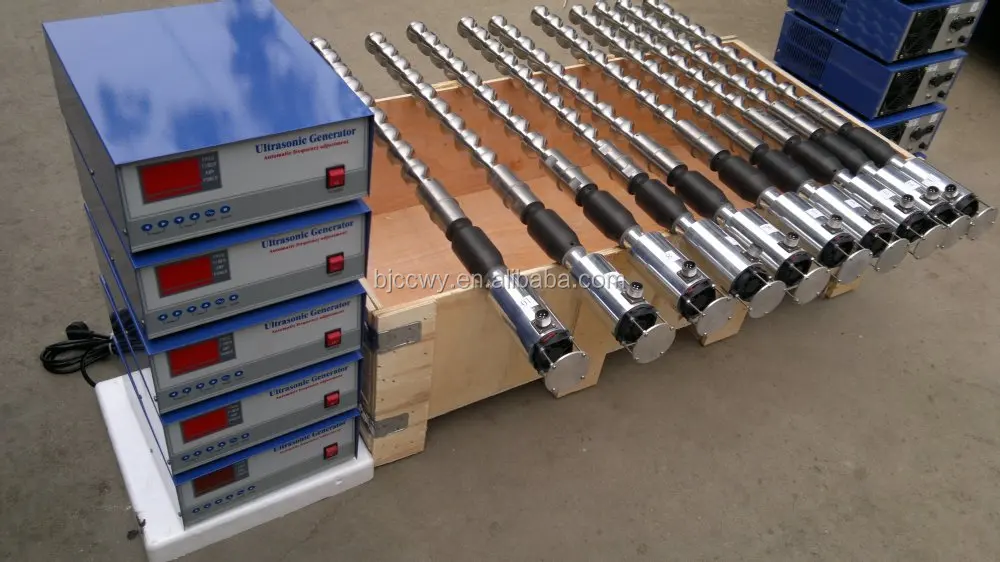

Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.
Our headquarter is located in Beijing, China. Our manufacturing base is in Baoding, Hebei province. Cheng-cheng Weiye also has two branches in Shenzhen and Zhangjiagang and two sales agents in Japan and the USA. At present, there are five departments of the company comprising R&D, Production, Domestic Sale, Export and After-sales service.
