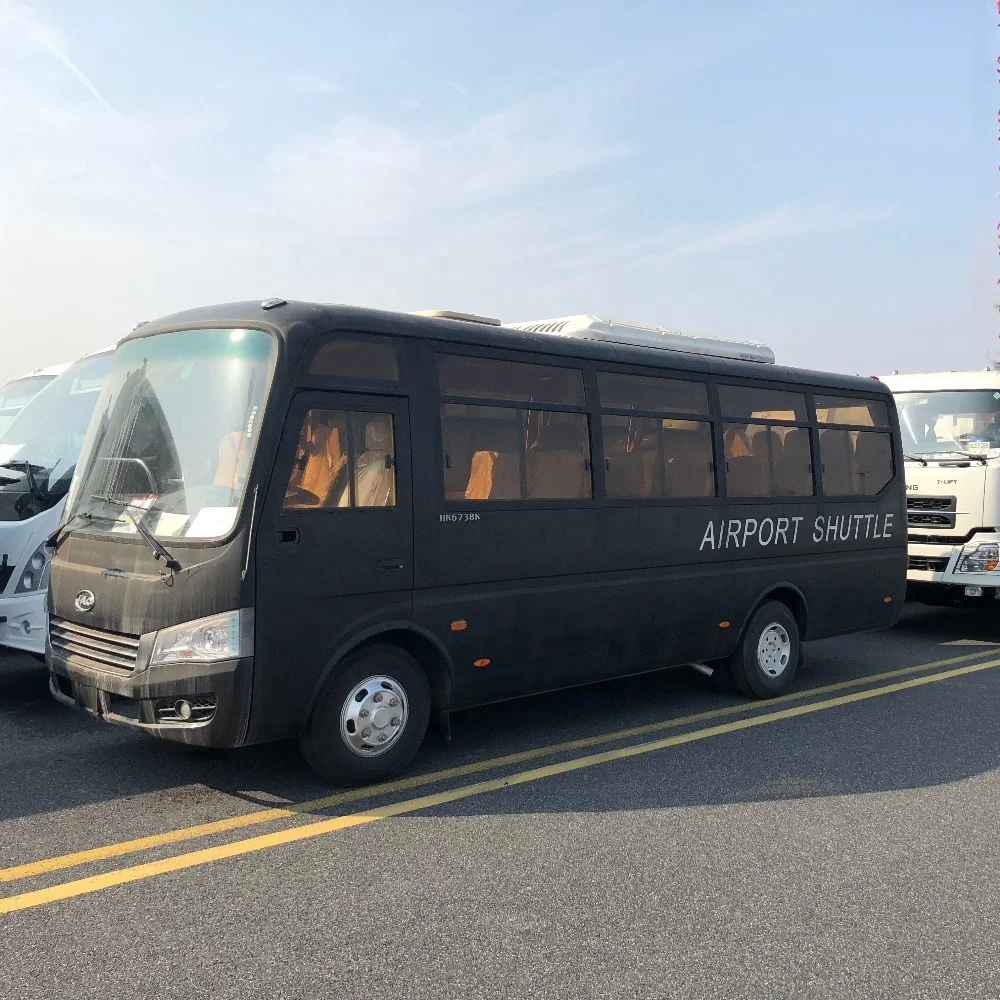

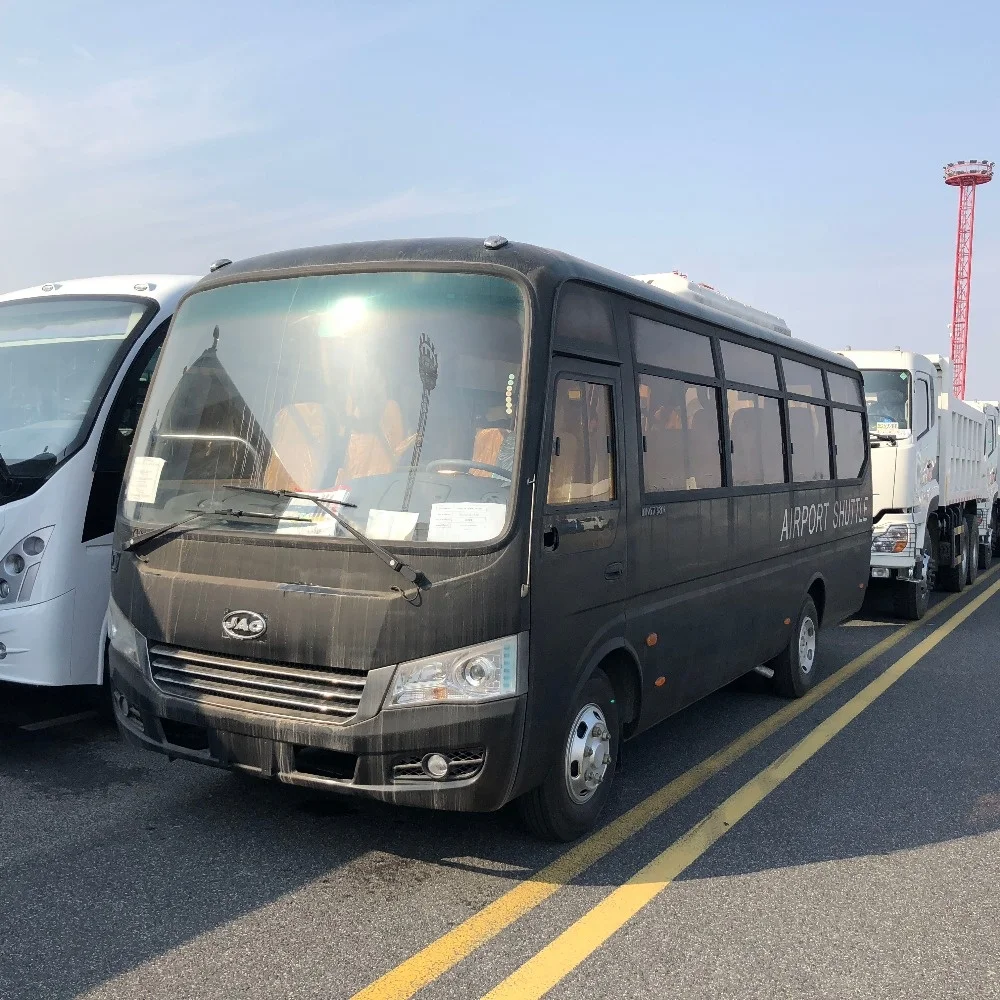

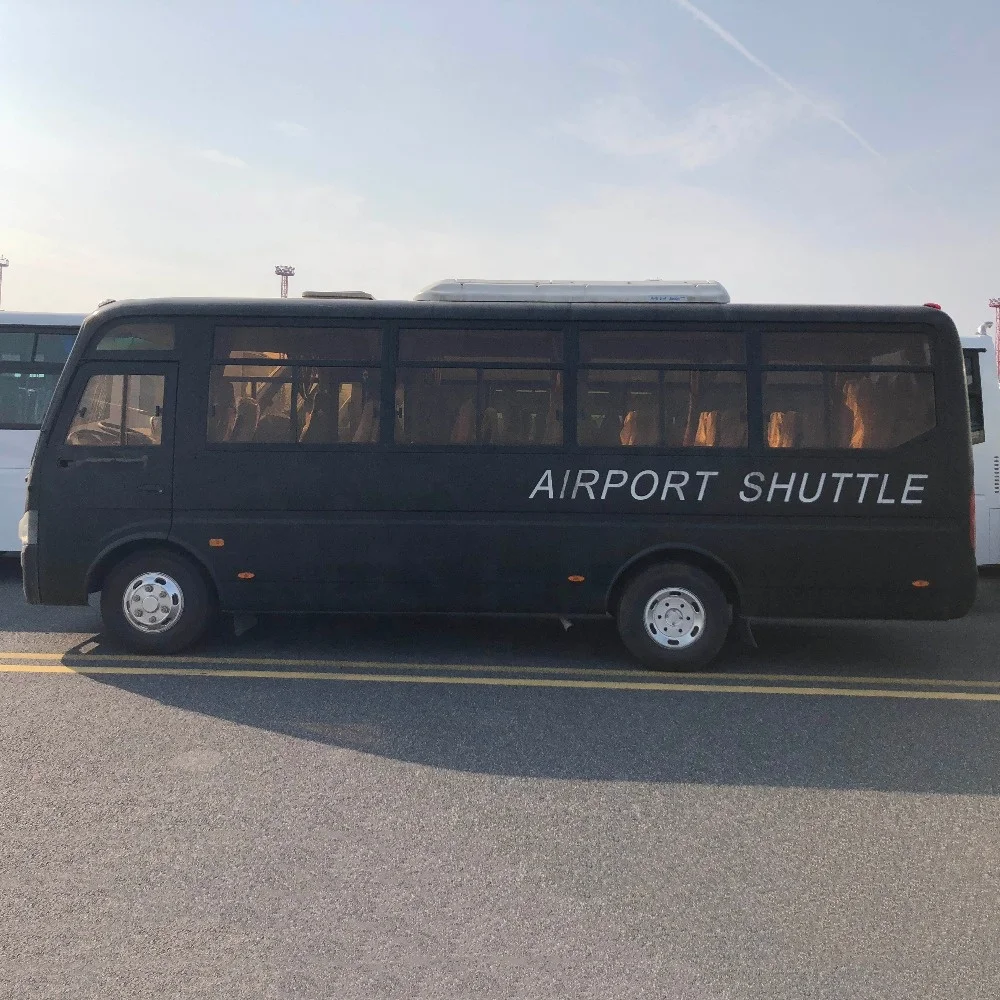

Brand New China 25 Seater Bus Small Passenger Bus for Sale
- Category: >>>
- Supplier: JC Automobile Co. Limited (Shanghai)
Share on (60730265243):
Product Overview
Description
Product Description
| 1.Performance | |||
| 1.2 | Seat capacity | 25 seats | |
| 1.3 | Dimension L*W*H (mm) | 7280×2240×3020 | |
| 1.4 | Approach/Departure Angle (o) | 16°/10° | |
| 1.5 | Wheel base (mm) | 3800 | |
| 1.6 | Track Fr/Rr (mm) | 1830/1680 | |
| 1.7 | Overhang Fr/Rr (mm) | 1190/2290 | |
| 1.8 | Kurb weight (kg) | 4800(4950) | |
| 1.9 | G.V.W (kg) | 7300 | |
| 1.10 | Max. Speed (km/h) | 100 | |
| 1.11 | Luggage trunk volume (m3) | 0.5 | |
| 2.Chassis | |||
| 2.2 | Engine | Engine Model | YC4D130-20 |
| Engine Position & Type | Front-mounted, vertical, four-stroke, watercooled, diesel with turbo-charger & intercooler |
||
| Emission | EURO II | ||
| Displacement(L) | 4.212 | ||
| Rated power (kw/rpm) | 96/2800 | ||
| Max. torque (N.m/rpm) | 380/1700-2000 | ||
| 2.3 | Gearbox | DF5S550 | |
| 2.4 | Clutch | single dry disc, diaphragm spring(Φ300) | |
| 2.5 | Suspension | Vertical semielliptic leaf spring suspension multiple-leaf spring 8/9 | |
| 2.6 | Front axle | Rated loading capacity :2500 kg | |
| 2.7 | Rear axle | Rated loading capacity:5000 kg | |
| 2.8 | Service brake | Air brake system | |
| 2.9 | Parking brake | Energy storage spring | |
| 2.13 | Steering system | Power steering | |
| 2.14 | Fuel tank capacity(L) | 90 | |
| 2.15 | Battery/generator | 120A.hX2 / 70A | |
| 2.16 | Tyre | 7.50-16 | |
| 3.Body | |||
| 3.2 | Trim | Regular trim | |
| 3.4 | Defroster | Yes, 5000W | |

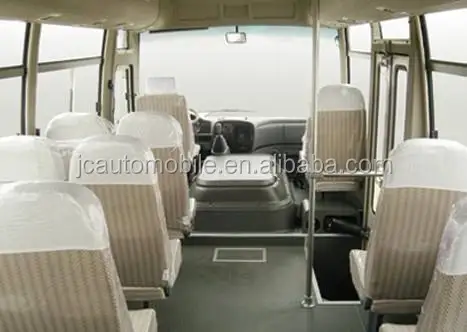

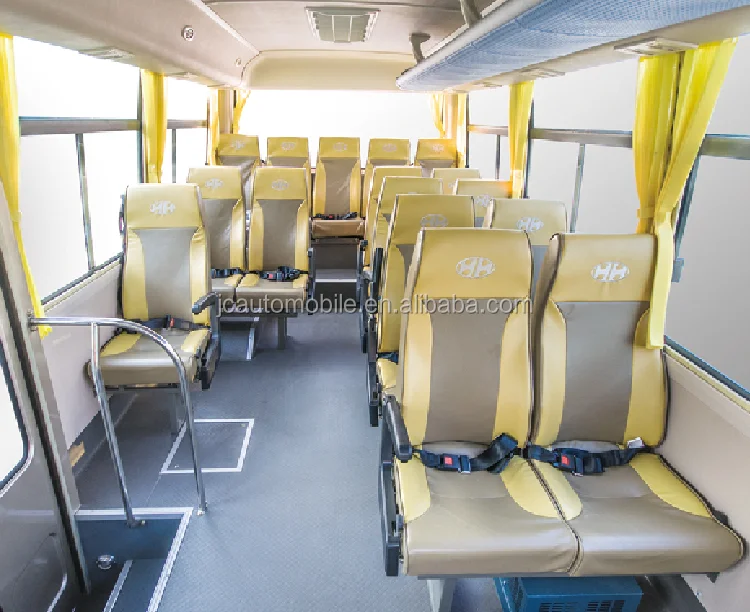

| 3.6 | Passenger seat | Common seats | |
| 3.7 | Sunvisor(driver's) | Yes | |
| 3.8 | Side Window | upper side: fixed,lower side: push-and-pull | |
| 3.10 | Inner armrests | Stainless steel, semi circular armrest behind passenger door |
|
| 3.11 | Rear-view Mirror | Regular rod type (A) | |
| 3.12 | Safety hatch | 1 pc of safety hatch without ventilator | |
| 3.14 | Passenger door | Manual folding door (middle) | |
| 3.16 | Paint | Pure lacquer | |
| Air conditioner | Optional:+USD3600 | ||
| TV | Optional: +USD500 | ||
| Fridge | Optional: +USD 600 and release 4 seats. | ||
| 3.17 | Others | 4-stroke steering wheel,front guardrail for assistant driver,horizontal handle for passenger door, raglet,air horn, digital clock | |

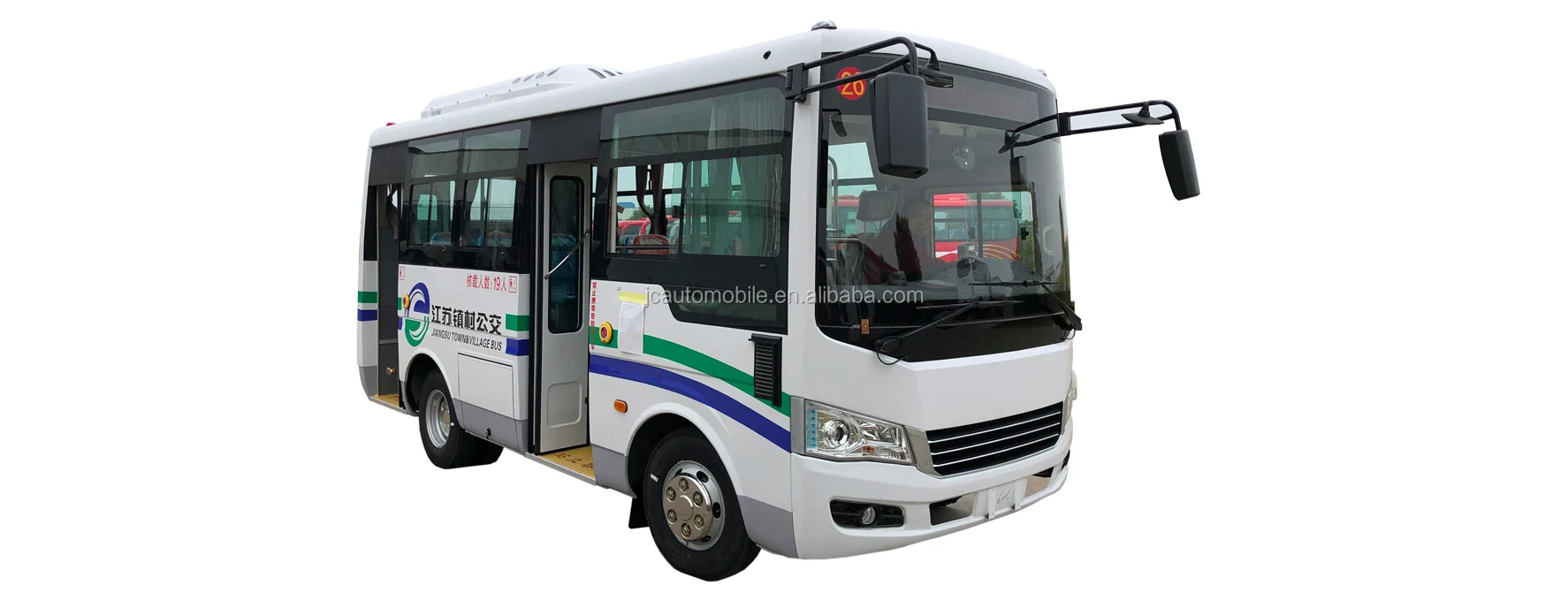

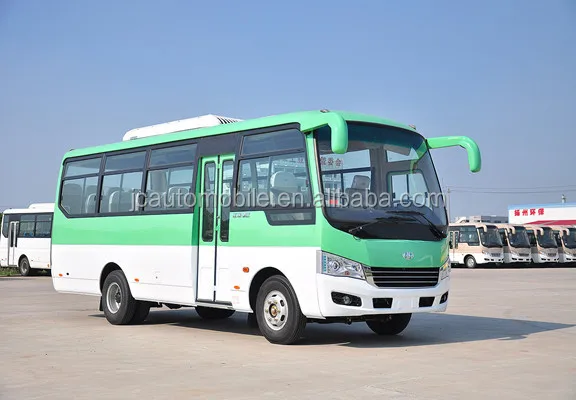

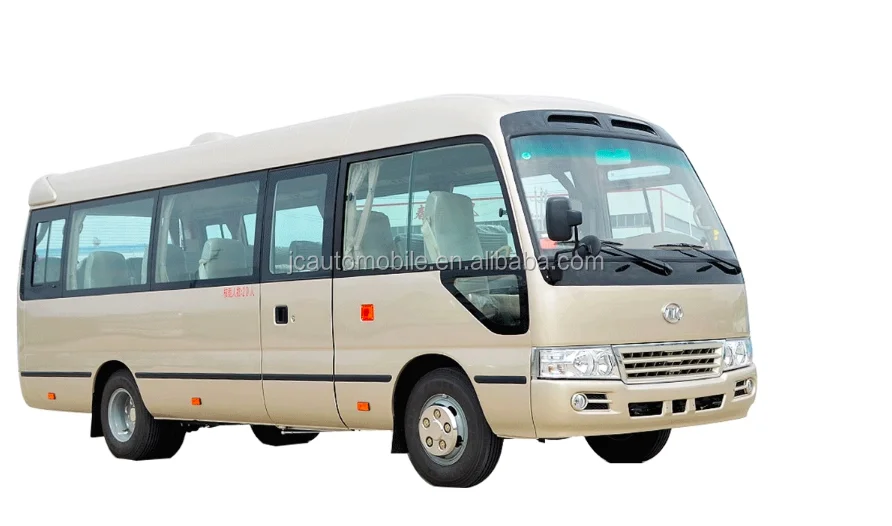

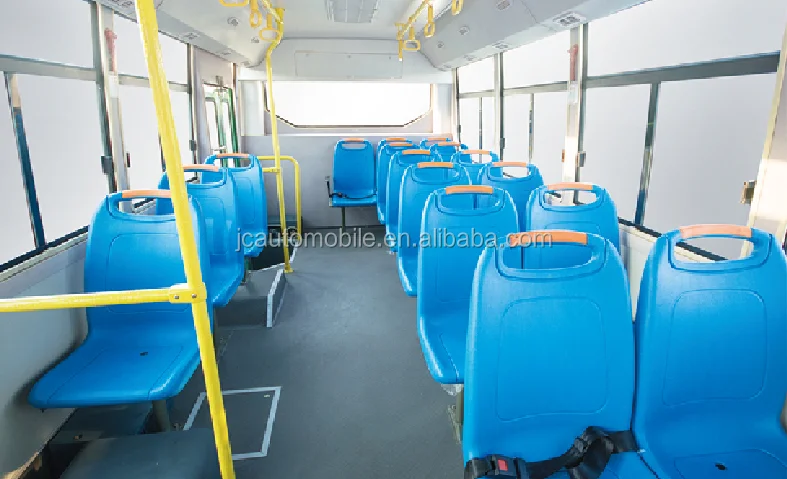

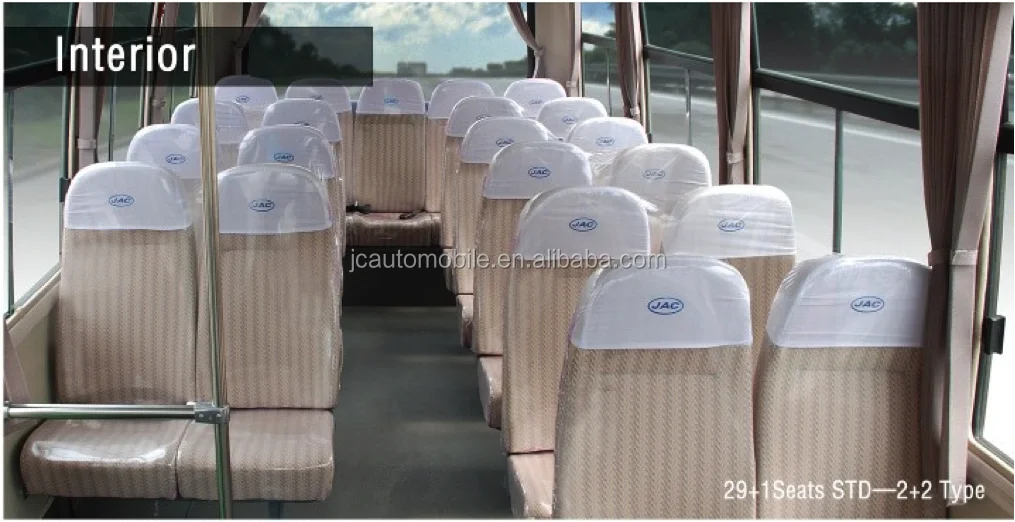

We have other bus models available for you and please kindly click below:
