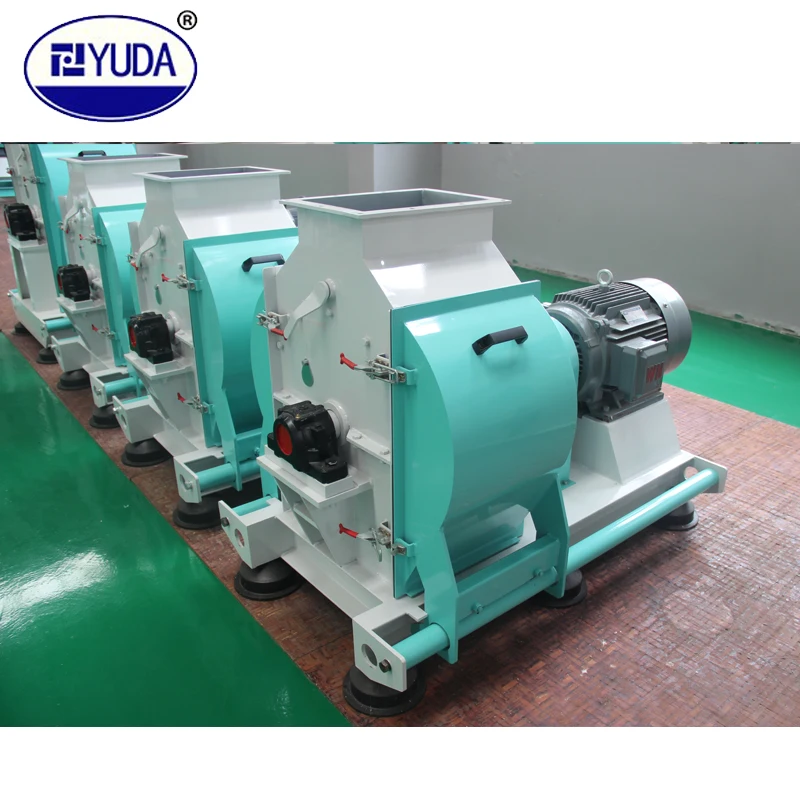

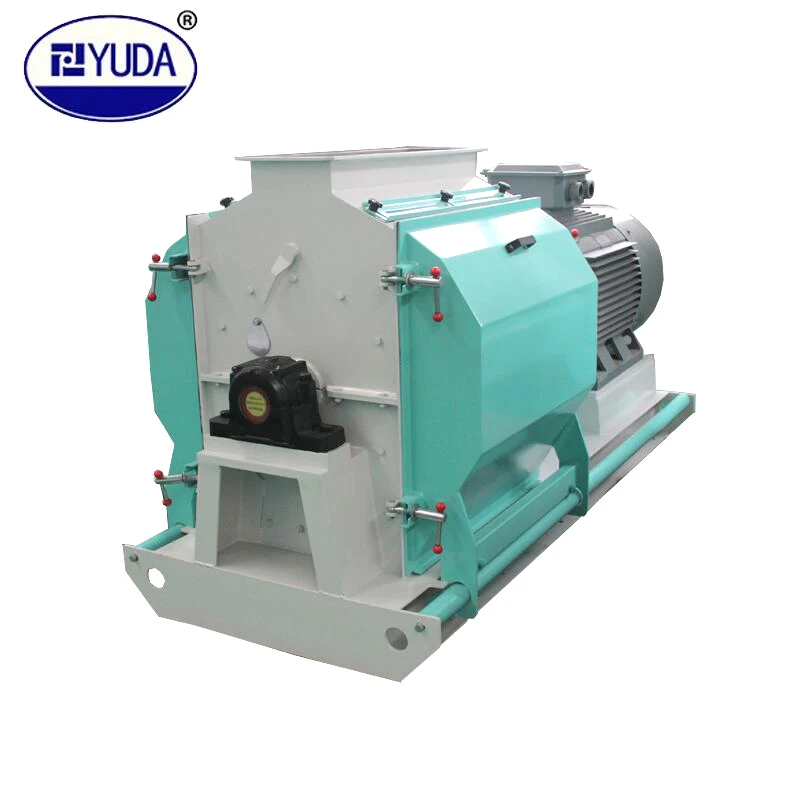

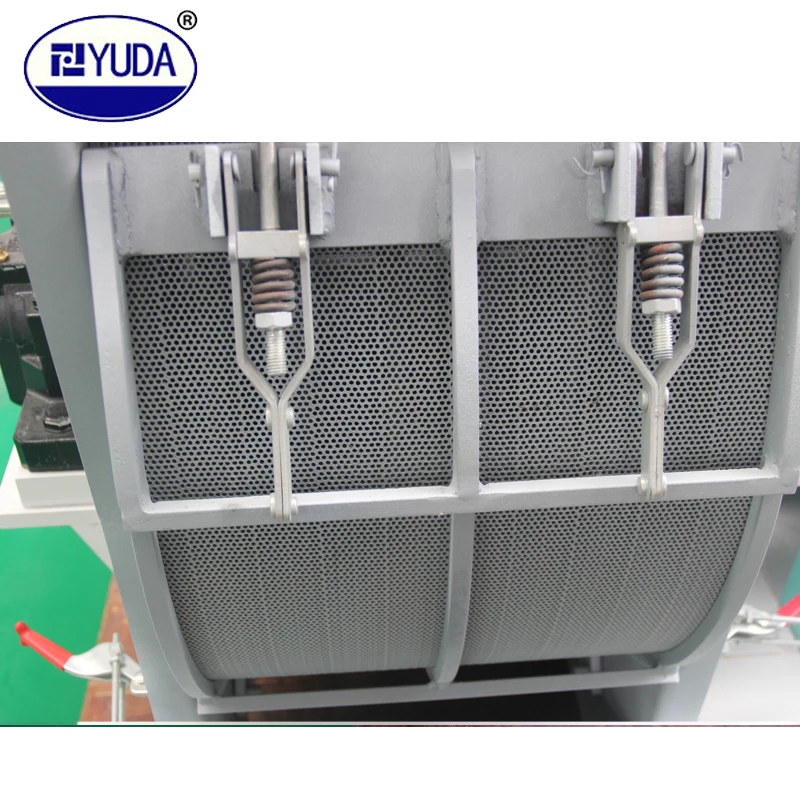

YUDA corn mill grinder machine

Product Overview

Description



1, Replace imported machine with the international advanced type, the real droplets.

2, Ordinary grinding can be performed, but also for fine crushing and fine crushing. Widely used in large and medium-sized feed mills, high quality feed production and alcohol plant, citric acid factory, food factory, etc.

3, Finished product granularity more fine and uniform: Φ3 mm sieve can reachΦ2 mm mesh fineness, Selects imported SKF high quality bearing, low operating temperature rise;

4, Φ 3 mm sieve, crushed corn (moisture content 13% or less) electricity production 213 kg, reached the international advanced level; (grinding particle size 0.48 mm).

5, Compared with weight is lighter and fat content is higher, it greatly improves the sieving rate, yield than other shredder similar power increased by 15% ~ 20%; Discharging unobstructed, high efficiency.

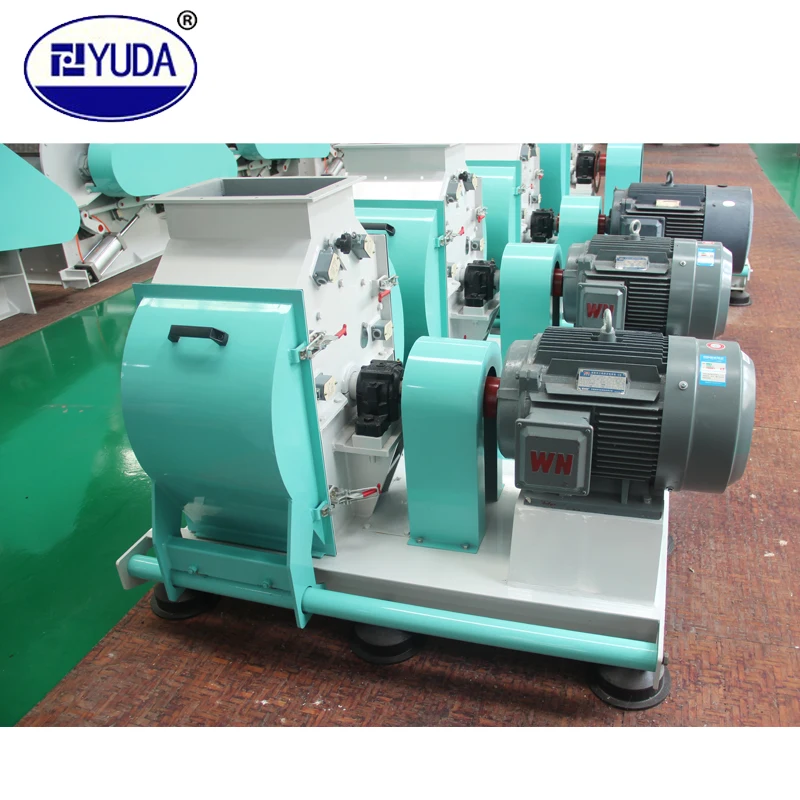

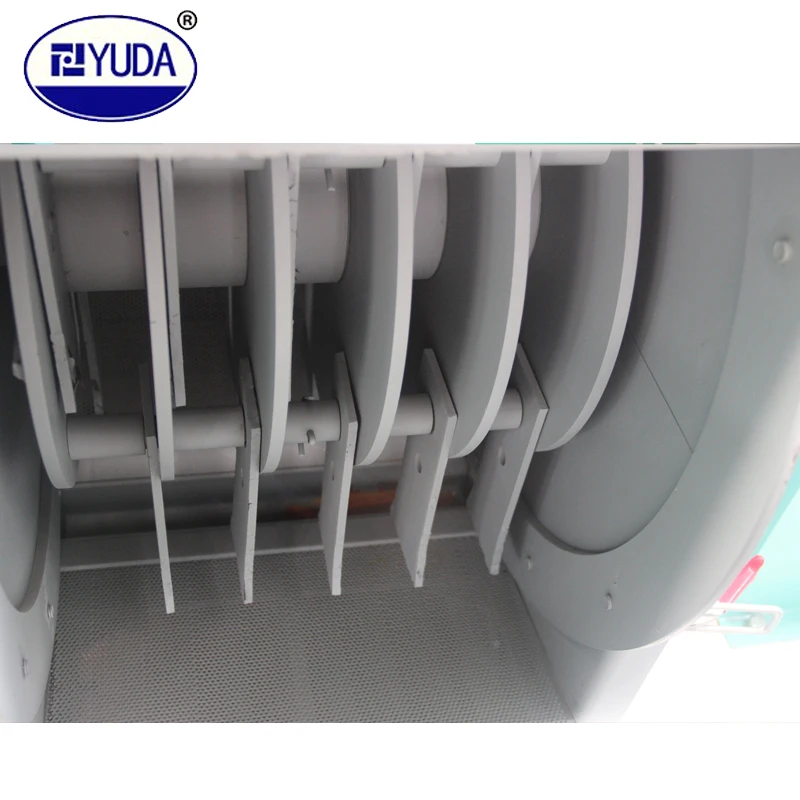

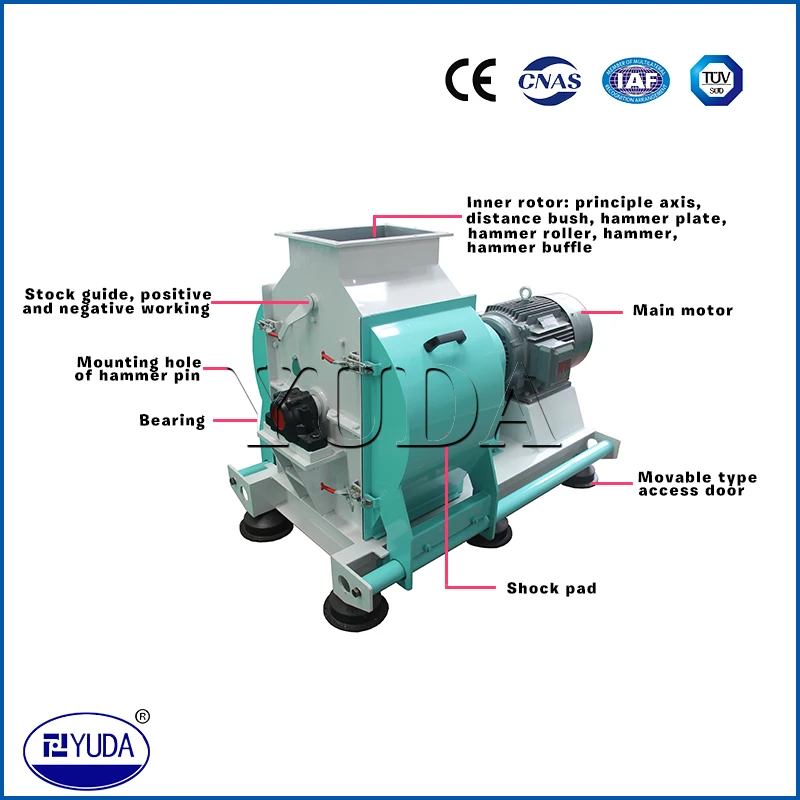

6, The machine uses motor direct drive, scientific and reasonable hammer sieve clearance, crushing chamber adopts the secondary crushing technology.

7, Selects the import high quality bearing, low energy consumption, high output, and repair rate up to a minimum. Bring their own guide pulley mobile open form, convenient operation and maintenance

Model	Power (KW)	Capacity (T/H)	Rotor diameter (MM)	Rotate speed (RPM)	Weight (KG)
SFSP50-1	7.5	1-2	500	3540	600
SFSP50-1	15	1-2	500	3540	610
SFSP50-2	11	1-2	500	3540	600
SFSP50-2	18.5	1-2	500	3540	610
SFSP56×36	15	1.5-3	560	2950	680
SFSP56×36	22	3-4	560	2950	690
SFSP56×36	30	3-5	560	2950	700
SFSP56×40	30	4-6	560	2950	800
SFSP56×40	37	5-7	560	2950	810
