Подземная шахта, одобренная ATEX перезаряжаемая Светодиодная лампа для добычи угля
- Category: LED Headlamps >>>
- Supplier: Shenzhen Gf Technology Development Ltd.
Share on (60730327870):
Product Overview
Description
Product Description

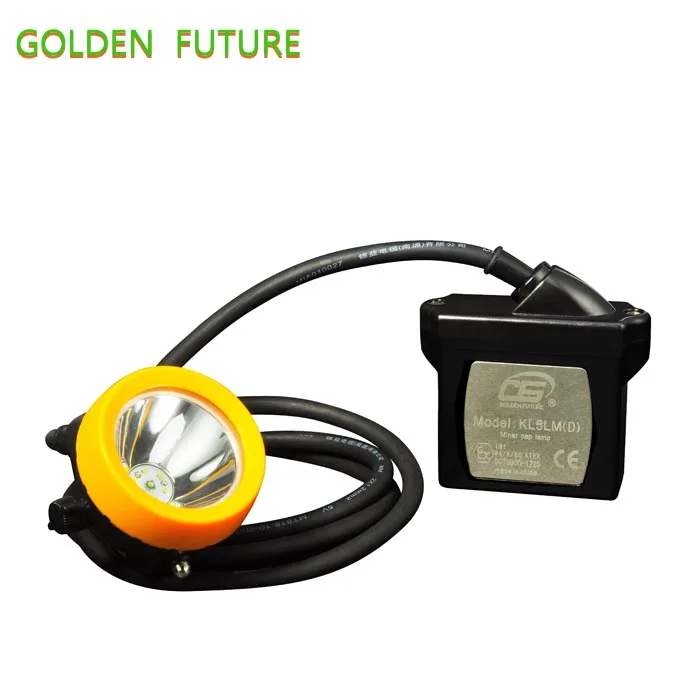

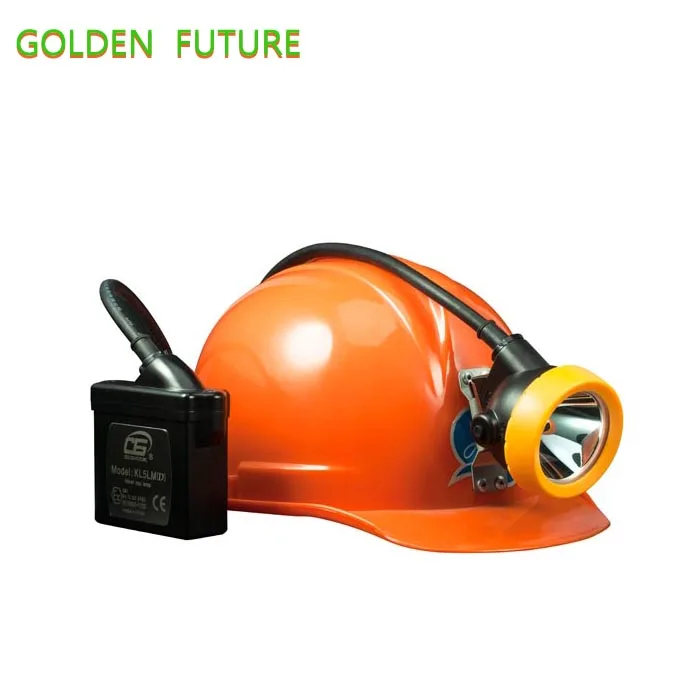

underground mine use ATEX approved rechargeable led coal miner lamp
Description of miner lamp:

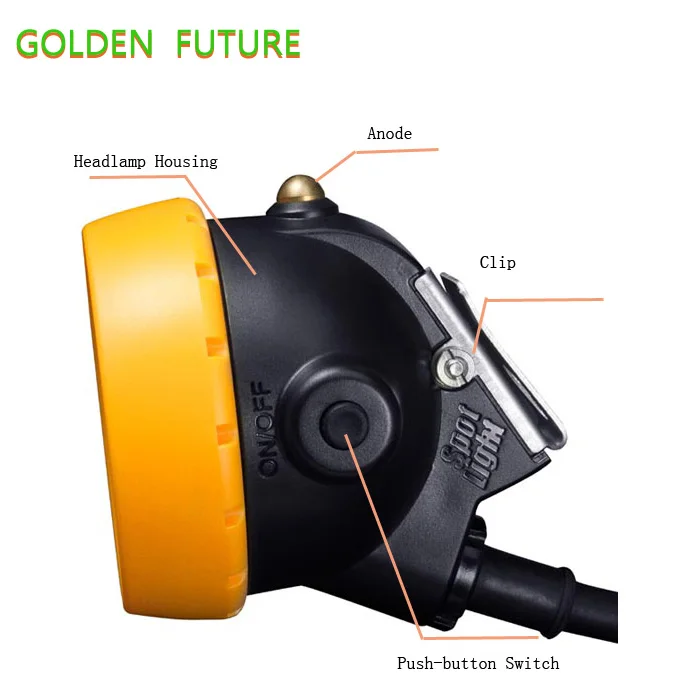

The KL5LM(D) miner lamp is not only much smaller and ergonomically designed for wearer more comfortable than the traditional lead acid cap lamp, and they are one third of the weight of lead-acid battery cap lamp, at only 0.55kg.

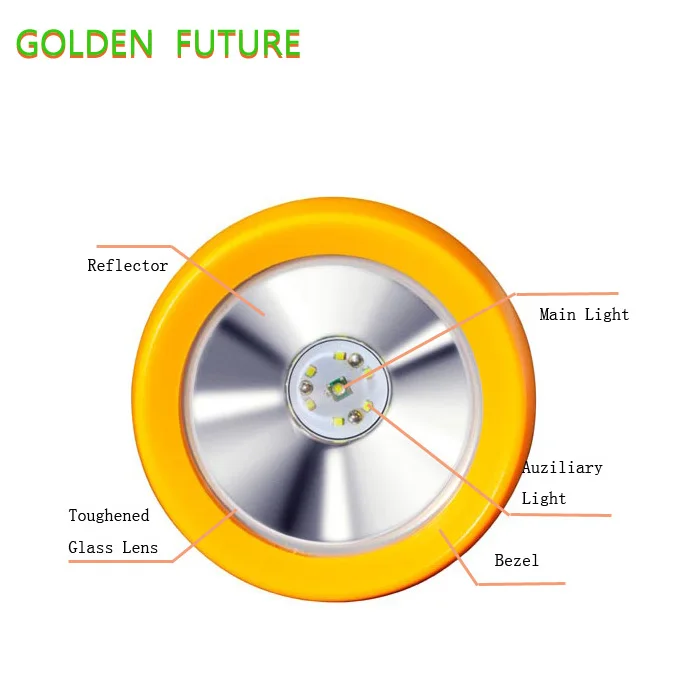

LED light provides bright, clear, white light. The lighting degree is 10000-15000lux (at a distance of 1m). The quality of the light is maintained throughout the entire discharge cycle which lasts up to 15 hours. The battery has a life cycle of 1000 charges and discharges.

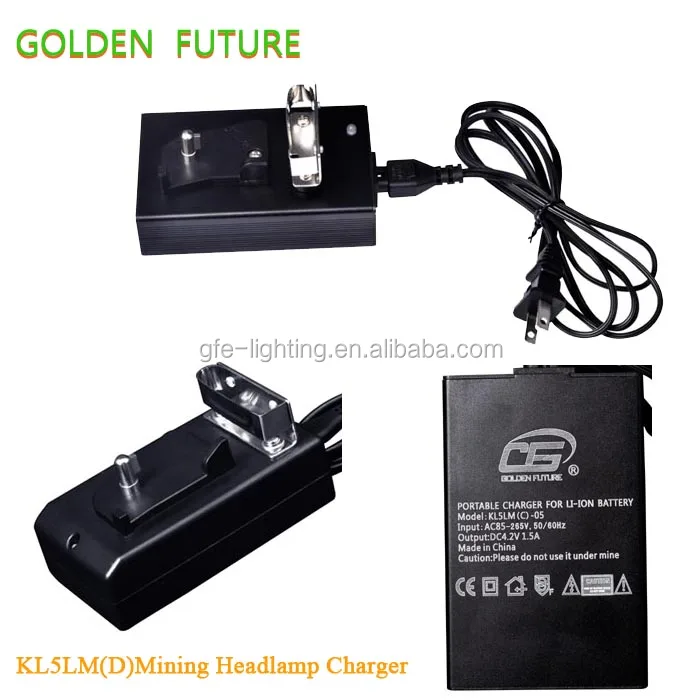

Charger input power: AC100-240V / 50-60Hz. Charging time: within 6 hours,
Type of protection: EXia IIB T4 (Zone 1 and 2)
Protection category: IP68
Description of miner lamp:
The KL5LM(D) miner lamp is not only much smaller and ergonomically designed for wearer more comfortable than the traditional lead acid cap lamp, and they are one third of the weight of lead-acid battery cap lamp, at only 0.55kg.
LED light provides bright, clear, white light. The lighting degree is 10000-15000lux (at a distance of 1m). The quality of the light is maintained throughout the entire discharge cycle which lasts up to 15 hours. The battery has a life cycle of 1000 charges and discharges.
Charger input power: AC100-240V / 50-60Hz. Charging time: within 6 hours,
Type of protection: EXia IIB T4 (Zone 1 and 2)
Protection category: IP68
Specification for led coal miner lamp:
No. | item | parameter | unit | |
1 | Rating voltage | 3.7 | V | |
2 | Rating capability | 7.8 | Ah | |
3 | Lighting duration(main lamp-house) | ≥19 | H | |
4 | intensity of illumination(main lamp-house)--- 1 meter from the lamp | beginning | ≥15000 | Lux |
After 11 hours | ≥10000 | |||
5 | LED average current | main lamp-house | 400 | MA |
secondary lamp-house | 110 | |||
6 | Charge protective voltage | 4.2 | V | |
7 | Discharge protective voltage | 3.0 | V | |
8 | Charging time | 5 | H | |
9 | Battery circular life | >1000 | Circle | |
10 | unit Weight | 0.55 | kg | |
11 | Dimension( size of the Li-ion battery) | 76x31x79 | mm | |
Packaging & Shipping
underground mine use ATEX approved rechargeable led coal miner lamp packing details is : 20 pcs in one carton, carton size: 46x36x36 cm, gross weight: 21kg
Our Services
We can provide customer good quality,quick delivery,good service.
1. For all your inquires, we will reply you in detail within 24 hours.
2. OEM/ODM services. We have very experienced R&D engineers and we have strong ability to do ODM projects.
3. We have sales who have engage in LED many years to provide custom-made the sales solution.
4. We have engineers who has the experience of projects to solve the problems of technical.
Company Information
FAQ
Q1: When will the products be deliveried if the order has been placed?
it will take about 25 days for the customised items.
Q2: Do you have any sales sevivce?
Yes, we do 1 Year Warranty for any of our products.
Q3: What Certificates do you have?
Our products have been tested by CE and RoHS Sandards which is complied with the European Directive.
Q4: How to pay?
We accept T/T, Western union and Paypal .
