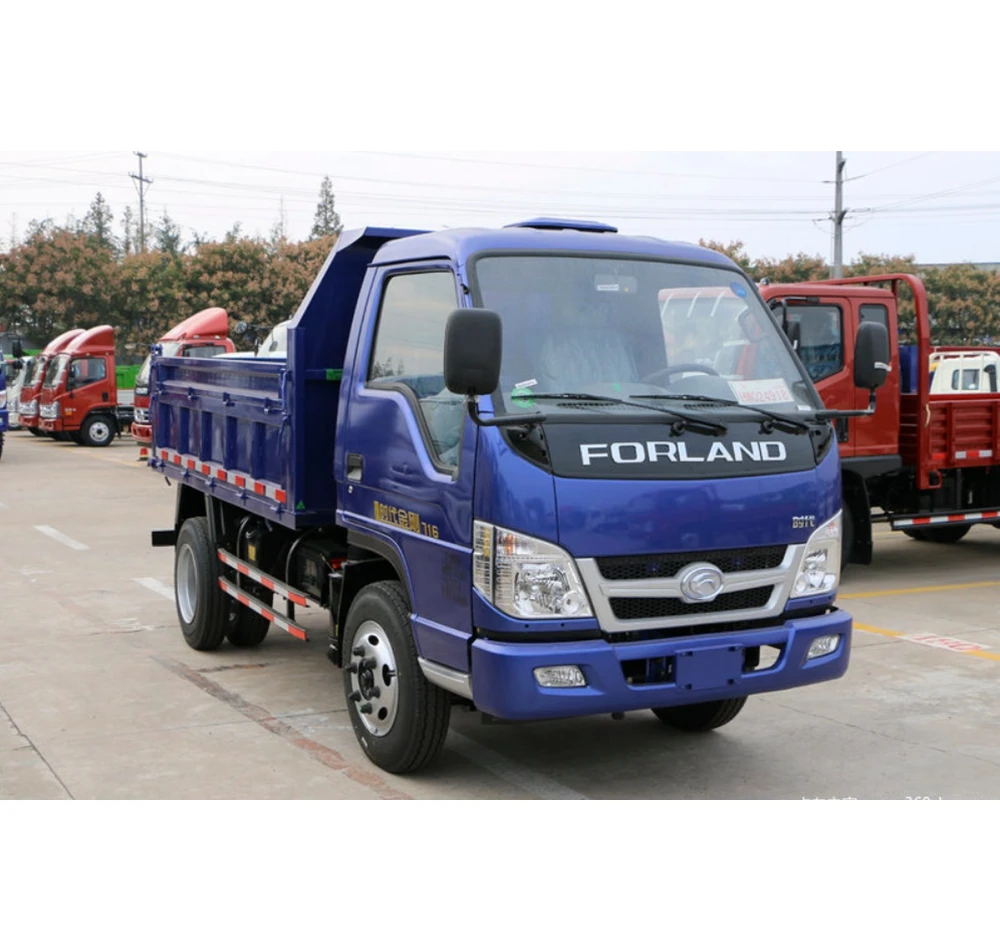

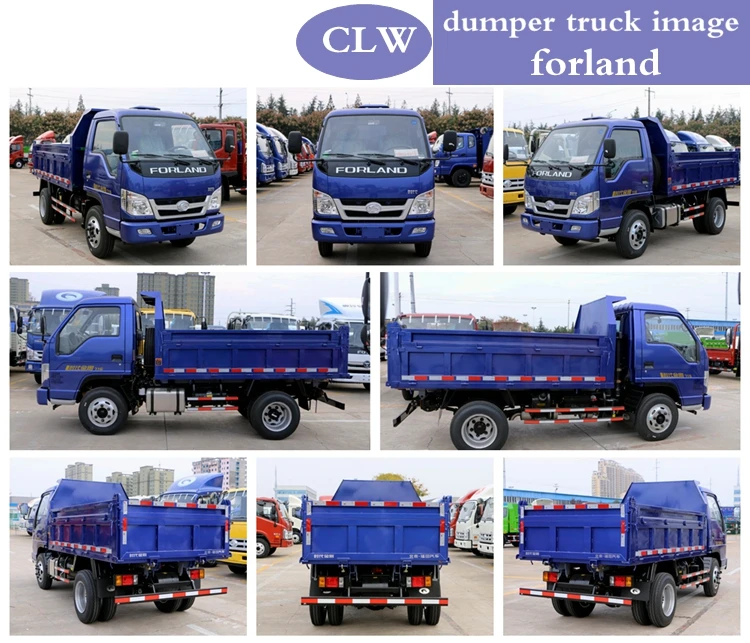

Hot sales foton 6 wheels mini 3 tons dump truck

Chassis: Forland

Main Dimension Information(mm)

Overall

4800x1750x2180

F/R Suspension

1110/1380

Cargo box

2810x1600x600 (cargo size can change according to you)

Wheelbase

3100

Main Weight Information(kg)

GVW

4995

Cur Weight

2490

Loading weigt

3000-5000

Main Parts

Engine

Model: 4A2-82C50

Power:82hp

Displacement: 2270 cc

Emission Criterion: EuroV

Engine type: 4cylinder, inter cooling turbo charge, common rail

Transmission

5 forward, manual, Fast brand

Front axle

2 ton

Rear axle

5 ton

Tire

6.50-16, 12PR 6pieces, 1 spare

Cab

2 passenger

Suspension

Non-independent suspension, steel leaf spring

Brake

air brake,

Drive type

4x2, left hand drive / RIGHT HAND DRIVE

Cargo box

Size (mm)

3000x1800x600 (cargo size can change according to you)

Material

16Mn high intensity steel

Thickness (mm)

Side 3, bottom 4

Discharge form

Rear discharge

Dump form

Double Hydraulic dump cylinder under cargo box
