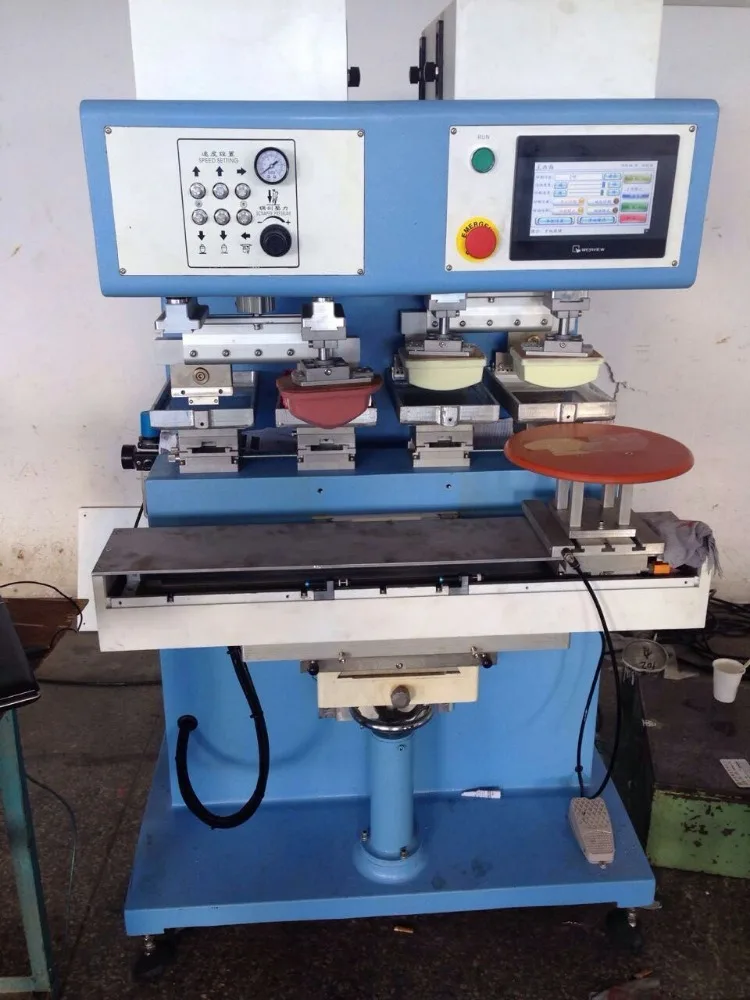

4-color large printing area pad printing machine with PLC independent printing pads
4-color large size pad printing machine with independent pad
Due to some containingcake products' size too big to use normal pad printing machine. so we make the pad up-down independent, if not the pad will hit each other. This machine with PLC control, so the printing will more accurately.
This machine is special made for the special part 4 colors printing. As the four pad of this machine is working independently, namely when print the first color, just the first pad is working, but the others pad is stay at original, not move. In the same way, when printing second color, the first pad is come back to original and not working, just second pad is printing. So this machine can avoid another pad hitting when printing first color.
Cylinder of LC-PM4-150-4P is German brand. Electrical components are imported from Japan. It meets CE standard, with very stable running.

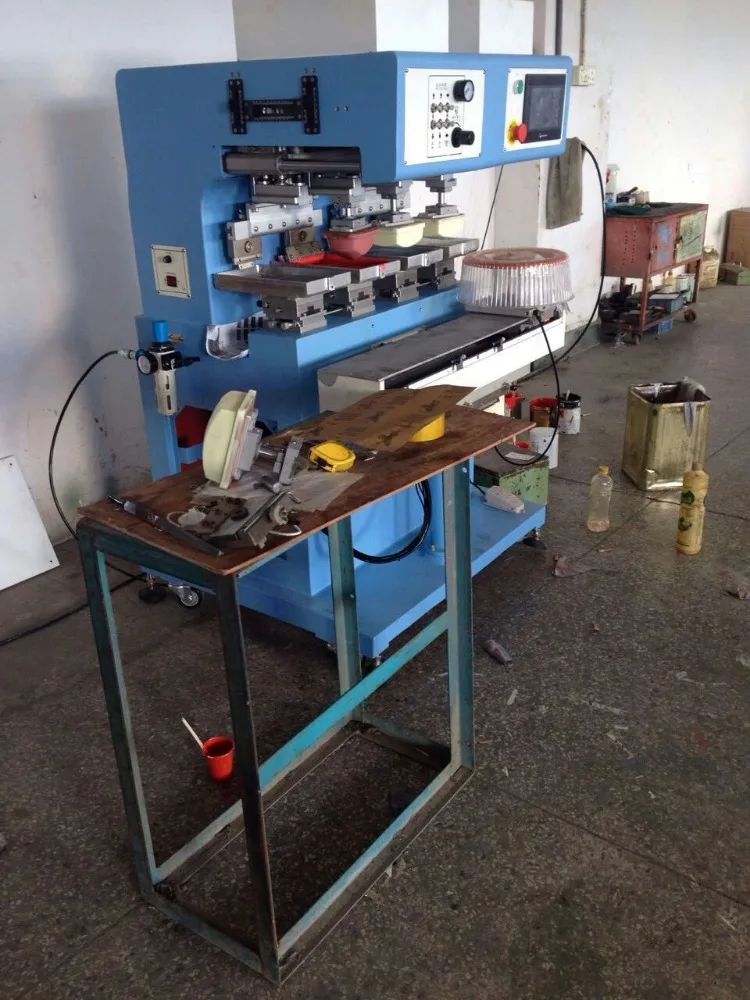

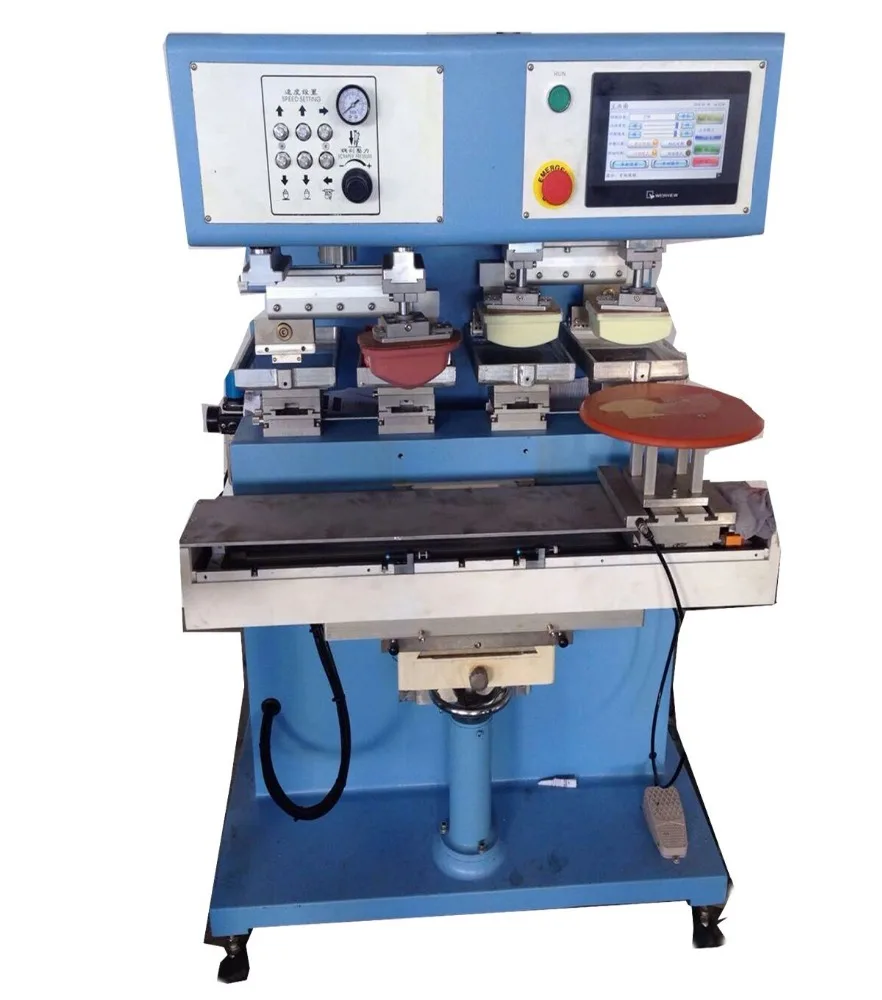

4-color large printing area cliche pad printing machine with PLC independent printing pads LC-SPM4-150-4P
Product Description
Item | Description |
PLC 4-color open ink well pad printing machine with shuttle and independent pad LC-PM4-150-4P | 1)Operation: Semi-Automatic 2)No. of color:4 color 3)Working station:1Pcs 4)Working table area:300×300mm 5)Standard plate area:150×150mm 6)Ink tray:150*150mm 7)Max Printing area:120*120mm 8)Max printing speed:800 Pcs/Hr 9)Power voltage:220V/50Hz 10)Power consumption:35 W 11)Air pressure:6 Bar 12)Air consumption:170 Liter/Min 13)Machine dimension:1080×760×1470mm 14)Machine weight:280Kg |
Free fiting | 1. Four PCS steel plate |
Note: 1.Price Term: FOB,Shenzhen,China 2.Payment Term: 100% T/T in advance(Optional) 3. Delivery Time: 25 days delivery after receiving T/T payment. 4. Packing: Plywood case. | |

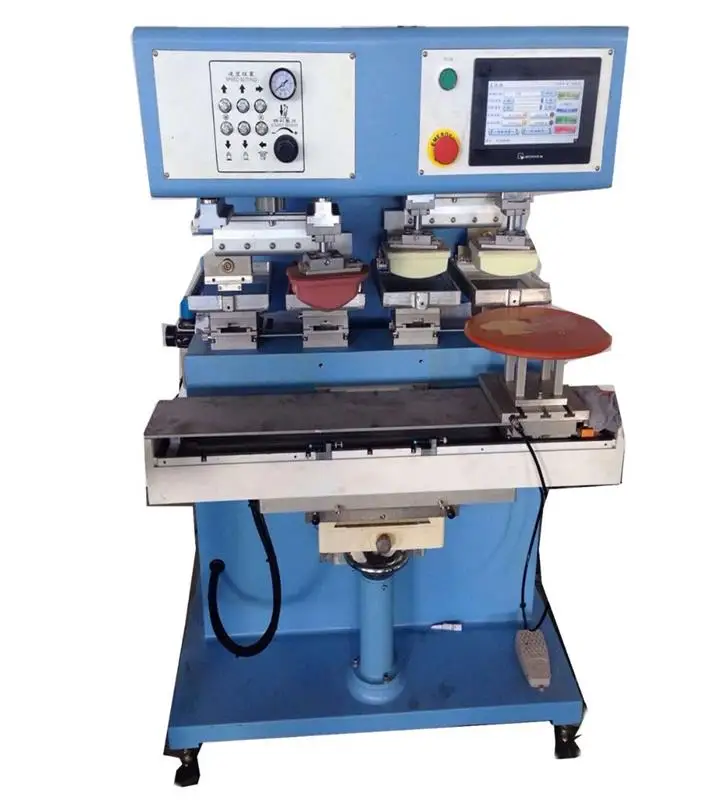

PLC 4-color open ink well pad printing machine with shuttle and independent printing pads LC-SPM4-150-4P

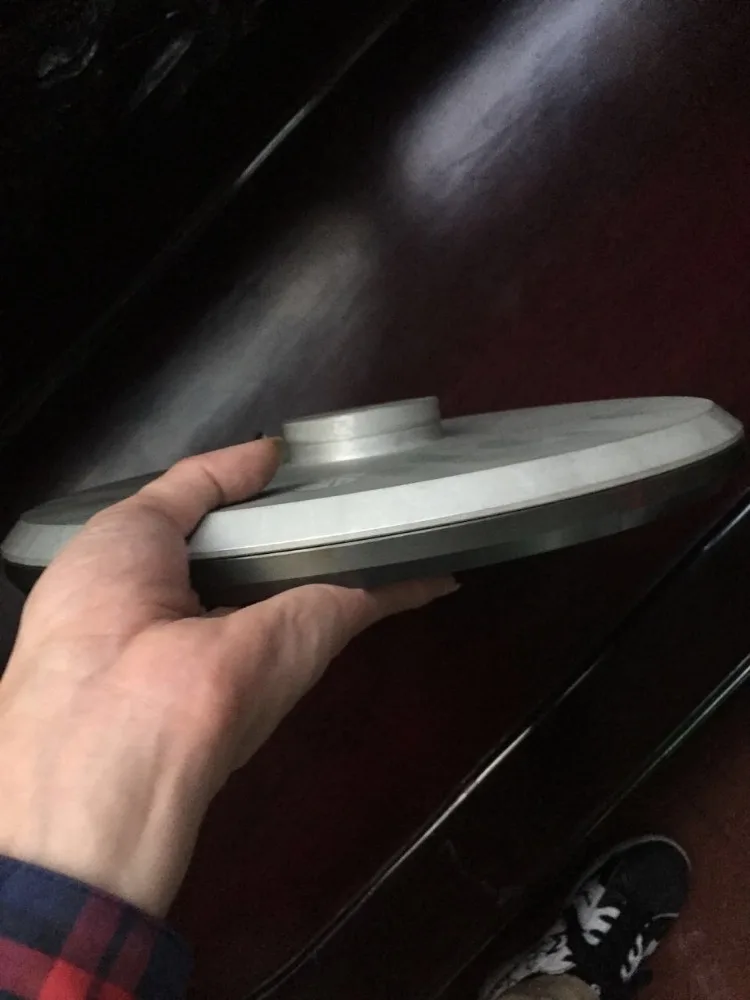

Product samples

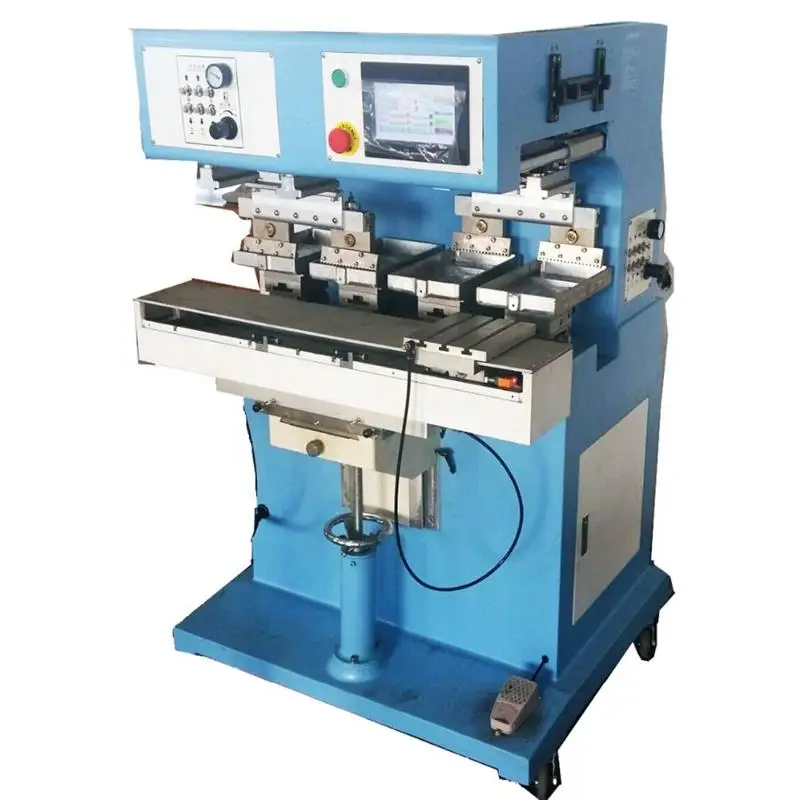

PLC 4-color open ink well pad printing machine with shuttle and independent printing pads LC-SPM4-150-4P
Product Samples
Our Services
PLC 4-color open ink well pad printing machine with shuttle and independent printing pads LC-SPM4-150-4P

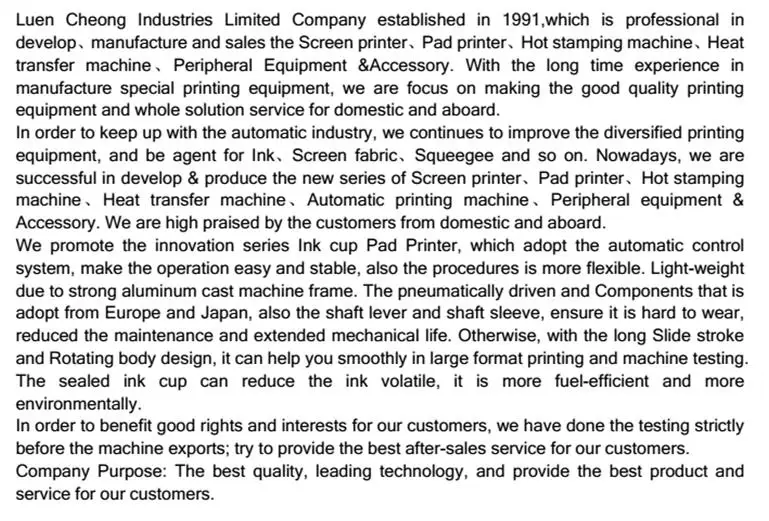

Company Information
Packaging & Shipping
FAQ
OEM
♥ Available
Factory or trading company?
♥ Factory, welcome to visit us.
The payment ways you accept
♥ L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal
warranty of the machine
♥ 1 year+lifelong technical supports
