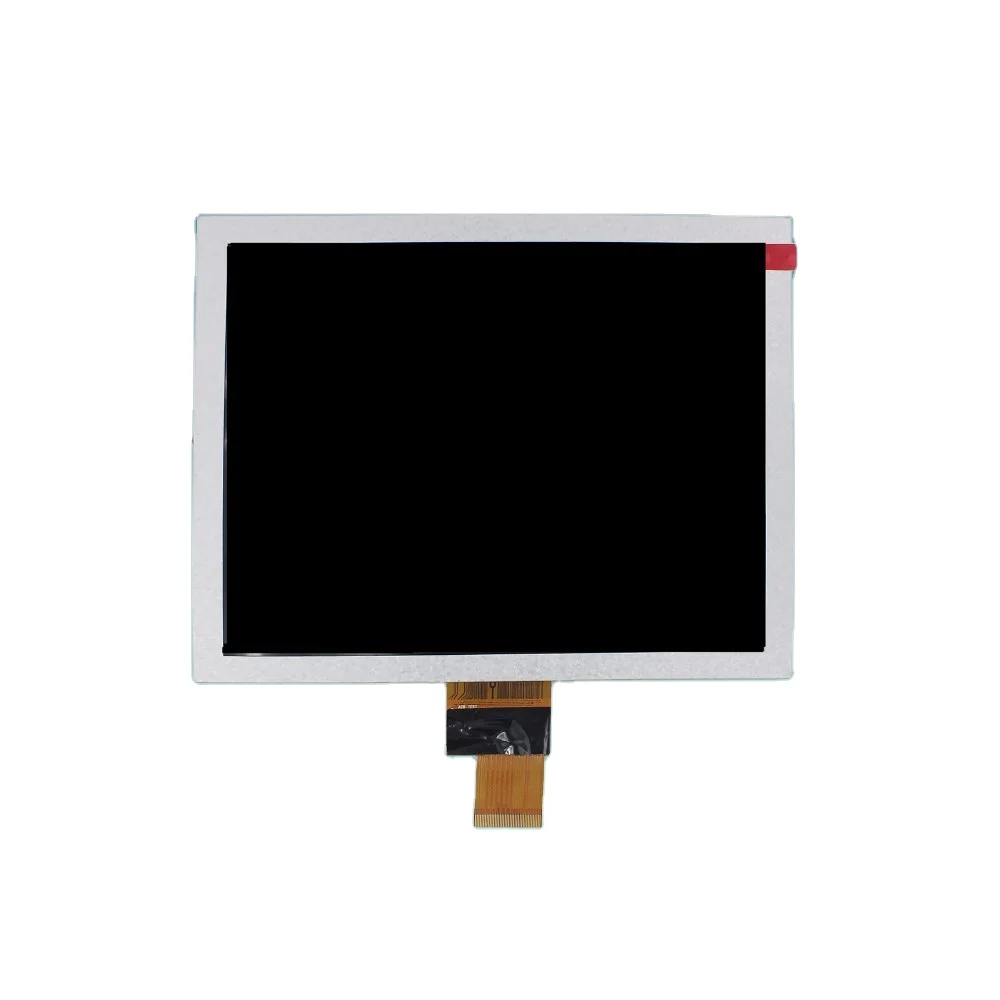

MIND Good Quality 8.0 Inch 1024 x 768 16.7M 8bit*LVDS Interface IPS Tft Lcd Module
- Category: >>>
- Supplier: Shenzhen Mind Electronics Co. Limited
Share on (60730455121):
Product Overview
Description
MIND Good Quality 8.0 Inch IPS Tft Lcd Module With 700 Brightness
Product Description
Item | MD080IA01-33B |
| Screen Size | 8.0 inch |
| Module Size(WxHxD,mm) | 183.00 x 141.00 x 6.3 |
| Active Area(mm) | 162.00 X 121.50 |
| Display ModeDisplay Mode | Normally Black, Transmissive |
| Display colors | 16.7M |
| Resolution | 1024 × 3(RGB) × 768 |
| Viewing Angle (Tpy.)θT/θB/θL/θRV | 85/85/85/85 |
| Aspect Ratio | 4:3 |
| Luminance(nits) | 700 |
| Contrast Ratio | 800 |
| Power Consumption (W) | 3.839 |
| Interface | 8bit*LVDS |
| connecting type | 40pin FPC+backlight cable x 2 |
| Operation Temperature( ℃) | -10~50 |
| Storage Temperature (℃) | -20~60 |
| Driver IC | Original FOG |
| HTHH.(op) | 40℃,90% RH |
| Response Time(ms) | 25 |
| Dot Pitch(WxH,mm) | 0.05275 × 0.15825 |

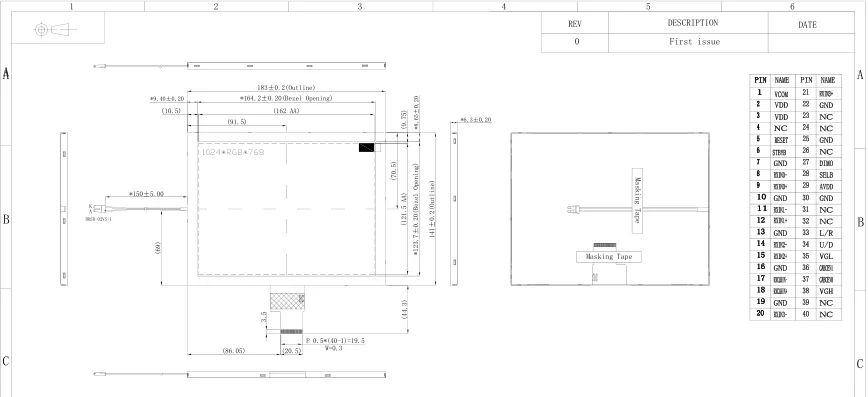

Design Drawing
Company Information
Shenzhen Mind Electronics Co,Ltd, established in June 2007, is a high-tech enterprises dedicated to manufacturing, selling, researching and developing TFT panel modules.
Our Factory:We have our own factory and large warehouse.
Our Product
Our products are characterized by high quality, high reliability, wide application in automotive electronics, HMI, industrial, medical, and other equipment.
Our Certification: We passed IATF 16949 and ISO 9001.With Standard production workshop.
Packaging & Shipping
FAQ
1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 7-10 days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 100.
Q: 4.How long is the warranty?
A:12 Months.
Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to
arrive.
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a
real sample for your second confirmation.if sample is ok, finally we will go to mass production.
For more detailed information about our TFT LCD module, please feel free to contact us, we will offer you the specification.
