Screw Press Small Corn Stalk Cow Dung Charcoal Biomass Wood Sawdust Briquettes Making Machine

models and specification	picture

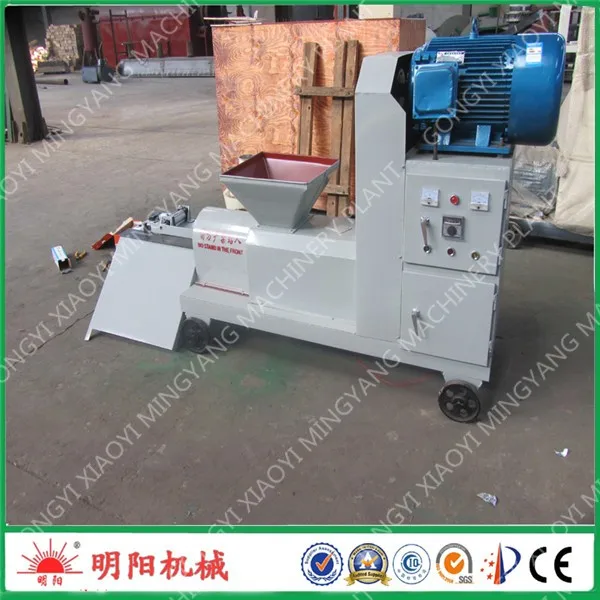

Cow Dung Biomass Wood Sawdust Briquette Making Machine model: ZBJ50-9 capacity: 100-150kg/h  power: 15kw number of the heater: 3 pieces packing size:1.75*0.68*1.25m weight:550kgs diameter of the final product: 80mm final product shape: hexgonal, square, hexgonnal with edge demand of raw material: size: 3-5mm, moisture: 8-12%

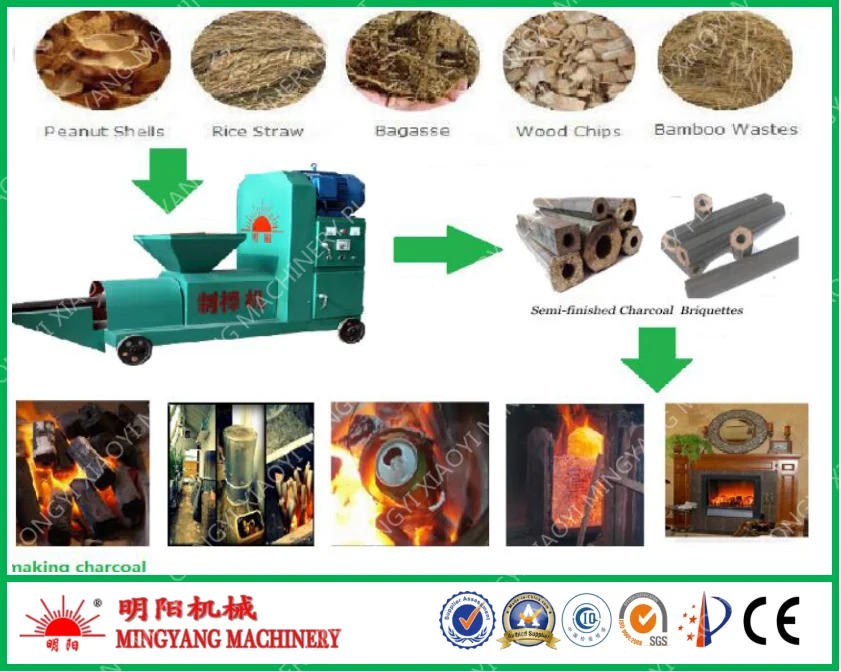

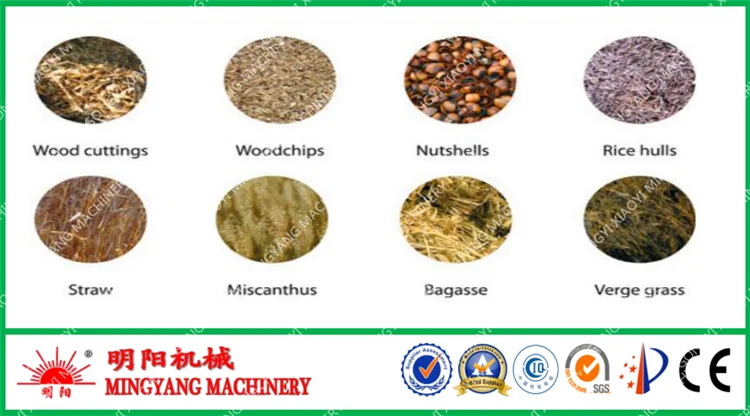

raw material of Eco Corn Stalk Cow Dung Biomass Wood Sawdust Briquette Making Machine

Almost any biomass can be briquetted. Cow Dung Biomass Wood Sawdust Briquette Making Machine so far in China are using Saw Dust, Bamboo dust, Bagasse, Cotton Stalk, Coffee husk, Groundnut Shell, Mustard Husk/Stalk, Pine Needles, Rice Husk, Sugar Mill Waste, Jute waste, Coir pith and other wastes & residues like Castor Shell, Red Gram Stalk, Tobacco stem, Tea Waste, Sander Dust, Tree Bark, Wild Grasses & Shrubs and Sander dust etc. can be also be briquetted individually or in combination without using any binder.

final product of Eco Corn Stalk Cow Dung Biomass Wood Sawdust Briquette Making Machine

This bio-fuel briquette is 45-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder or hollow hexagonal with a 15-20mm hole through the body.

The available shape: square, hexagonal, pentagon, pentagon with edge, hexagon with edge
The available diameter could be: 50mm,55mm.60mm,65mm.70mm.80mm and so on
The available length could be :20cm,30cm, 40cm, 50cm
The feature of the final product : Specific gravity: 1300—1900kg/m Calorific value: 4500—5000kcal/kg

application of Eco Corn Stalk Cow Dung Biomass Wood Sawdust Briquette Making Machine

• Boilers : It can be used in the boilers of Paper Mills, Sugar Mills, Dyeing houses, leather, lamination industries, Vanaspati units, Food ProcessingUnits, Oil Extraction Units, Solvent Extraction Plant and many other plants and industries..


• Furnace & Foundries : It can be used for metal heating & melting (where melting point is less than 1000d/cel.)


• Brick Kilns : It is the total, substitute of steam coal.


• Residential & Commercial Heating : For winter heating in Cold areas and Hotels, Canteens, Cafeterias and house hold kitchen appliances etc

advantage of Eco Corn Stalk Cow Dung Biomass Wood Sawdust Briquette Making Machine

• Long Life of Inner Former
  The Inner Former can be used for 1-2 years. The former is made from a whole steel bar through a water jet cutting system so that the inner face is smooth. Therefore, it’ll be easier to form and save energy. This is why the produced briquette is smooth. It consists of two parts, you need to change only the key part when it is worn.


• Heating section we adopted two heat collars which are made from thick copper wires and are ceramic inside.


• mould barrel : An attractive feature on the forming hopper is that we added a movable plate on the bottom. It has two functions, one is you can clean it easily. The other is that you can discharge the inputted material when it is jammed.


• Lubricating System
  We have adopted a lubricating system for the gear box. In order to oil the gear box properly, it has an exhaust function to maintain consistent air pressure.


• Auto Cutting System
  It’s a simple piece of equipment composed of two steel plates. (Please see the picture),but briquettes can be automatically cut in uniformed lengths.

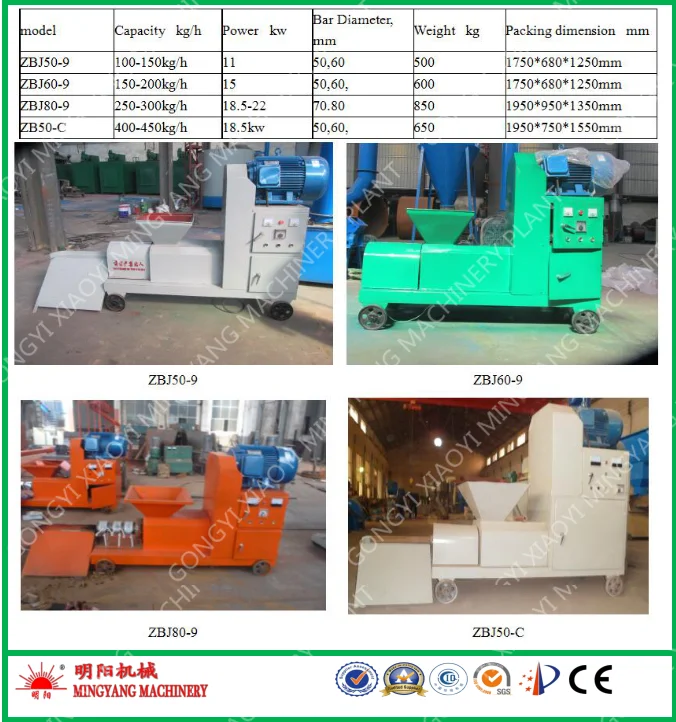

other models and specifictaion  of Eco Corn Stalk Cow Dung Biomass Wood Sawdust Briquette Making Machine

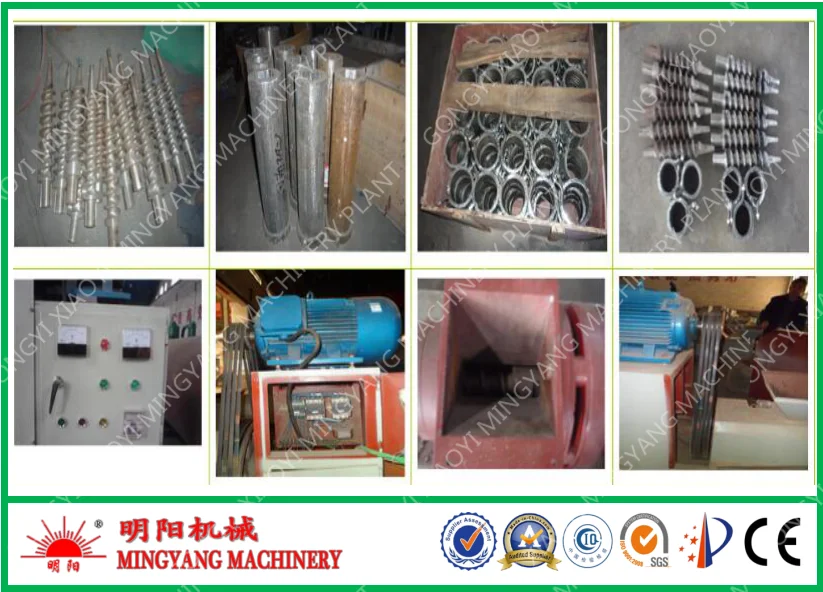

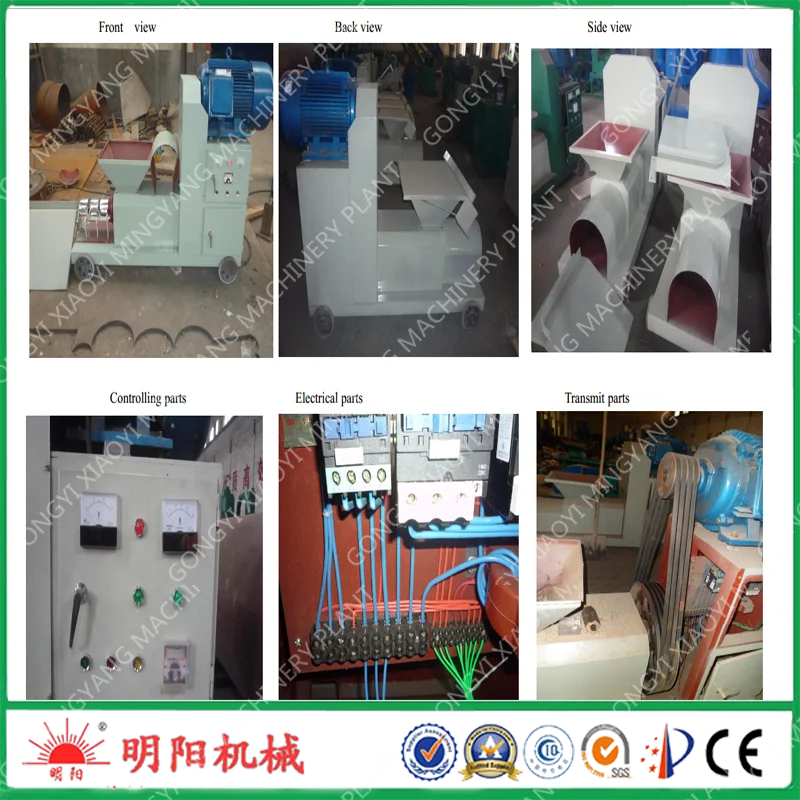

structure of Eco Corn Stalk Cow Dung Biomass Wood Sawdust Briquette Making Machine

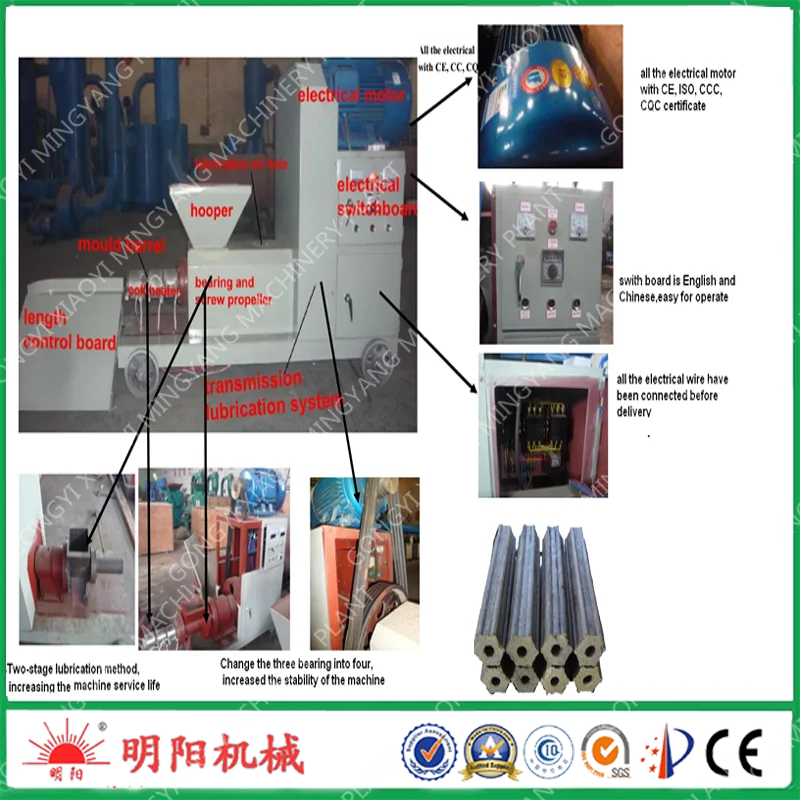

The main Cow Dung Biomass Wood Sawdust Briquette Making Machine include the electrical motor, heating system,  switchboard, Temperature control device, rack, transmission lubrication system, the screw propeller, molding barrel, etc.

working principle of Eco Corn Stalk Cow Dung Biomass Wood Sawdust Briquette Making Machine

The main machine include the electrical motor, heating system,  switchboard, Temperature control device, rack, transmission lubrication system, the screw propeller, molding barrel, etc.

clients and projects of  screw type high output CE approved automatic biomass sawdust briquetting machine

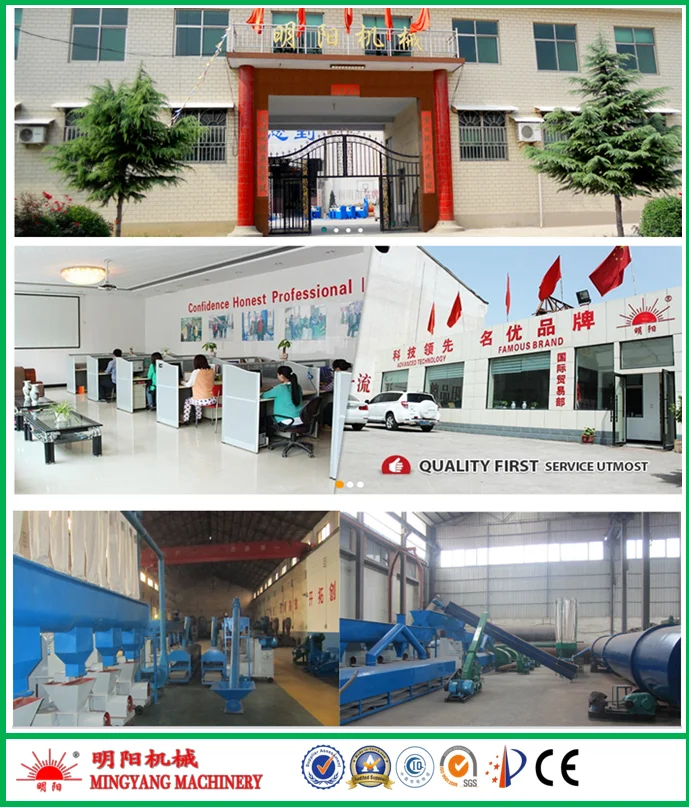

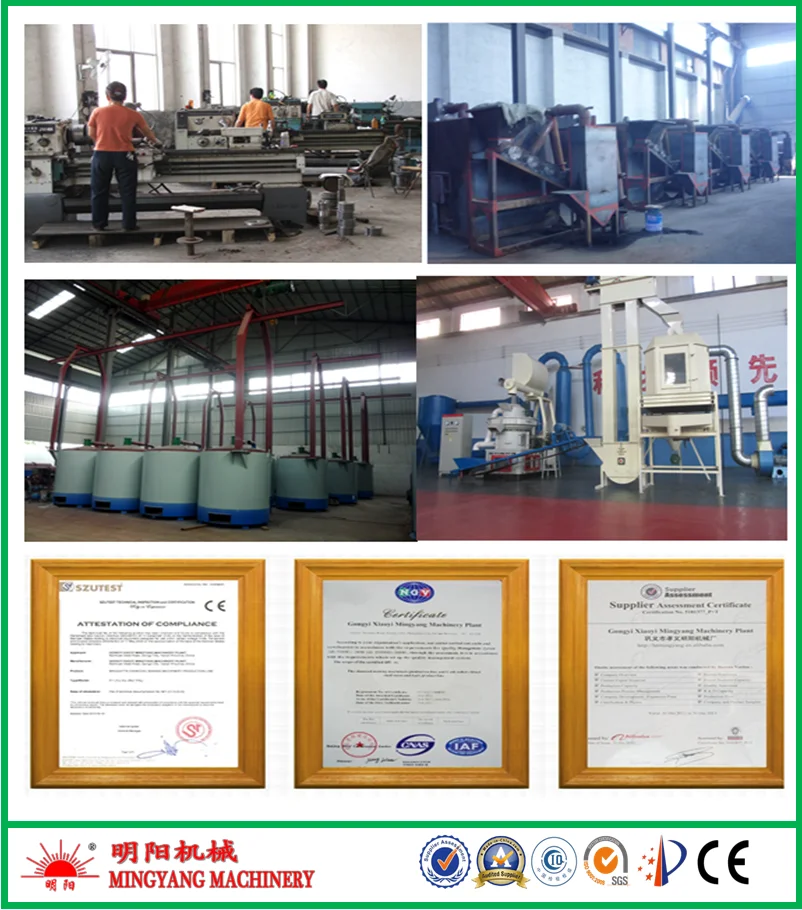

 Gongyi Xiaoyi Mingyang Machinery Plant is one of the largest and earliest manufacturers of the biomass energy equipment ( biomass briquette machine line, charcoal making production line, wood pellet production line and the related machinery)

 We are professional

1) more than 120 experienced workers, over 12000 square meter workshop,

2) high level standard workshop, advanced producing equipment, Experienced technicians, fine workmanship with 25 year working experience

3)produced 6 production line, more than 150 kinds of machines, awarded 10 patents in China

 We are confident

1)Products are widely accepted in both domestic and world market ,export to more than 150 countries

2)have been get the CE, SGS, ISO9001 :2008 and the other international quality standard .

 We are fast and efficient

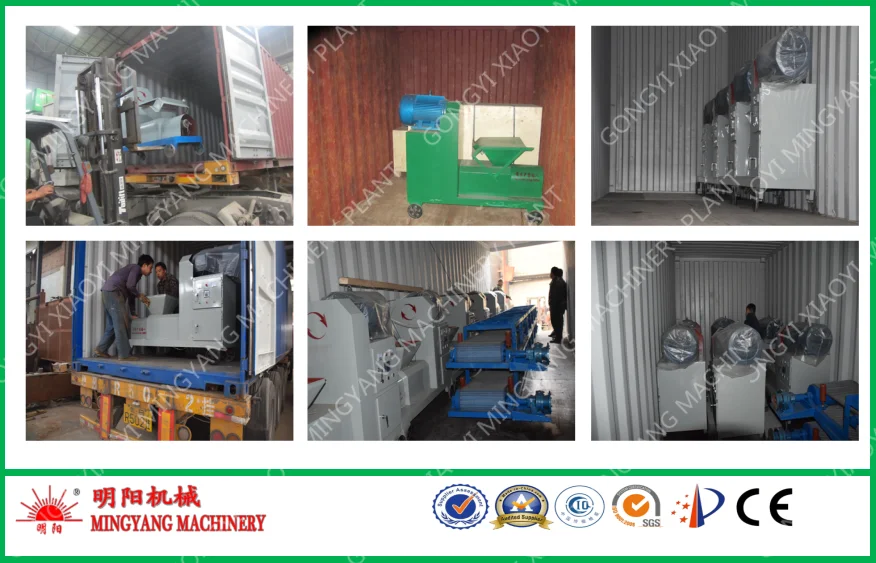

1) We have the experienced workers and efficient assembly line,  and we have a long-term stable cooperation in logistics providers. So we never delayed for the delivery
