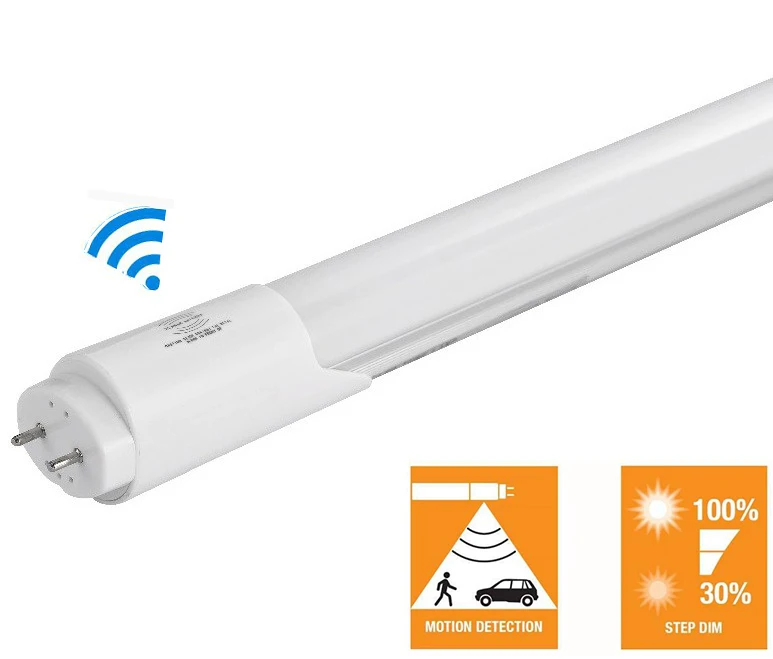

Factory 9W 18W 2ft 4ft Microwave Movement Motion Sensor T8 LED Tube Light with Battery Backup for Parking lot, Basement

Product Overview

Description

Factory 9W 18W 2ft 4ft Microwave Movement Motion Sensor T8 LED Tube Light with Battery Backup for Parking lot, Basement

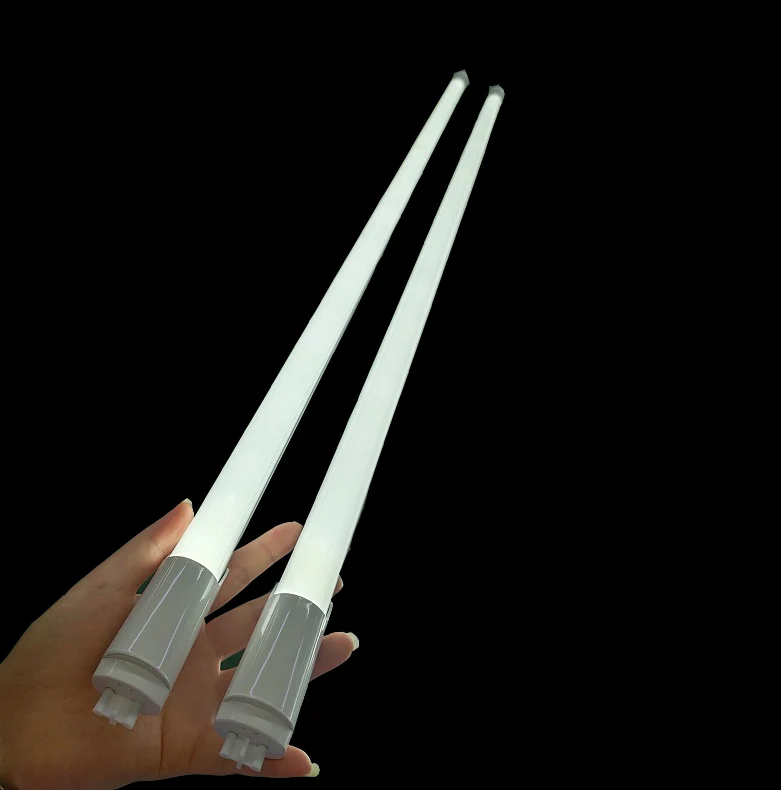

ALLMAY Patent T8 emergency tube with microwave motion sensor is 50% more energy efficient than conventional tulbs, and includes battery back-up power as well as microwave motion sensor. Battery back up for up to 2 hours when power failure, Microwave movement sensor with up to 8 meters detection range. Lamp will dim to just 3W when no motion is detected.

With high energy efficacy and excellent thermal management, LED Emergency Tube is a versatile solution for indoor projects of any nature.

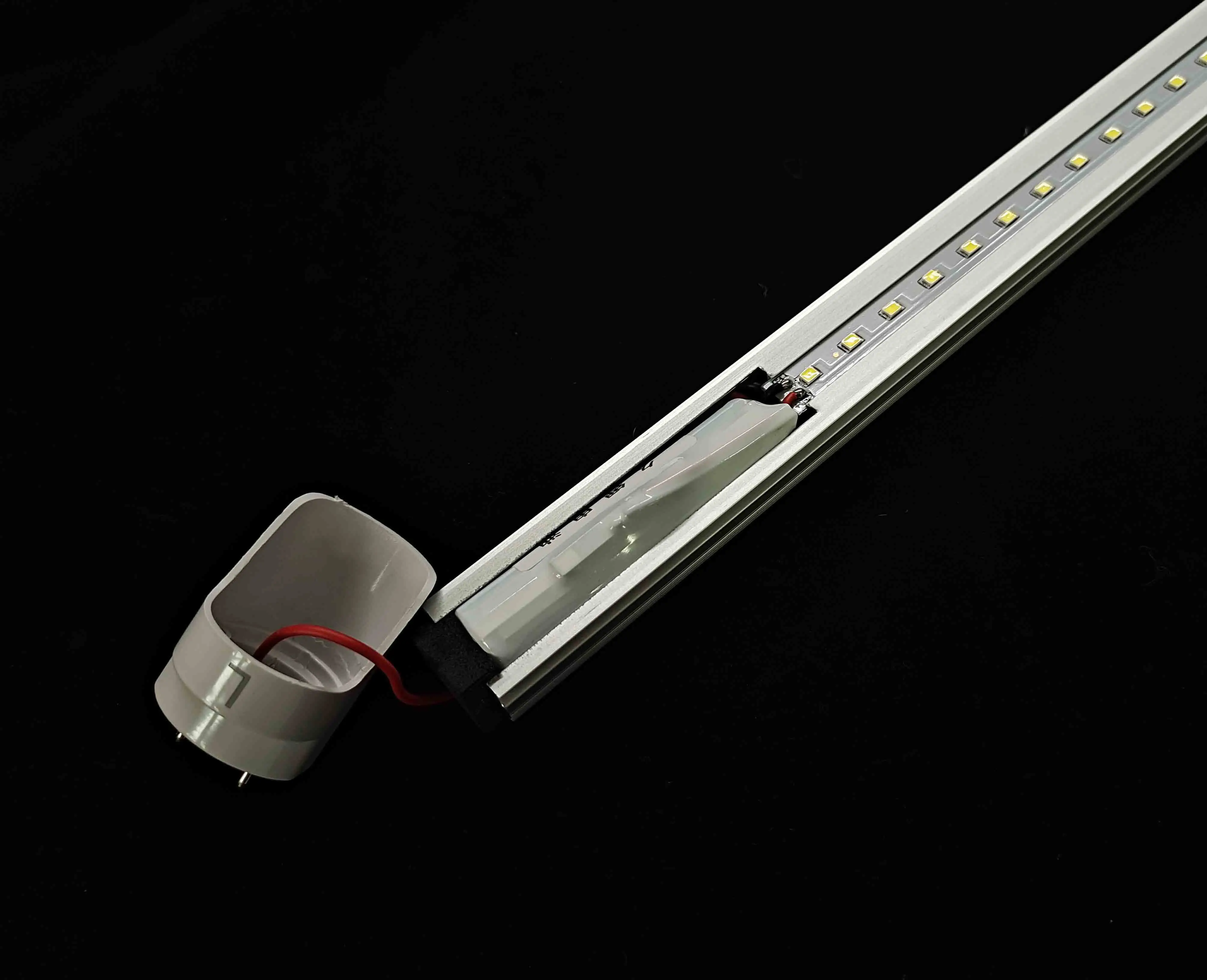

Allmay LED Emergency tube with motion sensor is equipped with intelligent protection circuit for over charging and over discharging. it switches to emergency mode 1 second after AC is off. It is used in veneus that requests emergency lighting function, such as hospital, parking lot, corridor, metro station. shopping mall, restaurant etc...

Feature

• Available in Daylight (6500K), Warm (2700K)


• Energy saving 85% than fluorescent tubes


• Maintenance saving 95%


• Replaces standard T8 fluorescent tube lamps


• Available in lengths from 2ft to 4ft


• Provised even light spread with no shadowing


• Single-ended connection


• Emergency, Microwave Sensor Options available

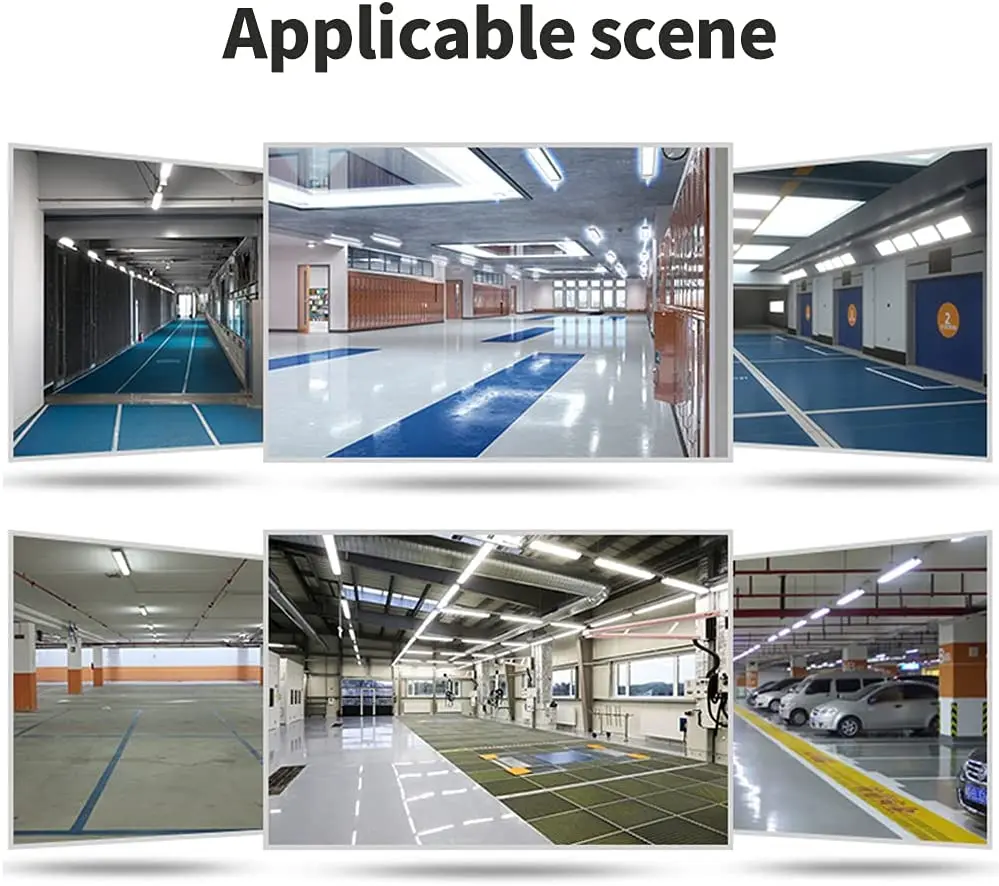

Applications led tube light t8 with movement sensor

• Outdoor hallway


• Factory


• Basement


• Parking lot


• Warehouse

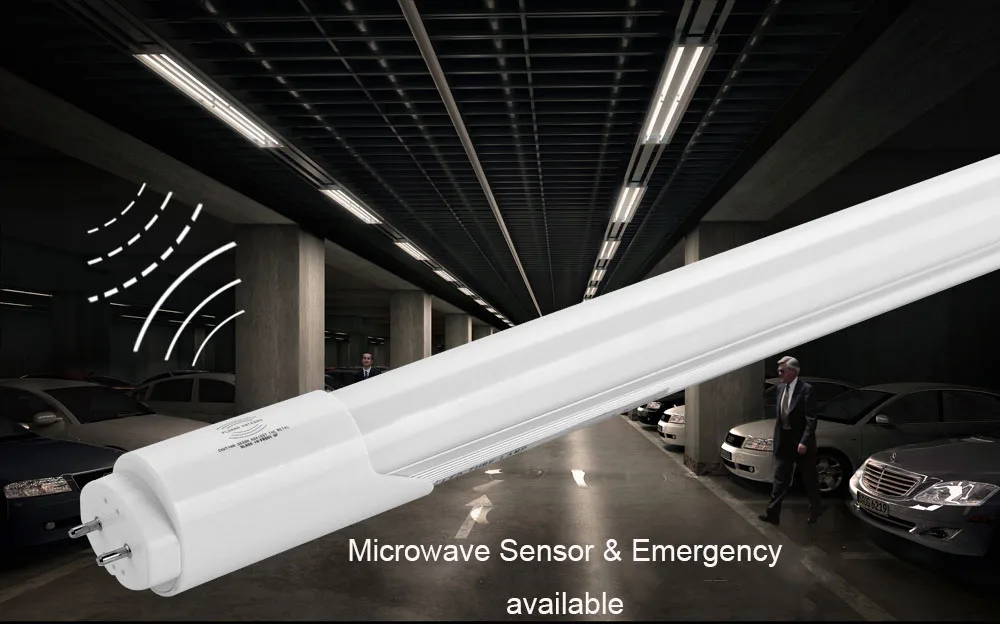

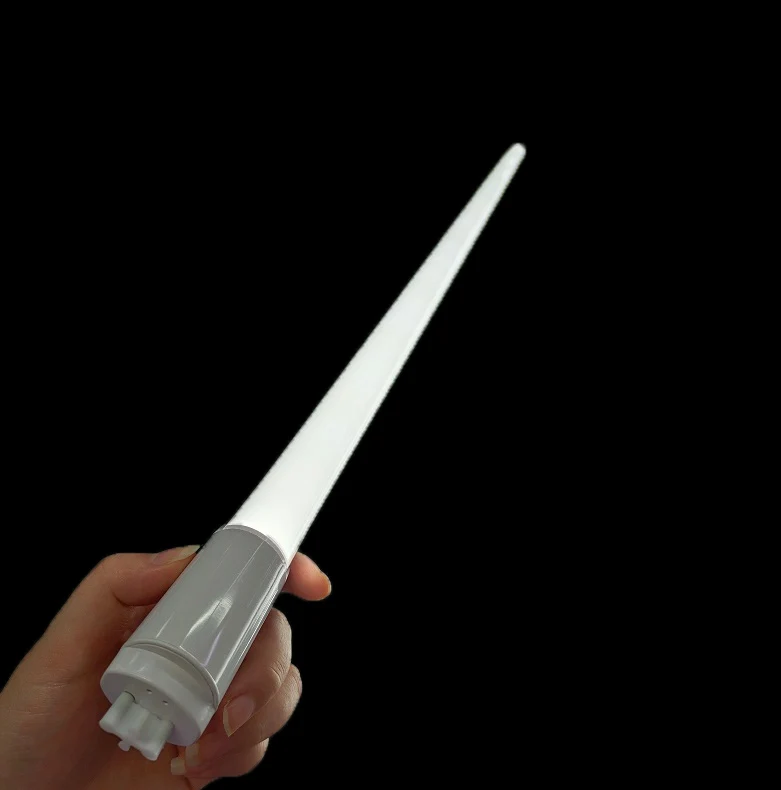

Integrated T8 LED Emergency Tube with Built-in Microwave Motion Sensor

Technical Specifications

LED Rechargeable emergency light is for replacement of fluorescent lamp in case of emergency lighting.

Model	AM-8D605YJS	AM-8D1205YJS
Length	60cm (2 feet)	120cm (4 feet)
Power (Routine)	9W	18W
Power (Emergency)	2-4W
Emergency duration	2-3 Hour
Weight	320g	400g
Diffuser	Frosted
Light decay	<15% at 10,000 hours
Color Temperature	2700K/6500K
Lumen (Routine)	700-800	1500-1600
Lumen (Emergency)	300-500
Socket type	G13
Beam angle	120°
Input voltage	90-265VAC  50/60Hz
CRI	>80
Working temperature	-20℃~50℃
Battery capacity	Lithium 3.7V 2000mAh
Charging time	>24 hours
Discharing time	>120 mins
Connection Type	Double-ended or Single-ended
Average Lifespan	25000 hours
Radar Sensor specification
Sensor distance	6-10m
Sensor degree	180*360 degree (Pls check following diagram)
Sensor mode	Full-Dim (20% standby)
Hold time (delay time)	18~25s



*Note:

1) 2700K comes up with lower lumen

2) Luminous Flux tolerance +/-10%

3) The above datas are tested by Allmay instruments.



Cautions:

1. Before installation, be sure to cut off electricity to avoid electric shock.

2. Please do wiring according to Figure 1 (Above)

3. When power is off, the emergency battery comes into effect and keeps offering power to the tube with DC.

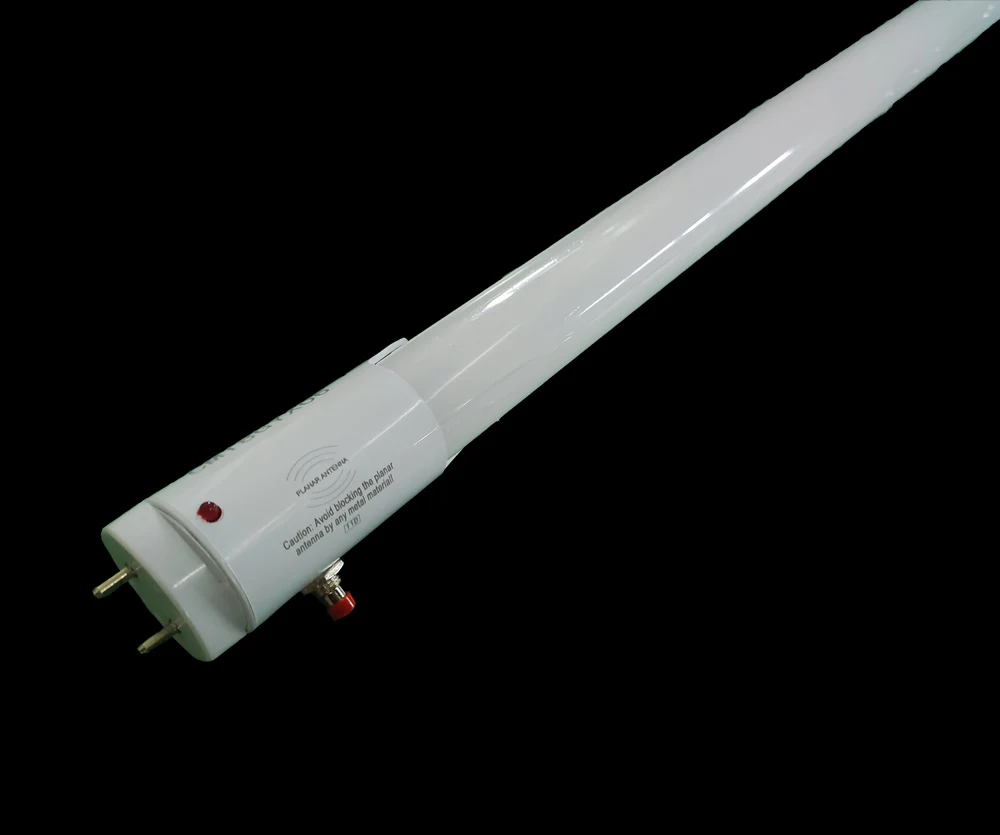

Switch and Indicator can be added.
