used mini excavator/new mini excavator digger/second hand mini excavator digger
- Category: >>>
- Supplier: Shandong Rhinoceros Engineering Machinery Co. Ltd.
Share on (60730497225):
Product Overview
Description
MINI EXCAVATOR XN08, 0.025 BUCKET, 0.8TON, DIESEL ENGINE

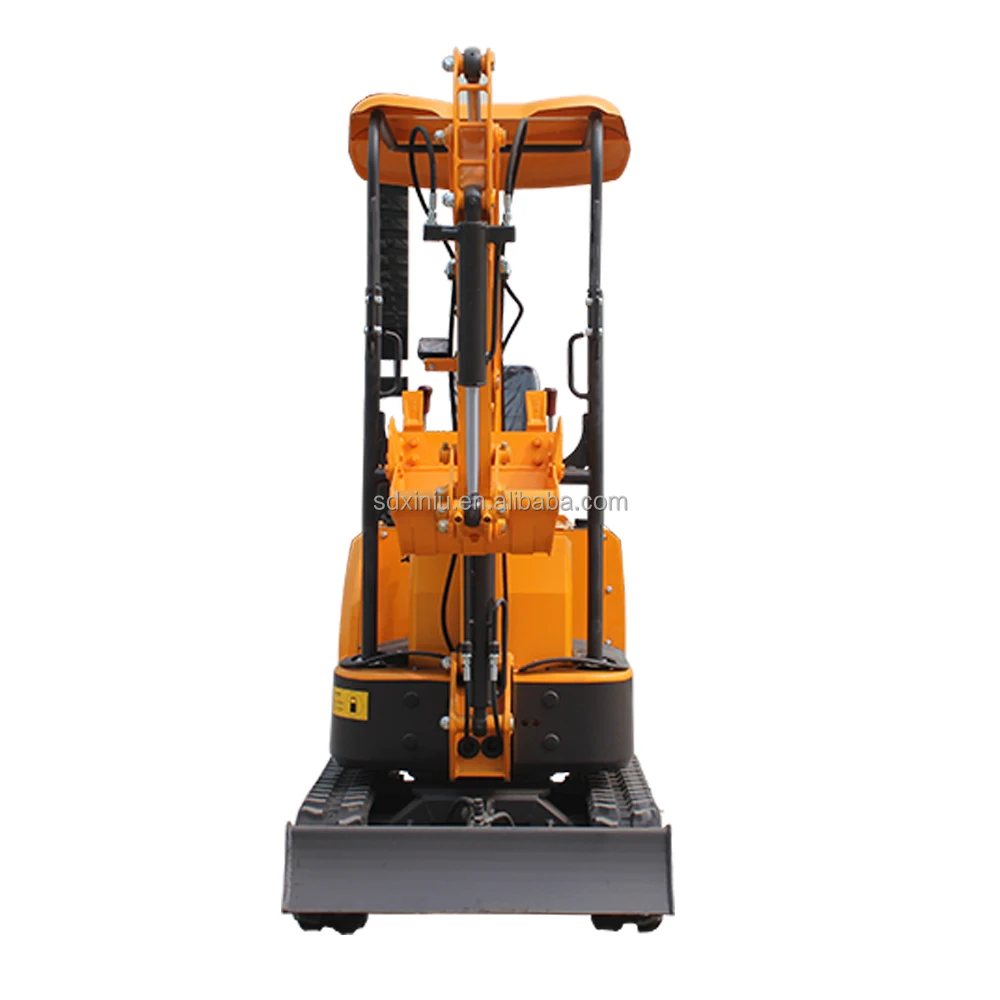

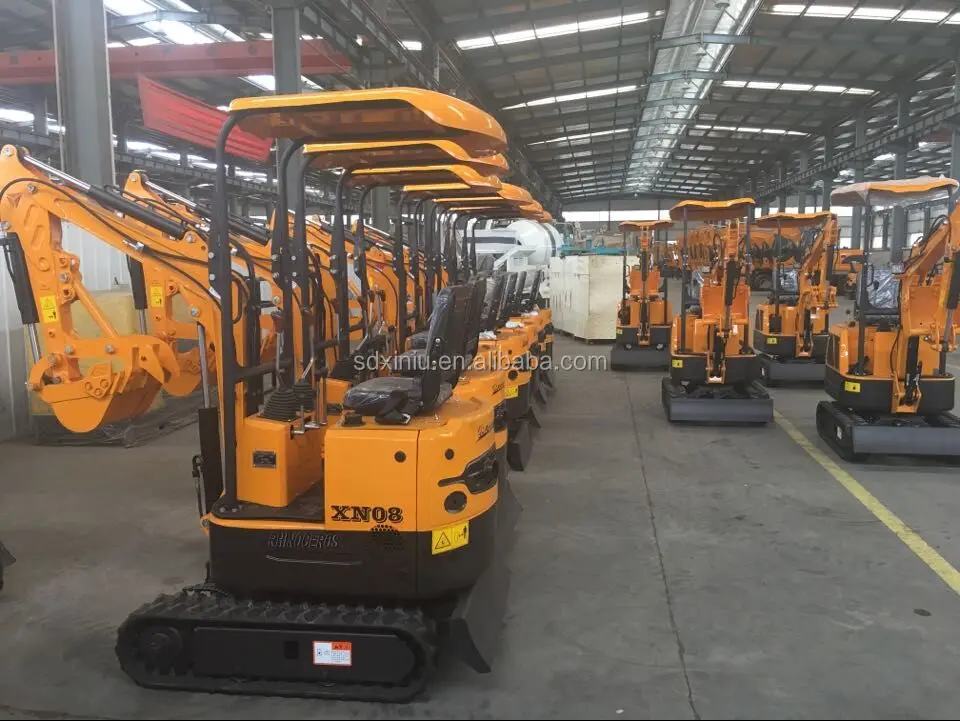

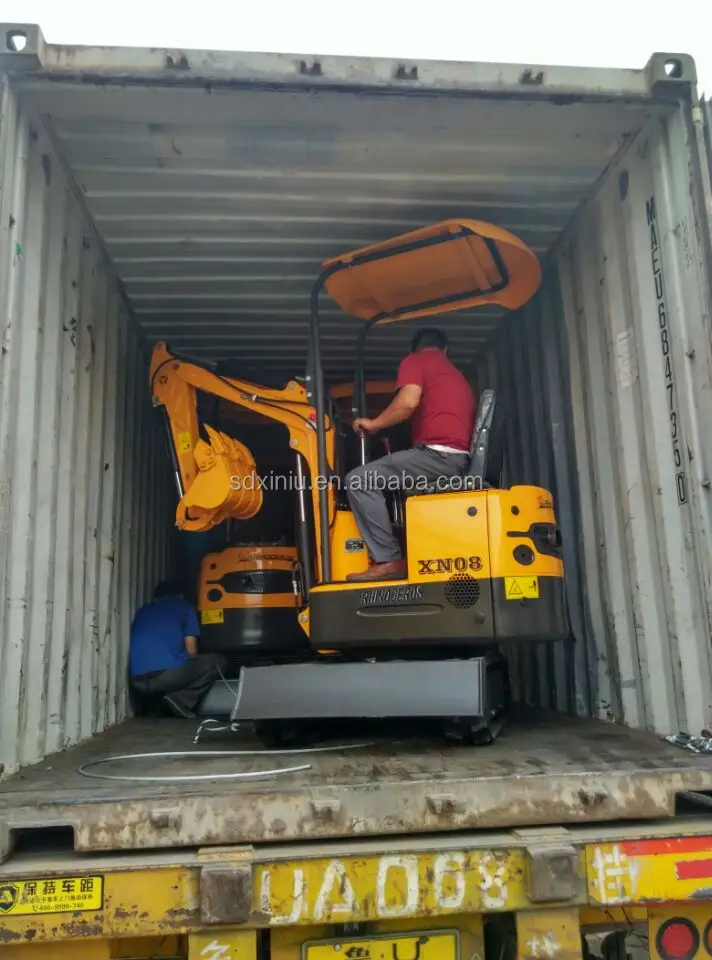

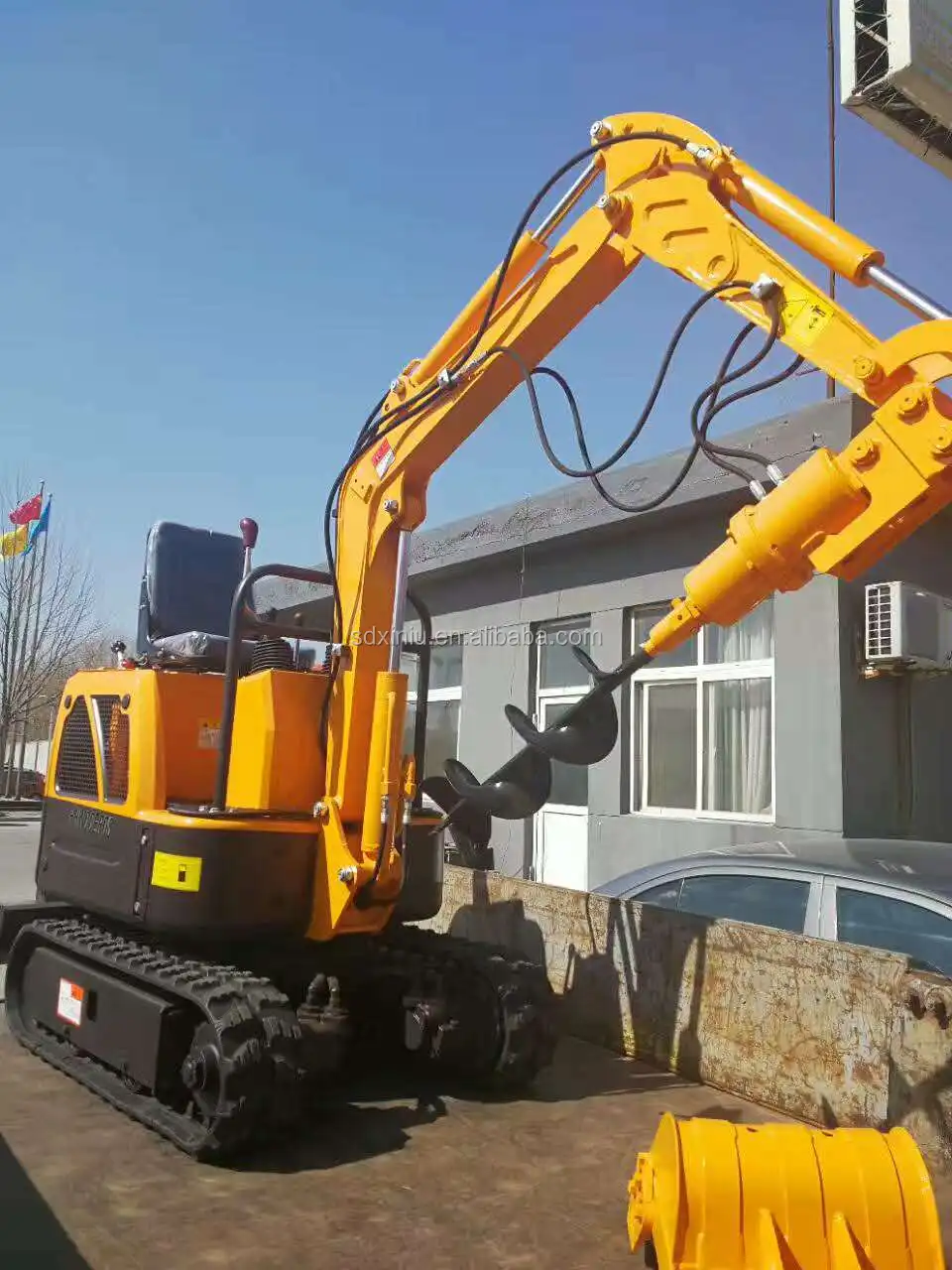

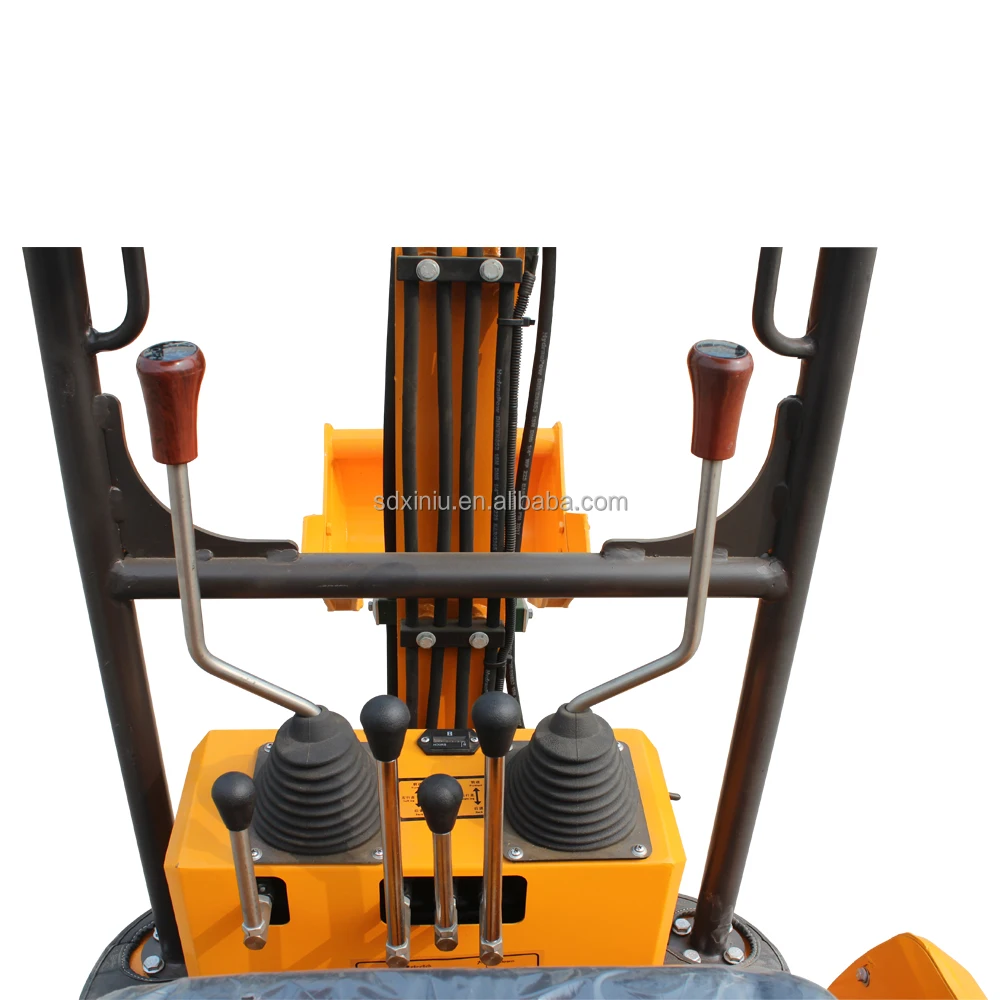

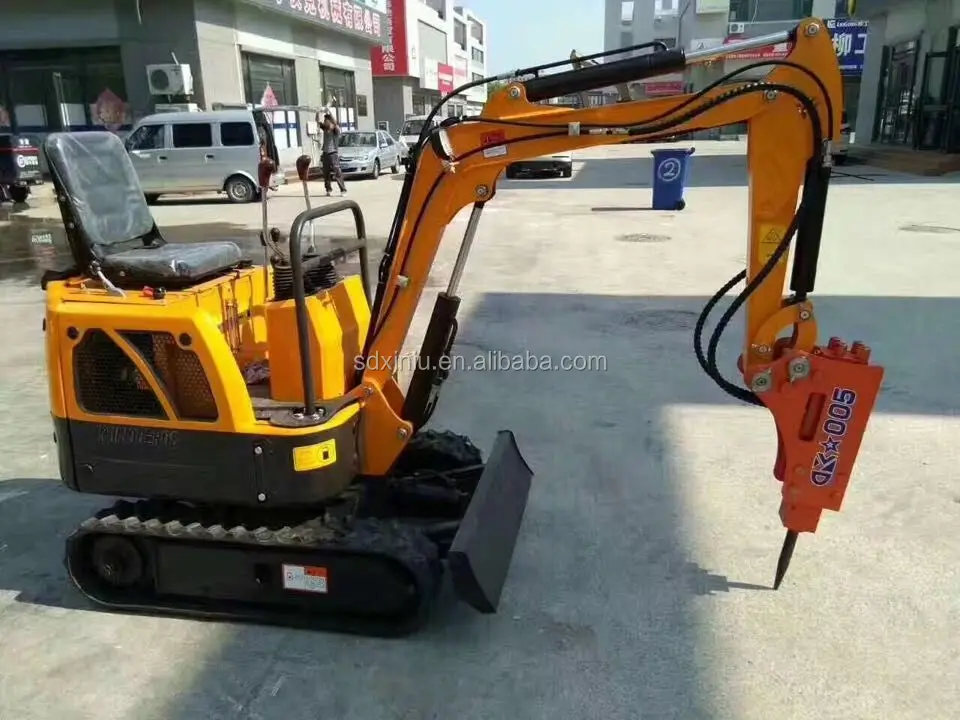

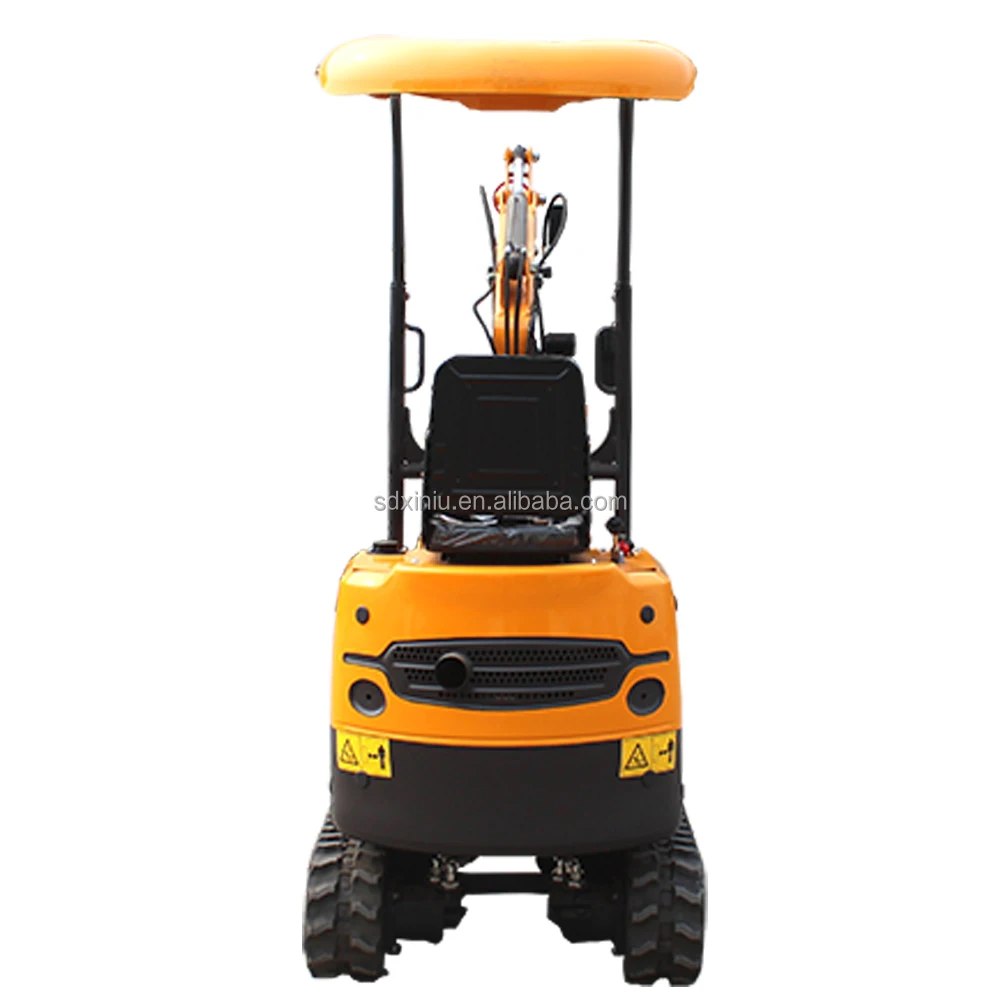

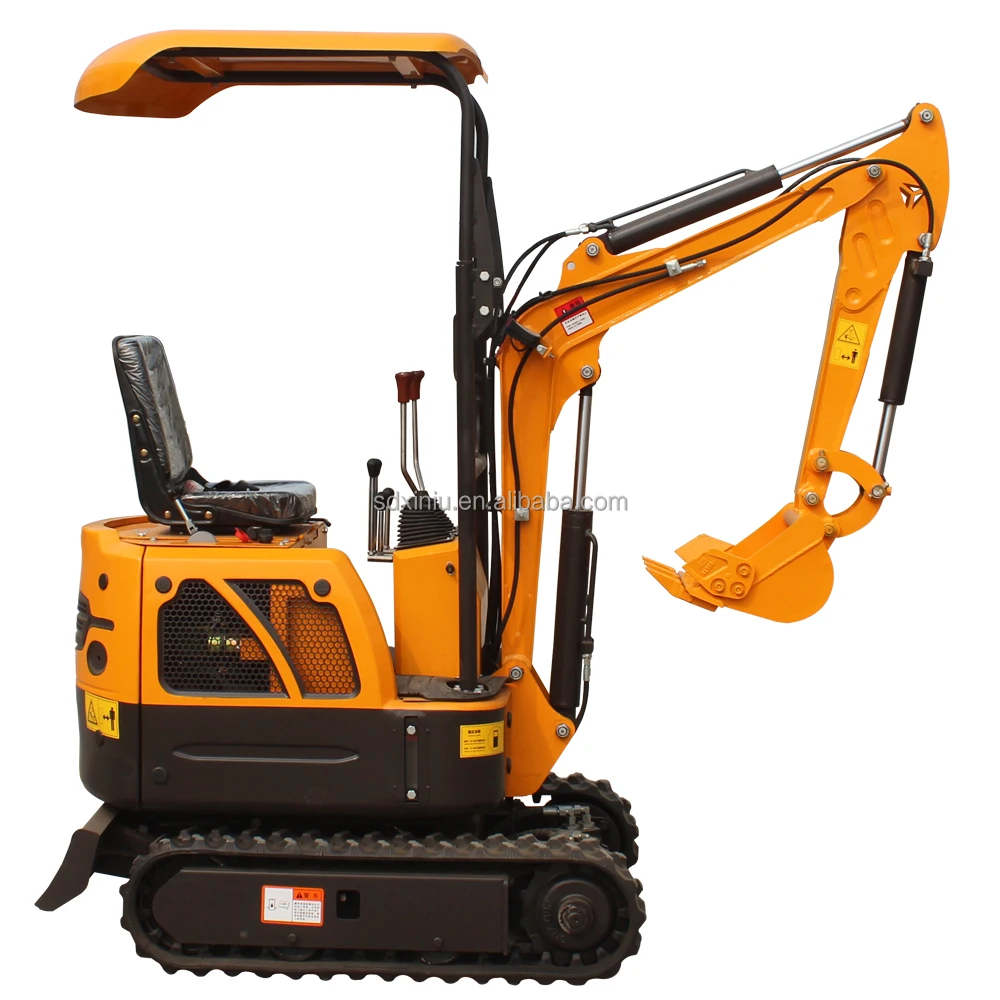

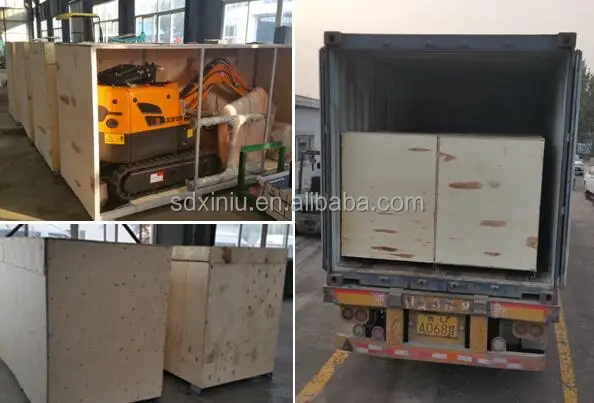

1. Crawler excavator XN08 photos:
2. Crawler excavator XN08 Specification:
Model | XN08 |
Manufacturer | SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD |
Brand | RHINOCEROS |
Operating Weight | 800kg |
Digging bucket capacity | 0.025cbm/120kg |
Digging bucket width | 350mm, can add narrow bucket is 200mm |
Engine | KOOP/CHANGCHAI(KD192F) |
Rated power | 8.6kw/1800r/min |
Displacement | 0.211 L |
Bore stroke | single cylinder, fan cool |
Main pump | SAISIDA |
Valve | BEIFANG |
Displacement | 6.8ml/r |
Swing motor | SJ-TECH (MP-1-160) |
Traveling motor | KERSEN (OMS-2450 |
MAIN DEMENSIONS | |
Overall dimension( LxWxH) | 2770x896x1490 mm |
Wheelbase | 910 mm |
Total length of track on land | 1230mm |
Platform ground clearance | 380 mm |
Platform back turning radius | 784 mm |
Chassis width | 896 mm |
Track width | 130 mm |
Chassis ground clearance | 132 mm |
Track height | 320 mm |
OPERATING RANGE | |
Max. Digging depth | 1650 mm |
Max. Vertical digging depth | 1375 mm |
Max. Digging height | 2610 mm |
Max. Dumping height | 1850 mm |
Max. Digging radius on ground | 2850 mm |
Min. Rotation radius | 1330 mm |
Max. Upgrade height of bulldozer blade | 345 mm |
Max. Digging depth of bulldozer blade | 255 mm |

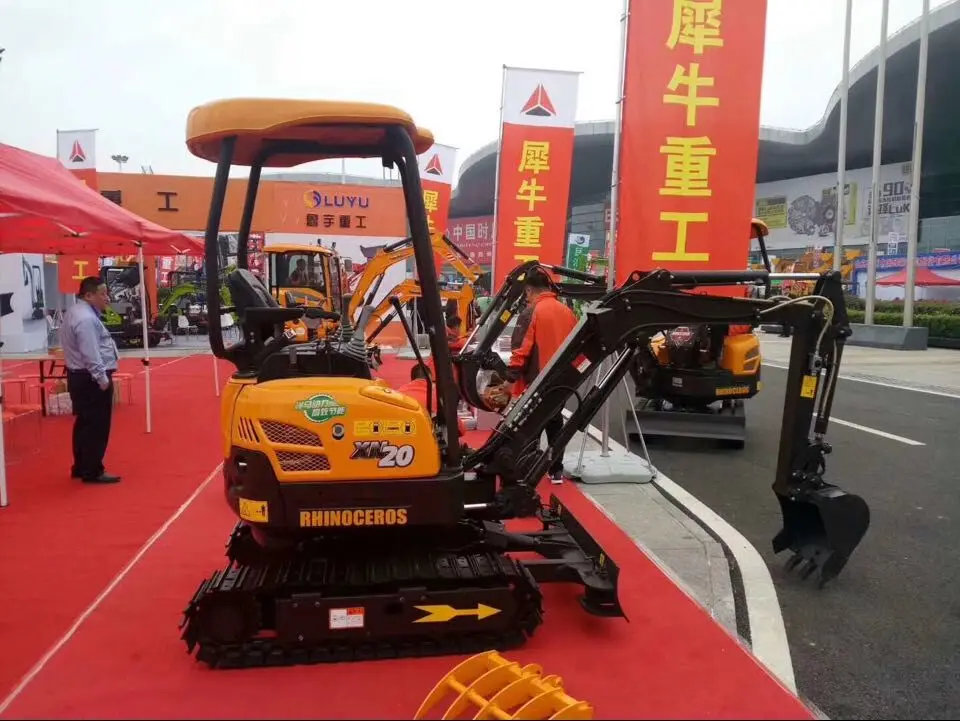

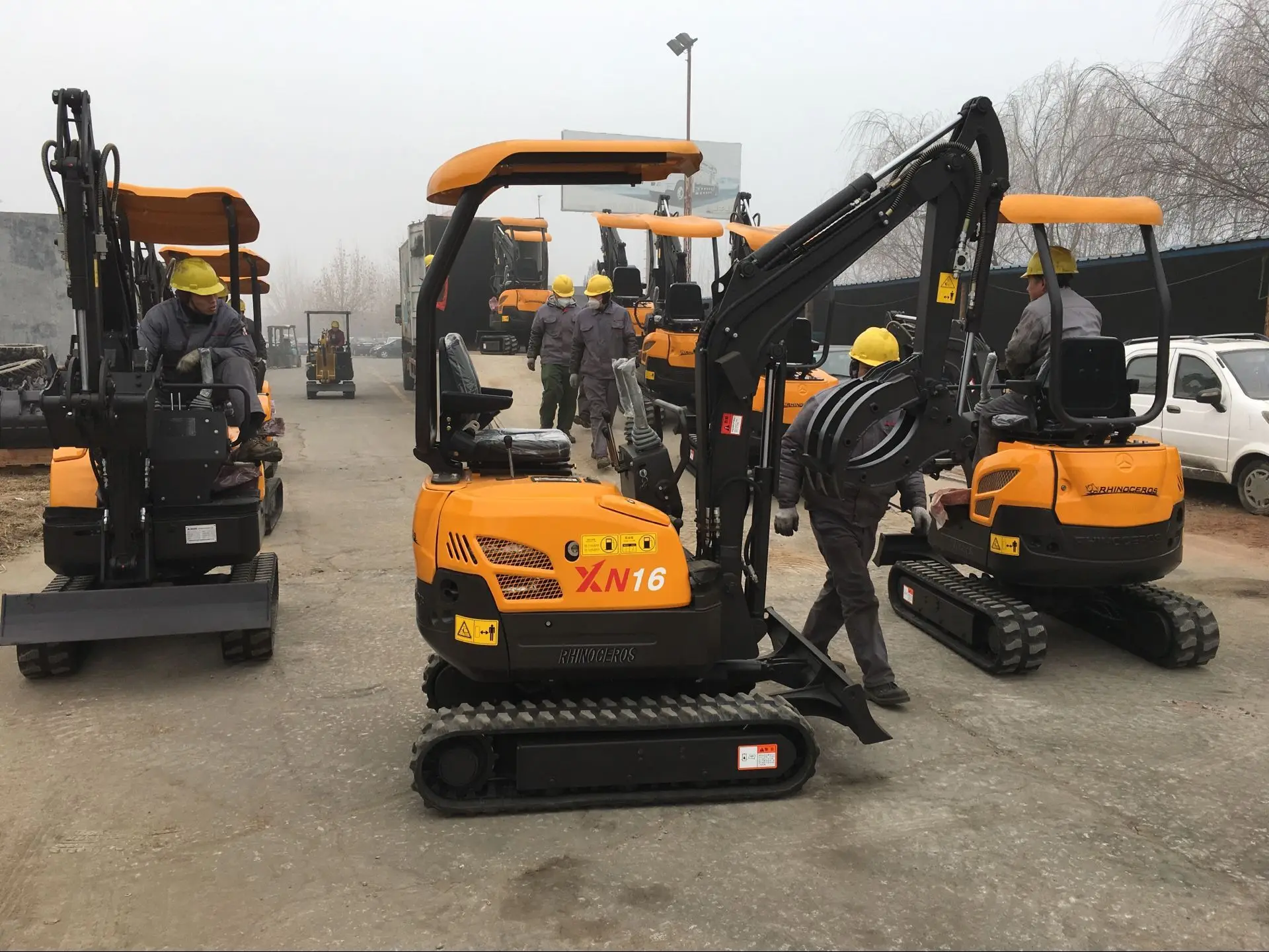

3. We also produce the other mini excavator XN16 XN20 pictures is below:

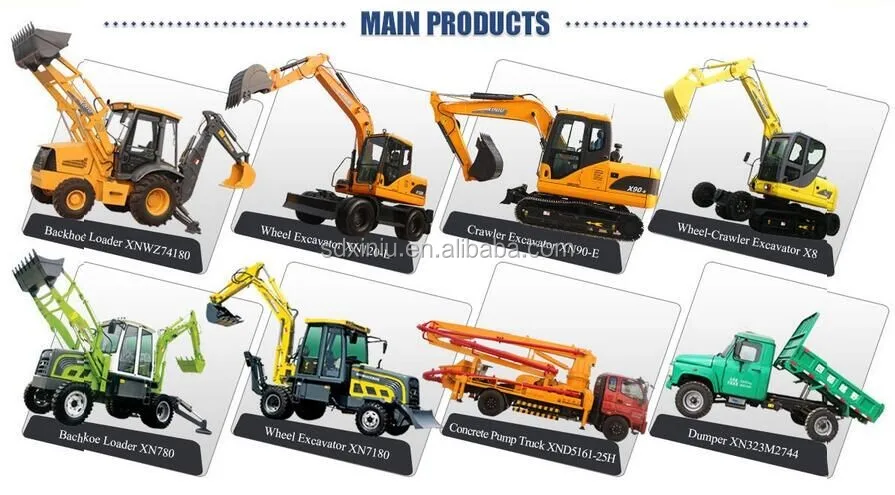

4. Production range:

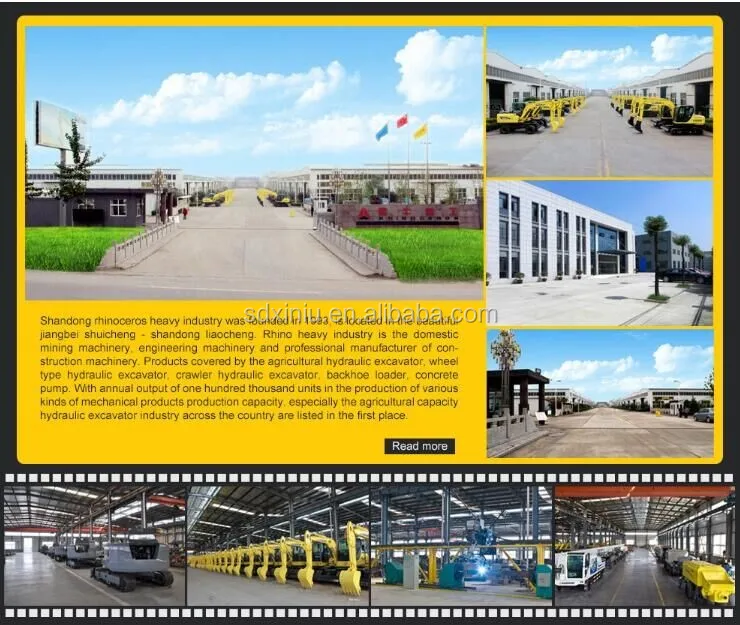

We are power engineering machinery manufacturer in China, we produce the Excavator, Backhoe loader, Loader, Skid steer loader, Concrete pump, Concrete pump truck and the spare parts(Track shoe,Track chain,Idler,Sprocket,Track roller,Carrier roller,Pin,Bushings,Bucket,Narrow bucket,4-1 Bucket,Quick hitch,Quick coupling plate,Log grapple).
Andy Lau
FAX:0086 635 5663777 / 5846000
TEL:0086 155 6355 7938 / 158 6438 7938
EMAILl: Lau(at)sdxiniu.com 864876253(at)qq.com SKYPE: Laugroup
QQ: 864876253 WECHART: 272059395 WHATSAPP 0086 155 6355 7938
Shandong Rhinoceros Engineering Machinery Co.,Ltd
Website: //en.sdxiniu.com
5.Passed the certificates:
6.Some our customers photos:
