Складское Оборудование Оцинкованная прочная логистическая труба штабелирование холодного хранения Гальванизированный пост стальной поддон конвертер

Share on (60730509780):


Price:63,00 $ - 75,00 $

Quantity:


Product Overview

Description



Similar products

Click to see more other designs of pallet converter


Detchable posts (assembled and disassembled within seconds)


post pallet.jpg













Product Description

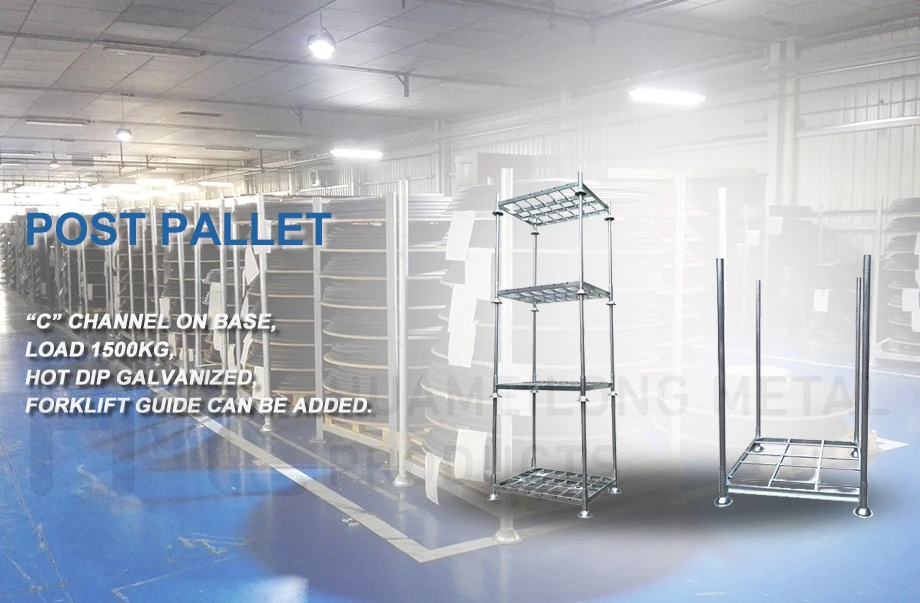

post pallet (6)




Specifications of steel pallet converter





















































































































Similar design, defferent sizes
Model No. Exterior Dimension

Loading


Capacity


FinishQuantities

Total


container


 LxWxH(mm) kg sets
M1-Base1395x1060x3101500Hot dip zinc2501x40'HQ
M1-Post1200x60x2.5Hot dip zinc1000
M2-Base1875x1060x3101500Hot dip zinc1431x40'HQ
M2-Post1200x60x2.5Hot dip zinc572
M4-Base1545x1050x3101500Powder coating2471x40'HQ
M4-Post1510x60x2.5Powder coating988
M5-Base1200x1000x3101000zinc2551x40'HQ
M5-Post2000x60x2.5zinc1020
M6-Base950x950x3101000zinc1601x40'HQ
M6-Post2100x60x2.5Hot-dip zinc320
MaterialMild steel Q235

Application


area


Warehouse, logistics, recycling, etc.
RemarkCustomized or OEM support

Key


Features



1.Strong tubular steel - stack up to 4 high


2.Removable arms - fully collapsible, save space, easy storage when not in use


3.Cup feet - easy stacking


4.Hot-dip galvanized finish - corrosion-resistant, suitable for outdoor use

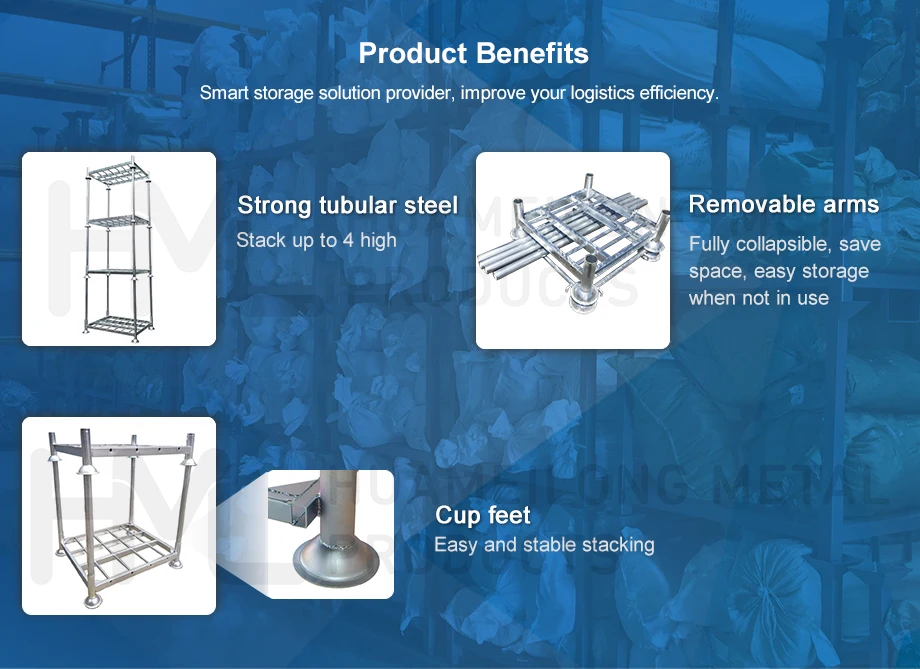

Benefits & Designs


post pallet (1)post pallet (2)





Product uses


Application of detachable post pallet


It will enable you to transform areas which are usually free into storage spaces


stacking rack





Packaging & Shipping


Plastic banding+Stretch film wrapped, easy loading and unloading with standard forklift truck or pallet jack





stacking rack





Client Testimonial


huameilong (9)





QC & product tests


pallet rack-





Who we are


huameilong (10)


huameilong (13)

huameilong (1)




1, What is the material being used for your products?


---Mild steel Q235, Q195


2, How is the goods being packed?


---Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard


forklift truck or pallet jack.


 3, What is the payment terms I can get?


---TT or L/C at sight, DP etc


4, What kind of finish do you provide for your goods?


 ---A.Electro galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)


     B.Hot dip galanized: it forms a coating of corrosion resistant zinc


(indoor/outdoor and cold storage)


    C.Powder coating: a type of coating that is applied as a free flowing, dry powder


(indoor/outdoor storage)


5, What is the loading capacity?


 ---In general, we have light duty(100~300kg) model,medium duty(400~800kg) model


and heavy duty(1000~1700kg) model available for your choice.


6 Which product can be used in cold storage?


---Mobile rack,wire container and roll cage are all widely used in cold storage.


7 I like your design, but couldn‘t find the right model from the products list, is custom size available?


---Yes, we do custom products and projects.


8 I would like to have my own design products and qty is not that big, is it ok?


---Yes, we can go with your custom design, no matter small or big qty, however, pls understand


the cost will be different.


9 I don't have drawing or picture available for the custom products, could you design it


for me?


--Yes, we can make the best suitable design for you but do need to know the details, such as


a) dimension b) loading capacity c)stackability d)operation environment


10 What is the minimum quantity I can order?


--1x20'GP - quantity is variable depend on the size


 11 What is your average production lead time?


--3-4 weeks against formal order and deposit.


12 Do I get any guarantee from your company?


-3~10 years warranty in case that


A) Proper handling during operation, correctly forklift handling while stacking/unstacking


B) Overloading is prohibited


C) Environment request indoor, dry and nothumid circumstance, do not contact with any corrosive chemical material (for zinc plated and powder coated products, no limitation for hot dip galvanized)
