Product Overview

Description

  YFMZ920 High Speed Yes Computerized Automatic Thermal Laminating Machine Paper Film Laminating Machine  Hot roll laminator

FEATURES

Feeder(vacuum pump system without oil system)

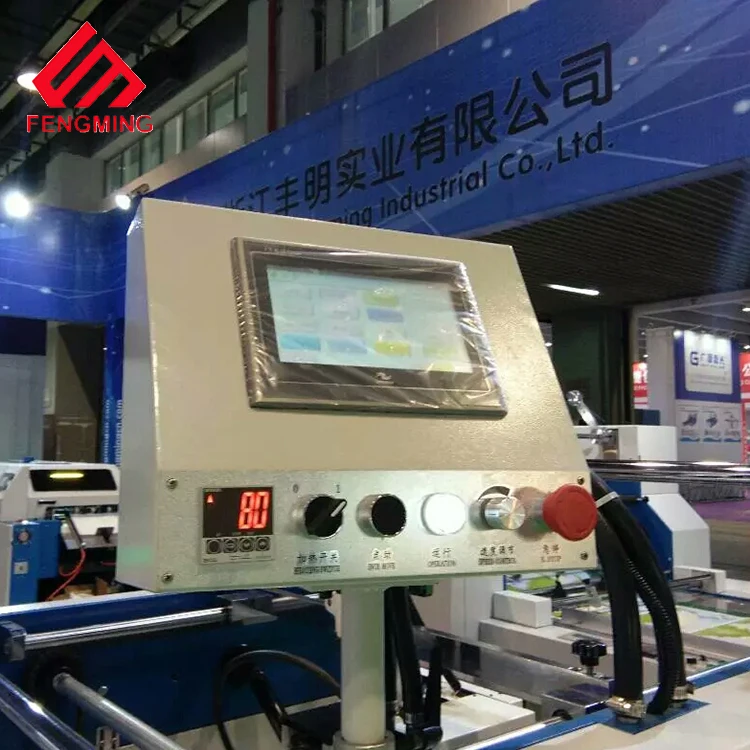

Man-Machine Interface(easy and automatic operation )

Magnetic heating system(heat from surface to inside quickly )

Hydraulic pressure (Automatic adjustment pressure )

Gas Expanded Shaft(with Tension System)

Film Cutter and Film Puncher

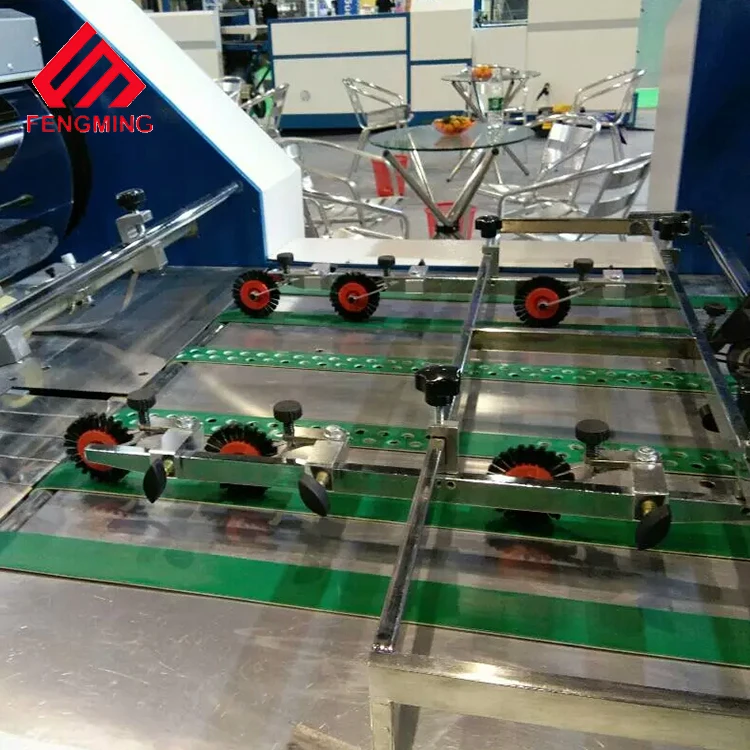

Pull Guide and Auto Pull

Anti-Curve Device

Pneumatic Dividing

Auto stacker

Long table for high speed

New Special features:

1.Non-stop feeding (equip with pre-stacker )

2.Side pull guide(keep laminate more accurate)

3.Small Servo in laminate part(for anti-curve paper)

4.Fly cutter (cut thick paper on end position)

5. Arc-shaped surface



TECHNICAL SPECIFICATION

Model	YFMZ650	YFMZ920
Max.Laminating Width	650×750mm	920×1000mm
Min.Laminating Width	240×270mm	240×270mm
Laminating Temperature	≤130℃	≤130℃
Paper Thickness	100-500g/	100-500g/
Laminating Speed	0-70m/min	0-70m/min
Total power	18kw(normal is a half)	26.5KW(normal is a half)
Voltage	220/380V	220/380V
Diameter of Heating Roller	320mm	320mm
Diameter of Film Paper core	≤76mm(3 inch)	≤76mm(3 inch)
Total Weight	3500kg	3900KG
Overall Dimensions	4900*1400*1800mm	5800mm×1600mm×1800mm

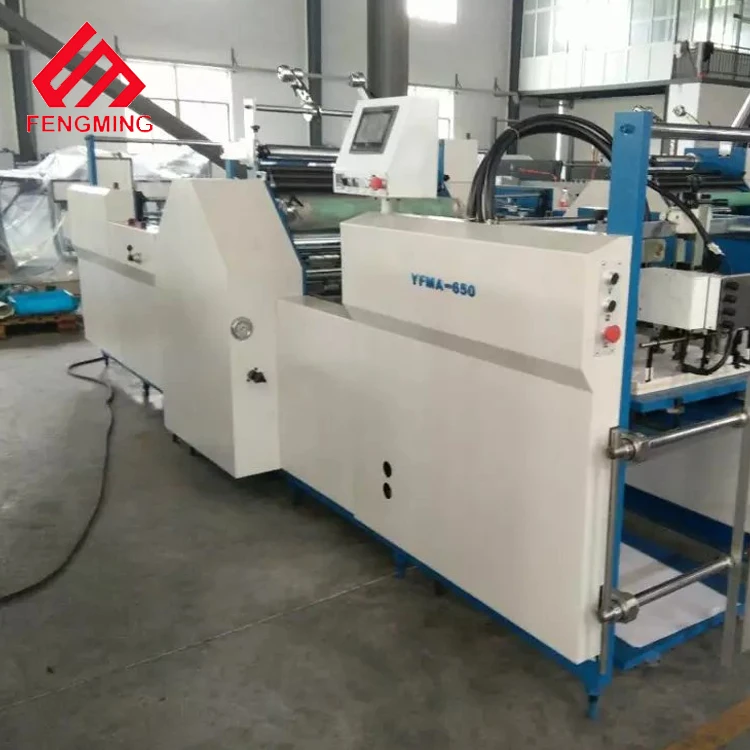

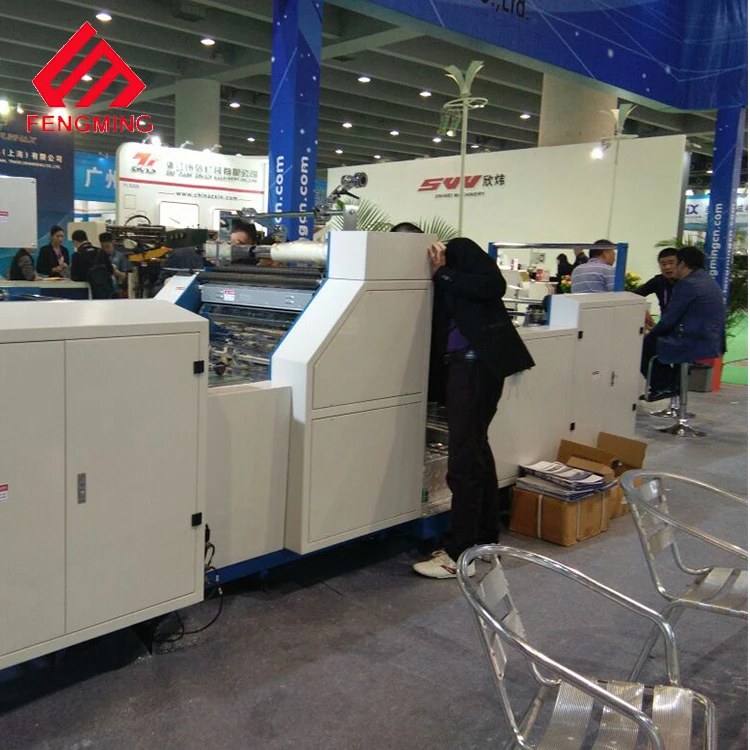

Production Display:
