Busbar Processing Machine punching dies, punch molds
US $110.00-$115.00

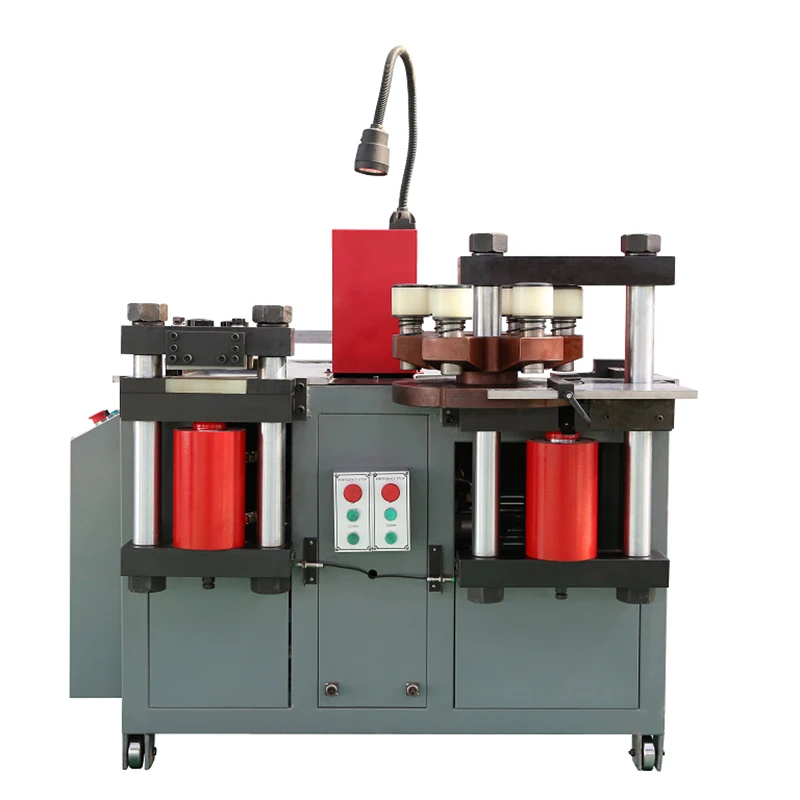

Dgwmx503e 3 s cnc hydraulic busbar bending machine with gauge
- Category: Busbar Machine >>>
- Supplier: Taizhou Juling Tools Co. Ltd. [Zhejiang China]Taizhou
Share on (60730604827):
Product Overview
Description
Product Description
10years experience for busbar machine
Product Detail
| Machine frame steel | 45# forged steel |
| Functions | punching, cutting, bending, embossing, twisting and cable clamping |
| Max working force | 300KN(TON) |
| Max work size | 160*12mm |
| Materail | copper and aluminum plate |
| 3 in 1 work at the same time or not | yes |
| Power Source | CNC and hydraulic |
| CNC repeat bending precision | ±0.3 |
| Certification | ISO and CE |
| weight | 1400kg |
| Product Keywords | dgwmx503e-3-s cnc hydraulic busbar bending machine with gauge,dgwmx303e-3-s three in one cnc hydraulic busbar bending machine e,dgwmx303e-3 hydraulic busbar cutting tool |
Features:
1.Low maintenance, longer service life.
2.The cut surface is smooth and neat, no droop, no burrs, no waste.
3.Rotary turret punching unit installed 6pc (4pcs and 8pcs ) dies, less replacing, high efficiency.
4.It can punch cut and bend in the same time.
5.Contacted by PLC system, bending precision at ±1°,repeat precision at ±0.3°.
6.Easily to be moved with four casters.
7.Manual button and foot switch are optional.
8.Can customize the punching dies you need.
