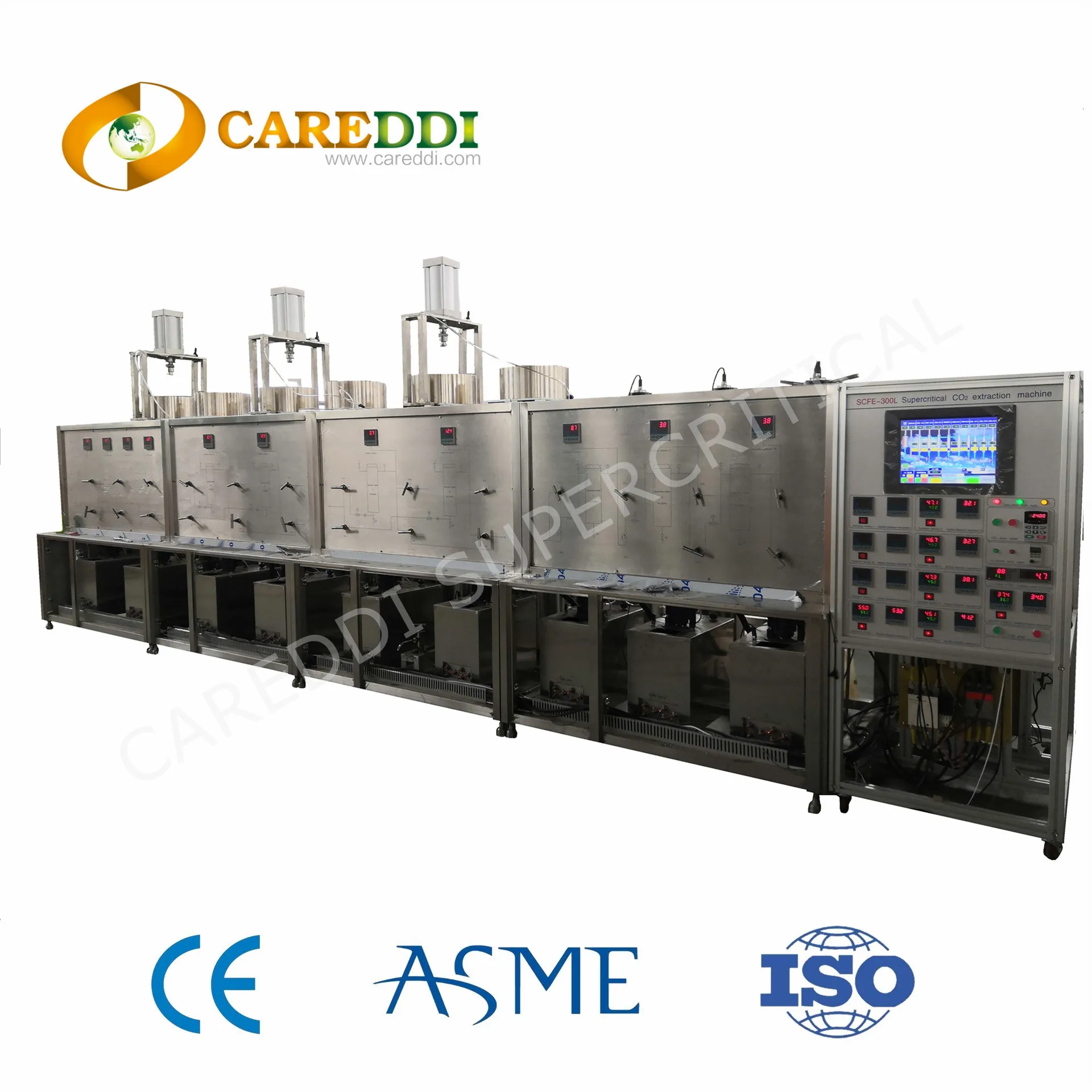

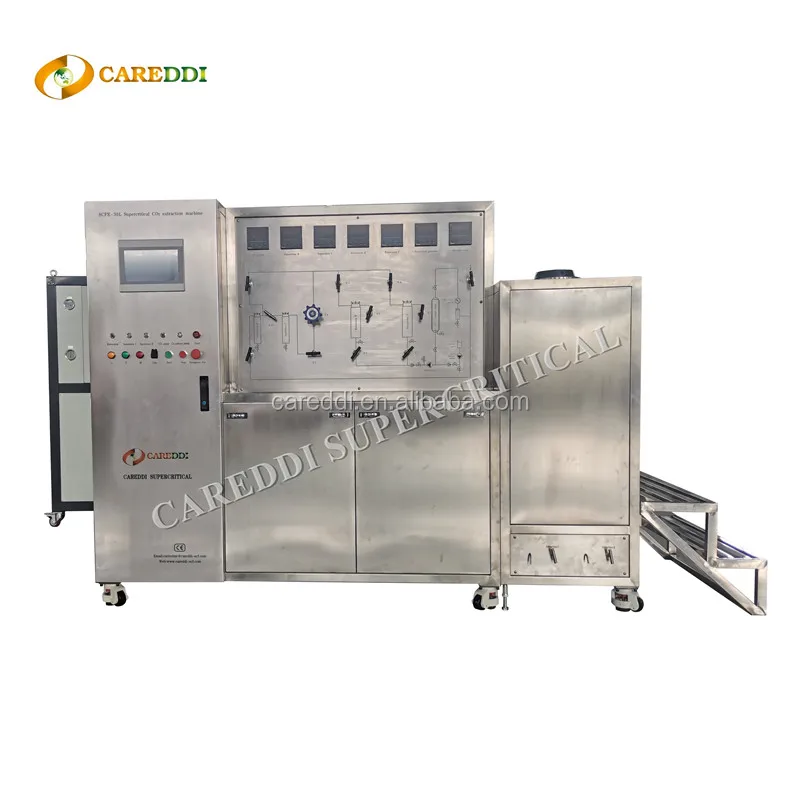

factory direct sale herb supercritical co2 extraction machine
- Category: >>>
- Supplier: Careddi Technology Co. Ltd.
Share on (60730650724):
Product Overview
Description
Machine Introdution
Supercritical co2 extraction machine is used under high pressure and suitable temperature suitable to extract valuable content from material (solid or liquid), supercritical co2 extraction machine it is to change the pressure and temperature conditions of the separator tanks to let the dissolved substances separated out to achieve the purpose of separation. supercritical co2 extraction machine:The whole equipment beauty, safety and easy operation, pressure temperature flow number can be showed from pressure meter and digital instrument. supercritical co2 The material of pipe parts, valves, pipe lines, are all stainless steel(0Cr18Ni9Ti).
Main Configuration
No. | Name | Parameter | Qty |
1 | Extraction tank (Liquid and solid) | 50L/40Mpa | 4 |
2 | Material tank (For both liquid and solid materials) | 4 | |
3 | The stair separator | 20L/30Mpa | 1 |
4 | The secondary separator | 20L/30Mpa | 1 |
5 | Mixer | 1 | |
6 | Filter | 1 | |
7 | Purification system | 16Mpa | 1 |
8 | Pre-heater | 75℃ | |
9 | CO2 storage tank | 30L/16Mpa | 2 sets |
10 | Cooling System | 20,000Kcal | 1 |
11 | CO-solvent pump | 0.25-30L/H, 40Mpa | 1 |
12 | Flow meter | 6.3-63L/H | 1 |
13 | Co-solvent pump flow meter | 0.25-20L/h | 1 |
14 | Temperature control system | Digital show | 1 |
15 | Safety valve | 7 | |
16 | Pressure Valve | Y-150 | 7 |
17 | Pressure transducer | 1 | |
18 | Valve | 304 Stainless steel | 1 |
19 | High pressure pipe and parts | 304 Stainless steel | 1 |
20 | Transducer | For CO2 pressure pump and Co-solvent pump | 2 |
21 | Operation platform | 1 | |
22 | CO2 cylinder frame/CO2 | Carbon steel with A3 painting | 1 |
23 | CO2 Recovery system | 1 |
Characteristics
Supercritical co2 extraction machine：
★ Low Critical temperature suitable for extraction and purification of heat sensitive compound.
★ Being capable to provide inert environment to avoid oxidation of products and affection of effective content of extracts.
★ Fast extraction speed, no toxicity, non-flammable, safe application and no pollution upon environment.
★ No residue of solvent, no nitrate and ions of heavy metal.
supercritical co2 extraction machine
Material
Some Utilized Resources
supercritical co2 extraction machine：Sea buckthorn fruit oil ,grape seed oil oidiophore oil of glossy ganoderma ,fish oil,arteanuin ,netmeg oil,menthence,mother chrysanthemum oil, curcuma oil pigment, lycopin, cortex magnoliae officinalis extract, olibanum extract,Gingerol, pepper haematochrome ,dried tiny shrimp ,haematochrome, Zanthoxylum oil,garlic oil ,tobacco leaves essence oil.
Packing & Delivery
Delivery:100days
The normal package is wooden box (size:L*W*H)
Our Service
Pre-Sales Service | Pre-Sales Service |
❤ Inquiry and consulting support. ❤ Sample testing support. ❤View our Factory. | ❤Training how to instal the machine, training how to use the machine. ❤ Engineers available to service machinery overseas. |
