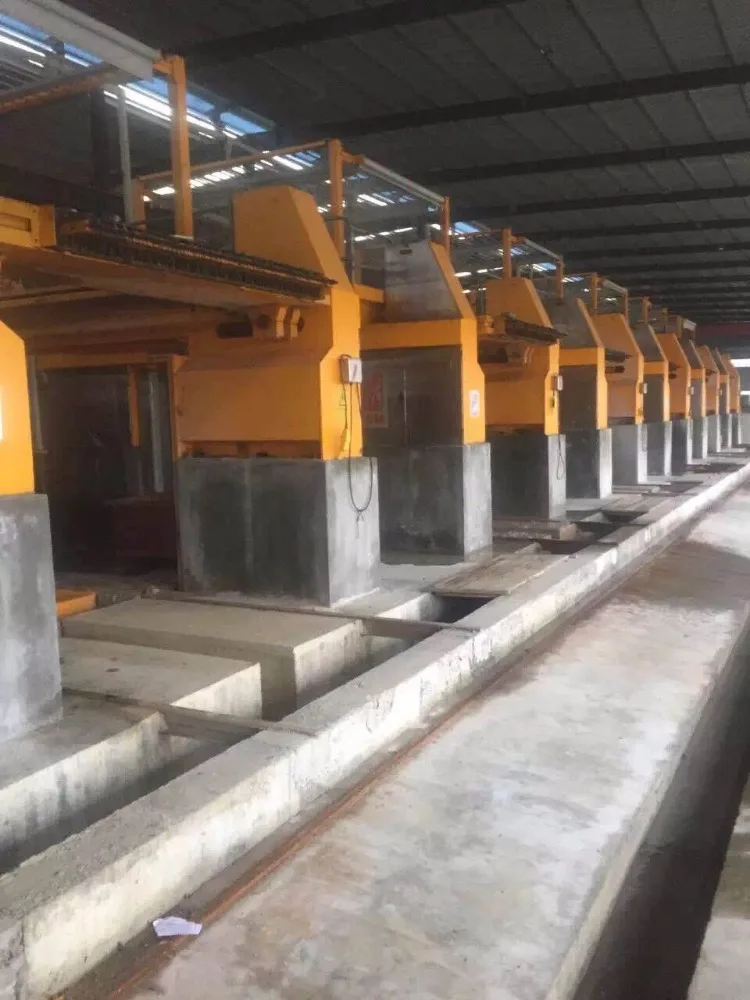

Автоматическая машина для резки камня для мрамора
- Category: >>>
- Supplier: Xiamen Great Base Imp. & Exp. Co. Ltd.
Share on (60730661669):
Product Overview
Description
Features:
1.ARTICULATED RECTILINEAR GUIDES
Movement of blade holder frame on articulated guides.This system reduces to a minimum problem of the blade holder frame.It greatly reduces maintenance costs because it does not require replacement like the traditional slideways, this articulated rectilinear guides is easy maintenance and less cost.
2. EQUAL DISTRIBUTION OF MECHANIXAL THRUST OVER ALL MACHINE
COMPONENTS
Advantages of two connecting rods:
•All the energy and mechanical thrust towards the blade holder is spread on two connecting rods and two cranks instead of just one.
•The two connecting rods which are attached to the extremes of the blade holder help the articulated guides to ensure that it’s movement remains perfectly rectilinear without any deviation. This is especially important when there are more blades on one side of the frame(the machine applies greater pressure where there are more blades),and when the blocks are of different heights(because initially more pressure would be applied on the higher block).
3. THE ROTATING LEAD NUTS
which worm screws of the Block trolley platform are situated above the columns and Lubricated Automatically.
4. BATTERY UNIT
Details of the battery unit. The battery supports have been designed to allow easy maintenance and facilitate the replacement of the roller bearings without having to break the cement foundations. The flywheel weights 8 tons and has a diameter of 3300mm
5. LIFT SYSTERM
The lifting system with inverter of the block trolley platform.
6. Motor
The motor with hydraulic converter can saving the electrice, and more safe to the machine.
Technical Data:
| Name | Unit | GANG SAW 80/S800 |
|
| |
Max.block size | mm | 3200(L)×2000(W)×2000(H) |
|
| |
Main motor power | kw | 110 |
|
| |
Dimensions | mm | 11900 (L)×5060(W)×4960(H) |
|
| |
Auxiliary motor power | kw | 11 |
|
| |
Speed | cm/hours | 8-32 |
|
| |
Stroke of the blades | mm | 800 |
|
| |
Size of Blades | mm | 4400×180 |
| ||
Water consumption | L/min/blade | 10 |
|
| |
Installed No. of blade | pieces | 80 |
|
| |
Total weight | tons | 55 |
|
|
