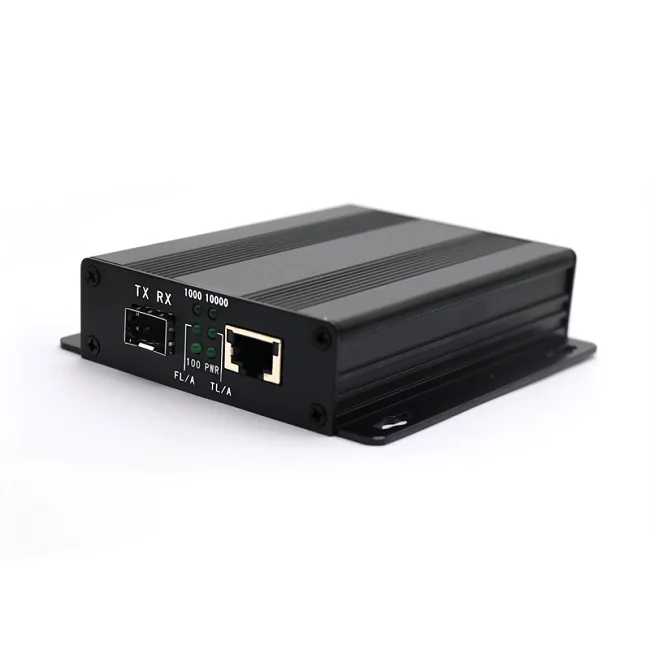

Telecommunication Equipment 10/100M Network Optical FTTH Fiber Media Converter
Product Description
INTRODUCTION
10G Base-T to 10G Base-R Media Converter supports two types media for network connection
such as 10GBase-T and 10GBase-FX. The bridge media converter is designed with a 10Gbase
Ethernet PHY chip that connects two types segments operation smoothly. This converter can be
used as standalone unit or as slide-in module to the 19” converter rack Chassis for use at a central wiring closet.
PRODUCT FEATURE
- Copper to Fiber interfaces: RJ-45 to SFP+
- automatically detect 10GBASE-R/1000BASE-X fiber link and 10 Gbps/1000 Mbps/100 Mbps/10 Mbps copper link
- IEEE 802.3an 10GBASE-T Compliant
- Supports CWDM, DWDM and tunable DWDM fiber transceivers
- Supports IEEE 802.3az Energy Efficient Ethernet (EEE)
- Jumbo Packet Support
- Low-power consumption
SPECIFICTAION
Standards | 1000Base-T, 2.5GBase-T, 5Gbase-T, 10Gbase-T |
1000Base-X, 2500Base-X, 5GBase-R , 10GBase-R | |
Media Supported | 1000Base-T: Cat5 UTP/STP. MAX 100m; |
2.5GBase-T: Cat5e UTP/STP. MAX 50m; | |
5GBase-T: Cat5e UTP/STP. MAX 50m; | |
10G Base-T: Cat6a UTP/STP. MAX 50m; | |
Port Type | RJ45, SFP Slot |
Work Mode | 1000Base-T to 1000Base-X |
2.5GBase-T to 2500Base-X | |
5Gbase-T to 5GBase-R | |
10Gbase-T to 10GBase-R | |
Power Supply | 12V DC |
Power consumption | MAX 5W |
Operation Tempera tore | 0℃ to 55℃ |
Relative Humidity | 5% to 80% (non-condensation) |
APPLICATION

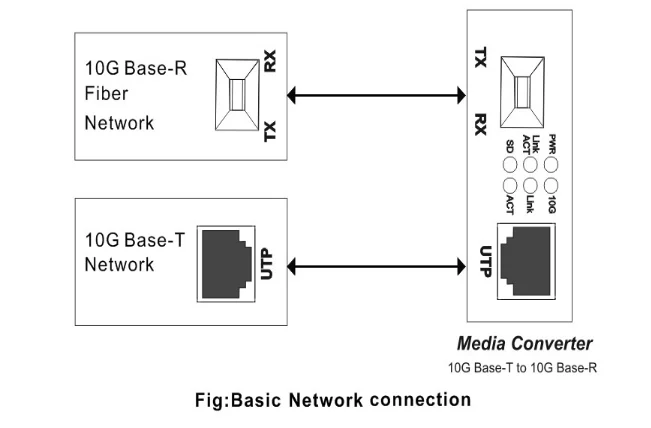

Basic network connection
ith one sfp slot
Power adapter
