Raspberry Pi3 Raspberry Pi2 B ADS1115 ADC Module

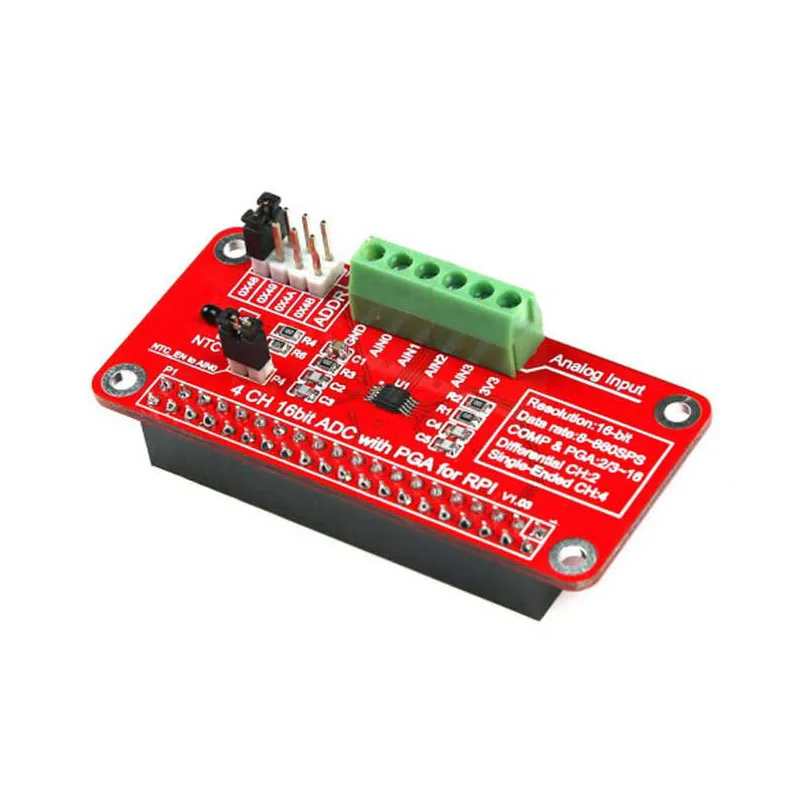

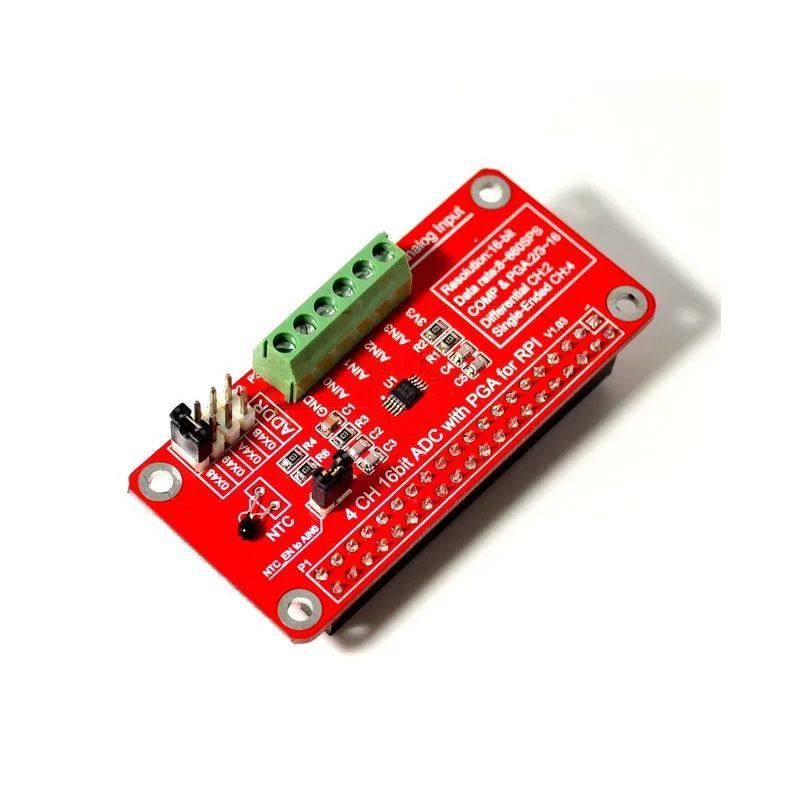

RPi-ADS1115-ADCModule is a precision analog-to-digital converterADC),one of themADS1115Is able to offer16Bit sampling accuracy of the chip, using a very small sizeMSOP - 10Package.

Data passedI2CCompatible serial interface for transmission, owned4roadI2CAddress can be selected, work power only need3.3VYou can. Its main function is that it can be used to detect analog signals and convert them to digital signals.

You can put analog signals on joysticks or other analog sensors such asNTC, Temperature, dust sensors and other equipment through thisRPi-ADS1115-ADCModule access raspberry faction, through the raspberry dispatch device to collect the analog signal.

parameter

value

size   65.0 mm 30.0 mm 18.0 mm

power supply  3.3V

Analog input voltage  VDD,GND

Programmable data rate  8spsTo860sps

internalPGA  stand by

Sampling accuracy   16Bit

I2cinterface  Select the address by pin

Number of channels 4Single-ended or2Differential input

Programmable Comparator(PGA) 2/3 ~ 16

internalNTC stand by
