Infrared honeycomb ceramic burning plate Gas Burner for oven for heater

Share on (60730713240):


Price:

Quantity:


Product Overview

Description


Product Description

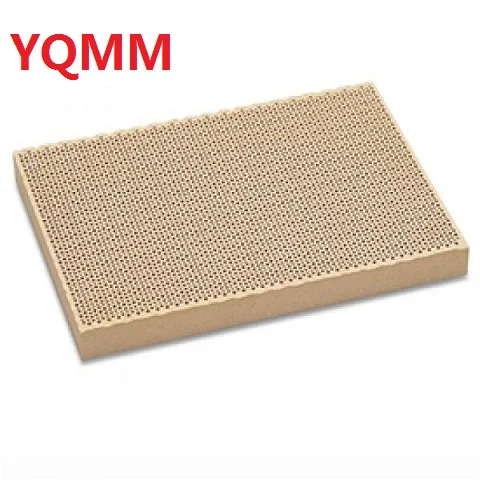

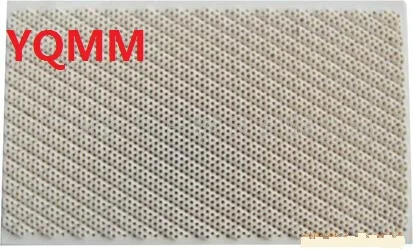

 Infrared honeycomb ceramic burning plate

Gas Burner plate

Stoves plate

♦Chemical & Physical properties:

Materials:Cordierite
Color:  White,a little yellow
Dia. of holes: Round hole,1.1-1.2mm
Water absorption: 50.4%
Open porosity: 61%
Specific gravity: 0.6-0.9g/cm3
Softening Temperature:>1280℃
Surface Temperature:1000-1200℃
Co Release: ≤0.006%
NOx Release:≤5ppm

♦Advantage:

1. Save 30% to 50% energy ,and save gas and natural gas.
2. Good hardness and anti-seismic performance.Heat up to red time quickly.
3. Low noise in the ignition process, and in the flame burning, the effect of combustion is significantly higher than that of ordinary ceramic plates.
4. Reduce 90% emissions of harmful gases, such as nitrogen oxides and carbon monoxide,
5. The plum flower pattern causes the surface to form whirlpool, effectively locks the surface heat, saves fuel,
High water absorption rate, effectively maintain a good dry environment.

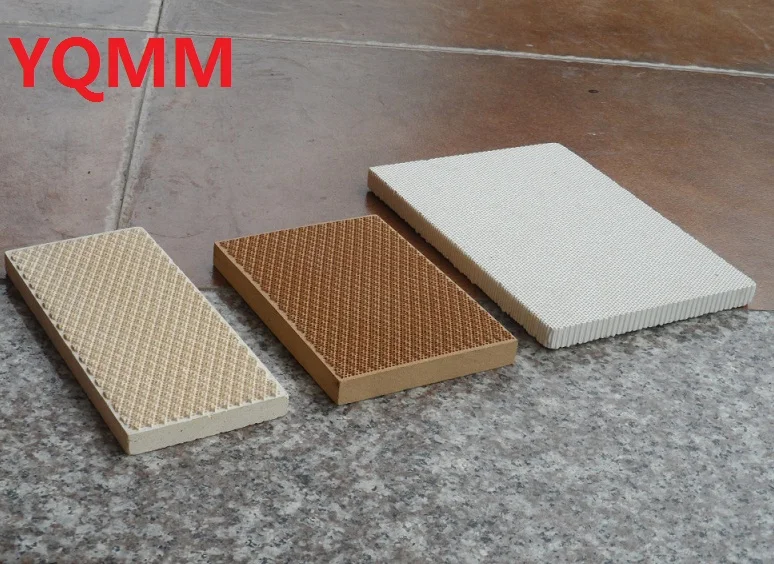

♦Demension:

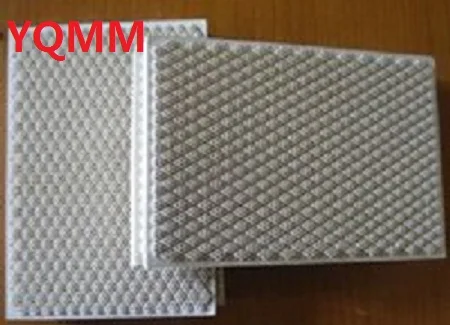

Diamond pattern(mm)134*92*13,
150*135*13
132*92*13
134*94*13
131*131*13
162*60*13
128*88*13
129*74*13
200*140*13
186*134*13
135*47*13
134*78*13
8 pattern(mm)172*123*13
132*87.5*13
144*73*13
139*110*13
88*132*13,
164*74*13
162*72*13
132*92*13
180*130*13
140*95*13
145*145*13
Concave plum
blossom pattern
      (mm)
200*140*13
162*73*13
162*60*13
162*62*13
164*74*13
142*72*13

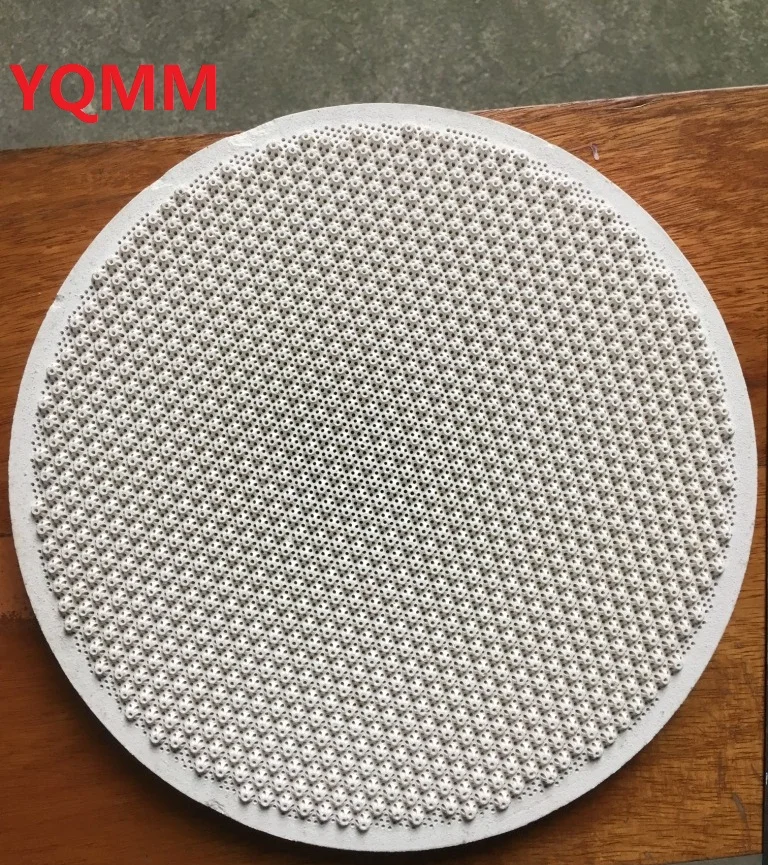

Round Pattern                  Φ80×12.5mm,                  Φ100×50mm,                           Φ125×12.5mm,
                                         Φ150×12.5mm,                Φ160×13.5mm,                        Φ168×13.5 mm


Application

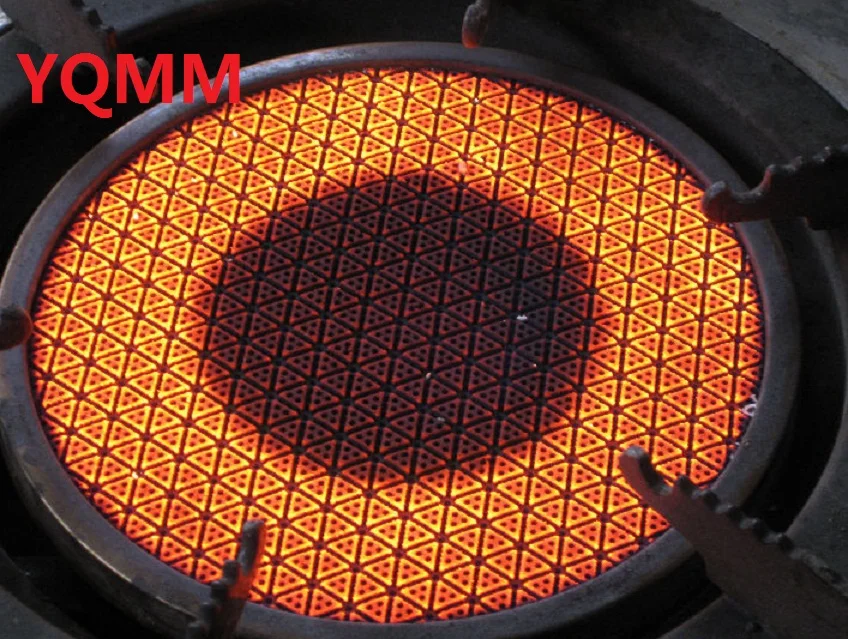

 Infrared honeycomb ceramic burning plate is widely used in burn oven, gas water heater, fierce fire, rotary oven, portable snack car, fierce stove, gas water heater, gas heater, patio heaters, industrial baking equipment, industrial organic waste gas combustion furnace, industrial furnace heater, air heaters and convection, etc
