ZL 6230A , 30A relay, Temperature Controller, thermostat 30a, Lilytech, 30 AMP
- Category: >>>
- Supplier: Suzhou Lily Tech. Co. Ltd.
Share on (60730727696):
Product Overview
Description
Product Description
Attention:
When order qty. reaches 8 piece, there is discount.
Please make payment after the price(s) in the order revised.
Manual (copy and paste to browser address to view and downlaod):
cdn.shopify.com/s/files/1/0028/5032/4545/files/ZL-62x0A_plus_en_A1.0_140225_180822.pdf?11263256454355391497
ZL-62x0A+
Temperature Controller
Introduction
ZL-62x0A+ series thermostat is for cooling or heating control, with one 30 ampere output, and buzzer beeping and warning function.
Model
Model | Function |
ZL-6210A+ | Cooling or heating, Warning input |
ZL-6220A+ | Cooling or heating, Warning input, Periodic defrosting (only in cooling mode) |
ZL-6230A+ | Cooling or heating, Warning input, Warning output |
Main Specification
Power supply: 185~245Vac, 50/60Hz
Sensor: NTC, 1.5 meters long

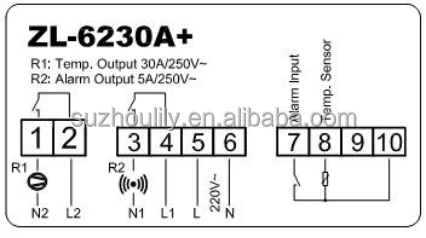

Output: R1, 30A, 250Vac; R2, 5A, 250Vac
All based on pure resistance loads
Setting range: -40~120℃
Display range: -40~130℃
Working: -10~45℃, 5~90%RH without dew
Dimension: W78 x H34.5 x D71 (mm)
Installation drilling: W71 x H29 (mm)
Case materials: PC + ABS fire proof
Protection level: IP65 (Front side only)
CE
ISO
Packaging & Shipping
One piece packing: 11 * 9 * 7.5 cm, 0.302 kg
One carton packing: 33 * 37 * 47 cm, 20.3 kg, 64 pcs
