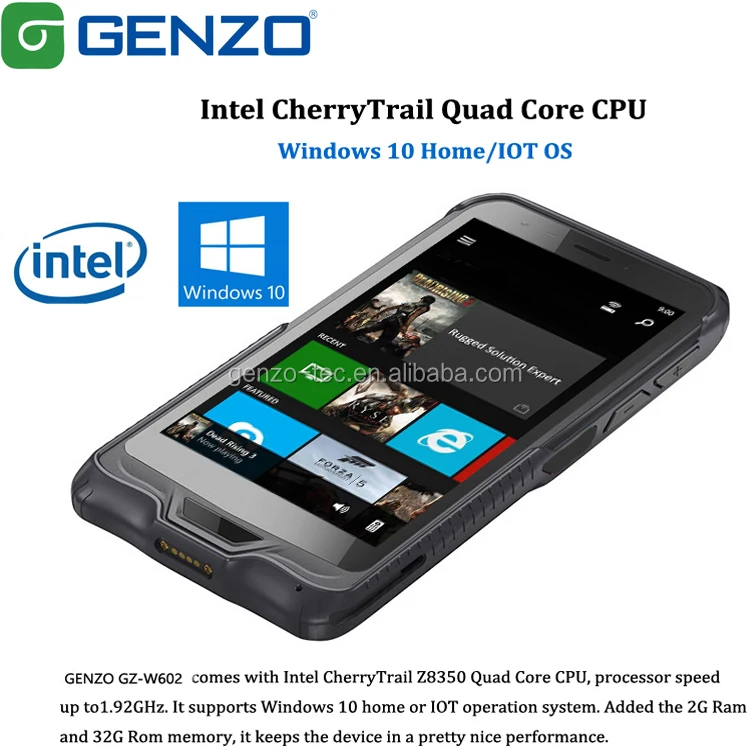

4G/ Wifi/ BT /GPS Window 10 Rugged Smartphone PDA UHF RFID Handheld Chip ID Card Reader with 5.98 Inch Display Rugged PDA

Share on:

Price:RUB 30,327.20
Price in USD:Details


Product Overview


4G/ Wifi/ BT /GPS Window 10 Rugged Smartphone PDA UHF RFID Handheld Chip ID Card Reader with 5.98 Inch Display Rugged PDA

Product Description

The Pacemaker in Rugged PDA/Tablet/Notebook and Industrial Solutions Provider

1.support Windows 10 OS;
2.Support Docking charging;

3.Support NXP NFC(13.56M)(Optional);
4.Support GPS navigation;
5.Support 1D/2D barcode Scan(Optional);
6.Rugged IP65 protection level;
7.Support high strength Glass Touch Panel;
8.Support Wrist Strap,arm strap,belt strap

OS Windows10  (Windows 10 IOT Enterprise Optional)

Intel Atom x5-Z8350, up to 1.92 GHz


2GB DDR3,32GB FLASH,  4+64gb Optional,  SD CARD MAX 128GB


5.98  16:9  (720x1280 IPS)  430Nit (TP and Glass use full lamination technolog)


G+FF,Corning Gorilla, Rigidity: 7H up, anti-scratch,COF,support glove and wet hand touch

Camera Front 2.0MP,Rear 5.0MP,with flash and auto-focus
BT BT4.1 (BLE) class1.5 transmission distance:10m

3.7V/5000mAH   Removeable Battery , 6hrs(default50%volumn,default 200lumens brightness,play720PHD video)

Speaker Built in8Ω/0.8W waterproof speaker x 1
Sensor G-sensor,Evironmental light sensor,Distance sensor,E-compass sensor
 3G IC:H350_A30 :WCDMA(900/2100MHz) , GSM(900/1800MHz), HSDPA 7.2Mbps,HSUPA 5.76 Mbps
Straps Extensible belt on the back case
GPS support:GLONASS,QZSS,GPS;Capture sensitivity:-160 dBm;Cold start time<30second,Hot start time<28second,frequency:0.25 Hz … 10 MHz (configurable)
IrDA Support launch and receive infrared ray
Button Key Power on/off,Volumn up/down,Scan(left and right) x2, System HOME key
Port charge and OTG  x1,3.5mm standard earphone  x1,SIM card connector  x1,(4pin downside of unit)charging function  x1
Drop Height 1.2m composite wood floors, in operation status
Operate/Store Temperature -10 °C to 50 °C/-30 °C to 70 °C
Humidity 95% Non-Condensing
Certificate System

IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X.
a.Inner Nozzle diameter:6.3mm;

b. water speed:12.5±0.625L/min;
c. Water Pressure:adjust according to water volumn;
d.Central part of water volumn:diameter of 40mm, distance from nozzle: 2.5M
e.Spray time in surface of panel:about 1min

f.test time:at least 3min;
g.distance between nozzle and panel surface:2.5~3m.
After test,there is no water leakage in sample.

Optional 1D/2D barcode scanner,NFC,Scan Trigger, Three-in-one Adaptor,Charging Docking


Product Pictures

W602 G

JHDHG20 Other Modles


Packaging Shipping




Company Pntroduction




Factory Pictures







Our Service


We accept OEM&ODM for customer's request. It includes:

1. Burn customer's logo name as Boot Animation name.
2. Print customer's logo on shell or do customer's logo sticker.
3. Do customer's giftbox, we can offer beautiful giftbox for customer's reference.or provide AI/CDR file for customer's own design.
4. Usuer Manual,customer can choice different languages and put them together.
5. Customer's Master Carton design are acceptable.

6.Develop products for customers,including appearance and internal structure design,motherboard development and mold design and production.

For all our products,we offer 24 months warranty.After the warranty period, we will also provide necessary replacement parts and technical support.

Usual,our Production line and QC department will test all the goods one by one for more than 3 times before send out.

So,there are almost no defective.if really have,you can send back us for repair or replacement.

You send back to us, you pay the shipping cost.

We send back to you,we pay the shipping cost.

But, all this warranty does not include accident, human fault or improper use.


Why choose us?
1. We are China leading
Rugged Tablet & PDA  manufacturer.
2. Alibaba Gold Supplier.

3. Inspected by the inspection of Bureau Veritas Certification.

4. 100% QC inspection before shippment.

5. Best quality & service with competitive price.




1.Q: Are you a factory or trading company?
    A: We are factory.


2.Q: Where is your factory located? How can I wisit there?
   A: Our factory is located in Shenzhen City, China. You can fly to Shenzhen airport directly, and    we will pick you up. Welcome to visit our factory.


3.Q: How can I get some samples?
   A: We are honored to offer you samples.


4.Q: How does your factory do regarding quality control?
   A: Quality is priority. We always attach great importance to quality controlling from to the end. Our factory has gained CE, FCC, ROHS certification.
