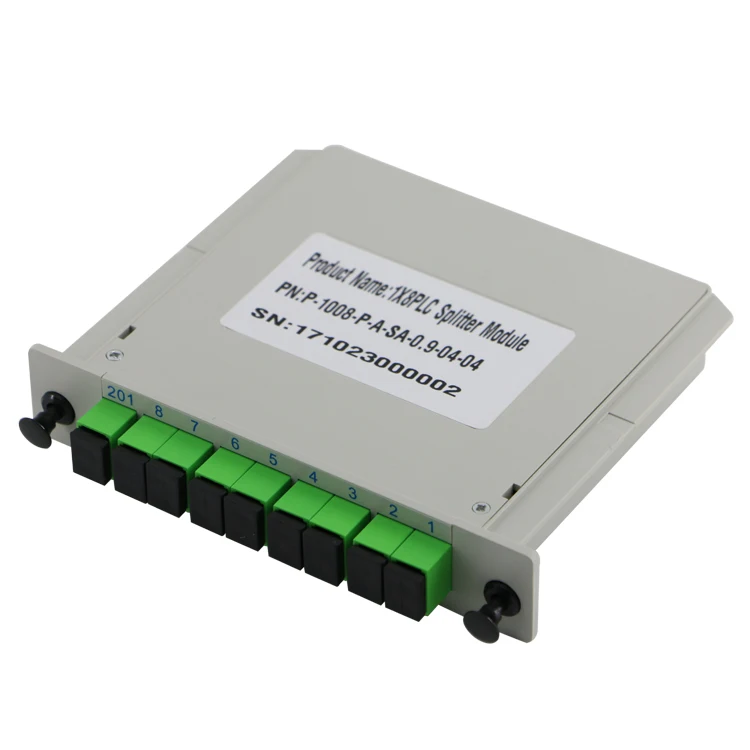

Factory supply Low Loss ABS Cassette Type Fiber Optic PLC Splitter 1 8 SC fiber optic splitter box type PLC for ftth
- Category: >>>
- Supplier: Ningbo Jinze Telecommunication Equipment Co. Ltd.
Share on (60730855680):
Product Overview
Description
Product Description
Fiber Optic PLC Splitter
PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic,is suitable for Fiber Optic Closure installation.The material of seal packet is stainless steel.
Features
✦Can be continuously covered with different fibers
✦Compact Design
✦ Wide operating temperature: from-40℃ to +85℃
✦Wide Operating Wavelength: From 1260nm to 1650nm
✦Full fiber core structure
✦Low additional loss
✦Low insertion loss
✦ High reliability and stability
✦ High uniformity standard split counts: 1x2,1x4,1x8,1x16,1x32,1x64; 2x4,2x8,2x16,2x32,2x64.
Application
●Applicable to special cases that has no room for installation of Cassette type PLC splitter
●FTTX/FTTH Systems
●CATV Links
●Optical Signal Distribution
●Passive Optical Networks (PON)
●DWDM/CWDM systems
●Test equipment
●LAN/MAN/WAN network
1×N,2×N PLC Splitter Specification(UPC) | ||
Operating Wavelength | 1260~1650(nm) | |
Port Configuration | 1×2,1×4,1×8,1×16,1×32,1×64;2×2,2×4,2×8,2×16,2×32,2×64 | |
Insertion Loss (dB) | ≤ 0.3 | |
Return Loss (dB) | ≥55 | |
Operating Temperature | -40~+85°C | |
Storage Temperature | -40~+85°C | |
1×N,2×N PLC Splitter Specification(APC) | ||||||
Operating Wavelength | 1260~1650(nm) | |||||
Port Configuration | 1×2,1×4,1×8,1×16,1×32,1×64;2×2,2×4,2×8,2×16,2×32,2×64 | |||||
Insertion Loss (dB) | ≤ 0.3 | |||||
Return Loss (dB) | ≥60 | |||||
Operating Temperature | -40~+85°C | |||||
Storage Temperature | -40~+85°C | |||||
Products Show
Packing & Delivery
Our Company
FAQ
Q1. What is your terms of packing?
JINZE: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
JINZE: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
JINZE: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
JINZE: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
JINZE: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
JINZE: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
JINZE: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
JINZE:
1. We keep good quality and competitive price to ensure our customers benefit
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
