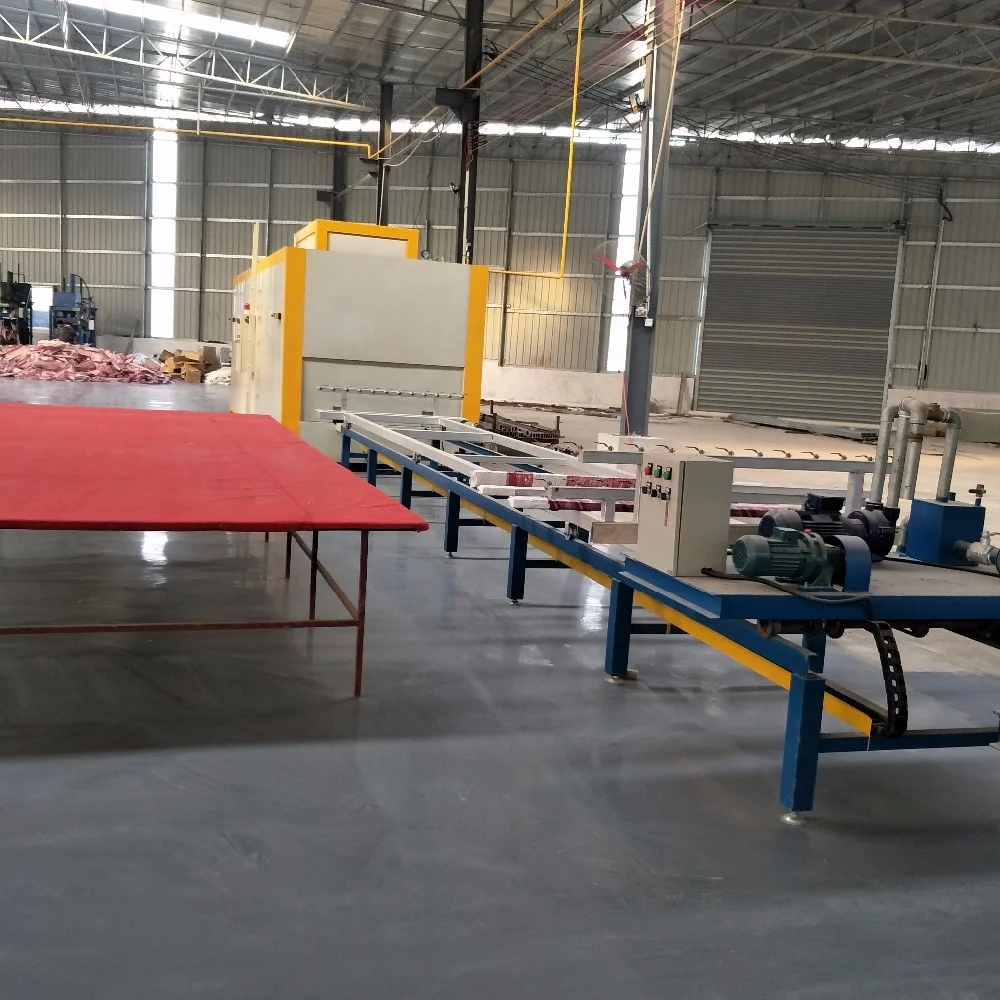

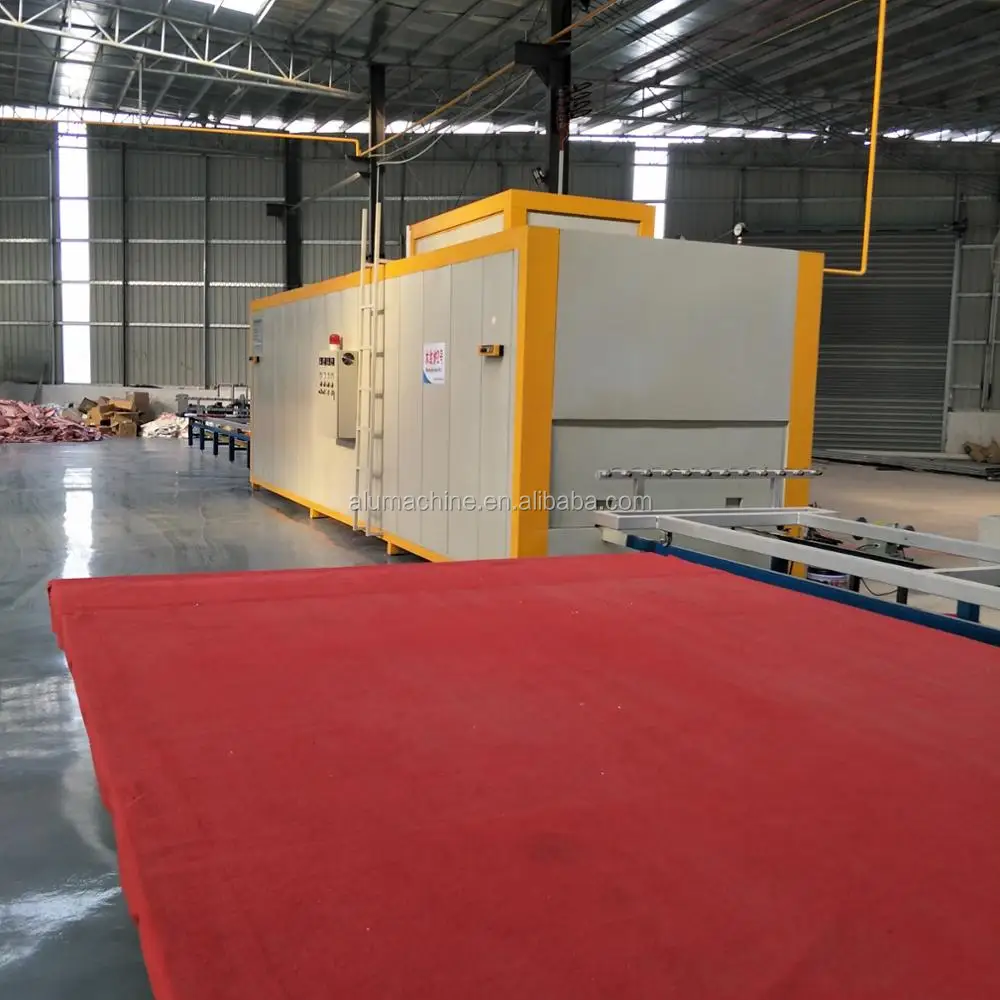

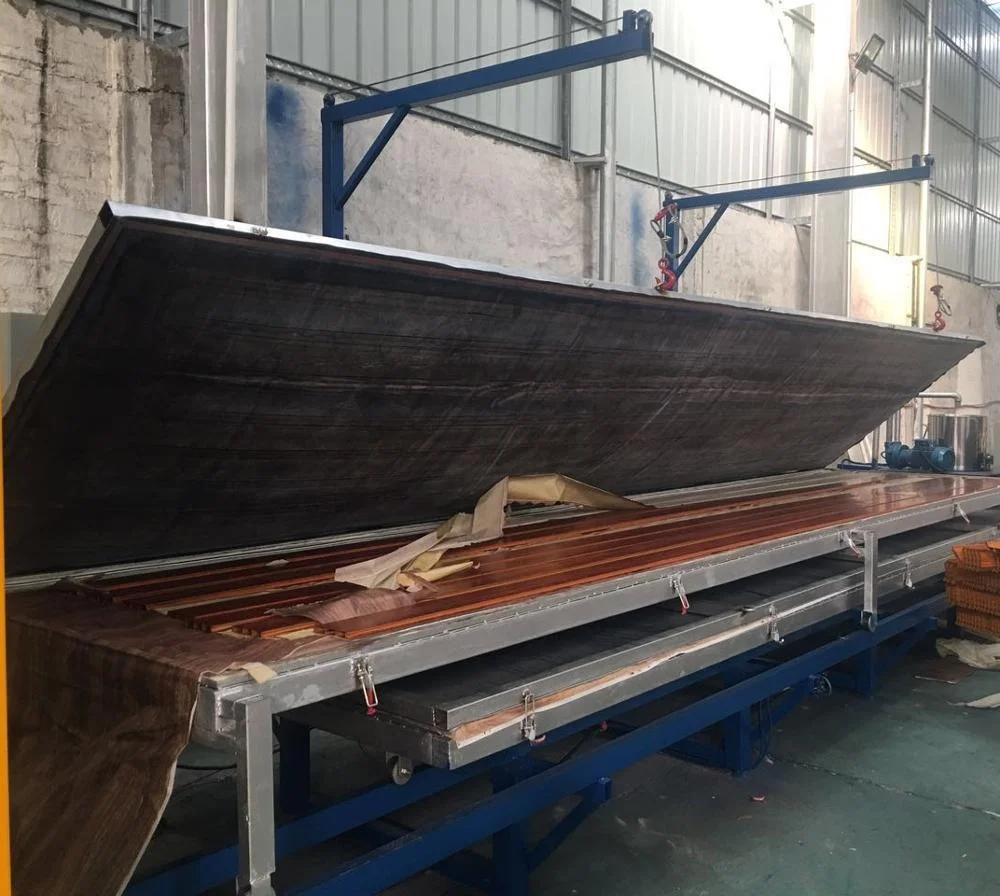

aluminum profile wood grain vacuum heat transfer printing machine

Product Overview

Description

Aluminum profile and sheet

wood grain vacuum heat transfer printing machine

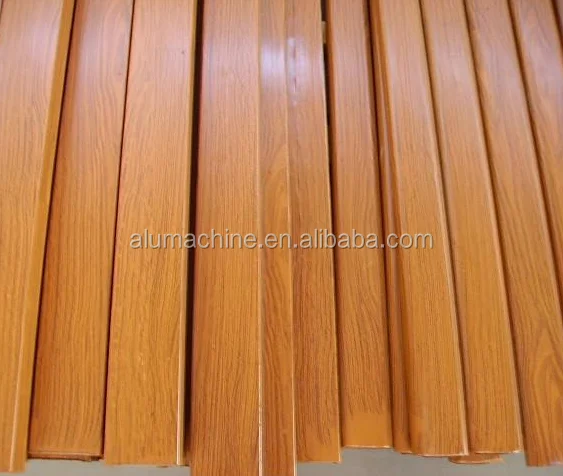

Function: through heating, transfer wood grain on surface of aluminum profile from raw material

Surface treatment: powder coating, electrophoresis

Design features: individual vacuum suction

Raw material:

(1) option 1: transfer film

(2) option 2: transfer paper+high temperature plastic bag

(cut wood film on basis of profile size,use film sealing machine to welding film)

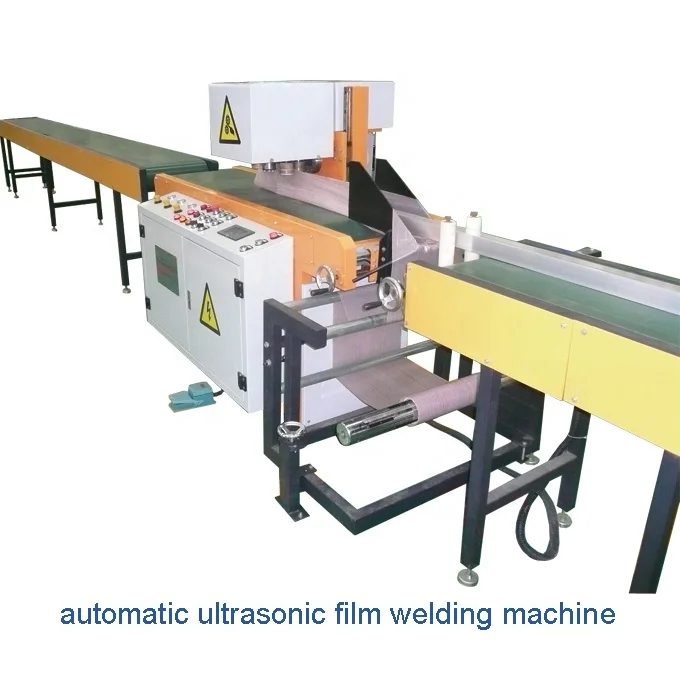

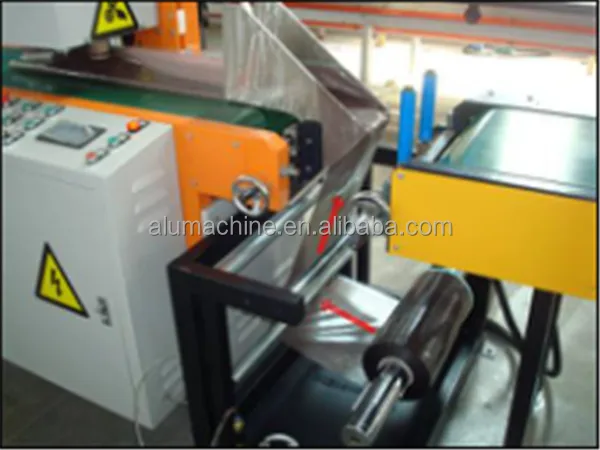

                               wood film welding machine

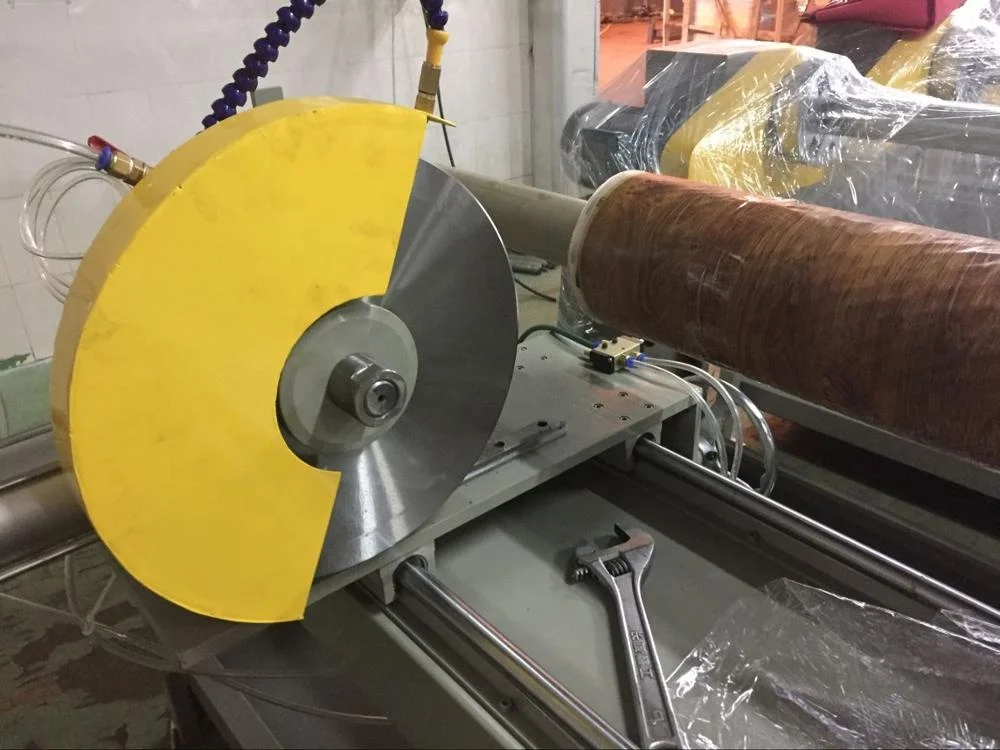

                                            wood film or wood paper cutting machine

 Main  Parameters:

Fuel:natural gas, LPG, diesel oil, electricity

Daily Capacity:5T/10hours

Voltage : 380V 50HZ (customer)

Power: 16kw

Heating temperature: 160℃~200℃

Transfer time: 8~15min

Maximum feed quantity: 36 pieces (according  to aluminum size)

Maximum profile length:6.5m

Floor area: L28.5m*W 2.3m*H 3m



FAQ:

1.Q: Silicon membrane and individual suction table design for wood grain transfer machine, which one is better?

A: Silicon membrane design table is suitable for aluminum sheets, panel and aluminum profile,but good at aluminum sheets& panels; individual suction design table is good at aluminum profiles.



2.Q: what is the difference between transfer film and transfer paper?

A: Transfer film must be welding bagging before doing wood grain transferring.

  Transfer paper should be used with high temperature bag together, which play a part in vacuum sealing and paper protecting.



3.Q: Comparing multiple hot log shear furnace and single type, which one is better?

A:If use multiple hot log shear furnace, the billet is not necessary to homogenizing,good for 24hours daily working.single hot log shear furnace is fast heating,suitable for short time daily working,but the billet must be treated through homogenizing.



4.Q: What is the advantage for induction die oven?

A: Fast heating,special program to protect die,PLC control more precise temperature,all state show on screen, alarm for over-temperature,alarm for wrong operation,small powder to save energy.



5.Q: Do you have advantage for thermal break strip project?

A: Yes,from the raw material to thermal break strip extruder,supply the full line at good technology and good price,already supply to many countries and have a long term business.
