JDS Optical glass half penta prism with reflective coating , BK7/K9 AR coating penta prism

 We carry on stock BK7 prism, either AR coated or not,email us for more details .

• Diameter:0.5-500mm
• Tolerance: +0/-0,1mm,+/-0.01mm
• Material:N-BK7, H-K9L, Fused Silica, H-ZF52A, Sil, MgF2, CaF2, Sapphire, ZnSe, ZnS, etc.
• S/D :60-40,40-20,20-10
• Thickness tolerance: +/-0.1mm
• Focal length is calculated at 546.1nm
• Surface accuracy: λ/4 @632,8nm
• Centration : < 3 arc min
• Clear aperture : >90%
• Damage threshold of broadband AR coating: >5J/cm^2, 20ns, 20Hz, 1064nm
• Coatings: AR coating,Ultraviolet (UV), visible, or Infrared (IR) spectrums

Optical Right Angle Prisms⇒

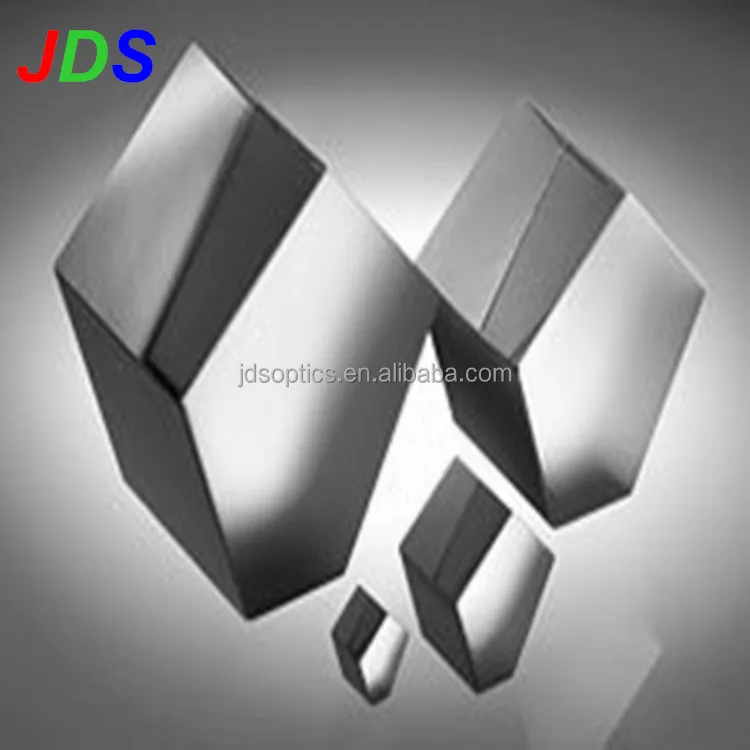

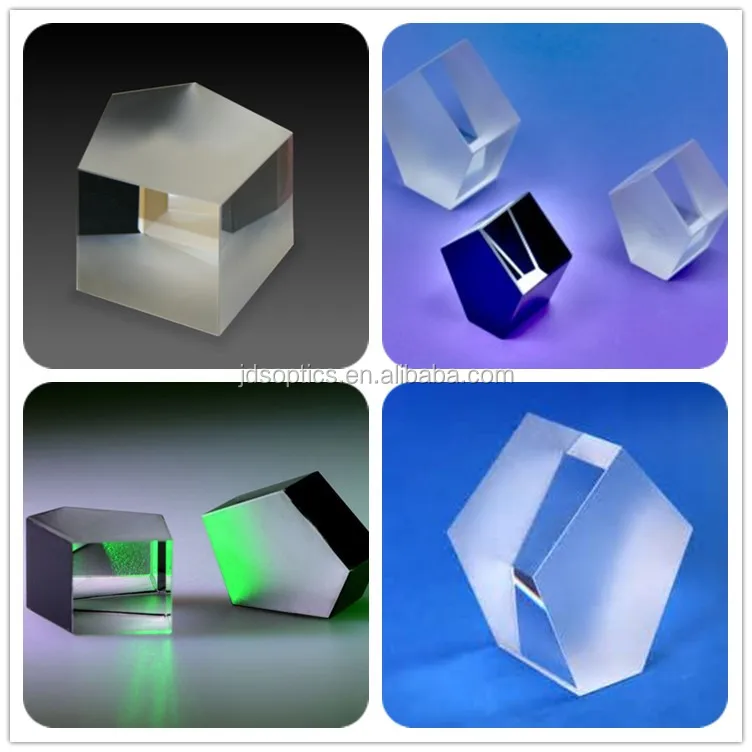

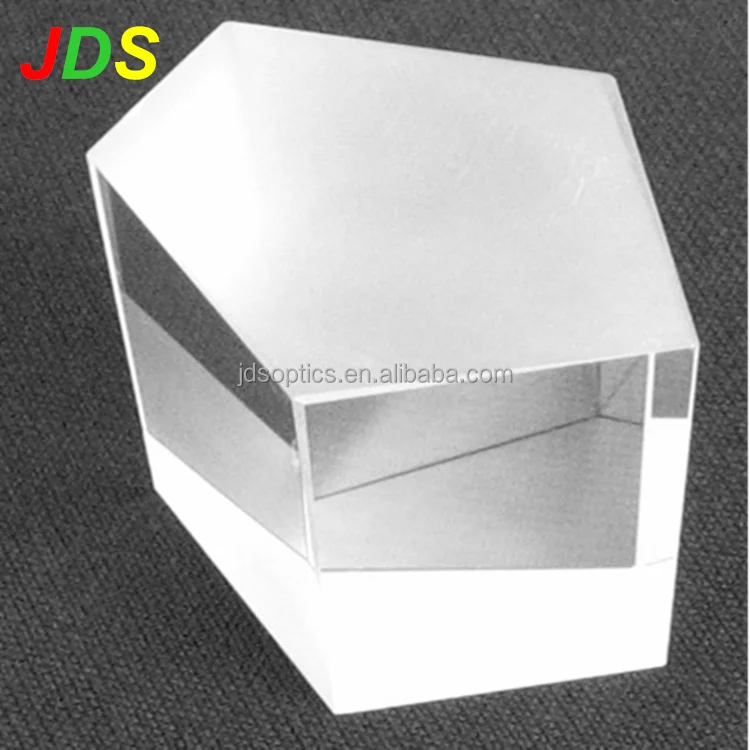

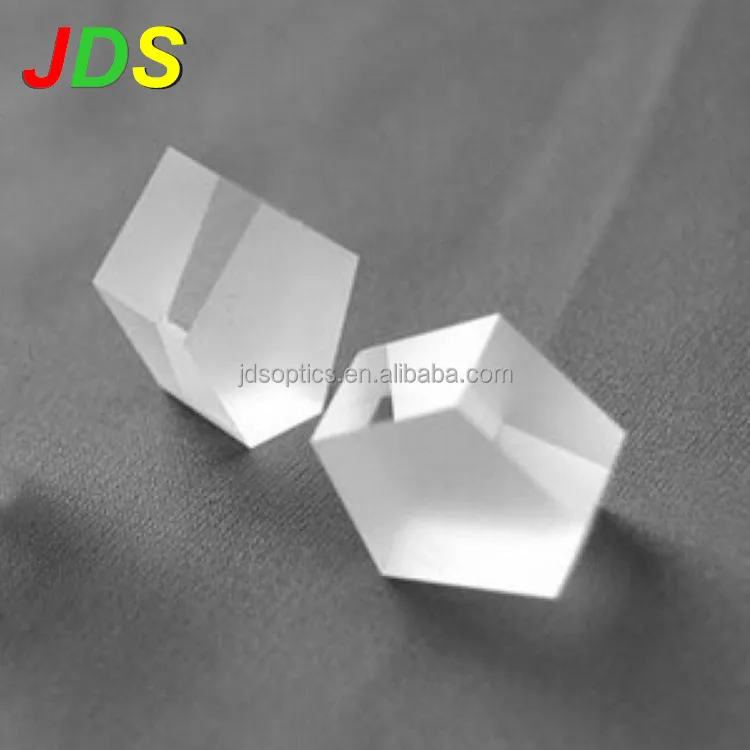

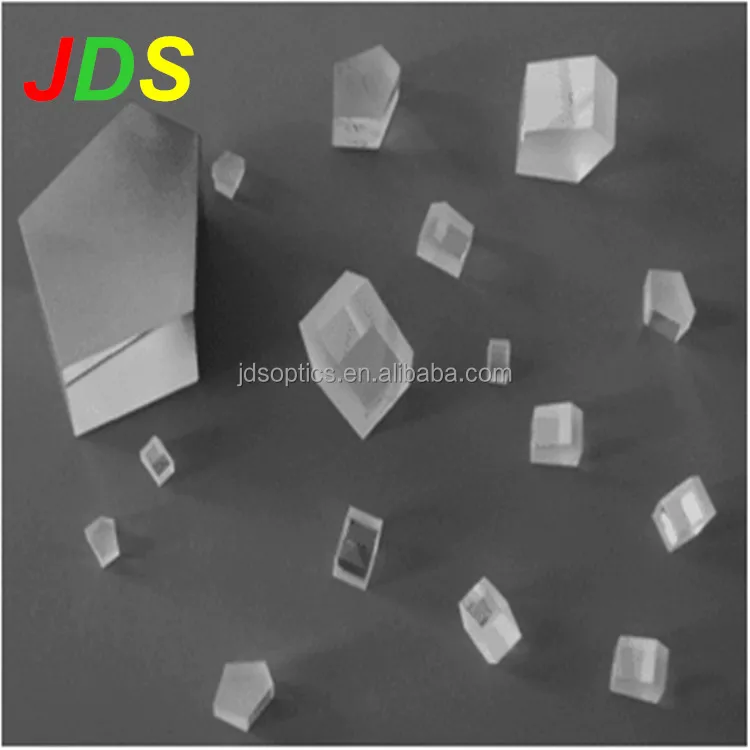

Penta prisms are five-sided prisms featuring a ray deviation of 90° and a right handed image. The reflecting surfaces are aluminized for increased efficiency.

Slight movement of the prism does not affect the true right angle at which light rays are reflected, making a penta prism the ideal optical tool for defining a right angle in an optical system.

 Penta Prisms are made from precision N-BK7 for use in a variety of visible light applications.

JDS® Optics and Laser⇒

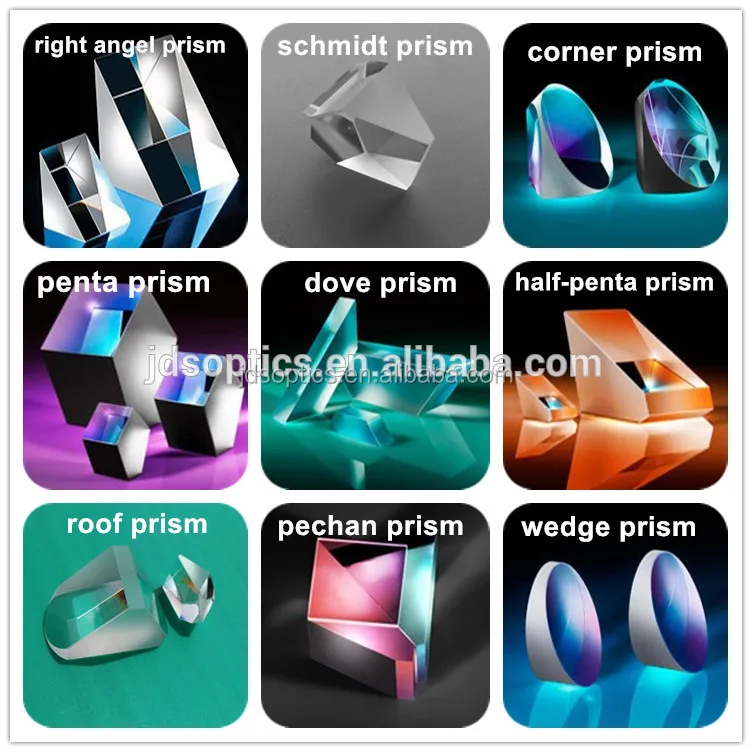

offers a wide range of Optical Prisms in a variety of designs, substrates, or coating options. Designs include Right Angle, Amici, Penta, Schmidt, Wedge, Anamorphic, Equilateral, Dove, or Rhomboid prisms, in addition to Corner Cube Retroreflectors or Light Pipe Homogenizing Rods. Anti-reflection coatings include MgF₂, UV-VIS, UV-AR, VIS 0°, VIS-NIR, or multiple laser line options.

JDS® Optics and Laser⇒

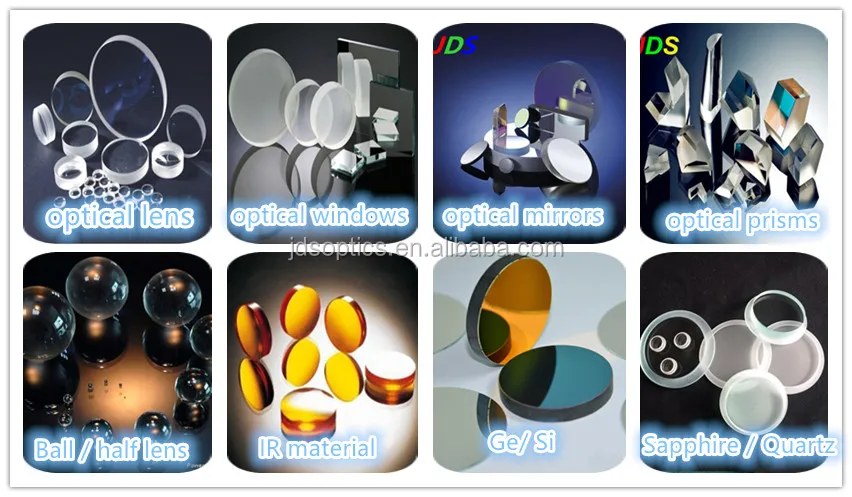

can customized various optical products with different shape, dimention and precision. Including spherical lens, aspherical lens, achromatic lens and provide coating. It can be used for UV, visible or infrared wavelengths.

we are confident that JDS®can provide the best service for you.

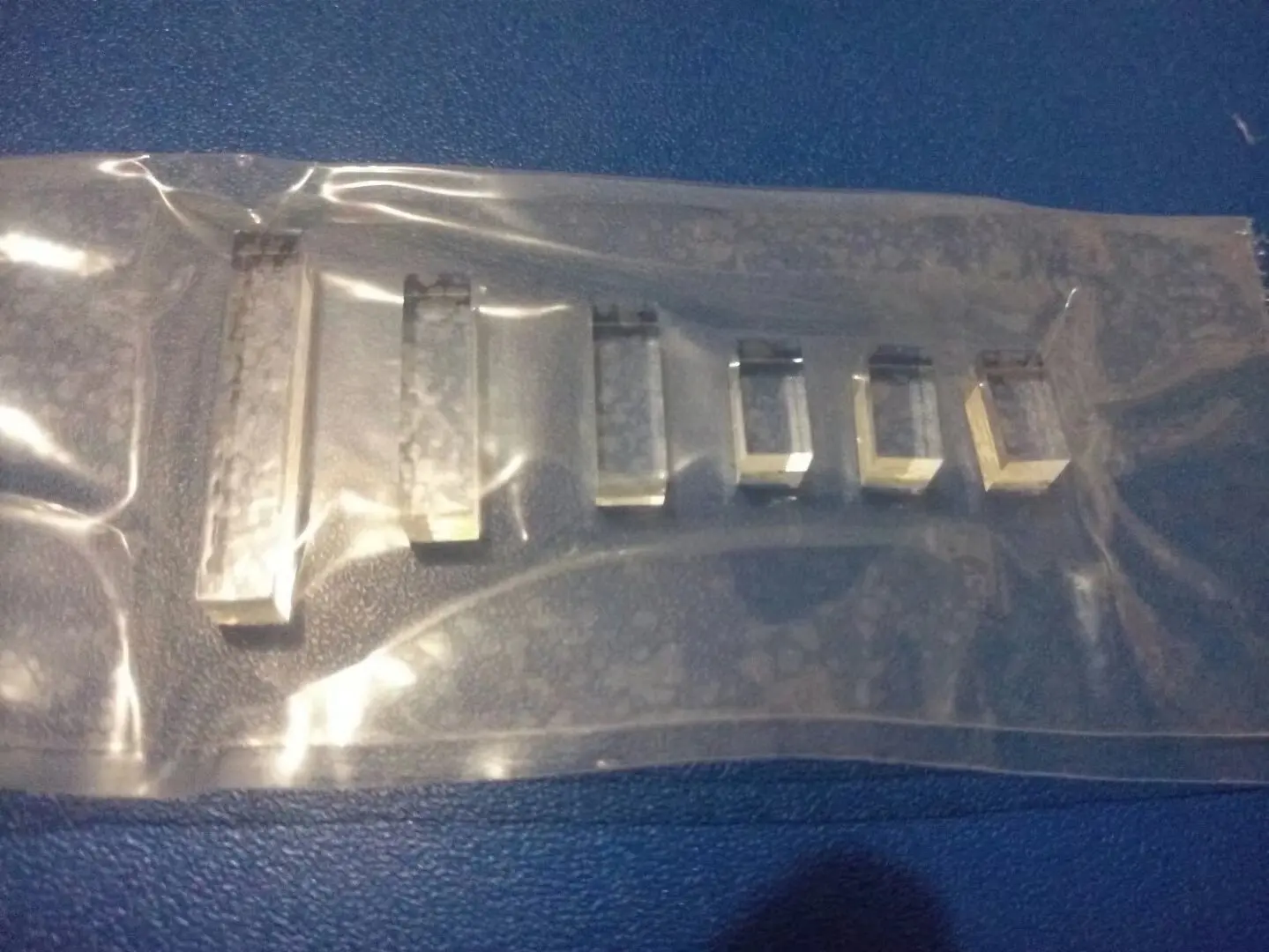

Outer packing → three layers corrugated carton, wooden box or as required

Who we are ?

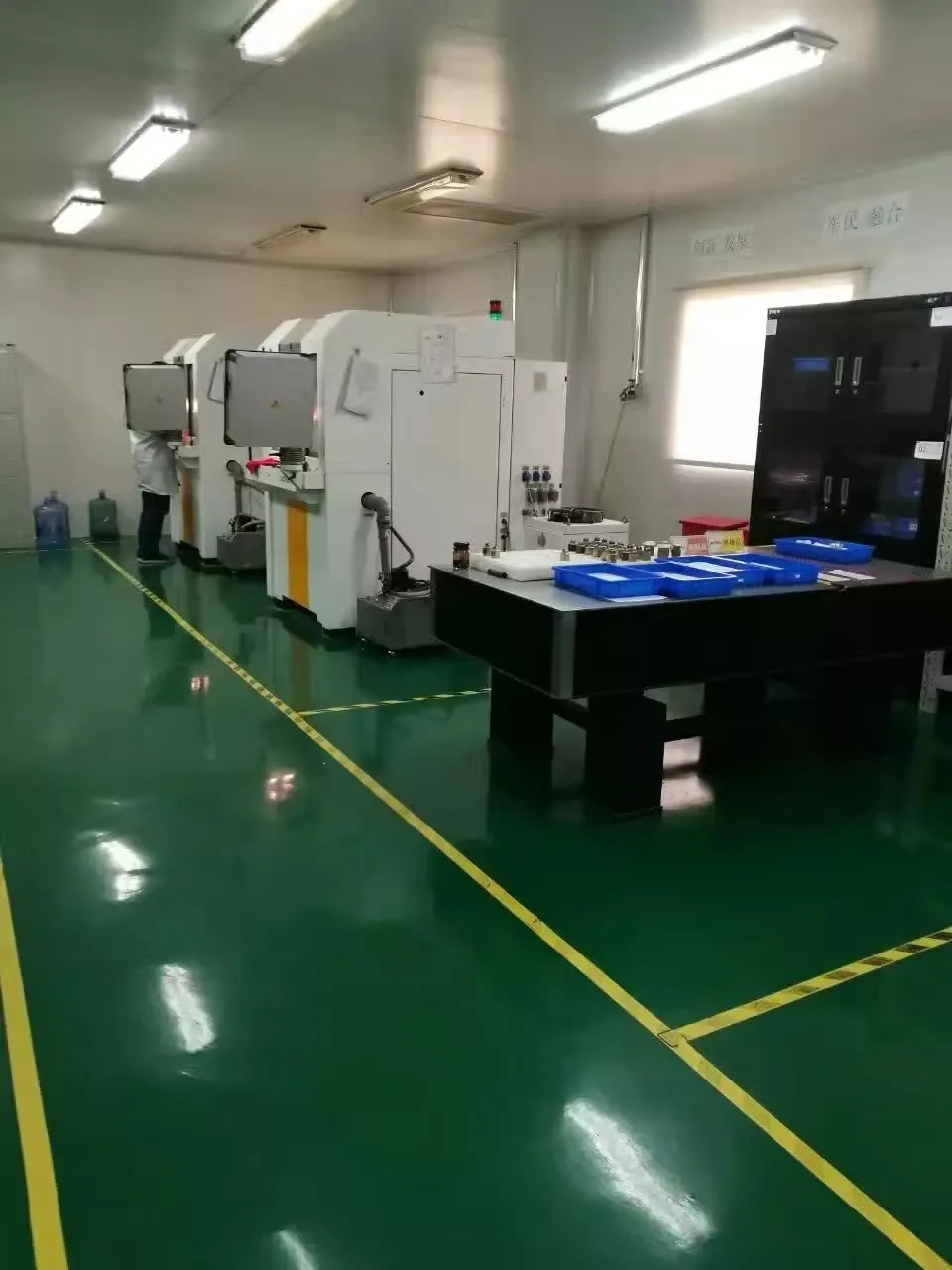

JDS® Optics and Laser⇒ a leading manufacture of high precision Optical components in China over 20 years. Its stock and build to print custom products areused in leading edge photonics technology, electro-optics,lasers,telecommunications,

medical instruments, optical imaging and optical computing.

What we can do for you ?

♥Our team can evaluate your designs tolerance & performance

♥We make your design more feasible & affordable

3D models & drawings are created

♥All drawings are to ISO standards

♥Assistants with sourcing and procurement of optical elements

♥We CAN design your optics today!

Why us ?

1. Technical and degisn help

2.Quality ⇒  Our technical sales staff are always on hand to offer aftercare for your products .

3 .MOQ and Price⇒  usually , for inventory products, the moq is 1pcs, for customzied products , the moq is 5-10pcs, all in a reasonable price .

4.Fast delivery⇒  for inventory products ---1-3days , for customized products --- 7-25days .

5.Convenient express⇒  we will send products by UPS, Fedex, DHL ,TNT,EMS ,SF and so on .

6.Flexible payment method⇒  T/T , Money gram , Western Union , Paypal ,Credit card
