Mini Small Used Bauxite Gypsum Gas Kiln Machine, Activated Carbon Lime Rotary Kiln Price For Sale



1.  Introduction of Limestone Calcination Process Active Lime Production Line

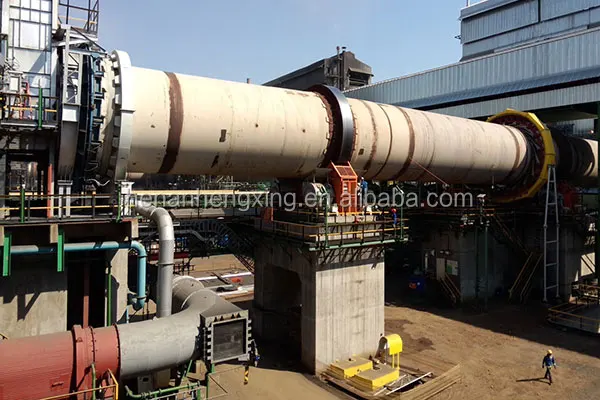

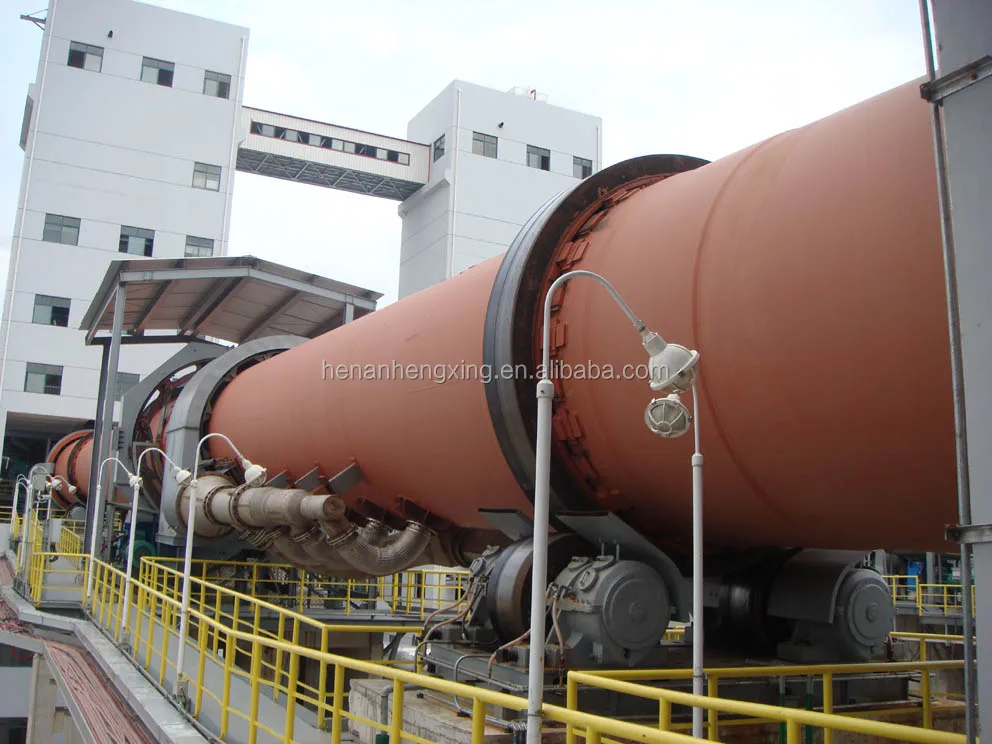

Active lime kiln is a type of rotary kiln and it is the main equipment used for calcining active lime. This equipment is mainly composed of the cylinder, supporting device, supporting device with catch wheel, transmission device, lubrication device, mobile kiln head and sealing device at the end of the kiln. Active lime kiln has the advantages of simple structure, reliable operation and easy control of the production process.







2. Advantages of Limestone Calcination Process Active Lime Production Line

1. Good quality and high output, suitable for large-scale activity of lime production line and large-scale production.
2. Stable production, all the production with the negative pressure, air flow and higher security.
3. Simple structure, easy control and beneficial operation and maintenance.
4. Fine grade limestone can be calcined, full use of mine resources.
5. Low heat consumption per unit of product, installation in vertical kiln perheater which can take advantage of exhaust warm limestone, greatly reducing the fuel consumption.
6. Making full use of industrial waste gas as a fuel for lime burning (such as blast furnace exhaust gas, acetylene tail gas, charcoal blue exhaust, etc)
7. Kiln head adopts the design of vertical cooler integrating kiln head cover. The construction area is small, good sealing, effectively avoiding hot waste gas emissions unsystematically.





3.  Features of Limestone Calcination Processing Active Lime Production Line

Active lime kiln has advanced structure. The vertical pre-heat with low-pressure loss can effectively improve the pre-heating effect, and the in-kiln decomposition rate of the pre-heated limestone can reach 20-25% and the 10-15mm fine particle limestone materials can be directly used.





4. Principle of Limestone Calcination Processing Active Lime Production Line

This active lime kiln adopts combined type scale sealing, so that the air leakage factor is smaller than 10%. Compound type refractory matter is adopted to reduce the radiant heat loss. The infilling type circular or square vertical cooler that can be divisionally ventilated can cool the temperature of the lime that is discharged from the cooler to 80℃+ of the environment temperature for the convenience of transportation and storage, and it can also pre-heat the in-kiln secondary air to over 700℃ to make full use of the waste heat and save energy.





5. Specifications Limestone Calcination ProcessActive Lime Production Line

Capacity (t/h)	Product	Rotary kiln		Preheater	Burning temperature	Cooler	Heat consumption (KJ/Kg Cao)
		Spec. (m)	Effective volume(m³)
150	active  lime  light calcine  dolomite	φ 2.5*40	142	Circular  vertical  preheater	1350/1250	Circular  vertical  cooler	5300/5000
200		φ 2.8*42	190
250		φ 3*46	235
300		φ 3.2*50	292
350	active lime	φ 3.5*54	390		1350		5225
400		φ 3.6*56	430
500		φ 3.8*58	505			Square  vertical  cooler	5100
600		φ 4*60	575
750		φ 4.3*58	670	Shape  vertical  preheater			4810
800		φ 4.3*64	738
1000		φ 4.8*68	1005
