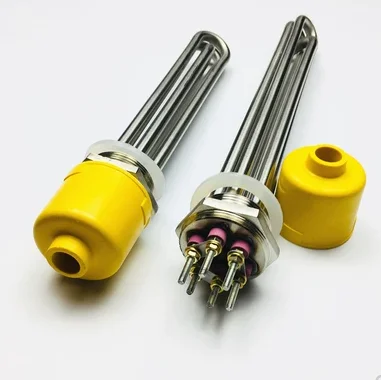

Water heating rod 220V 380V heating rod

Product Overview

Description

electric heating rod

Specification parameter	Detail	Remark
Sheath Material	SUS316L/Copper coating Ni	Materials can be changed to be copper,sus321,sus316L,incoloy804,incoloy800 as requested
Voltage/wattage	230/2KW-12KW	Voltage/Wattage /Tolerance can be customized as required,and Wattage tolerance(cold condition):+5%-10%
Tube Diameter	6.5mm/ 8.5mm	Tube diameter can be changed to 6.6mm,7mm,8.0mm,8.5mm,10.0mm or others as requested
Resistance powder	Magnesium oxide	We can use other powder if requested
Resistance wire	Ni80Cr20	OCr25Al5 or other material if requested
Faston terminal	Nickel plated iron	Materials of terminal housing could be stainless iron,stainless steel if required
Leads	Stainless steel	Materials of terminal piece could be stainless iron,stainless steel if required
Screw thread	1” or 2”	Other thread can be made if required
Density	Max 30W/cm2
Shape	U or other as requirement
