Antistatic wrist strap checker for one and for two available

Product Overview

Description

Performance of Wrist Strap Monitor:

1. Can check the grounding condition of the operator equipped with the writ strap easily and conveniently.

2. Through the real time monitoring, the discharge of the static electricity from human body can be eliminated, and the losses caused by the static electricity can be effectively minimized.

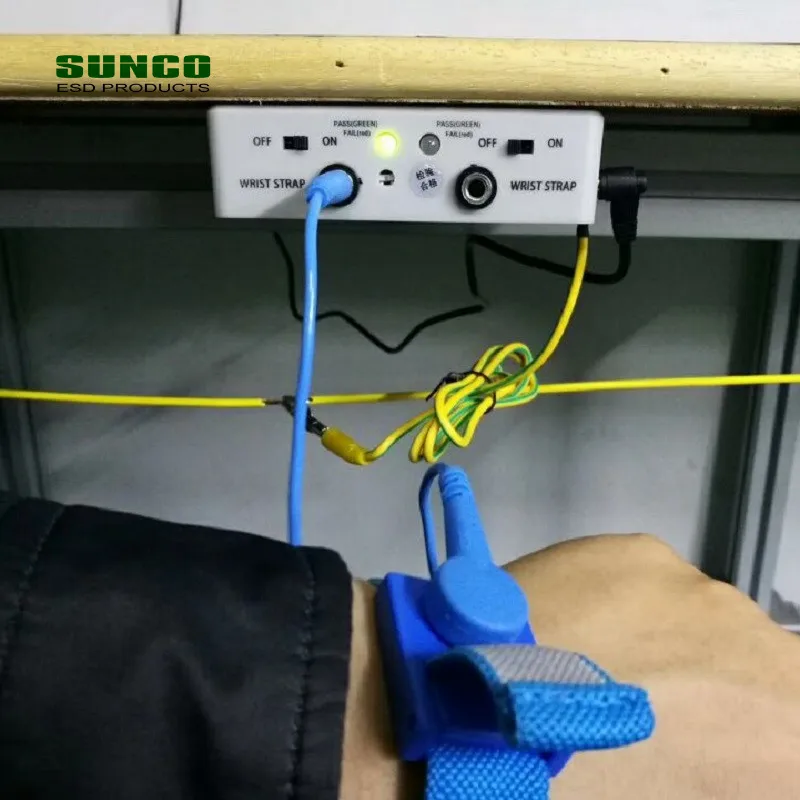

3. With the double-channel design.(optional)

It can check body to ground resistance of two operators equipped with wrist strap at the same time.

4. Simple structure, compact and easy to use.



Features

 -- No checking is required
-- Instant warning of wrist strap failure, improve production quality
-- Highly reliable, easy and convenient
-- Small and handy, easy and convenient
-- Low price, save cost
-- For your convenience, you can use any wrist strap with banana plug in the market.





Specifications

Size:	67 x 60 x 29mm
Mounting:	Screw Mount
Safe Condition:	Less than 10Meg Ohm
Power:	AC220V 60Hz
Visual Indicators:	Green: Safe condition   Red: Fault condition
Audible Alarm:	Piezo Buzzer
Operation:	Automatic
Weight:	60g

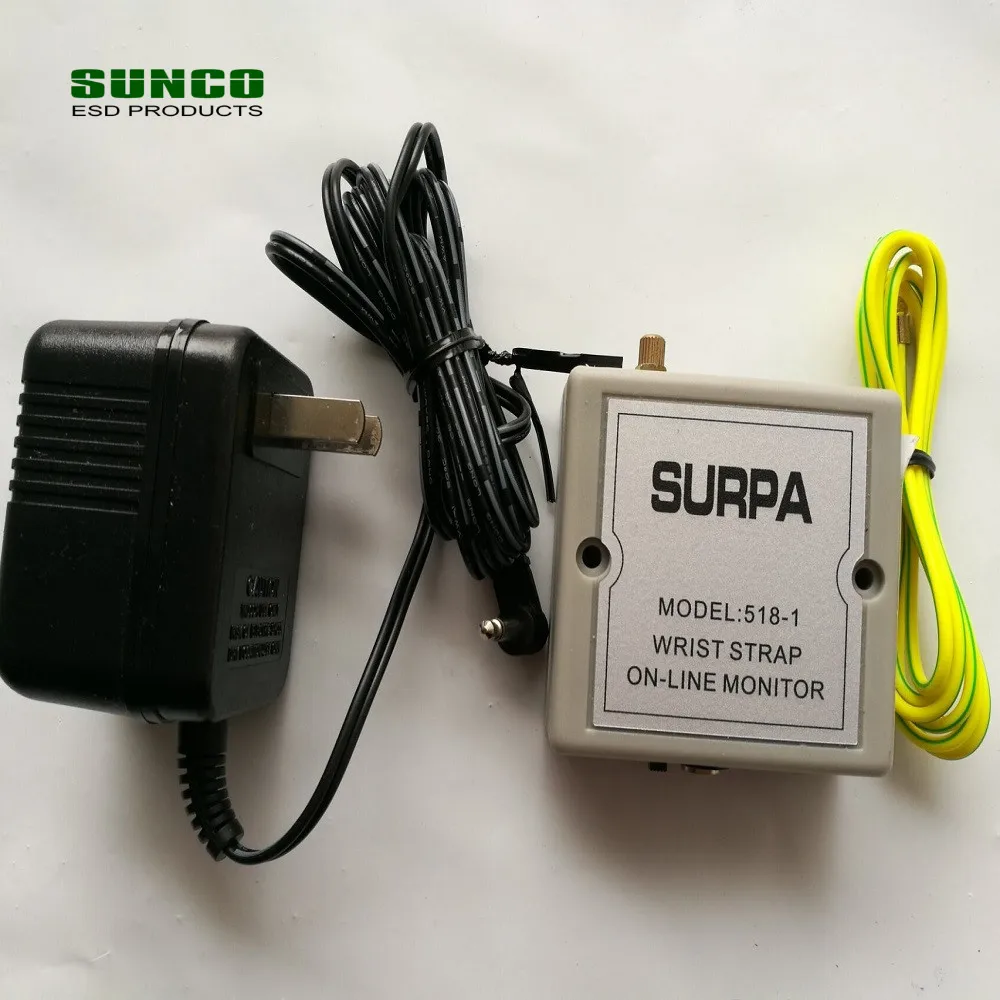

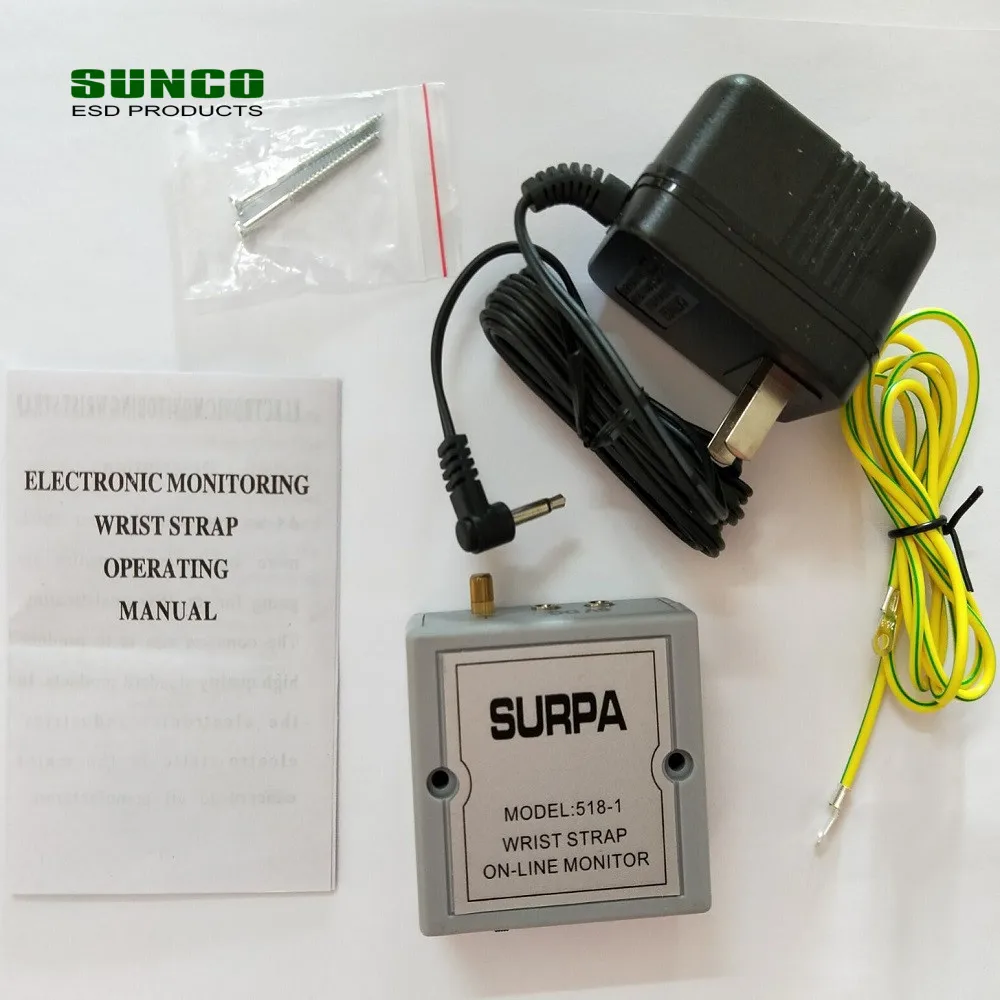

Package Include:

x 1  Power Supply (input: AC220V, out put: DC6V)

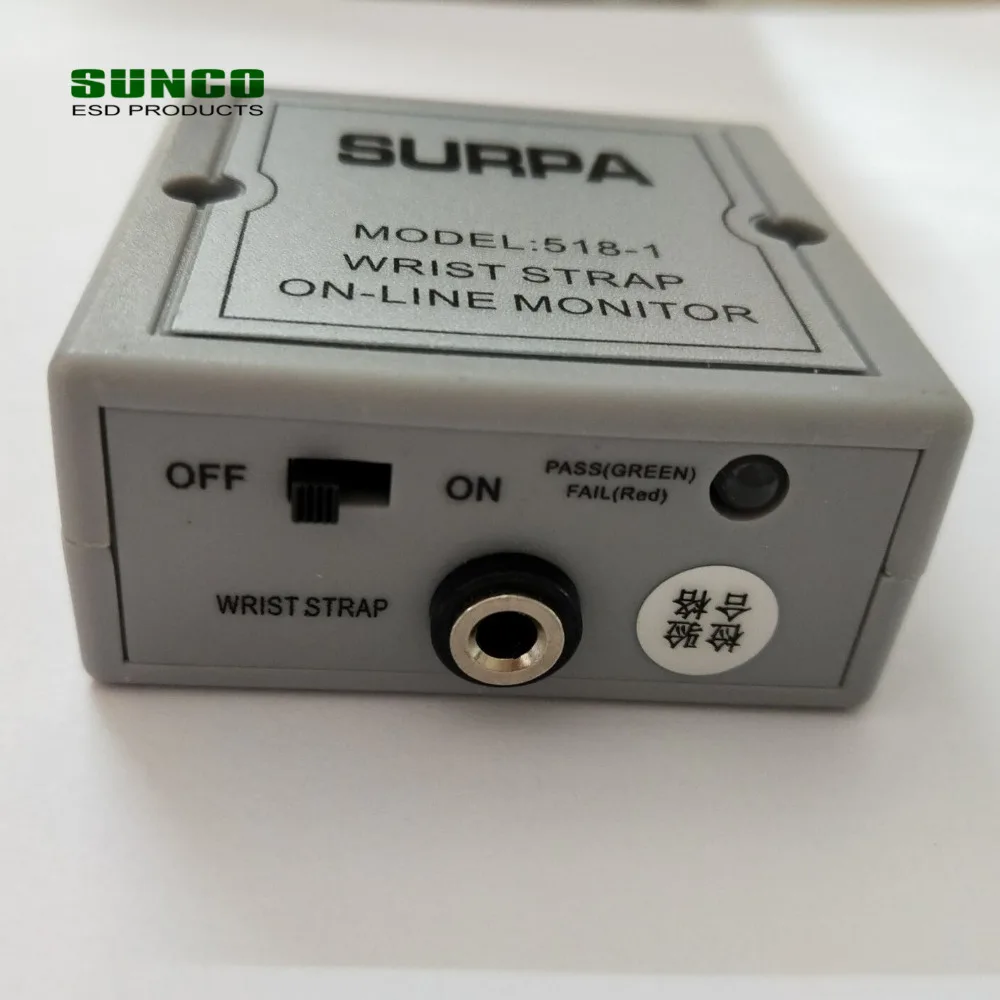

x 1  Wrist strap on-line monitor (model 518-1)

x 1  Grounding Cord

x 2  Screws

x 1  Operating Manual
