Mig wire CO2 wire respooling line layer winding machine
- Category: >>>
- Supplier: Shijiazhuang Satle Machinery Manufacture Co. Ltd.
Share on (60730967813):
Product Overview
Description
Mig wire CO2 wire respooling line layer winding machine
Application:
For the precision layer winding for metal wires,such as:CO2 wire,steel wire,copper wire,stainless steel wire,nickle alloys wires
Wire diameter:>1.2mm
Compose:
Payoff unit,Tension bracket,Rewinding unit
Parameters:
Useage | Application | Precision layer winding of metal wires. |
Suitable material | CO2 welding wire,alloy wire,copper wire,stainless wire,steel wire,nickle wire,etc | |
Packing type: | for plastic spool or metal spool, spoolless coil | |
Max. speed | 20m/s | |

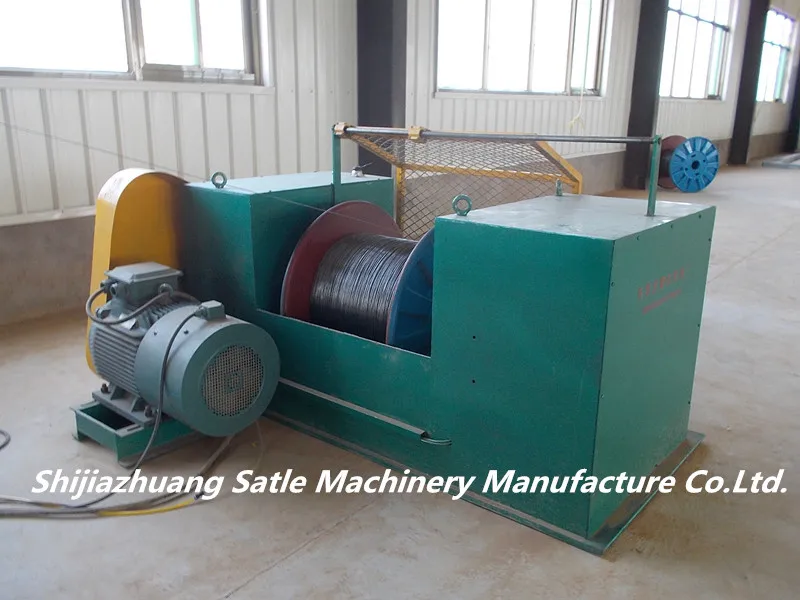

Rewinding unit | Takeup motor | 5.5kw motor with vafiable frequency drive |
Straightening | 26pcs killing rollers.V type | |
Traverse | controlled by servo motor | |
Weighting | Automatic weight,automatic stop for target weight ot length | |
Input | Touch screen | |
Pay off unit | Model | FX800//710/630 |
Payoff motor | 11kw active payoff | |
Tension control unit | Tension control | Universal tension control adjustable by pneumatic element |
Weighting | By encoder | |
Tension wheel | Engineering Nylon with wheel diameter 240mm | |
No. of wheel | 5+5 | |

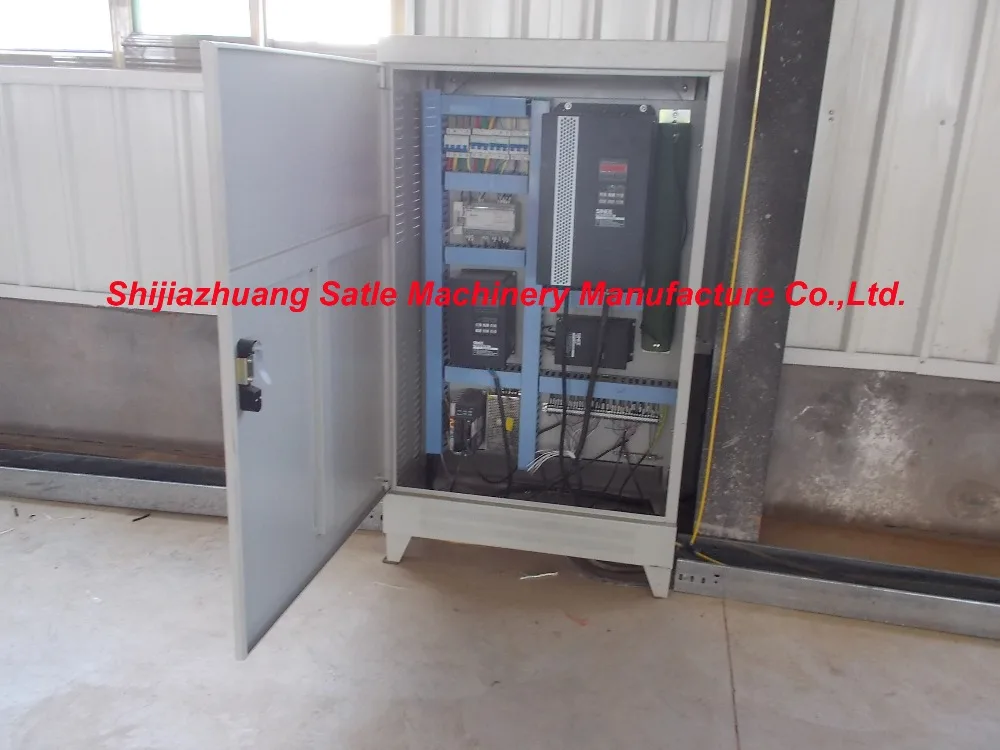

Electricl cabinet | PLC | delta/invt |
Inverter | delta/invt | |
Low voltage appliance | Chint |
