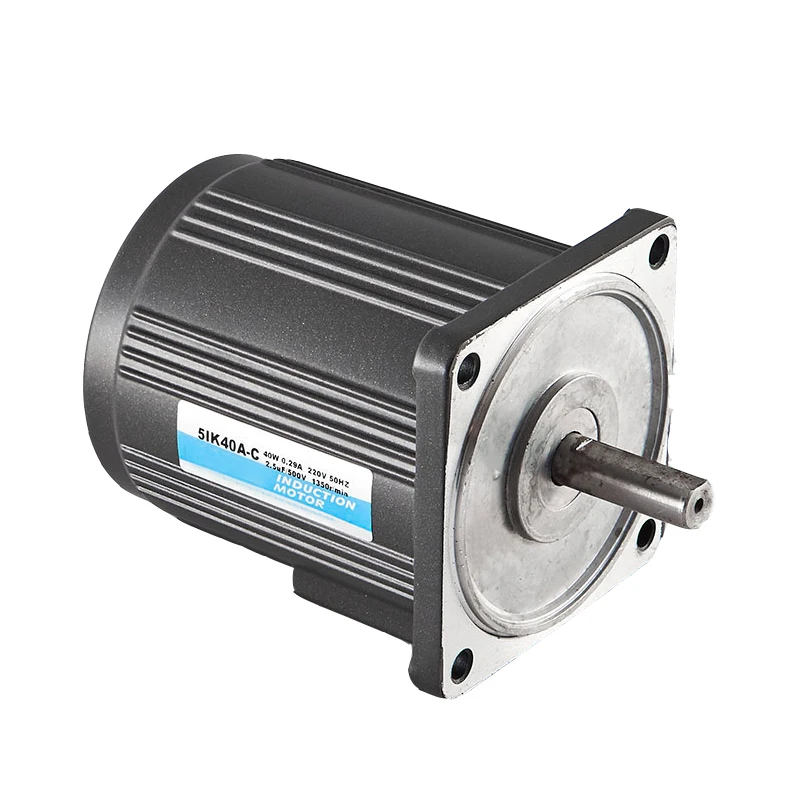

90mm 110v 220v 40w low rpm speed controller electric ac gear motor

The small AC gear motors are widely use for Textile Machinery, Medical Machine, Vehicle Power Steering,Conveying Machine, Printing Machine, Food Machine, Vending Machine, Packing Machinery, Gumming Machine and so on

Our main gear motors are micro DC and AC gear motors and right-angle gear motors
1. Motor&Gearhead Dimensions : 60mm, 70mm, 80mm, 90mm, 104mm
2. Power: 6W, 15W, 25W, 30W, 40W, 60W, 90W, 120W, 180W, 200W, 250W
3. Voltage:
   AC: Single/three phase, 110V 220V 380V
   DC:12V 24V 60V 90V 110V 220V ..
4. Output Speed :
   AC:500-3.0 r/min
   DC 16RPM -1000RPM
5.Output Torque :
   AC: 0.13-39.2 N.m
   DC: 0.04-40 N.M
You can contact us for more details

A.Certificates passed:All tests passed for most of our motors and can supply reports.

B.Fast feedback for customers:24 hours reply for all customers' inquiries.
C. Competitive prices.
D. Quality guarantee:We have shipped much motors to Italy, Spain, and other European and USA customers with high quality.
E. Fast and Timely delivery:Usually 10-15 days for goods production.
F. Professional Technical support and After-sale service.
G.Customized service for kind of motor according to your requirement.

Q1: What kind motors you can provide?
A1: For now, we mainly provide permanent magnet brush dc motors, brushless dc motor, dc gear motor, micro dc motor, ac gear motor, planetary gear motor, with diameter range in 42~110mm. NEMA dc motor. NEMA dc Motor. stainless steel motor

Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style.

Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and shaft diameter etc. The price also varies according to different order qty. So it's really difficult for us to provide a price list. If you can share your detailed specification and order qty, we'll see what offer we can provide.

Q4: Are you motors reversible?
A4: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection.

Q5:How about your delivery time?
A5: For micro brush dc gear motor, the sample delivery time is 2-5 days, bulk delivery time is about 15-20 days, depends on the order qty. For brushless dc motor, the sample deliver time is about 10-15 days; bulk time is 15-20 days.Please take the sales confirmation for final reference.

THE SAMPLE BY EXPRESS OR AIR

LCL=LESS THAN CONTAINER LOAD, FCL=FULL CONTAINER LOAD, BY SHIPMENT

                     Brake motor

15W. 25W. 40W. 60W. 90W. 120W. 140W. 180W 200W. 250W,  Custom made.

          Reversible Motor

15W. 25W. 40W. 60W. 90W. custom made

Brake Speed Control Motor

25W. 40W. 60W. 90W. 120W. 140W. 180W 200W. 250W, Custom made.
