Long working time scrap metal steel iron aluminum crusher
- Category: >>>
- Supplier: Gongyi Hengyuan Industry Co. Ltd.
Share on (60731040799):
Product Overview
Description
Product Description
1.Introduction of scrap metal steel iron aluminum crusher
Scrap metal steel iron aluminum crusher can make all kinds of materials such as metal material and circuit board can be tearing to the easy to handle shape size. Metal smelting, metal recovery and the ideal processing equipment for iron and steel.
In the process of crushing, there are four kinds of external force added to the solid, such as pressing, cutting, impacting and grinding. Mainly used in rough rolling, crushing, crushing for hard materials and bulk material; cut is mainly used in crushing, grinding for ductile material; impact is mainly used in grinding, fine grinding, fine grinding, suitable for brittle material grinding; grinding mainly in fine grinding and superfine grinding, suitable for crushing small block and fine particles. The actual grinding process is often a few external forces acting at the same time.

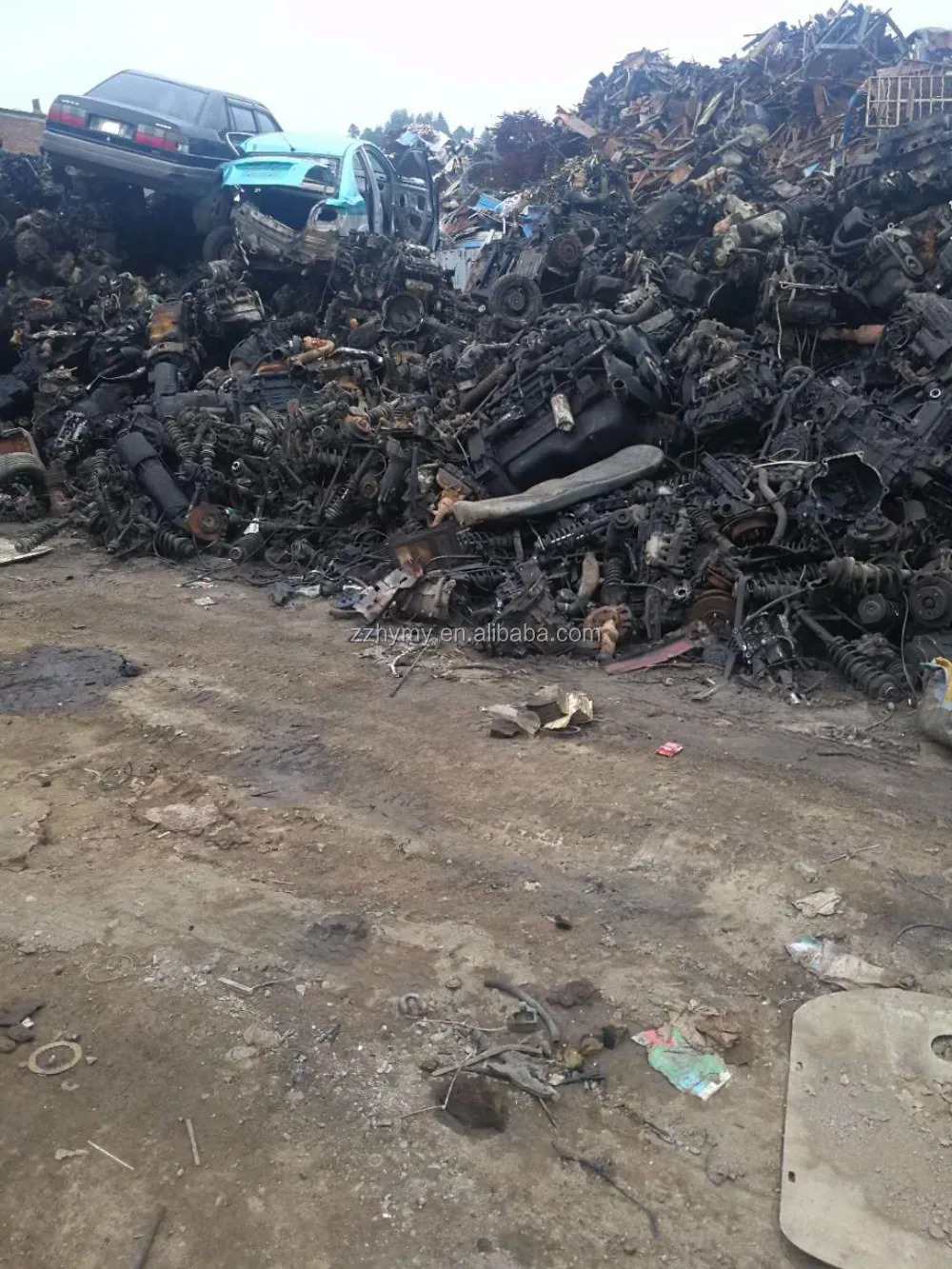

2.Raw materials scrap metal steel iron aluminum crusher
scrap metal steel iron aluminum crusher can break all kinds of pop cans and scrap metal, such as Lulu cans, Red Bull beverage cans, beer cans, oil tanks, paint barrels,car shells,waste bicycle,waste metal,iron cans,color steel plate and so on into pellet particles, thereby reducing transportation costs and improving the speed of scrap iron making and iron making.
scrap metal steel iron aluminum crusher can break all kinds of pop cans and scrap metal, such as Lulu cans, Red Bull beverage cans, beer cans, oil tanks, paint barrels,car shells,waste bicycle,waste metal,iron cans,color steel plate and so on into pellet particles, thereby reducing transportation costs and improving the speed of scrap iron making and iron making.

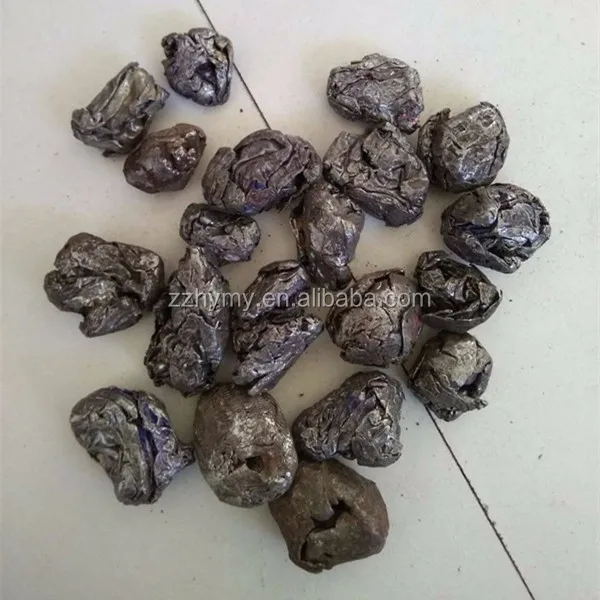

3.Final products of scrap metal steel iron aluminum crusher
The final pellets of scrap metal steel iron aluminum crusher can be pieces or balls and different size according to different materials and screen.
4.Main technical information of scrap metal steel iron aluminum crusher
Specification for scrap metal steel iron aluminum crusher | ||||||||
Model | HY-1600 | HY-1800 | HY-2000 | HY-2200 | ||||
Shell thickness | 40mm | 50mm | 55mm | 60mm | ||||
Sleeve thickness | 30mm | 40mm | 40mm | 50mm | ||||
Disc plate | Dia:1100 thickness:10mm | Dia:1200 thickness:100mm | Dia:1400 thickness:120mm | Dia:1800 thickness:150mm | ||||
Screen plate | Thickness:110mm hole dia:50-100mm | Thickness:140mm hole dia:50-100mm | Thickness:160mm hole dia:50-100mm | Thickness:180mm hole dia:50-100mm | ||||
Hammer | Cr-alloy,45kg | Cr-alloy,55kg | Cr-alloy,75kg | Cr-alloy,90kg | ||||
Rotary axis | Dia:260mm,Cr42 | Dia:320mm,Cr42 | Dia:360mm,Cr42 | Dia:360mm,Cr42 | ||||
Total power | 400kw | 530kw | 650kw | 1000kw | ||||
5.Main features of scrap metal steel iron aluminum crusher
1. It has the advantages of large torque, high output, no manic sound, wear resistance and so on.
2. Can greatly reduce the volume of chip, chip can be continuously feed, and can also batch feed.
3. Horizontal double roller chip crusher can make chip drying, pressing, smelting and crushing. The pretreatment and transportation of chemical fireproofing materials become simple and feasible.
4. It has the advantages of large crushing ratio, high production efficiency and small grain size.
5. The machine drive device has safe electrical protection, which can effectively prevent accidental failure and cause damage to the equipment.
6. The chip can be continuously fed and can be fed intermittently.
7. The use of the horizontal chip mill is convenient for the subsequent treatment of the chip, effectively reducing the chip volume and saving the storage space.
2. Can greatly reduce the volume of chip, chip can be continuously feed, and can also batch feed.
3. Horizontal double roller chip crusher can make chip drying, pressing, smelting and crushing. The pretreatment and transportation of chemical fireproofing materials become simple and feasible.
4. It has the advantages of large crushing ratio, high production efficiency and small grain size.
5. The machine drive device has safe electrical protection, which can effectively prevent accidental failure and cause damage to the equipment.
6. The chip can be continuously fed and can be fed intermittently.
7. The use of the horizontal chip mill is convenient for the subsequent treatment of the chip, effectively reducing the chip volume and saving the storage space.

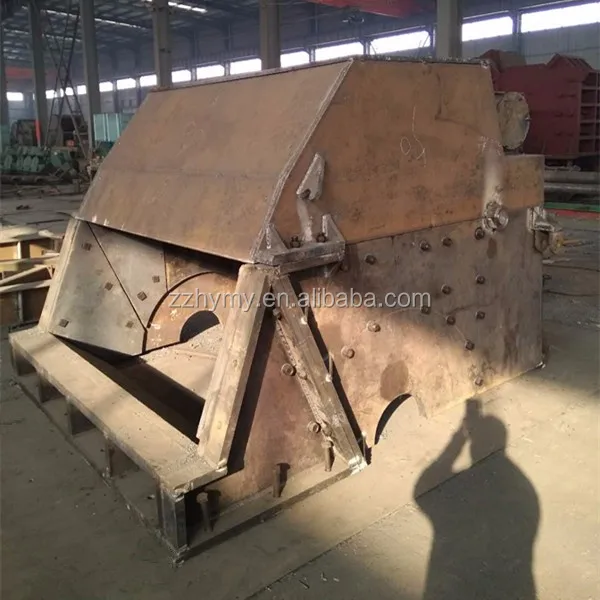

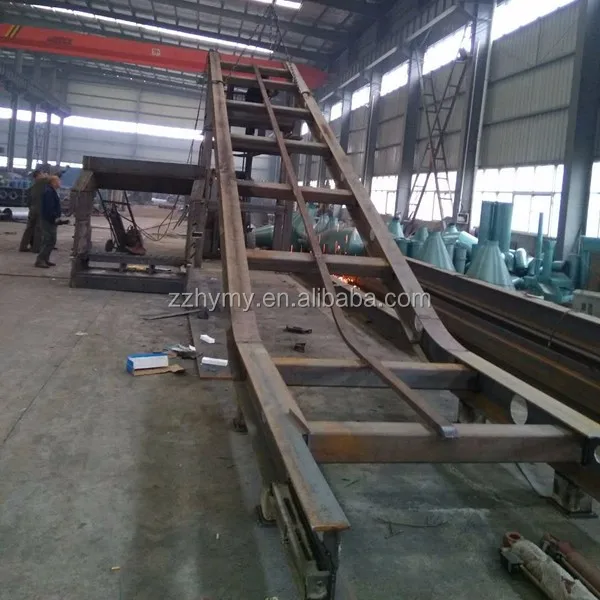

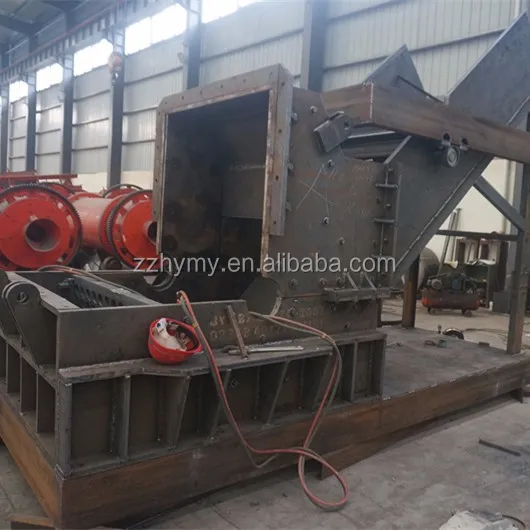

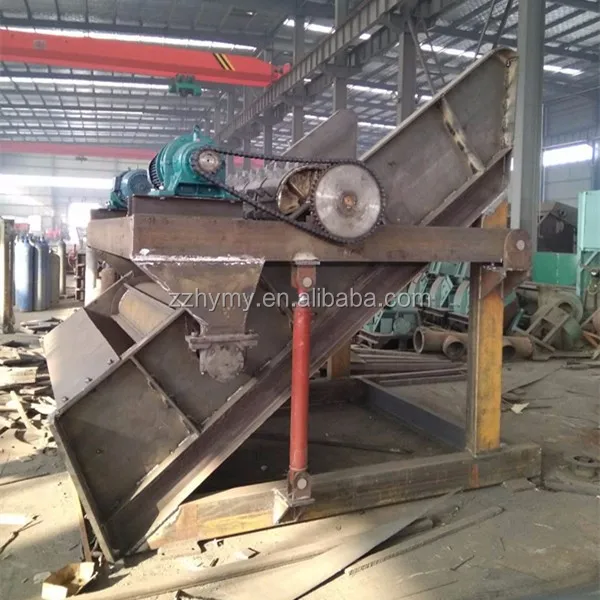

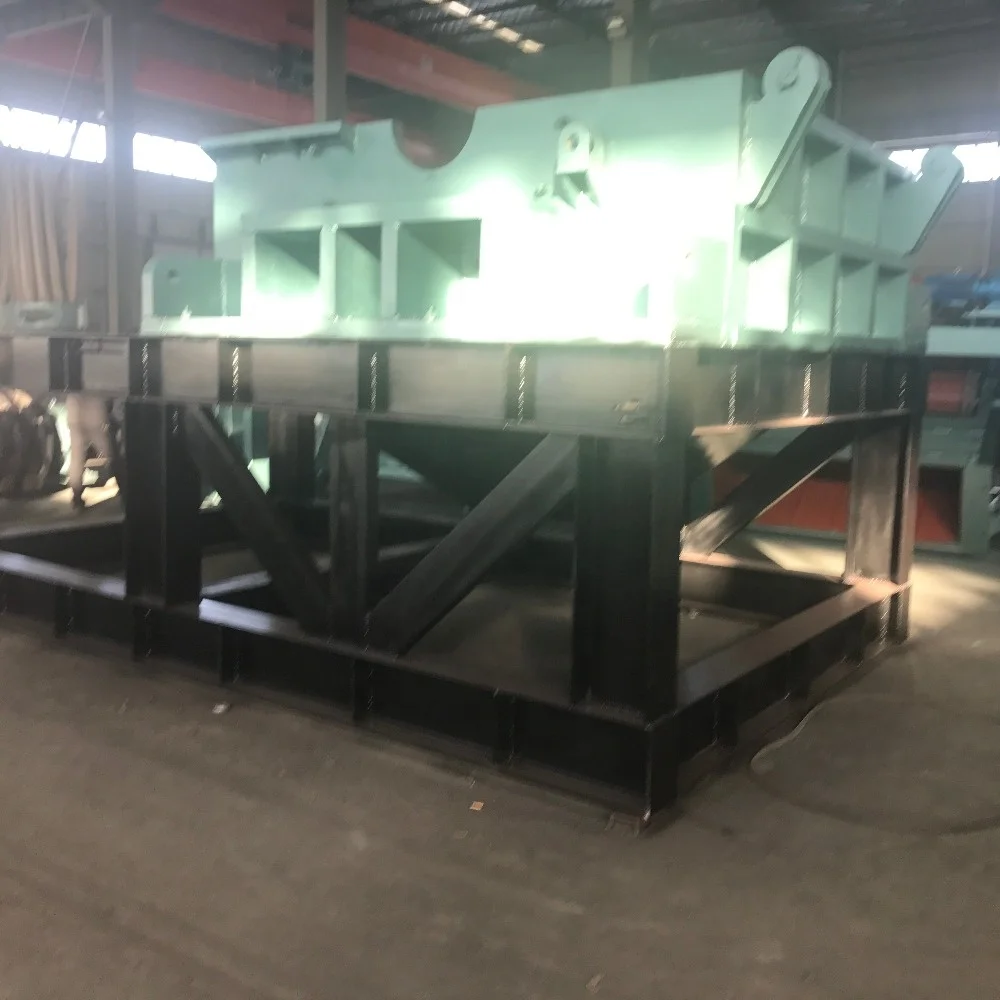

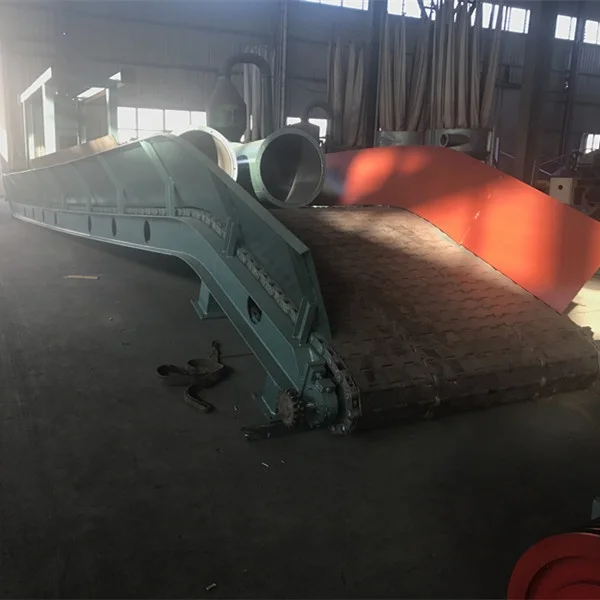

Semi-finish products
Internal fittings
scrap metal steel iron aluminum crusher
Name: Disc plate
It's has Swinging hammer and Plum blossom hammer.Significantly remove dirt, such as oil, form high density mass materials.
scrap metal steel iron aluminum crusher
Name: Hammer
The material of hammer is high manganese alloy steel,increase the service time.

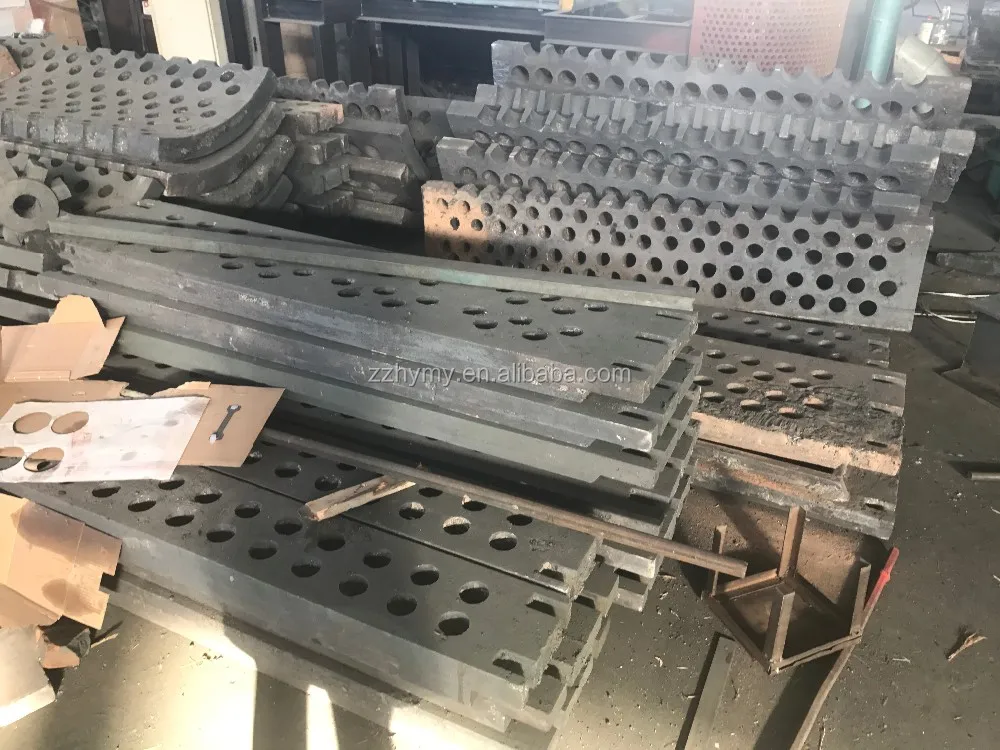

scrap metal steel iron aluminum crusher
Name: Screen
It's moveable screen,can adjust gap between hammer and screen to meet the requirements of the material specification.
Working principle of scrap metal steel iron aluminum crusher
scrap metal steel iron aluminum crusher and its core principle is to use a hammer (or blade) hit material in high speed and torque motor drive, the rotor turns into the hammer host hit to be broken through the formation of the crushing chamber, between the liner and the head space, to be broken in the crushing cavity can be fully and effectively crushing that will be broken into pieces of the specifications of the tear.The broken material swing through the air sorting system, the metal and non-metal (plastic, leather,paper and other debris) away, in addition the system is equipped with dust removal device, the production of dust pollution generated in the process to minimize the harm. After the broken metal particles come out from the outlet, the iron and aluminum separators are completely separated by the principle of magnetic separation by transporting to the feed iron and aluminum separator.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging and delivery | ||
Packaging Details | The normal package is nude. If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Delivery term | Within 25 working days after getting prepayment | |
